Product Overview

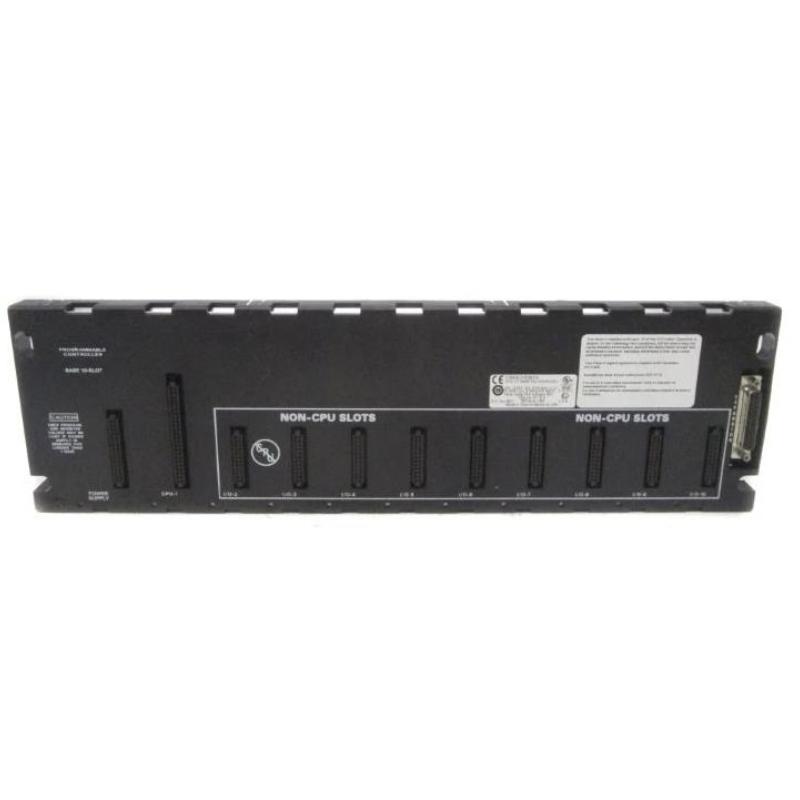

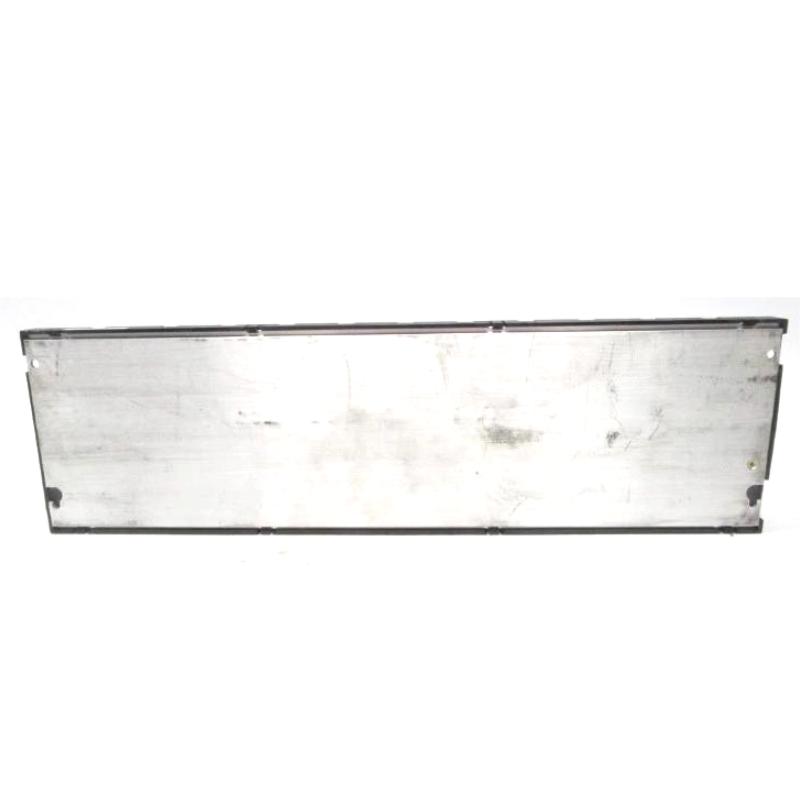

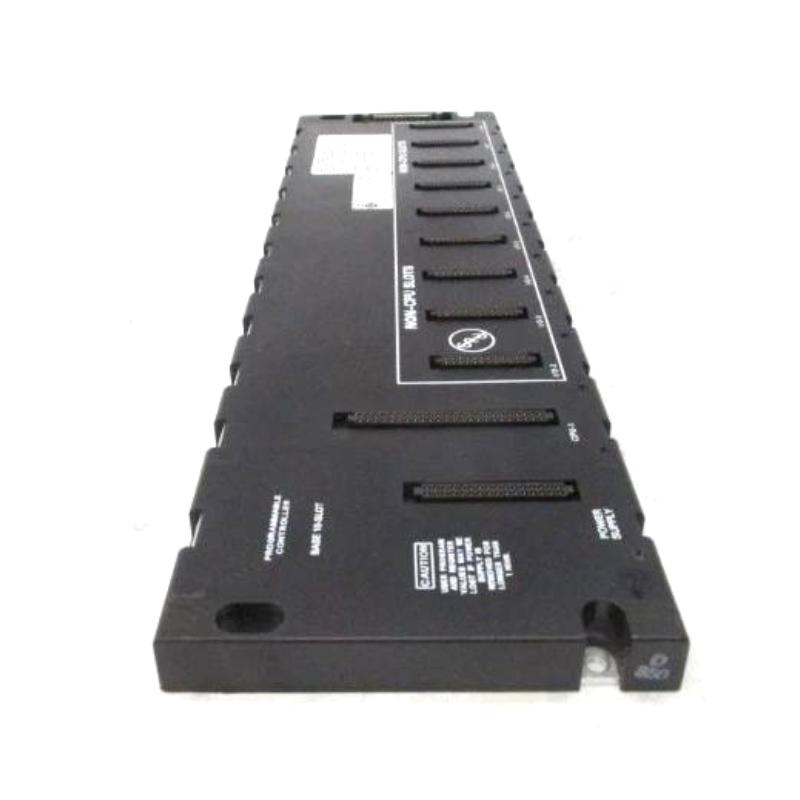

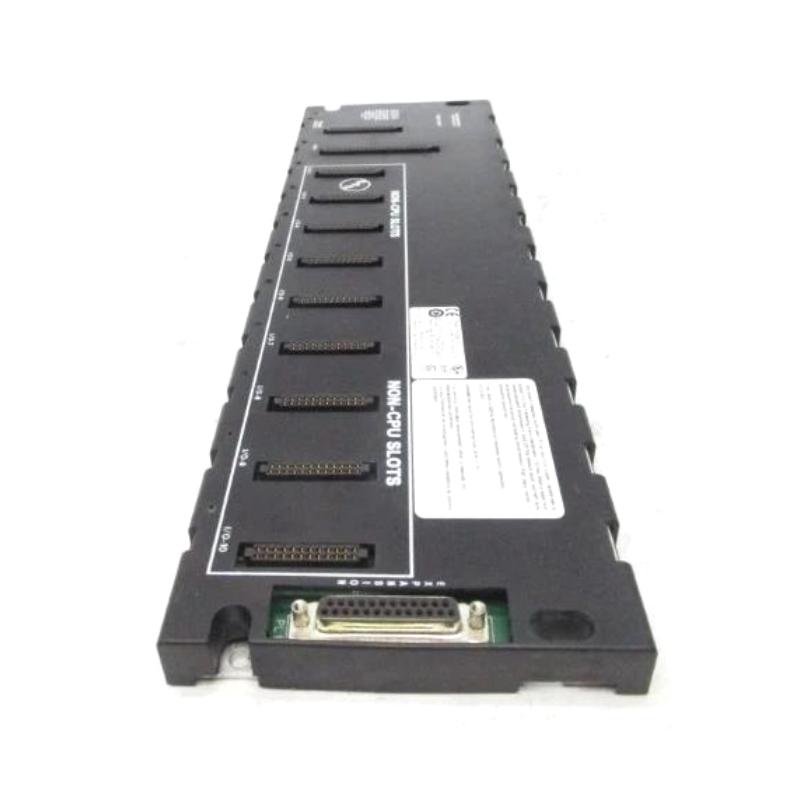

The GE IC693CHS391N Series 90-30 Baseplate is a rack and backplane assembly used to mount and interconnect modules in a GE Series 90-30 PLC system.
The baseplate provides the physical structure for Series 90-30 CPUs, I/O modules, power supplies, and other compatible hardware. Its backplane establishes the electrical interconnection between installed modules, allowing system power and internal data communication to be distributed across the rack.
The IC693CHS391N is suitable for Series 90-30 control architectures that require a larger module arrangement and organized rack-level installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | IC693CHS391N |
| Product Family | Series 90-30 |
| Product Type | Baseplate |
| Application | PLC Rack / Backplane |
| Dimensions | 443 × 130 × 142 mm |
| Weight | 0.95 kg |
Product Features
- GE Series 90-30 Baseplate
- Model IC693CHS391N
- Provides mounting locations for Series 90-30 modules
- Incorporates the system backplane
- Supports internal module interconnection
- Suitable for CPU and I/O system configurations
- Provides an organized rack-level hardware structure
- Suitable for industrial PLC installations
- Applicable to Series 90-30 expansion and maintenance
Backplane Function
The IC693CHS391N provides the physical and electrical foundation for modules installed in the Series 90-30 rack.
A typical arrangement is:
Power Supply → Baseplate / Backplane → CPU + I/O Modules → Field Interface
The backplane connects the installed modules and distributes the internal signals required for system operation. The individual I/O modules can therefore exchange information with the CPU through the rack architecture.
The baseplate itself does not execute the PLC program or perform field signal processing. Those functions are handled by the modules installed on it.
Role in Series 90-30 PLC Architecture
| System Element | Function |
|---|---|
| IC693CHS391N | Module mounting and backplane interconnection |
| Series 90-30 CPU | Executes control logic |
| Power Supply | Provides system power |
| Digital Input Modules | Acquire discrete field signals |
| Digital Output Modules | Control discrete devices |
| Analog Input Modules | Acquire analog measurements |
| Analog Output Modules | Provide analog control signals |
| Field Devices | Generate or receive process signals |
The baseplate provides the common rack infrastructure required for these modules to operate as a coordinated PLC system.
Module Integration
The backplane architecture allows different Series 90-30 functional modules to operate within a common hardware arrangement.
| Module Type | Function |
|---|---|
| CPU Module | Program execution and system control |
| Discrete Input | ON/OFF signal acquisition |
| Discrete Output | Discrete actuator control |
| Analog Input | Continuous signal acquisition |
| Analog Output | Continuous control signal output |
| Communication Module | External system communication |
| Power Supply | Provides rack power |
A properly functioning backplane is essential for communication and power distribution between the installed modules.
Industrial Applications
| Application | Typical Use |
|---|---|
| Factory Automation | PLC rack organization |
| Manufacturing Systems | Machine control |
| Process Automation | Control and I/O integration |
| Packaging Machinery | Centralized PLC hardware |
| Material Handling | Conveyor and actuator control |
| Utility Systems | Equipment monitoring and control |
| Production Lines | Modular control architecture |
| Series 90-30 Maintenance | Baseplate replacement |
Installation and Maintenance
- Confirm the IC693CHS391N model.
- Verify the required rack configuration.
- Identify all modules installed on the baseplate.
- Isolate system power before mechanical replacement.
- Remove installed modules according to the applicable maintenance procedure.
- Inspect the backplane connectors for contamination or damage.
- Check module retention points and mounting interfaces.
- Install the baseplate securely.
- Reinstall the compatible modules.
- Verify module seating and connector engagement.
- Restore system power.
- Check CPU and I/O diagnostics.
- Confirm communication between the CPU and installed modules.
- Verify representative I/O functions before returning the system to service.
Backplane-related faults can affect several modules simultaneously, so multiple module communication or diagnostic errors should be considered when investigating a possible baseplate problem.
Compatible System Components
| Component | Function |
|---|---|
| GE IC693CHS391N | Series 90-30 Baseplate |
| Series 90-30 CPU | Control logic execution |
| Series 90-30 Power Supply | System power |
| Series 90-30 Discrete Input Modules | Digital signal acquisition |
| Series 90-30 Discrete Output Modules | Digital output control |
| Series 90-30 Analog Modules | Analog signal processing |
| Series 90-30 Communication Modules | System communication |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| GE IC693CHS391N | Series 90-30 Baseplate | PLC rack and backplane |
| GE IC693MDL740G | Series 90-30 Discrete Output Module | Digital output control |
| GE IC693MDL753F | Series 90-30 Discrete Output Module | Digital output control |
| GE IC693MDL645F | Series 90-30 Discrete Input Module | Digital input acquisition |
| GE IC693MDL655F | Series 90-30 Discrete Input Module | Digital input acquisition |
| GE Series 90-30 CPU Modules | PLC Processor | Control logic |
| GE Series 90-30 Power Supply Modules | Power Supply | System power |
Key Advantages
- GE Series 90-30 Baseplate.
- Model IC693CHS391N.
- Provides rack-level module mounting.
- Integrates the Series 90-30 backplane.
- Supports internal module communication.
- Provides the common hardware structure for CPU and I/O modules.
- Suitable for modular PLC architectures.
- Applicable to Series 90-30 system expansion and maintenance.
Technical FAQs
Why can a backplane problem affect several Series 90-30 modules at the same time?
The baseplate provides common electrical interconnections between the installed modules. A problem in the shared backplane can therefore affect communication or power-related functions across multiple modules rather than producing a fault isolated to one I/O channel.
What symptoms can help identify a baseplate-related issue?
Multiple modules may show communication or diagnostic abnormalities simultaneously, particularly when the affected modules otherwise operate normally when used in a known-good rack arrangement. Connector condition and module seating should also be checked.
Can the IC693CHS391N perform PLC control logic by itself?
No. The baseplate supplies the rack infrastructure and backplane interconnection. Program execution is handled by the Series 90-30 CPU, while I/O functions are performed by the corresponding modules.
What should be checked when replacing a Series 90-30 baseplate?
The installed module arrangement, backplane connections, power connections, module seating, and CPU/I/O diagnostics should be verified. After power restoration, communication and representative I/O operation should be tested before normal operation resumes.
