Product Summary

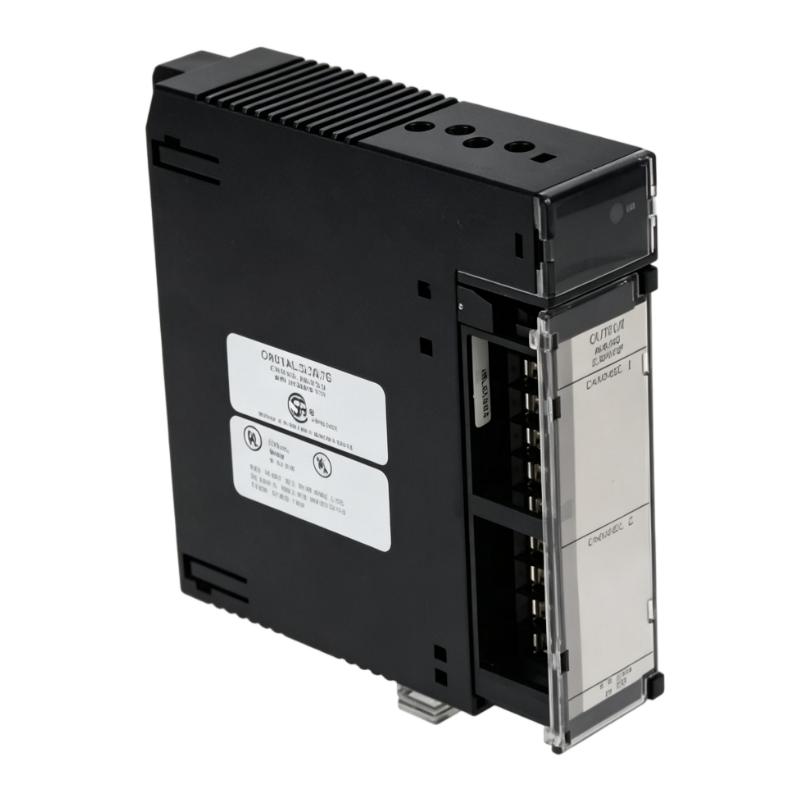

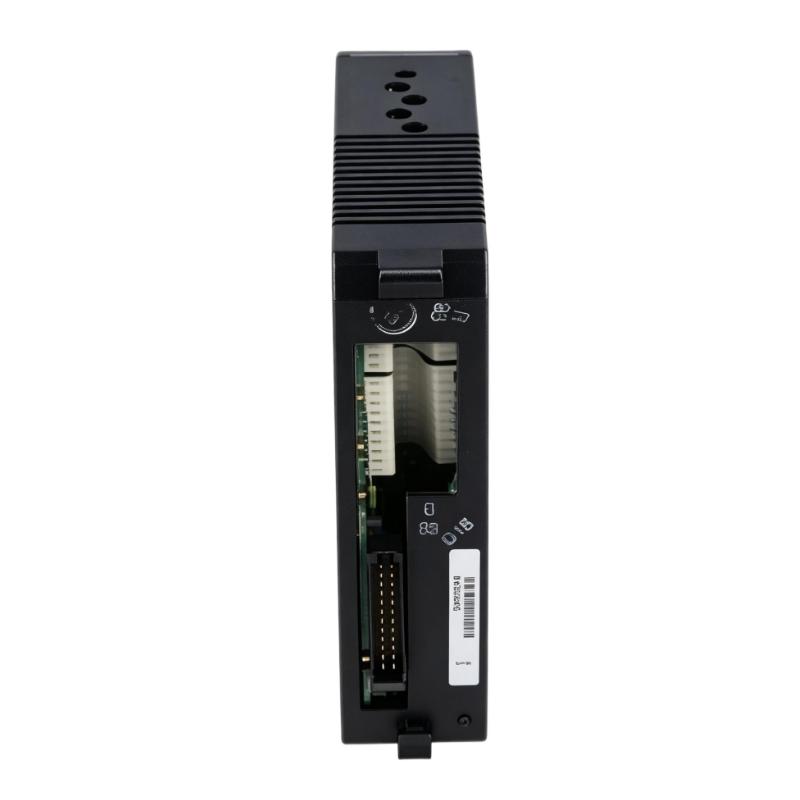

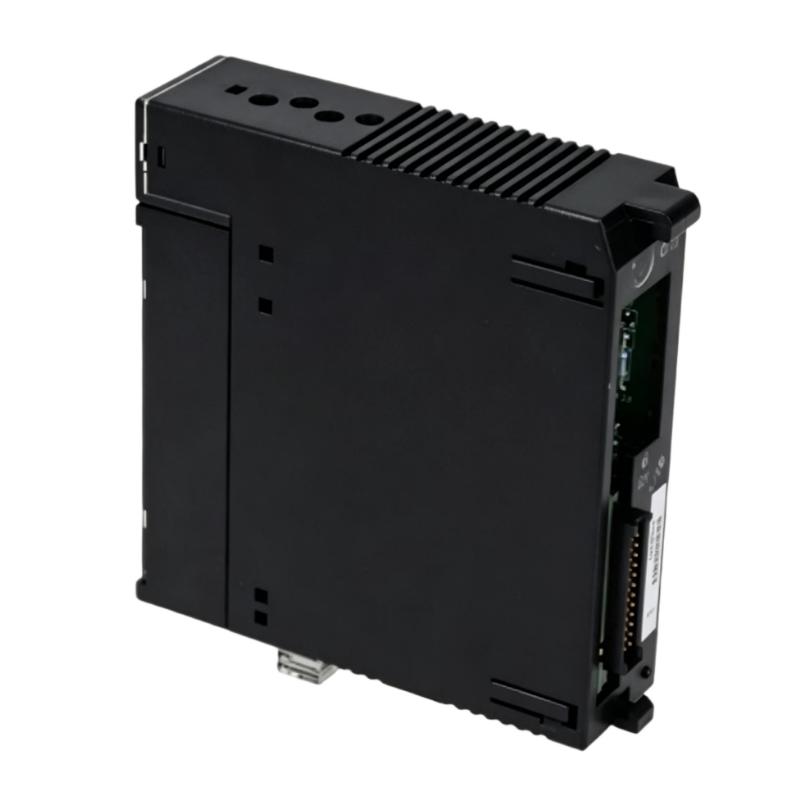

The GE IC693ALG391F Analog Output Module is an industrial analog output component designed for GE Series 90-30 PLC systems. It converts control values generated by the PLC into analog output signals for field devices, making it suitable for applications such as valve positioning, speed control, actuator regulation, and other continuous process control functions.
Applications
Process Control Systems
Used to send continuous control signals to field devices in industrial process applications.
Valve and Actuator Control
Provides analog commands for regulating control valves, actuators, and similar equipment.
Motor Speed Regulation
Can be applied where analog signals are used to control motor drives and operating speed.
Industrial Automation
Suitable for machinery and production systems requiring variable rather than simple ON/OFF control.
Key Advantages
Accurate Analog Signal Output
Provides continuous output signals for precise regulation of connected field equipment.
Flexible Process Control
Allows PLC programs to adjust valves, drives, actuators, and other devices according to changing process requirements.
Series 90-30 Integration
Designed for use within GE Series 90-30 PLC architectures.
Stable Signal Transmission
Supports consistent communication of control values from the PLC to external analog devices.
Practical Modular Design
Makes the module convenient to install, replace, and maintain within an existing PLC system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IC693ALG391F |
| Brand | GE |
| Product Family | Series 90-30 |
| Product Type | Analog Output Module |
| Signal Type | Analog Output |
| Application | Continuous Process and Equipment Control |
| Dimensions | 51 × 127 × 127 mm |
| Weight | 0.36 kg |
Related Components
| Component | Main Function |
|---|---|
| GE Series 90-30 CPU | Executes PLC control logic |
| GE Analog Input Modules | Collects analog field measurements |
| GE Digital I/O Modules | Handles discrete signals |
| GE Power Supply Modules | Provides system operating power |
| Control Valves | Regulates process flow |
| Variable Speed Drives | Controls motor speed and torque |
Technical FAQs
1. What is the GE IC693ALG391F used for?
The IC693ALG391F is an analog output module used to send continuous control signals from a GE Series 90-30 PLC to external field devices.
2. What devices can be controlled through an analog output module?
Typical applications include control valves, variable speed drives, actuators, and other equipment that accepts analog control signals.
3. Why use analog output instead of digital output?
Analog output allows the control system to provide variable commands rather than only ON/OFF states, making it more suitable for continuous process regulation.
4. Where is the IC693ALG391F commonly used?
It can be used in manufacturing systems, process control equipment, machine automation, and other Series 90-30 PLC applications.
5. What happens if the analog output module fails?
A faulty module may produce an incorrect or missing control signal, potentially causing a valve, drive, or actuator to operate incorrectly.
6. How can an analog output fault be diagnosed?
The PLC output value, module status, field wiring, measured output signal, and connected device should be checked to determine whether the problem originates from the module or the field equipment.
7. What should be checked before replacing the IC693ALG391F?
The exact model, output signal requirements, field wiring, connected load, PLC configuration, and application compatibility should be verified.
8. Can the module be used for motor speed control?
Yes, where the motor drive accepts a compatible analog reference signal, the module can provide a variable command for speed regulation.
9. What is the difference between an analog input and analog output module?
An analog input module receives continuous measurement signals from field devices, while an analog output module sends variable control signals from the PLC to external equipment.
10. Why is analog output important in industrial automation?
It allows control systems to regulate process variables gradually and accurately, which is essential for applications involving flow, pressure, speed, position, and other continuously changing parameters.
Recommended Related Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| GE IC693ALG391F | Analog Output Module | Continuous control applications |
| GE IC693ALG390 Series | Analog Output Module | PLC analog signal output |
| GE IC693ALG223 Series | Analog Input Module | Analog measurement acquisition |
| GE IC693MDL Series | Digital I/O Modules | Discrete signal control |
| GE IC693PWR Series | Power Supply Modules | PLC system power |
Popular Related Components
| Component | Main Application |
|---|---|
| Analog Output Modules | Variable control signal generation |
| Analog Input Modules | Process measurement acquisition |
| Digital Output Modules | ON/OFF equipment control |
| Digital Input Modules | Equipment status monitoring |
| PLC CPUs | Control logic execution |
| Variable Speed Drives | Motor speed regulation |
