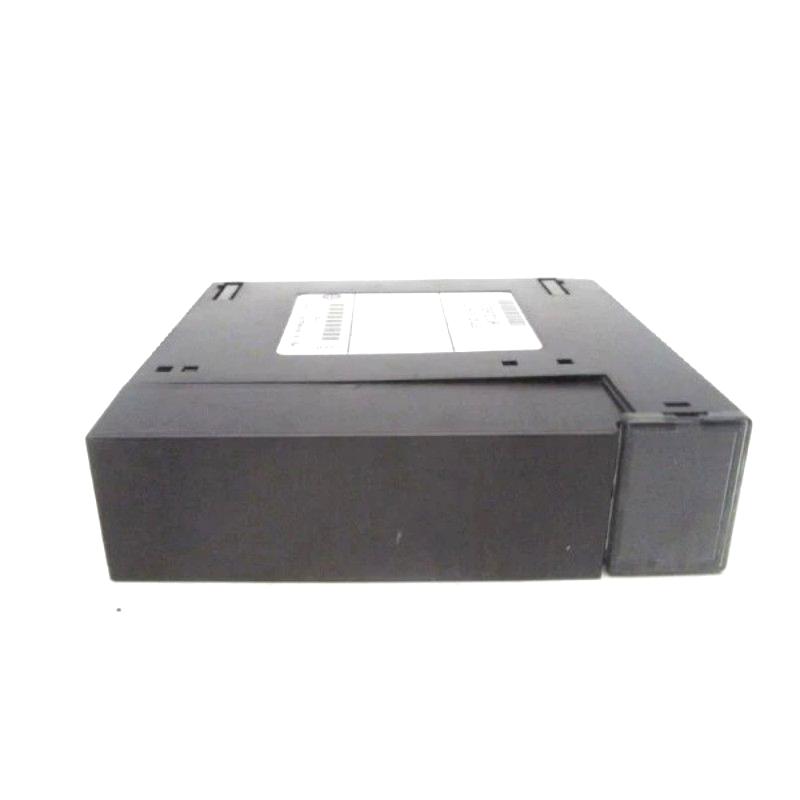

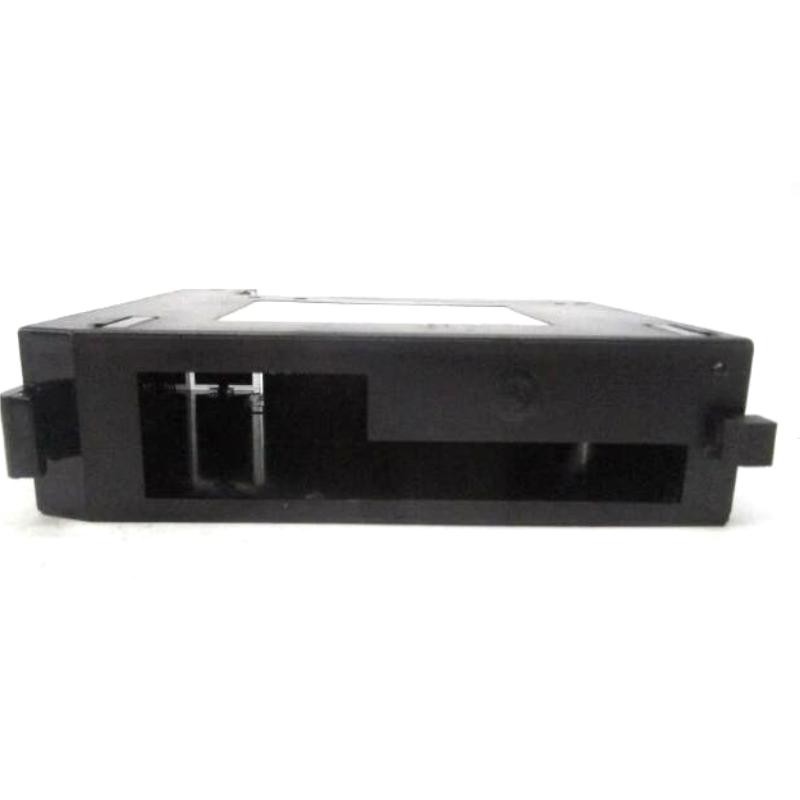

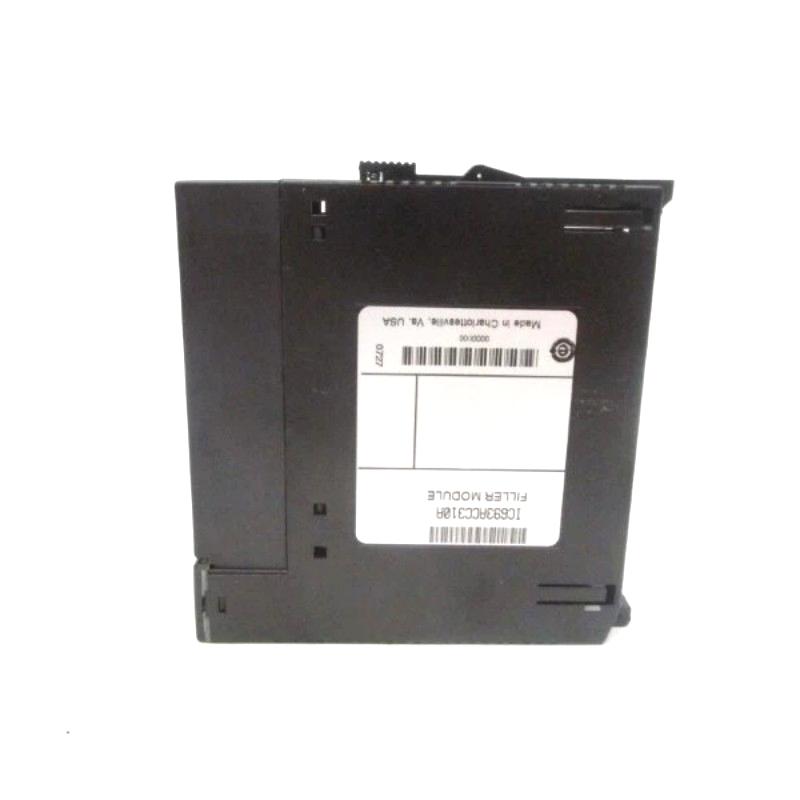

1. Product Overview

The GE IC693ACC310A Filler Module is an industrial automation component associated with the GE Fanuc Series 90-30 programmable logic controller (PLC) platform. Filler modules are generally used to occupy an unused slot or opening in a rack or module assembly, helping maintain a properly configured installation when a position is not populated with an active electronic module.

In industrial control systems, maintaining the correct rack configuration is important for equipment organization, mechanical protection, and long-term maintenance. An appropriate filler module can help cover an unused position and reduce exposure of the rack interior to dust, accidental contact, and other environmental contaminants. Its exact mechanical design and intended mounting position should be confirmed before installation.

The IC693ACC310A model designation should be checked against the existing equipment and its hardware documentation to confirm the precise application and compatibility requirements. A filler module should not be treated as an active PLC input, output, communication, or processing module.

With listed dimensions of 127 × 51 × 127 mm and a weight of 0.11 kg, the GE IC693ACC310A is a compact component for industrial control cabinet maintenance and spare-parts management.

2. Technical Specifications

The table summarizes the supplied product information and general filler-module purpose. Electrical ratings, material composition, environmental protection level, and exact supported rack configurations should be verified against the relevant equipment documentation rather than assumed.

3. Function and Working Principle

3.1 Occupying an Unused Module Position

Industrial PLC racks may contain unused positions when a system is first commissioned, expanded in stages, or modified after a machine upgrade. A compatible filler module can occupy a designated unused position where the rack design calls for one.

This helps maintain an orderly equipment layout and prevents an unused opening from remaining exposed. Whether a filler is required depends on the rack design and the manufacturer’s installation requirements.

3.2 Mechanical Protection

A filler module may provide a physical barrier over an unused position. Depending on its construction, it can help reduce direct access to internal rack areas and limit the entry of larger foreign objects.

It should not automatically be considered a sealed environmental barrier. Dust resistance, ingress protection, and other environmental ratings must be confirmed separately.

3.3 Supporting Rack Organization

A clearly configured PLC rack makes maintenance easier. When active modules and unused positions are arranged correctly, technicians can identify installed hardware more efficiently and plan future system expansion.

The IC693ACC310A should be installed only in the position and equipment configuration for which it is intended.

3.4 No Assumed Control Logic Function

Unlike a PLC CPU, digital input module, analog input module, digital output module, or communication module, a filler module is not generally responsible for processing control logic or acquiring field signals.

Users should not expect the IC693ACC310A to provide signal conversion, data transmission, output switching, or diagnostic functions unless the exact product documentation establishes otherwise.

4. Role in Industrial Control Systems

4.1 PLC Rack Configuration

PLC racks provide the physical structure for installing compatible control-system components. Each module position must be configured according to the system design. An unused position may be left empty or fitted with a filler, depending on the manufacturer’s instructions.

The IC693ACC310A may be relevant to maintenance teams working with compatible GE Fanuc hardware, but its exact rack location must be confirmed before use.

4.2 Maintenance and Equipment Upgrades

Industrial equipment is often upgraded gradually rather than replaced as a complete system. A rack may contain vacant positions reserved for additional I/O, communication, or specialized control functions.

A suitable filler module can help maintain the rack’s intended physical arrangement while the system awaits expansion. Before adding an active module later, technicians should check available rack positions, system capacity, power requirements, configuration settings, and software compatibility.

4.3 Spare-Parts Management

Small accessories are easy to overlook when preparing maintenance inventories. Keeping the correct filler module available can reduce delays when a rack configuration requires one.

For reliable inventory control, record the complete model number, any suffix or revision, quantity, equipment association, and approved replacement status. Similar-looking accessories should not be considered interchangeable solely because their dimensions appear similar.

5. Industrial Applications

5.1 Factory Automation

Manufacturing systems use PLCs to coordinate conveyors, assembly stations, packaging machines, and production equipment. During installation or expansion, a control rack may contain unused module positions.

Where the equipment design specifies a compatible filler, the IC693ACC310A may serve as part of the rack’s physical configuration.

5.2 Process Control Systems

Process plants use PLC-based control panels to manage pumps, valves, motors, instruments, and auxiliary equipment. Spare rack positions may be retained for future instrumentation or process upgrades.

A correctly selected filler accessory can support a tidy rack arrangement, provided that it is approved for the specific hardware.

5.3 Machine Retrofits

When an existing machine is modified, some modules may be removed, relocated, or replaced. Unused positions can appear during these changes.

Maintenance engineers should inspect the rack requirements before installing a filler. The component must not obstruct connectors, cooling paths, or other mechanical features.

5.4 Industrial Maintenance and Spare-Parts Replacement

Maintenance departments often keep accessories for older control systems to reduce downtime. When replacing a missing or damaged filler, technicians should compare the original part number and revision with the proposed replacement.

This is particularly important in legacy installations where superficially similar accessories may have different mounting arrangements.

6. Installation and System Integration

6.1 Confirm the Exact Part Number

Before installation, verify that the component is labeled IC693ACC310A and that the suffix matches the equipment requirement. Do not rely solely on a supplier’s short product description or the appearance of the part.

Check the rack model, the intended mounting position, and any hardware-specific instructions.

6.2 Inspect the Component

Before fitting the filler module, inspect it for:

• Cracks, deformation, or other mechanical damage.
• Broken mounting features or retaining elements.
• Contamination, corrosion, or signs of improper storage.
• Differences between the supplied part and the original component.

Do not install a component that cannot be secured correctly.

6.3 Follow Equipment Safety Procedures

Follow the applicable machine shutdown and electrical safety procedures before working inside a PLC rack or control cabinet. Isolate power where required, prevent unexpected machine movement, and follow site lockout/tagout procedures.

Do not remove or insert components into an energized rack unless the specific equipment documentation explicitly permits that operation and the work is performed by qualified personnel.

6.4 Install in the Approved Position

Fit the filler only into the designated position and use the specified retention method. Do not force the component into a slot, modify its mounting features, or use improvised fasteners.

If the component does not fit correctly, stop and verify the part number and rack compatibility.

6.5 Inspect the Completed Installation

After installation, confirm that the filler is securely seated, does not interfere with adjacent modules, and does not obstruct required airflow or access to other equipment.

Where appropriate, document the rack configuration and update the maintenance inventory. If the rack was powered down, follow the normal system restart and inspection procedures for the installed equipment.

6.6 Verify System Operation

Because a filler module is not an active control module, it should not be expected to generate PLC input or output data. After maintenance, verify that the actual controller and installed modules operate normally and that no connectors or adjacent components were disturbed.

Any unexpected rack fault should be investigated using the diagnostic procedures applicable to the installed PLC system.

7. Compatible System Components

The IC693ACC310A should be treated as a rack accessory rather than a universal PLC module. Compatibility depends on the exact equipment configuration.

This table describes general integration considerations, not a guarantee that every listed component can be installed in the same rack or configuration.

8. Recommended Alternative Models

Replacement selection for the GE IC693ACC310A requires care because filler modules and other rack accessories can differ in shape, retention design, and intended application.

Important: No alternative model number is listed here as a confirmed drop-in replacement. Verify the exact replacement part and compatibility with the rack before ordering or installing it.

9. Key Advantages

Compact Form Factor

The listed dimensions of 127 × 51 × 127 mm make the component straightforward to identify and manage as a compact industrial control accessory.

Lightweight Construction

At a listed weight of 0.11 kg, the IC693ACC310A is relatively lightweight for handling, storage, and maintenance inventory purposes.

Support for Rack Organization

A suitable filler can help maintain the intended physical layout of a PLC rack when a position is not occupied by an active module.

Useful for Legacy Equipment Maintenance

Correctly identified accessories can help maintenance teams preserve existing control-system configurations without making unnecessary changes to active hardware.

Simplified Spare-Parts Identification

Maintaining the exact model number in inventory records makes it easier to identify the required accessory during scheduled maintenance or equipment repair.

10. Technical FAQs

Q1: What is the GE IC693ACC310A Filler Module?

The GE IC693ACC310A is identified as a filler module associated with industrial automation hardware. Its general purpose is to occupy an intended unused position, but the precise mounting location and application should be verified for the target equipment.

Q2: Does the IC693ACC310A process PLC logic?

It is not identified as an active PLC processing module. It should not be expected to execute logic, read field signals, switch outputs, or communicate process data.

Q3: What are the dimensions and weight of the IC693ACC310A?

The supplied dimensions are 127 × 51 × 127 mm, and the supplied weight is 0.11 kg.

Q4: Can the IC693ACC310A be used with every GE Fanuc PLC rack?

No universal compatibility should be assumed. Confirm the rack model, intended mounting position, hardware revision, and installation requirements before use.

Q5: Can I replace the IC693ACC310A with a similar-looking filler module?

Not without checking compatibility. Similar appearance or dimensions do not guarantee identical mounting features or approved use. Confirm the replacement against the original part number and the equipment documentation.

Q6: Does a filler module require PLC programming?

A conventional filler module does not provide an active control function and generally does not require PLC logic programming. However, the rack’s overall configuration and any maintenance work should follow the requirements of the installed system.

Q7: What should I check before installing the filler module?

Confirm the complete part number, inspect the component for damage, verify the intended rack position, and follow electrical safety procedures. After installation, check that the component is secure and that adjacent modules remain properly seated.

Q8: How should the IC693ACC310A be stored?

Store the component in a clean, dry location and protect it from impact, contamination, moisture, and electrostatic hazards where applicable. Preserve the model label and revision information so the part can be identified accurately later.

Q9: What information is needed to confirm a replacement?

The most useful information includes the complete part number, revision, rack model, installation location, and photographs of the original component and its mounting interface. These details help reduce the risk of ordering an incompatible accessory.

11. Conclusion

The GE IC693ACC310A Filler Module is an industrial automation accessory intended for use in an appropriate equipment configuration where a filler is required. With listed dimensions of 127 × 51 × 127 mm and a weight of 0.11 kg, it can be recorded and managed as a compact spare part for PLC rack maintenance.

For maintenance teams, system integrators, and industrial spare-parts suppliers, accurate identification is essential. Confirm the full model number, revision, intended rack position, and approved compatibility before installation or replacement. Correct selection helps maintain equipment organization while avoiding unnecessary changes to active PLC hardware.
