Product Overview

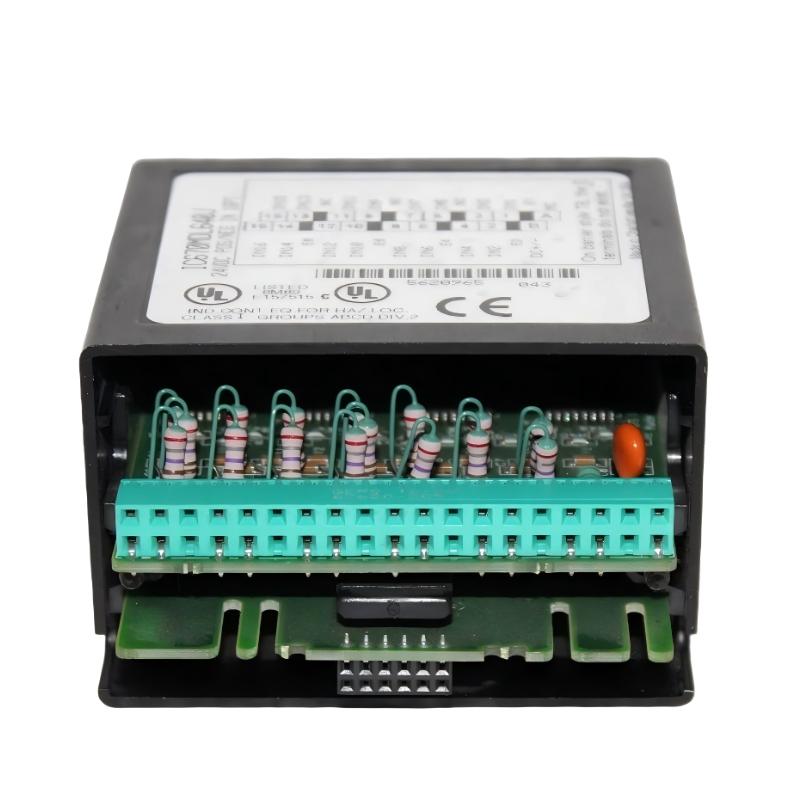

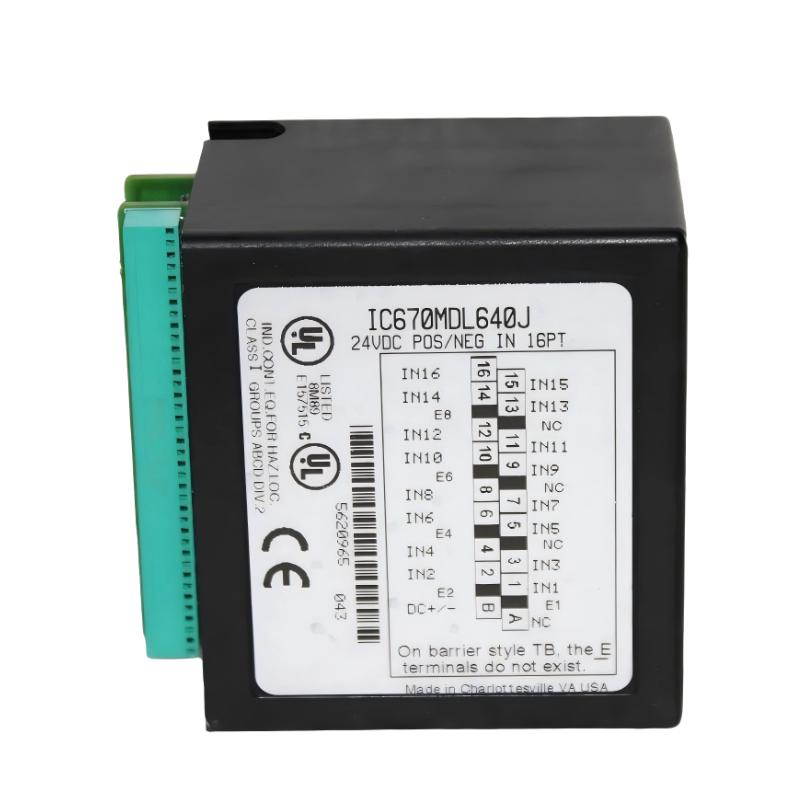

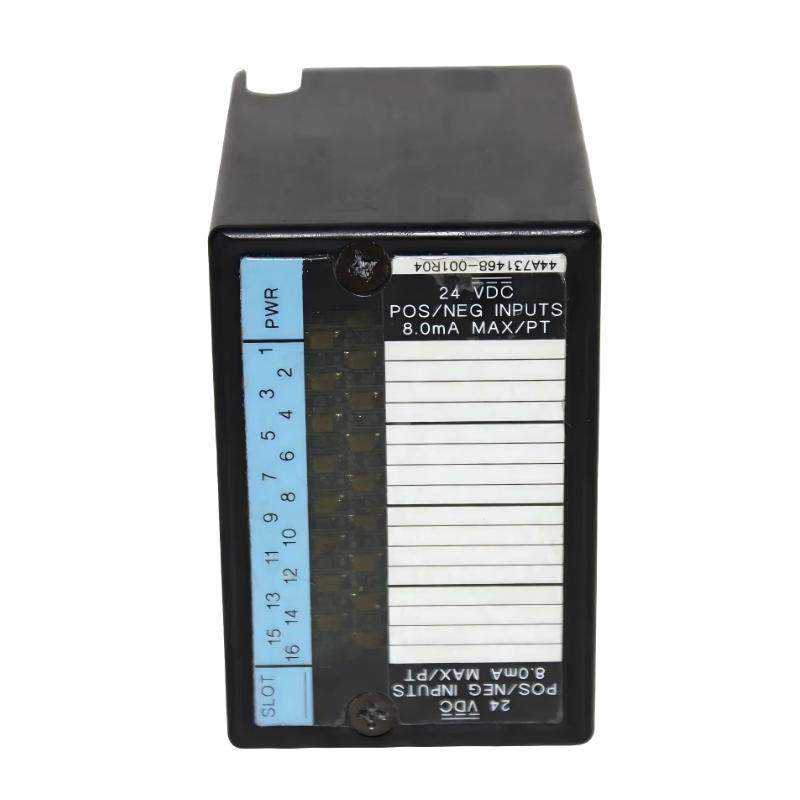

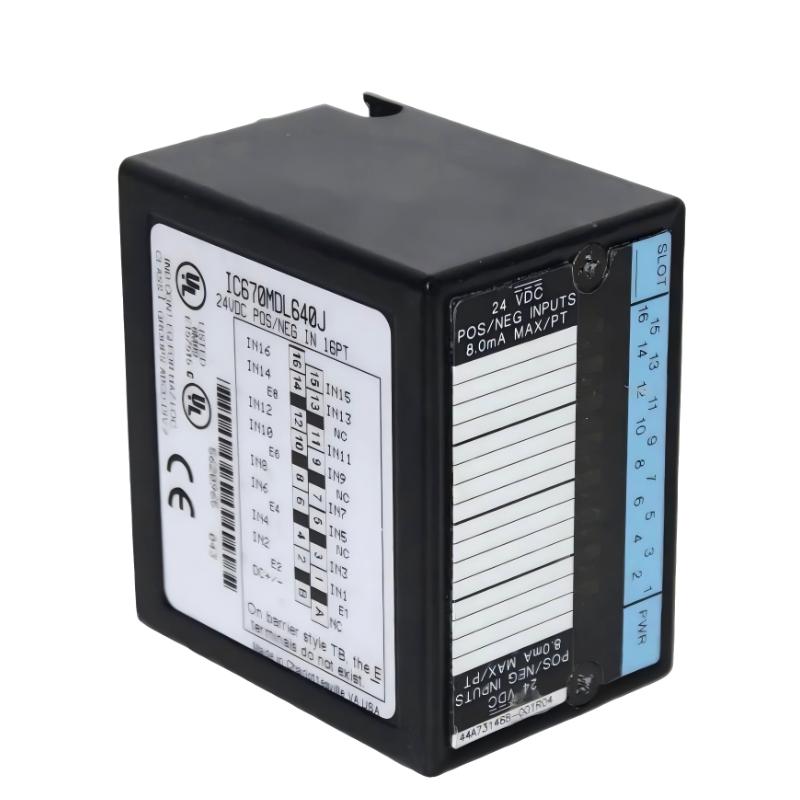

The GE IC670MDL640 Discrete Input Module is a discrete signal input module used in industrial automation systems to collect on/off status signals from field devices and make those signals available to the control system.
In a typical machine or process-control cabinet, many devices operate with discrete states rather than continuously varying measurements. Pushbuttons, limit switches, proximity switches, auxiliary contacts, interlocks, and equipment status contacts can all generate this type of signal. A discrete input module provides the interface between these field devices and the automation controller.
The IC670MDL640 belongs to the GE Field Control family and is used as part of a modular distributed I/O arrangement. Instead of connecting every field contact directly to the controller, the input module gathers the individual status signals at the I/O level and passes their states through the control-system architecture.
This arrangement is useful for applications where the controller needs to monitor numerous equipment conditions, such as motor running status, valve position, machine limits, alarm contacts, or interlock signals.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | GE |
| Model | IC670MDL640 |
| Product Type | Discrete Input Module |
| Product Family | Field Control |
| Main Function | Discrete Signal Input |
| System Role | Remote / Distributed I/O |
| Signal Type | Discrete Input |
| Application | Industrial Automation and Machine Control |
| Typical Use | Switches, Status Contacts, Interlocks and Sensors |
| Dimensions | 64 × 127 × 102 mm |
| Weight | 0.2 kg |
Product Features
The IC670MDL640 is intended for applications where the control system needs to monitor discrete field conditions.
Key characteristics include:
- GE Field Control family
- Discrete input functionality
- Interfaces field status signals with the control system
- Suitable for distributed I/O installations
- Applicable to machine status monitoring
- Suitable for switch and contact inputs
- Can be used for equipment interlock signals
- Supports modular control-system architecture
- Dimensions of 64 × 127 × 102 mm
- Stated weight of 0.2 kg
The module’s actual signal compatibility should be checked against the field device and the complete Field Control system configuration before installation or replacement.
Working Principle
A typical signal path can be represented as:
Field Contact / Sensor → IC670MDL640 → Field Control I/O Network → Controller → Control Logic
When a field device changes state, the corresponding discrete input channel detects the electrical condition and communicates the input status through the Field Control system.
Consider a motor-control application. An auxiliary contact from a motor starter may indicate whether the motor is running. A limit switch may confirm that a mechanical assembly has reached its required position. An interlock contact may indicate that another machine condition has been satisfied.
The controller can use these input states as conditions within its control program. For example, a machine may only be permitted to start when several discrete permissive signals are active.
This makes the IC670MDL640 useful for monitoring equipment states without requiring the controller to handle each field connection individually.
Industrial Applications
The IC670MDL640 is suited to industrial systems where discrete equipment states need to be monitored by a controller.
| Application | Typical Use |
|---|---|
| Machine Automation | Limit switches and machine-position feedback |
| Material Handling | Conveyor and equipment status |
| Packaging Machinery | Sensor and actuator status |
| Motor Control | Running and fault contacts |
| Process Equipment | Valve and equipment position feedback |
| Assembly Systems | Interlock and sequence conditions |
| Industrial Production Lines | Machine status monitoring |
| Distributed Control Panels | Remote discrete I/O |
The module is especially useful where a machine or process contains numerous on/off signals that need to be incorporated into control logic.
Compatible System Components
The IC670MDL640 is normally used as part of a broader Field Control installation.
| Component | Function |
|---|---|
| IC670MDL640 | Receives discrete field signals |
| Field Control I/O Station | Provides the distributed I/O structure |
| Controller | Executes the control program |
| Discrete Sensors | Provide machine or process status |
| Limit Switches | Detect mechanical position |
| Auxiliary Contacts | Indicate equipment operating state |
| Interlock Devices | Provide permissive or protective signals |
| I/O Terminal / Wiring | Connects field devices to the input module |
| Communication Network | Transfers I/O information to the controller |
The module should be selected together with the appropriate Field Control station, controller interface, field wiring, and signal characteristics.
Installation and Maintenance
Before installing or replacing the IC670MDL640, the complete I/O arrangement should be checked. Discrete input modules can appear similar physically while having different electrical characteristics or system requirements.
Recommended checks include:
- Confirm the complete IC670MDL640 part number.
- Verify the Field Control system configuration.
- Confirm the required input signal type.
- Check field device compatibility.
- Verify terminal wiring.
- Inspect connectors and terminals.
- Check module seating.
- Inspect field wiring for loose connections.
- Verify the associated I/O station.
- Check controller communication.
- Review input-channel diagnostics.
- Confirm that each field device changes state correctly.
- Test the related control logic after replacement.
If an input remains permanently ON or OFF, the module should not immediately be considered defective. The field sensor, contact, wiring, terminal connection, input circuit, and controller-side configuration should all be checked.
Recommended Related Models
For the IC670MDL640, related components should be selected according to the required Field Control I/O function and the actual field signal characteristics.
| Model / Component | Type | Primary Function | Application |
|---|---|---|---|
| GE IC670MDL640 | Discrete Input Module | Discrete signal acquisition | Field Control systems |
| GE Field Control I/O Modules | I/O Module Family | Distributed signal processing | Industrial automation |
| GE Discrete Output Modules | Output Module | Discrete control signals | Solenoids, relays and actuators |
| GE Analog Input Modules | Input Module | Continuous signal acquisition | Process measurement |
| GE Field Control Interface Components | System Hardware | I/O communication and integration | Distributed I/O |
| GE Industrial Controllers | Controller | Control logic execution | Machine and process automation |
When replacing the IC670MDL640, the input signal characteristics, Field Control architecture, I/O station, wiring arrangement, and controller configuration should be checked rather than selecting a replacement solely by channel count or physical dimensions.
Key Advantages
- Discrete input functionality
- GE Field Control architecture
- Suitable for distributed I/O
- Interfaces field status signals with control logic
- Suitable for machine interlocks
- Useful for equipment status monitoring
- Supports modular control-system installations
- Suitable for industrial automation applications
- Dimensions of 64 × 127 × 102 mm
- Stated weight of 0.2 kg
Technical FAQs
What types of field devices can be connected to the IC670MDL640?
Typical applications include discrete devices such as switches, contacts, limit switches, equipment-status contacts, and other compatible on/off field signals. The exact electrical compatibility should be confirmed before connecting a particular device.
Why would a motor-control system need a discrete input module?
A motor system often has several status signals that the controller needs to monitor, such as running status, fault status, auxiliary contacts, or interlocks. A discrete input module collects these states so they can be incorporated into the machine’s control logic.
What should be checked if one input channel remains continuously ON?
Start with the field device and wiring. Check whether the contact or sensor is actually changing state, then inspect the terminals, input circuit, module seating, and controller configuration. This helps distinguish a field-side problem from an I/O module problem.
Can the IC670MDL640 be replaced solely by matching its physical dimensions?
No. Replacement requires compatibility with the Field Control architecture and the required discrete input characteristics. The associated I/O station, field wiring, controller interface, and system configuration should also be verified.
