Overview

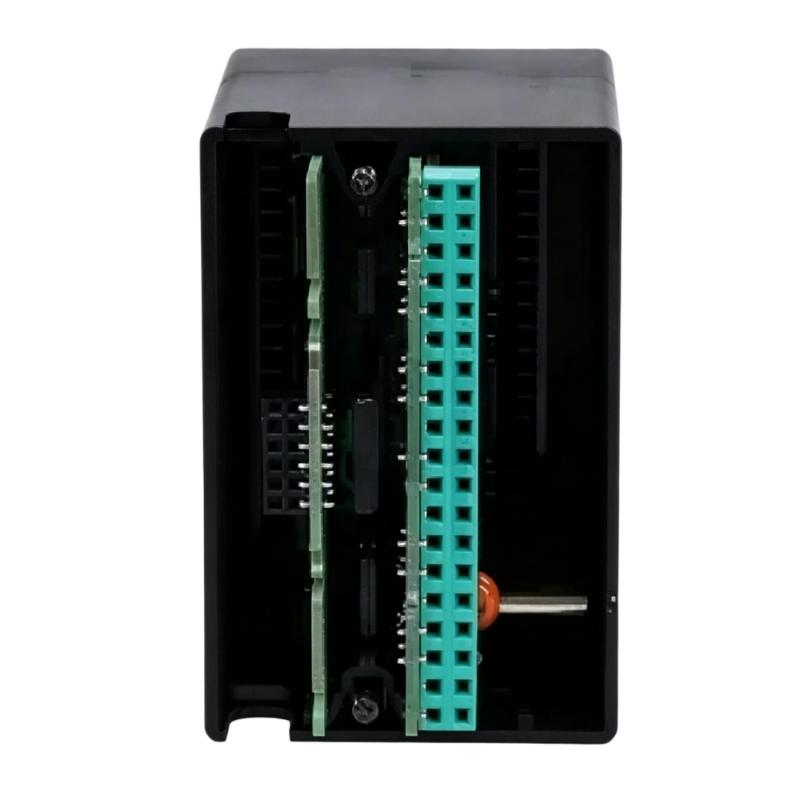

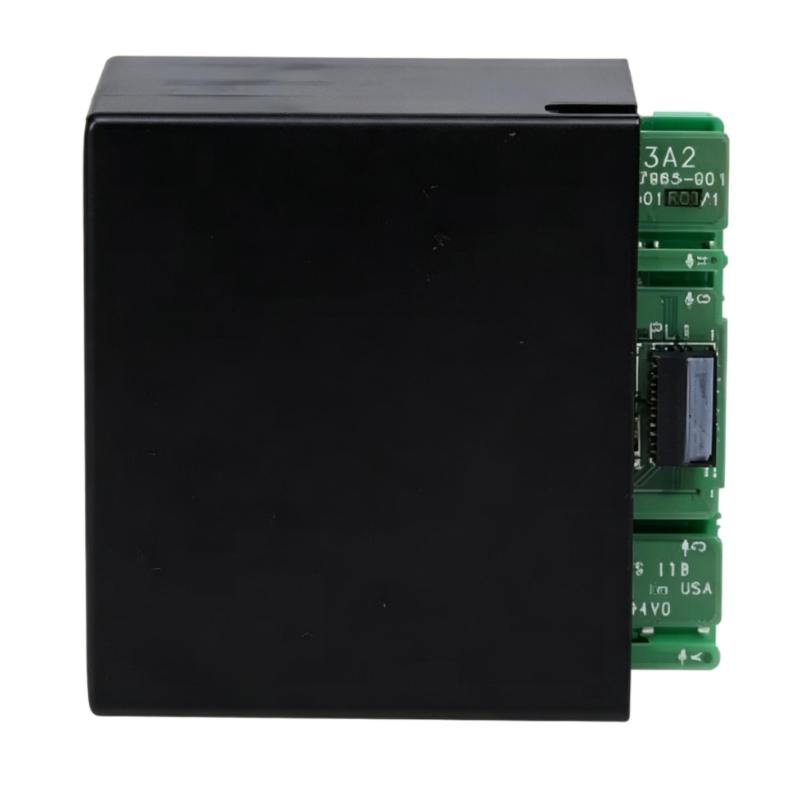

The GE IC670ALG230 is a Genius Analog Input Module designed for GE Field Control and industrial automation systems.
This module is used to collect analog signals from field devices and convert them into digital data for PLC processing. It provides an interface between industrial sensors and control systems, allowing operators and automation controllers to monitor process variables accurately.
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | GE |
| Model | IC670ALG230 |
| Product Type | Analog Input Module |
| Series | Genius Field Control |
| Dimensions | 121.8 × 45.3 × 87 mm |
| Weight | 0.25 kg |
| Signal Type | Analog Input |
| Input Range | 0–20 mA / 4–20 mA |
| Main Function | Analog Signal Acquisition and Conversion |
| Communication Type | Genius Network Communication |
| Application | Industrial PLC and Process Control Systems |
| Installation Type | Field Control Module Installation |
Applications
Process Control Systems
The GE IC670ALG230 is used for collecting analog measurements from industrial instruments such as transmitters and sensors in process automation environments.
Factory Automation
It provides analog signal monitoring capability for automated production equipment that requires continuous data feedback.
Remote I/O Applications
The module allows field analog devices to be connected to distributed control systems for centralized monitoring and control.
Industrial Equipment Monitoring
It can collect operating data from machines and equipment to support condition monitoring and system optimization.
Utility and Energy Applications
The module can be applied in industrial energy systems where analog measurement signals are required for monitoring and control.
How It Works
The GE IC670ALG230 operates as an analog signal interface between field instruments and the control system.
Connected sensors or transmitters send analog current signals to the module. The module processes these signals and converts them into digital values that can be transmitted through the Genius communication network to the PLC controller.
The typical working process is:
Field Sensor → IC670ALG230 Analog Input Module → Signal Conversion → PLC Controller
This allows the control system to monitor real-time process conditions and perform automatic control operations based on collected data.
Key Advantages
| Feature | Benefit |
|---|---|
| Analog Signal Processing | Provides accurate acquisition of industrial measurement signals. |
| Multi-Channel Input Capability | Allows multiple field devices to be monitored through one module. |
| Reliable Data Conversion | Converts analog signals into usable digital control data. |
| Genius Network Compatibility | Supports distributed automation architectures. |
| Compact Design | Suitable for installations with limited cabinet space. |
| Industrial Reliability | Designed for continuous operation in automation environments. |
Related Components
| Component | Function |
|---|---|
| IC670ALG230 Analog Input Module | Collects and converts analog field signals. |
| Genius Bus Interface | Provides communication between field modules and PLC system. |
| PLC CPU Module | Processes analog data and executes control programs. |
| Analog Transmitters | Generate process measurement signals. |
| Terminal Assembly | Provides field wiring connection points. |
| Control Cabinet System | Provides module installation and protection. |
Installation
The GE IC670ALG230 should be installed in a compatible Genius Field Control system according to the automation system design.
Before installation, check:
- Correct module model
- Compatible analog signal type
- Field wiring condition
- Communication connection
- System power requirements
The analog input wiring should be connected correctly to ensure accurate signal measurement. After installation, verify channel operation, communication status, and PLC data reading before putting the system into service.
Troubleshooting
| Problem | Possible Cause | Recommended Check |
|---|---|---|
| No Analog Input Signal | Wiring problem or sensor failure | Check field device connections and input terminals. |
| Incorrect Measurement Value | Wrong signal range configuration | Verify input settings and transmitter output. |
| Signal Fluctuation | Electrical interference or poor grounding | Check shielding, grounding, and wiring quality. |
| Communication Failure | Network connection issue | Inspect Genius communication wiring and module status. |
| Module Not Operating | Power supply or hardware problem | Check system power and module condition. |
Recommended Models
| Model | Product Type | Application |
|---|---|---|
| IC670ALG230 | Genius Analog Input Module | Analog signal measurement applications |
| IC670ALG240 | Analog Input Module | Industrial process monitoring |
| IC670ALG630 | Analog Output Module | Analog control signal output |
| IC693ALG223 | Analog Input Module | PLC analog data acquisition |
| IC200ALG260 | VersaMax Analog Input Module | Compact automation systems |
| IC660BBA100 | Genius Analog I/O Module | Distributed analog control |
Related Products
| Product / Series | Product Type | Main Use |
|---|---|---|
| GE Genius Field Control Series | Distributed I/O System | Remote signal monitoring and control |
| GE IC670 Series | Field Control Modules | Industrial automation applications |
| GE IC660 Series | Genius I/O Modules | Distributed field communication |
| GE Series 90 PLC | PLC Control Platform | Industrial control processing |
| GE VersaMax Series | Modular PLC System | Factory automation |
| GE Analog I/O Modules | Signal Processing Modules | Measurement and control |
Technical FAQs
1. What is the main function of the GE IC670ALG230?
The IC670ALG230 is an analog input module used to collect field analog signals and convert them into digital data for PLC processing.
2. What type of signals can the IC670ALG230 process?
It is designed to process industrial analog current signals from field transmitters and sensors.
3. Which systems are compatible with the IC670ALG230?
It is mainly used in GE Genius Field Control and compatible industrial automation systems.
4. What devices can be connected to this module?
It can connect with analog transmitters, sensors, and other field instruments that provide compatible analog signals.
5. What should be checked if the input value is incorrect?
Check sensor output, wiring connections, signal range settings, grounding condition, and communication status.
