Product Overview

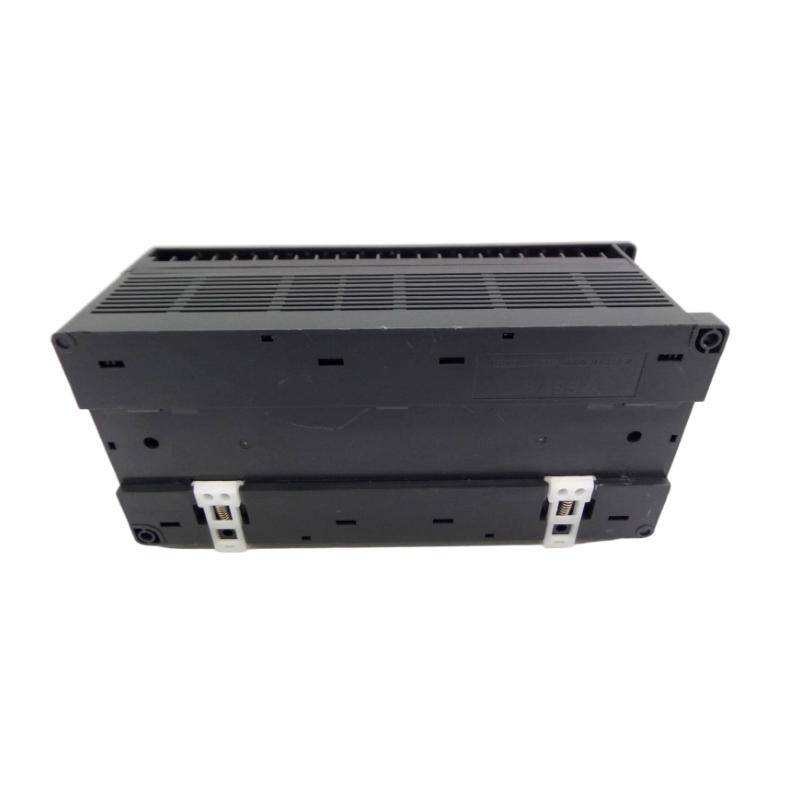

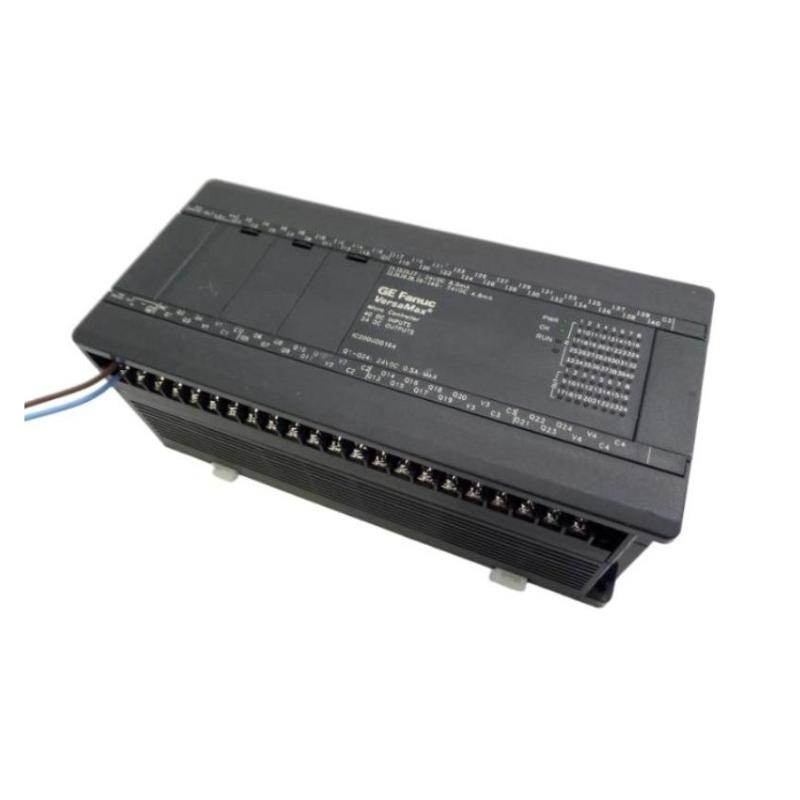

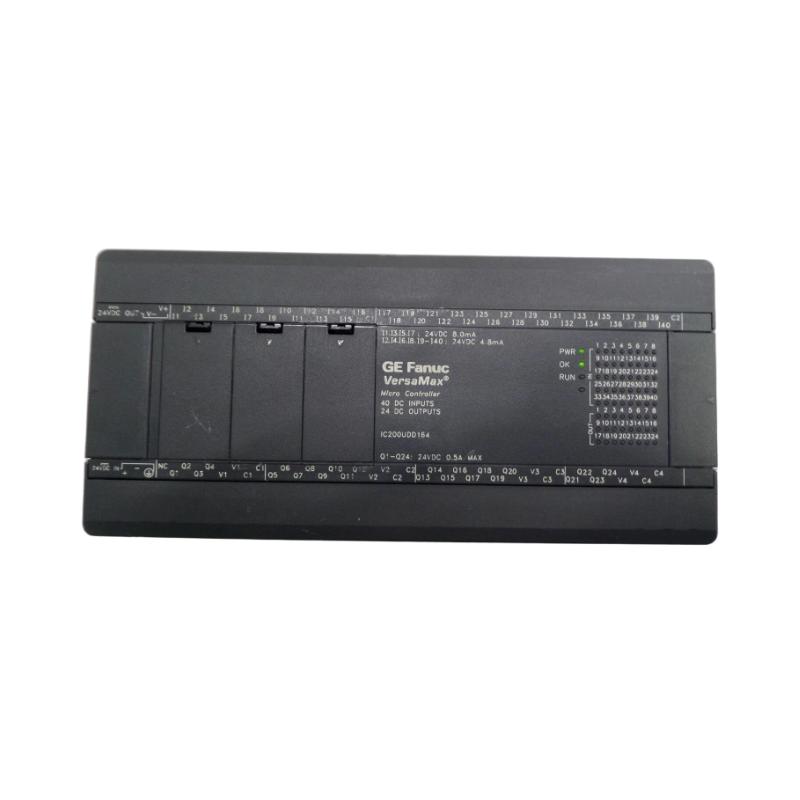

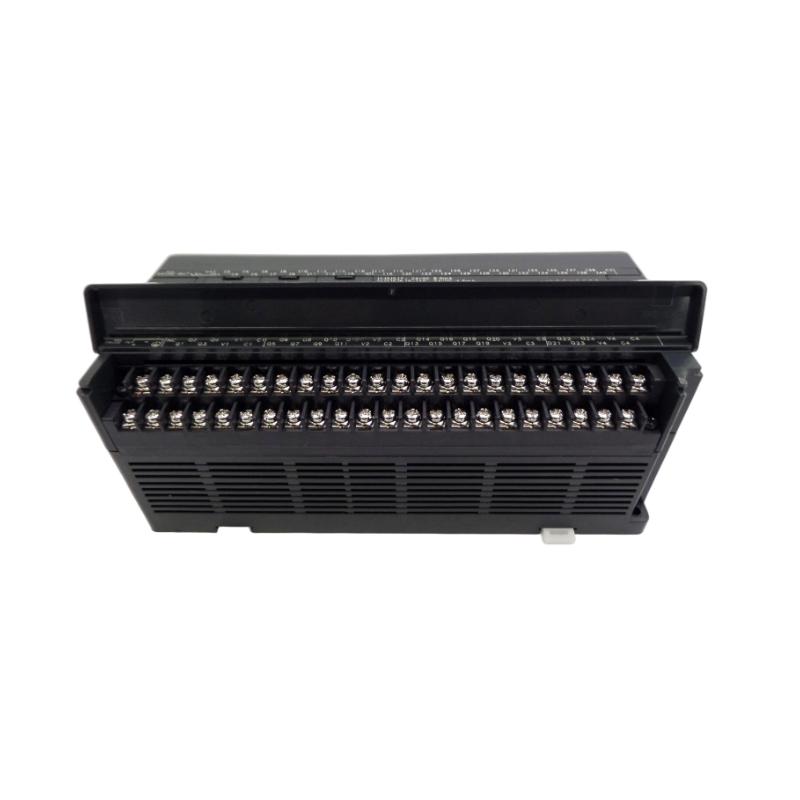

The GE IC200UDD164 VersaMax Microcontroller Processor is an industrial automation controller designed for use within compatible GE VersaMax control architectures. As a programmable processor, it provides the central logic-processing capability required to coordinate input signals, execute application logic, control outputs, manage machine sequences, and support overall system operation.
The processor occupies an important position within a modular automation system. Input devices such as sensors, switches, transmitters, and other field devices provide operating information to the control system. The processor evaluates this information according to the configured application and generates control commands for connected output devices.
The supplied product information identifies the GE IC200UDD164 as a VersaMax Microcontroller Processor with dimensions of 190 × 90 × 76 mm and a weight of 0.56 kg.
Product Information
- Manufacturer: GE
- Product Family: VersaMax
- Model: IC200UDD164
- Product Type: Microcontroller Processor
- Dimensions: 190 × 90 × 76 mm
- Weight: 0.56 kg
- Primary Function: Programmable Control Processing
- Application: Industrial Automation
- System Role: Controller / Processor
The IC200UDD164 should be installed only within a compatible control configuration and should be commissioned together with the applicable power, I/O, communication, and application configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model Number | IC200UDD164 |
| Product Type | Microcontroller Processor |
| Dimensions | 190 × 90 × 76 mm |
| Weight | 0.56 kg |
| Main Function | Control Processing |
| Application | Industrial Automation |
| System Role | Controller / Processor |
| Installation | Modular Automation System |
| Maintenance | Installation / Commissioning / Troubleshooting |
The dimensions and weight above are based on the product information supplied.
Function and Working Principle
The IC200UDD164 acts as the processing element of a compatible VersaMax programmable automation system.
A simplified control structure is:
Field Devices
↓
Input I/O Modules
↓
IC200UDD164 Processor
↓
Application Logic
↓
Output I/O Modules
↓
Actuators / Controlled Equipment
During normal operation, the processor continuously processes information from the control system. The application program determines how the equipment should respond to changing input conditions.
Typical control functions can include:
- Logic processing
- Start/stop control
- Equipment sequencing
- Interlocking
- Timers
- Counters
- Alarm conditions
- Data processing
- Machine coordination
- Communication management
The processor therefore provides the central decision-making function of the programmable control system.
Role in VersaMax Automation Systems
The IC200UDD164 can serve as the central controller within a modular industrial automation architecture.
A typical control arrangement can be represented as:
Sensors / Field Inputs
↓
VersaMax Input Modules
↓
IC200UDD164
↓
Control Application
↓
VersaMax Output Modules
↓
Motors / Valves / Actuators
The processor can also form part of a larger automation architecture involving operator interfaces, supervisory systems, communication networks, and other controllers.
Supervisory System
↕
Industrial Network
↕
IC200UDD164
↕
VersaMax I/O
↕
Field Equipment
This structure allows the processor to coordinate automated processes while exchanging control information with other parts of the system.
Controller Operating Principle
A programmable controller normally performs its control tasks through a repeated operating cycle.
1. Input Processing
The processor receives information from connected input modules and field devices.
2. Logic Execution
The processor evaluates the programmed application based on current input states and internal control variables.
3. Output Processing
The resulting commands are transferred to the appropriate output system.
4. Communication Processing
Applicable communication operations are handled according to the system configuration.
5. Diagnostic Processing
Operating conditions and system faults are monitored to assist maintenance and troubleshooting.
The cycle repeats continuously while the controller is operating.
Industrial Applications
Machine Control
The IC200UDD164 can be applied to machines requiring programmable sequencing and centralized control.
Typical applications include:
- Packaging systems
- Assembly machinery
- Conveyor systems
- Production equipment
- Material-handling machinery
Process Automation
The processor can coordinate suitable process equipment such as pumps, valves, motors, sensors, and other field devices.
OEM Machinery
Machine builders can use programmable controller architectures for equipment requiring centralized logic and modular I/O.
Material Handling
The processor can coordinate conveyors, sensors, motors, switches, and automated sequences.
Industrial Utility Equipment
Automation systems can use programmable processors for equipment monitoring, sequencing, and automatic control.
Installation Guide
1. Verify the Processor
Before installation, verify the complete model number:
GE IC200UDD164
VersaMax Microcontroller Processor
Inspect the processor for:
- Cracks
- Damaged housing
- Damaged connectors
- Damaged mounting surfaces
- Contamination
- Signs of mechanical impact
Confirm that the processor is the correct component for the intended system.
2. Review the Existing System
Before replacing an existing processor, document the control configuration.
Record:
- Processor location
- I/O module arrangement
- Power supply arrangement
- Communication connections
- Application program
- I/O assignments
- Controller configuration
- Communication parameters
This information can be essential during commissioning.
3. Back Up the Application
Before removing an operating processor, preserve all applicable application and configuration information.
Where applicable, back up:
- User application
- Hardware configuration
- I/O configuration
- Communication settings
- Controller parameters
- Required retained data
- Application-specific settings
A verified backup helps reduce downtime during processor replacement.
4. Place the Equipment in a Safe State
The processor may control motors, valves, conveyors, and other machinery.
Before maintenance:
- Stop automatic operation.
- Identify all equipment affected by the controller.
- Place the process in a safe state.
- Isolate hazardous energy where required.
- Follow the facility’s approved maintenance procedures.
- Confirm that unexpected equipment movement cannot occur.
5. Inspect the Installation Environment
Inspect the control cabinet and processor mounting location for:
- Excessive dust
- Moisture
- Corrosion
- Excessive heat
- Mechanical vibration
- Loose hardware
- Damaged connectors
The processor should be installed in a suitable industrial control environment.
6. Install the IC200UDD164
Position the processor correctly within the compatible VersaMax system.
Verify:
- Correct orientation
- Correct mounting position
- Proper mechanical engagement
- Connector alignment
- Secure installation
Do not force the processor into its mounting interface.
7. Verify Power Connections
Before applying power, inspect the applicable power system.
Check:
- Power wiring
- Terminal connections
- Polarity where applicable
- Grounding
- Power distribution
- Supply stability
Unstable or incorrectly connected power can cause startup and reset problems.
8. Verify I/O Connections
Inspect the connected I/O hardware and field wiring.
Confirm:
- Correct module types
- Correct module positions
- I/O assignments
- Field wiring
- Terminal connections
- Sensor wiring
- Actuator wiring
An I/O problem may appear as a controller fault even when the processor itself is operating normally.
9. Verify Communication Connections
If the IC200UDD164 participates in communication with external equipment, inspect:
- Communication cables
- Connectors
- Device addresses
- Network parameters
- Communication configuration
- Connected equipment
Confirm communication before returning the system to automatic operation.
Commissioning Procedure
Step 1 — Visual Inspection
Inspect the processor and surrounding modules.
Step 2 — Verify Power
Confirm that the control power system is stable.
Step 3 — Verify Hardware Configuration
Confirm that the actual I/O arrangement corresponds to the intended configuration.
Step 4 — Restore the Application
Load or restore the correct application and configuration.
Step 5 — Check Processor Status
Review processor operating status and available diagnostics.
Step 6 — Test Inputs
Verify that expected field signals are detected correctly.
Step 7 — Test Outputs
Test output functions under controlled and safe conditions.
Step 8 — Verify Communication
Confirm communication with applicable external equipment.
Step 9 — Test Control Sequences
Run controlled machine or process sequences.
Step 10 — Return to Service
After successful verification, return the equipment to normal operation.
Troubleshooting Guide
Problem 1: IC200UDD164 Does Not Start
Possible causes include:
- Missing power
- Incorrect power wiring
- Loose connection
- Incorrect installation
- Hardware fault
- Configuration problem
Recommended Checks
- Verify control power.
- Inspect power wiring.
- Verify processor installation.
- Review processor status.
- Check available diagnostics.
- Inspect connected modules.
Always verify the power system before replacing the processor.
Problem 2: Processor Starts but Application Does Not Run
Possible causes include:
- Incorrect operating state
- Application configuration problem
- Program issue
- I/O configuration mismatch
- Startup condition
- System diagnostic fault
Review processor status and configuration before modifying the application.
Problem 3: Processor Repeatedly Resets
Potential causes include:
- Unstable control power
- Loose power connections
- Electrical interference
- Hardware problems
- Environmental conditions
- System-level faults
Use the following diagnostic sequence:
Control Power
↓
IC200UDD164
↓
I/O System
↓
Communication System
↓
Environmental Conditions
If the processor resets repeatedly, monitor the power system while reviewing diagnostic information.
Problem 4: Inputs Are Not Updating
Possible causes include:
- Failed sensor
- Broken field wiring
- Input module problem
- Incorrect I/O configuration
- Poor module connection
- Processor communication issue
Determine whether the problem affects one input, one module, or multiple modules.
Problem 5: Outputs Do Not Operate
Possible causes include:
- Incorrect application logic
- Output module fault
- Field wiring problem
- Missing output power
- Interlock condition
- Processor operating-state problem
Check both the commanded output state and the physical output circuit.
Problem 6: Communication Is Lost
Possible causes include:
- Network cable fault
- Loose connector
- Incorrect device address
- Incorrect communication settings
- Network equipment problem
- Processor configuration issue
Begin troubleshooting with physical communication connections.
Problem 7: Machine Operates Incorrectly
If the processor appears to operate normally but the machine does not behave as expected, inspect:
- I/O mapping
- Application logic
- Sensor signals
- Actuator wiring
- Interlocks
- Parameters
- Communication data
The actual fault may be outside the processor.
Problem 8: I/O Configuration Fault
If the controller reports an I/O configuration problem, verify:
- Module positions
- Module types
- Module order
- I/O assignments
- Hardware configuration
The physical hardware should correspond to the configured system.
Problem 9: Controller Becomes Unstable After Maintenance
Possible causes include:
- Loose connectors
- Disturbed power wiring
- Incorrect configuration
- Damaged communication cable
- Poor module seating
- Environmental disturbance
Inspect all components and connections that were disturbed during maintenance.
Problem 10: Replacing the Processor Does Not Resolve the Fault
If the same problem remains after replacing the IC200UDD164, investigate:
- Power supply
- I/O modules
- Field wiring
- Sensors
- Actuators
- Communication equipment
- Application program
- Hardware configuration
Replacing the processor repeatedly without checking the surrounding system can increase downtime without resolving the actual problem.
Diagnostic Strategy
A systematic troubleshooting path is:
Power Supply
↓
IC200UDD164 Processor
↓
I/O Modules
↓
Field Wiring
↓
Sensors / Actuators
For communication problems:
IC200UDD164
↓
Communication Interface
↓
Network
↓
External Device
This approach helps technicians isolate the fault to the processor, I/O system, field equipment, or communication infrastructure.
Processor Replacement Procedure
Phase 1 — Preparation
- Confirm GE IC200UDD164.
- Verify the replacement processor.
- Back up the application.
- Record hardware configuration.
- Record communication parameters.
- Identify affected equipment.
- Place the system in a safe state.
Phase 2 — Removal
- Follow the approved shutdown procedure.
- Remove power as required.
- Identify connected interfaces.
- Disconnect applicable connections.
- Carefully remove the existing processor.
- Inspect the mounting interface.
Phase 3 — Installation
- Inspect the replacement processor.
- Align it correctly.
- Install the IC200UDD164.
- Confirm secure mechanical engagement.
- Reconnect applicable interfaces.
- Verify power connections.
Phase 4 — Configuration
- Restore the application.
- Verify hardware configuration.
- Check I/O assignments.
- Verify communication settings.
- Review processor diagnostics.
Phase 5 — Commissioning
- Apply control power.
- Confirm processor startup.
- Check diagnostics.
- Test inputs.
- Test outputs.
- Verify communication.
- Test control sequences.
- Return the system to normal operation.
Preventive Maintenance
| Maintenance Item | Recommended Action |
|---|---|
| IC200UDD164 | Inspect physical condition |
| Power Supply | Check stability |
| Connectors | Inspect secure engagement |
| I/O Modules | Inspect module condition |
| Communication Network | Inspect connections |
| Application Program | Maintain verified backup |
| Hardware Configuration | Document changes |
| Cabinet | Check cleanliness and environment |
| Grounding | Verify system arrangement |
| Diagnostics | Review recurring faults |
| Field Wiring | Inspect terminals |
| Maintenance Records | Document service activities |
Environmental Considerations
Temperature
Excessive cabinet temperature can reduce electronic component reliability and contribute to controller instability.
Dust
Dust accumulation can affect connectors, cooling conditions, and cabinet cleanliness.
Moisture
Moisture and condensation may cause corrosion or electrical leakage.
Vibration
Continuous mechanical vibration can affect mounting interfaces, connectors, and field wiring.
Electrical Interference
Motors, drives, contactors, and switching equipment can introduce electrical noise into control systems.
Appropriate grounding, cabinet design, cable routing, and separation of power and signal wiring can help reduce interference.
Common Installation Mistakes
Installing the Wrong Processor
Always verify the complete IC200UDD164 model number before installation.
Failing to Back Up the Application
A processor replacement without a verified application backup can significantly increase system recovery time.
Incorrect I/O Configuration
The physical I/O arrangement must correspond to the intended hardware configuration.
Incorrect Communication Configuration
Incorrect network parameters can prevent communication even when the processor itself is functioning.
Loose Connections
Poorly seated power, I/O, or communication connections can create intermittent problems.
Ignoring Power Quality
Repeated resets or unstable operation can originate from the power system rather than the processor.
Key Advantages
- VersaMax microcontroller processor architecture
- Centralized programmable control
- Suitable for industrial automation systems
- Supports coordinated I/O processing
- Suitable for machine sequencing and process control
- Provides centralized control-processing functions
- Designed for modular automation architectures
- Supplied dimensions of 190 × 90 × 76 mm
- Supplied weight of 0.56 kg
- Suitable for OEM and industrial control applications
Technical FAQs
What is the GE IC200UDD164?
The GE IC200UDD164 is a VersaMax Microcontroller Processor used as a central processing component in a compatible industrial automation system.
What is the primary function of IC200UDD164?
Its primary function is to execute the configured control application and coordinate I/O processing, machine logic, diagnostics, and applicable communication functions.
What are the dimensions of IC200UDD164?
The supplied dimensions are 190 × 90 × 76 mm.
What is the weight of IC200UDD164?
The supplied weight is 0.56 kg.
What can cause the processor not to start?
Possible causes include missing or unstable power, incorrect wiring, poor installation, hardware faults, or configuration problems.
Why does the processor repeatedly reset?
Check control power, power connections, electrical interference, environmental conditions, processor status, and connected system components.
Why are inputs not detected?
Check field sensors, wiring, input modules, module connections, I/O configuration, and processor status.
Why are outputs not activating?
Check application logic, interlocks, output modules, field wiring, output power, and processor operating state.
Can a communication fault indicate a processor failure?
Not necessarily. Network cables, connectors, addressing, communication parameters, network equipment, and external devices should be checked first.
What should be backed up before processor replacement?
Preserve the applicable application program, hardware configuration, I/O assignments, communication settings, parameters, and required controller data.
Why is I/O configuration important?
The processor must correctly associate the physical I/O hardware with the configured application. A mismatch can cause configuration faults or incorrect machine behavior.
Should the IC200UDD164 be replaced whenever a machine stops?
No. Power, processor diagnostics, I/O, communication, field wiring, sensors, actuators, application logic, and configuration should be checked systematically before replacing the controller.
Conclusion
The GE IC200UDD164 VersaMax Microcontroller Processor is a central processing component for compatible GE VersaMax industrial automation systems. Based on the supplied product information, the unit measures 190 × 90 × 76 mm and weighs 0.56 kg.
The processor executes programmed control logic and coordinates information between the I/O system, field equipment, communication infrastructure, and other automation functions. Its role makes proper installation, configuration, commissioning, and preventive maintenance important for stable industrial operation.
During installation, technicians should verify the exact model, preserve the existing application and configuration, place controlled machinery in a safe state, inspect the mounting environment, and verify power, I/O, and communication connections.
When troubleshooting, the processor should not automatically be considered the source of every control fault. A structured diagnostic process should also examine the power supply, I/O modules, field wiring, sensors, actuators, communication equipment, application logic, and hardware configuration.
With appropriate installation practices and systematic maintenance, the IC200UDD164 can provide reliable programmable control processing within a compatible GE VersaMax automation system.
