Product Overview

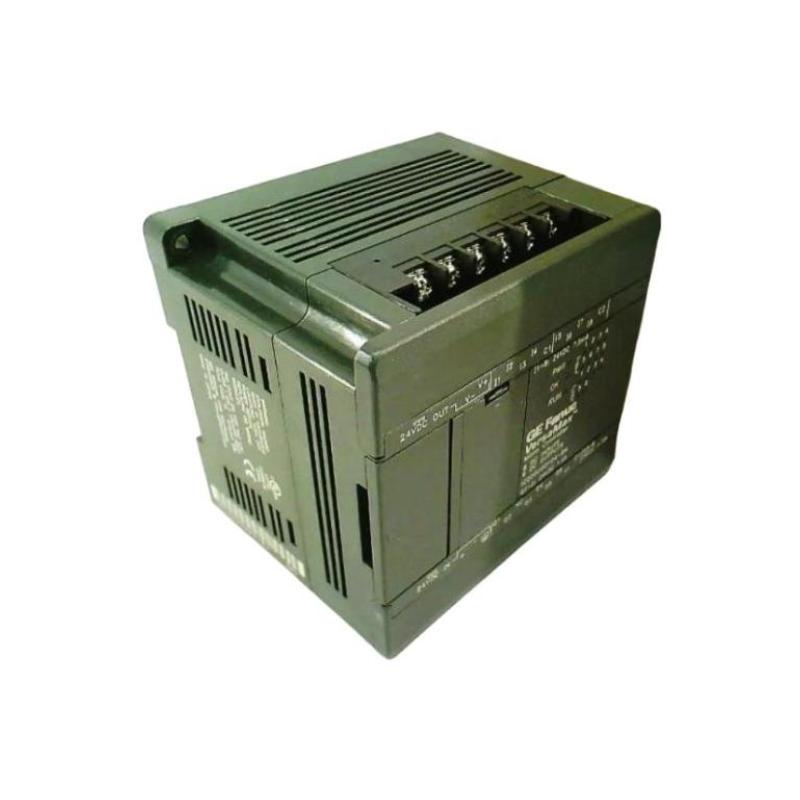

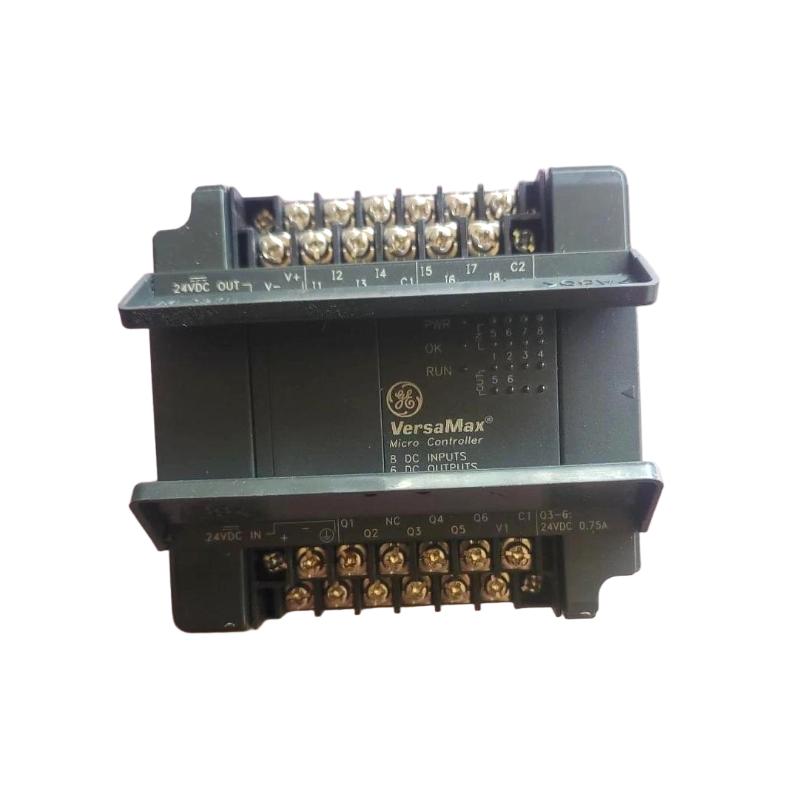

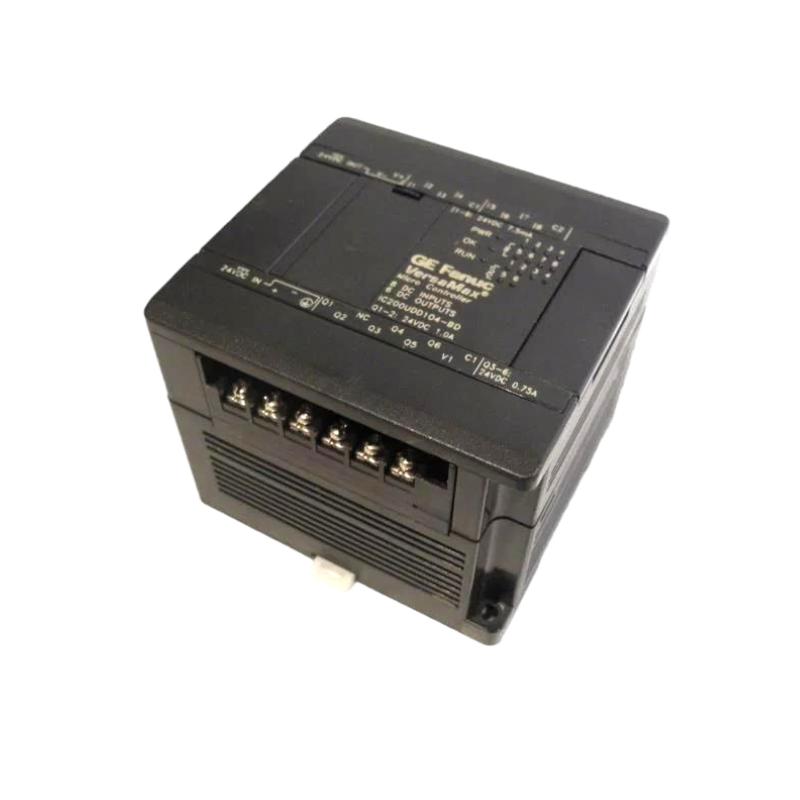

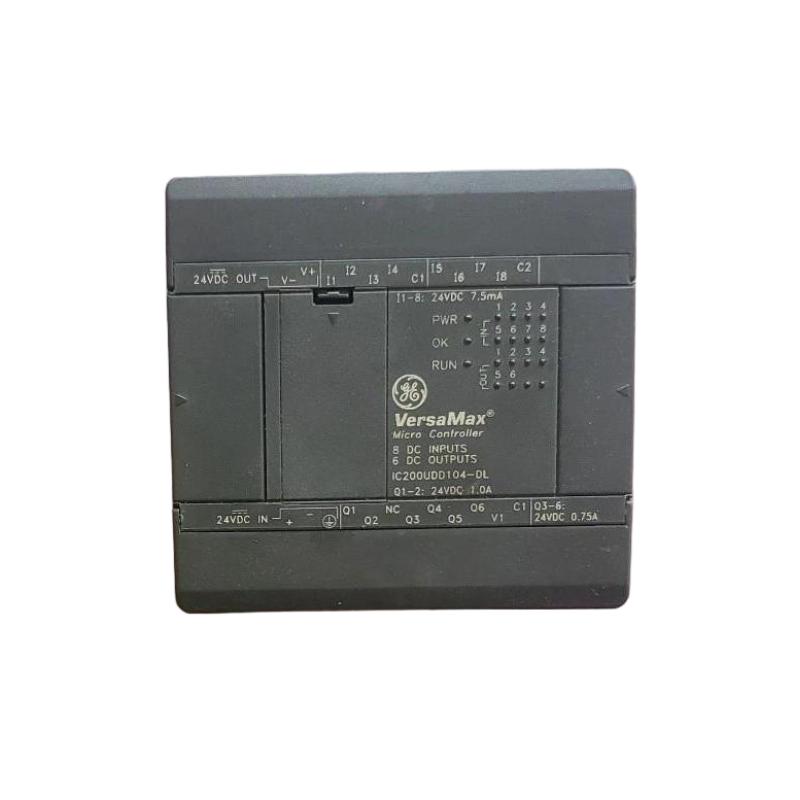

The GE IC200UDD104 VersaMax Microcontroller Processor is a compact programmable control processor intended for compatible GE VersaMax industrial automation systems. As a controller-level component, it provides the processing capability required to execute application logic, manage connected I/O, coordinate machine sequences, process control data, and support applicable communication functions.
In a typical industrial automation architecture, field devices generate input information, I/O modules transfer that information to the processor, and the controller evaluates the programmed logic before generating output commands. This makes the IC200UDD104 an important component between the field I/O layer and the controlled machine or process.
The supplied product information identifies the unit as a VersaMax Microcontroller Processor with dimensions of 95 × 90 × 76 mm and a weight of 0.381 kg.
Product Information
- Manufacturer: GE
- Product Family: VersaMax
- Model: IC200UDD104
- Product Type: Microcontroller Processor
- Dimensions: 95 × 90 × 76 mm
- Weight: 0.381 kg
- Primary Function: Programmable Control Processing
- Application: Industrial Automation
- System Role: Controller / Processor
The IC200UDD104 should be installed only in a compatible VersaMax control configuration. Before commissioning, the processor, power system, I/O configuration, application program, and communication connections should be verified.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model Number | IC200UDD104 |
| Product Type | Microcontroller Processor |
| Dimensions | 95 × 90 × 76 mm |
| Weight | 0.381 kg |
| Main Function | Control Processing |
| Application | Industrial Automation |
| System Role | Controller / Processor |
| Installation | Modular Automation System |
| Maintenance | Installation / Commissioning / Troubleshooting |
The dimensions and weight are based on the product information supplied.
Function and Working Principle
The IC200UDD104 serves as the processing element of a compatible VersaMax automation system.
A simplified control architecture is:
Field Sensors
↓
VersaMax Input Modules
↓
IC200UDD104 Processor
↓
User Application Logic
↓
VersaMax Output Modules
↓
Actuators / Controlled Equipment
During normal operation, the processor continuously evaluates information from the control system and executes the configured application.
Typical control functions may include:
- Boolean logic
- Equipment sequencing
- Start/stop control
- Interlocking
- Timers
- Counters
- Alarm processing
- Data handling
- Machine coordination
- Communication management
The processor therefore provides the computational foundation for the control system.
Role in VersaMax Automation Systems
The IC200UDD104 can serve as the central controller within a compact modular automation architecture.
A typical arrangement is:
Sensors / Transmitters
↓
Input I/O
↓
IC200UDD104
↓
Control Program
↓
Output I/O
↓
Motors / Valves / Actuators
The processor may also exchange information with supervisory or external automation equipment.
A broader architecture can be represented as:
Operator / Supervisory System
↕
Communication Network
↕
IC200UDD104
↕
VersaMax I/O
↕
Field Equipment
This arrangement allows the processor to coordinate automated equipment while processing real-time input and output information.
Controller Operating Principle
A programmable controller performs its control tasks through a repeated operating cycle.
1. Input Acquisition
Input information is obtained from connected I/O devices.
2. Program Execution
The processor evaluates the user application based on current inputs and internal data.
3. Output Processing
The calculated output states are transferred to the appropriate output system.
4. Communication Processing
Applicable communication tasks are handled according to the system configuration.
5. Diagnostics
The controller monitors operating conditions and provides applicable diagnostic information.
This process repeats continuously during normal operation.
Industrial Applications
Machine Control
The IC200UDD104 can be applied to compact machine-control systems requiring programmable sequencing.
Typical applications include:
- Packaging machinery
- Assembly equipment
- Conveyor systems
- Production machinery
- Material-handling equipment
Process Equipment
The processor can coordinate suitable pumps, valves, motors, sensors, and other process equipment.
OEM Machinery
Its compact controller format can be useful for machine builders developing programmable automation equipment.
Material Handling
The controller can coordinate sensors, conveyors, motors, and positioning sequences within compatible systems.
Utility Automation
Industrial utility equipment can use programmable processors for equipment monitoring and automated sequencing.
Installation Guide
1. Verify the Processor
Before installation, confirm:
GE IC200UDD104
VersaMax Microcontroller Processor
Inspect the unit for:
- Physical damage
- Cracks
- Damaged connectors
- Damaged mounting surfaces
- Contamination
- Signs of impact
Confirm that the model corresponds to the intended control application.
2. Review the Existing System
Before installing or replacing the processor, document:
- Processor location
- I/O module arrangement
- Power supply configuration
- Communication connections
- Application program
- I/O assignments
- Controller parameters
- Network settings
This information should be preserved before making hardware changes.
3. Back Up the Application
When replacing an existing processor, back up the applicable control-system information.
Where applicable, preserve:
- User application
- Hardware configuration
- I/O configuration
- Communication settings
- Controller parameters
- Required retained data
- Application-specific settings
A verified backup helps reduce commissioning time.
4. Place the Equipment in a Safe State
The processor may control machinery and process equipment.
Before installation:
- Stop affected automatic operation.
- Identify all controlled equipment.
- Place the process in a safe condition.
- Isolate hazardous energy where required.
- Follow approved maintenance procedures.
- Confirm that unexpected equipment movement cannot occur.
5. Inspect the Mounting Location
Check the installation area for:
- Dust
- Moisture
- Corrosion
- Excessive temperature
- Vibration
- Loose hardware
- Damaged connectors
The installation environment should be suitable for industrial electronic control equipment.
6. Install the IC200UDD104
Position the processor correctly within the compatible VersaMax configuration.
Verify:
- Correct orientation
- Correct mounting location
- Proper mechanical engagement
- Correct connector alignment
- Secure installation
Do not force the processor into the mounting interface.
7. Verify Power Connections
Before applying power, inspect the control power arrangement.
Check:
- Power wiring
- Terminal tightness
- Polarity where applicable
- Grounding
- Power distribution
- Supply stability
Power problems are a common cause of controller startup and reset faults.
8. Verify I/O Connections
Inspect the connected I/O system and field wiring.
Confirm:
- Correct module types
- Correct module positions
- I/O assignments
- Field wiring
- Terminal connections
- Sensor wiring
- Actuator wiring
A controller can function correctly while a field wiring fault causes incorrect machine operation.
9. Verify Communication Connections
If the processor is connected to other automation equipment, inspect:
- Communication cables
- Connectors
- Device addresses
- Network configuration
- Communication parameters
- Network topology
Verify communication before returning the system to automatic operation.
Commissioning Procedure
Step 1 — Visual Inspection
Inspect the processor, mounting interface, and surrounding modules.
Step 2 — Verify Power
Confirm stable control power.
Step 3 — Verify Hardware Configuration
Confirm that the physical I/O arrangement corresponds to the intended configuration.
Step 4 — Restore the Application
Load or restore the correct application program and configuration.
Step 5 — Check Processor Status
Review processor operating status and available diagnostic information.
Step 6 — Test Inputs
Verify that expected input signals are detected.
Step 7 — Test Outputs
Test outputs under controlled conditions.
Step 8 — Verify Communications
Confirm communication with connected equipment.
Step 9 — Test Control Logic
Run the application through controlled sequences.
Step 10 — Return to Service
After successful verification, return the equipment to normal operation.
Troubleshooting Guide
Problem 1: IC200UDD104 Does Not Start
Possible causes include:
- Missing control power
- Incorrect power wiring
- Loose connection
- Processor installation problem
- Hardware fault
- Configuration problem
Recommended Checks
- Check control power.
- Inspect power wiring.
- Verify processor installation.
- Review status indications.
- Check diagnostic information.
- Inspect connected modules.
Always check the power system before replacing the processor.
Problem 2: Processor Starts but Application Does Not Run
Possible causes include:
- Incorrect operating state
- Application configuration error
- Program problem
- I/O configuration mismatch
- Startup condition
- System diagnostic fault
Review processor status and configuration before changing application logic.
Problem 3: Processor Repeatedly Resets
Potential causes include:
- Unstable power
- Loose power connections
- Electrical interference
- Hardware problem
- Environmental conditions
- System-level fault
Diagnostic Sequence
Control Power
↓
IC200UDD104
↓
I/O System
↓
Communication Network
↓
Environmental Conditions
Monitor the power supply while reviewing processor diagnostics.
Problem 4: Inputs Are Not Updating
Possible causes include:
- Sensor failure
- Broken field wiring
- Input module problem
- Incorrect I/O configuration
- Poor module connection
- Processor communication issue
Determine whether the problem affects one channel, one module, or multiple I/O modules.
Problem 5: Outputs Do Not Operate
Possible causes:
- Incorrect application logic
- Output module fault
- Field wiring problem
- Missing output power
- Interlock condition
- Processor operating-state problem
Check the internal output command and physical output circuit separately.
Problem 6: Communication Is Lost
Possible causes include:
- Network cable problem
- Loose connector
- Incorrect device address
- Incorrect communication configuration
- Network equipment fault
- Processor configuration issue
Start with physical network connections before modifying configuration parameters.
Problem 7: Machine Operates Incorrectly
If the processor appears operational but the machine behaves incorrectly, inspect:
- I/O mapping
- Application logic
- Sensor signals
- Actuator wiring
- Interlocks
- Parameters
- Communication data
The fault may exist in another part of the control system.
Problem 8: I/O Configuration Fault
If the controller reports an I/O configuration problem, verify:
- Module positions
- Module types
- Module order
- I/O assignments
- Hardware configuration
The physical hardware should correspond to the configured system.
Problem 9: Controller Becomes Unstable After Maintenance
Possible causes include:
- Loose connectors
- Disturbed power wiring
- Incorrect configuration
- Damaged communication cable
- Poor module seating
- Environmental disturbance
Review all components and connections that were disturbed during maintenance.
Problem 10: Processor Replacement Does Not Solve the Fault
If replacing the IC200UDD104 does not resolve the problem, investigate:
- Power supply
- I/O modules
- Field wiring
- Sensors
- Actuators
- Communication equipment
- Application program
- Hardware configuration
This helps avoid unnecessary replacement of functioning controller hardware.
Diagnostic Strategy
A systematic troubleshooting path is:
Power Supply
↓
IC200UDD104 Processor
↓
I/O Modules
↓
Field Wiring
↓
Sensors / Actuators
For communication problems:
IC200UDD104
↓
Communication Interface
↓
Network
↓
External Device
This approach helps technicians isolate the actual source of the fault.
Processor Replacement Procedure
Phase 1 — Preparation
- Confirm GE IC200UDD104.
- Verify the replacement processor.
- Back up the application.
- Record hardware configuration.
- Record communication parameters.
- Identify affected equipment.
- Place the system in a safe state.
Phase 2 — Removal
- Follow the approved shutdown procedure.
- Remove power as required.
- Identify connected interfaces.
- Disconnect applicable connections.
- Carefully remove the existing processor.
- Inspect the mounting interface.
Phase 3 — Installation
- Inspect the replacement processor.
- Align it correctly.
- Install the IC200UDD104.
- Confirm secure mechanical engagement.
- Reconnect applicable interfaces.
- Verify power connections.
Phase 4 — Configuration
- Restore the application.
- Verify hardware configuration.
- Check I/O assignments.
- Verify communication settings.
- Review processor diagnostics.
Phase 5 — Commissioning
- Apply control power.
- Confirm processor startup.
- Check diagnostics.
- Test inputs.
- Test outputs.
- Verify communication.
- Test control sequences.
- Return the system to normal operation.
Preventive Maintenance
| Maintenance Item | Recommended Action |
|---|---|
| IC200UDD104 | Inspect physical condition |
| Power Supply | Check stability |
| Connectors | Inspect secure engagement |
| I/O Modules | Inspect module condition |
| Communication Network | Inspect connections |
| Application Program | Maintain verified backup |
| Hardware Configuration | Document changes |
| Cabinet | Check cleanliness and environment |
| Grounding | Verify system arrangement |
| Diagnostics | Review recurring faults |
| Field Wiring | Inspect terminals |
| Maintenance Records | Document service activities |
Environmental Considerations
Temperature
Excessive cabinet temperature can reduce electronic component reliability and contribute to controller instability.
Dust
Dust accumulation can affect connectors and cabinet cleanliness.
Moisture
Moisture and condensation may cause corrosion or electrical leakage.
Vibration
Continuous vibration can affect mounting interfaces, connectors, and wiring.
Electrical Interference
Motors, drives, contactors, and switching devices can introduce electrical noise into control systems.
Proper cabinet design, grounding, and cable routing can reduce these effects.
Common Installation Mistakes
Incorrect Processor Model
Verify the complete IC200UDD104 model number before installation.
No Application Backup
Replacing a processor without a verified application backup can significantly increase recovery time.
Incorrect I/O Configuration
The physical I/O arrangement must correspond to the intended configuration.
Incorrect Communication Parameters
Incorrect network settings can prevent external communication even when the processor is functioning.
Loose Connections
Poorly seated power, I/O, or communication connections can create intermittent faults.
Ignoring Power Quality
Repeated resets can originate from unstable control power rather than a defective processor.
Key Advantages
- Compact VersaMax microcontroller processor architecture
- Centralized programmable control
- Suitable for industrial automation applications
- Supports coordinated I/O processing
- Suitable for machine and process sequencing
- Provides centralized control-processing functions
- Designed for modular automation architectures
- Supplied dimensions of 95 × 90 × 76 mm
- Supplied weight of 0.381 kg
- Suitable for compact OEM and industrial control applications
Technical FAQs
What is the GE IC200UDD104?
The GE IC200UDD104 is a VersaMax Microcontroller Processor used as a central processing component within a compatible industrial automation system.
What is the primary function of IC200UDD104?
Its primary function is to execute the configured control application and coordinate I/O processing, machine logic, diagnostics, and applicable communication functions.
What are the dimensions of IC200UDD104?
The supplied dimensions are 95 × 90 × 76 mm.
What is the weight of IC200UDD104?
The supplied weight is 0.381 kg.
What can cause the processor not to start?
Possible causes include missing or unstable power, incorrect wiring, poor installation, hardware faults, or configuration problems.
Why does the processor repeatedly reset?
Check the control power supply, connections, electrical interference, environmental conditions, hardware status, and connected system components.
Why are inputs not detected?
Check the field sensor, wiring, input module, module connection, I/O configuration, and processor status.
Why are outputs not activating?
Check application logic, interlocks, output modules, field wiring, output power, and processor operating state.
Can a communication fault indicate a processor failure?
Not necessarily. Network cabling, connectors, device addressing, communication parameters, and external equipment should be checked first.
What should be backed up before processor replacement?
Preserve the applicable application program, hardware configuration, I/O assignments, communication settings, parameters, and required controller data.
Why is I/O configuration important?
The processor must correctly associate physical I/O hardware with the configured application. A mismatch can result in configuration faults or incorrect machine behavior.
Should the IC200UDD104 be replaced whenever a machine stops?
No. Power, processor diagnostics, I/O, communication, field wiring, sensors, actuators, and application logic should be checked systematically before replacing the controller.
Conclusion
The GE IC200UDD104 VersaMax Microcontroller Processor is a compact controller designed for compatible VersaMax industrial automation architectures. Based on the supplied product information, it measures 95 × 90 × 76 mm and weighs 0.381 kg.
The processor provides centralized execution of the control application and coordinates information between the I/O system, field equipment, communication infrastructure, and higher-level automation functions. Its compact physical format makes it suitable for control cabinets and applications where space efficiency is important.
During installation, technicians should verify the exact model, preserve the existing application and configuration, place controlled machinery in a safe condition, inspect the mounting interface, and confirm power, I/O, and communication connections. Commissioning should then proceed systematically through startup verification, I/O testing, communication checks, and controlled application execution.
For troubleshooting, the processor should not automatically be considered the source of every control fault. Power quality, I/O modules, field wiring, sensors, actuators, communication equipment, application logic, and configuration should all be examined as part of a structured diagnostic process.
With appropriate installation practices, configuration management, preventive maintenance, and environmental control, the IC200UDD104 can provide dependable processing and control functionality within a compatible GE VersaMax automation system.
