Product Overview

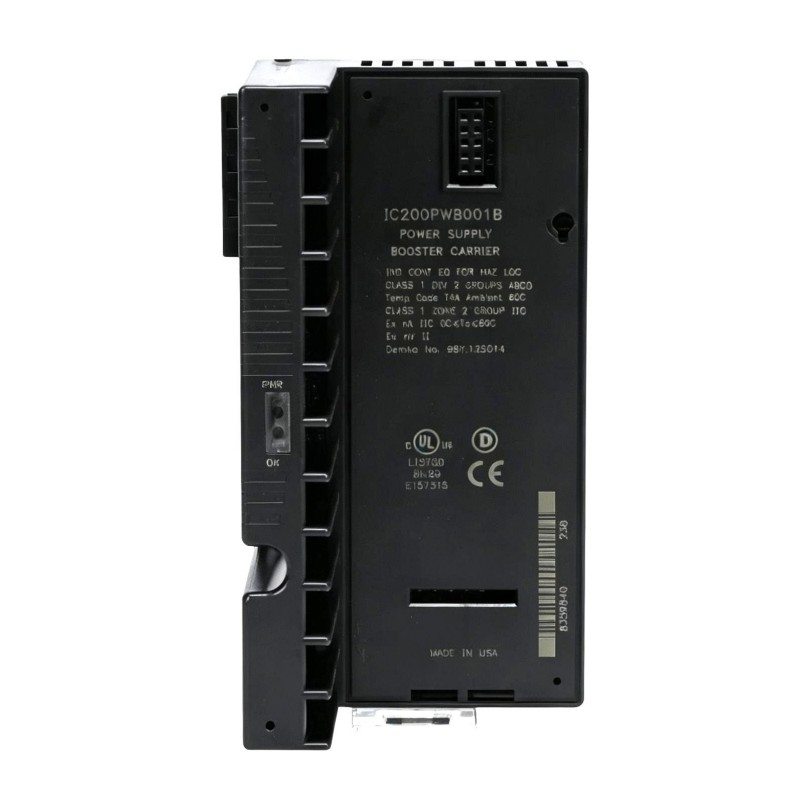

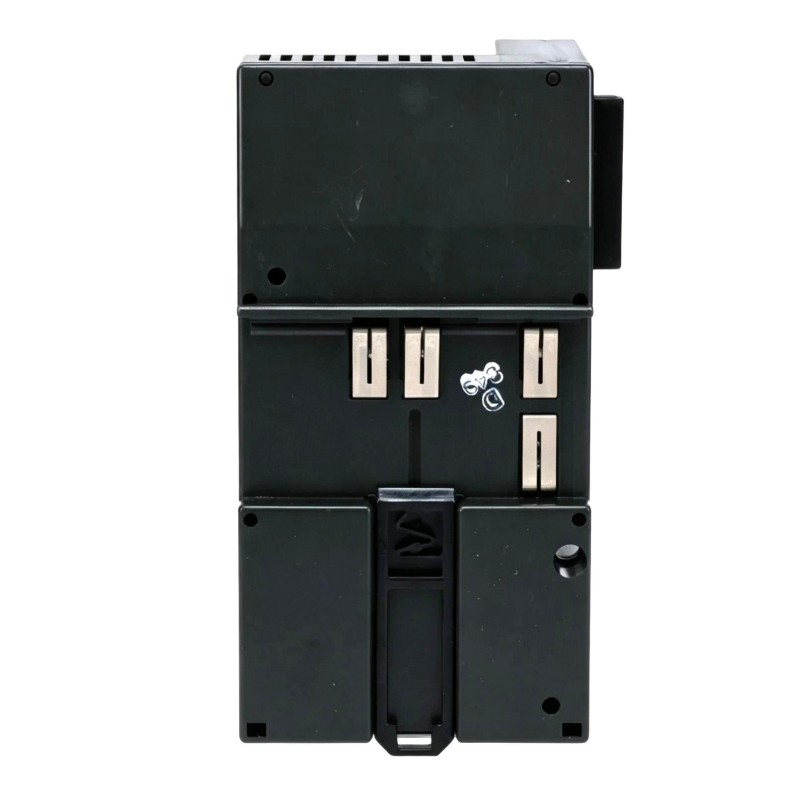

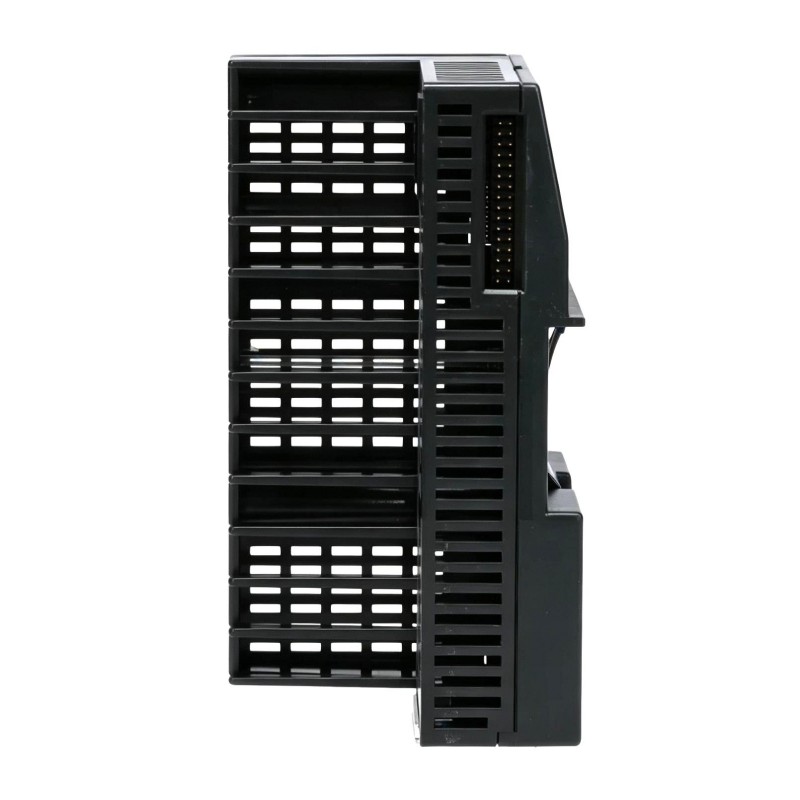

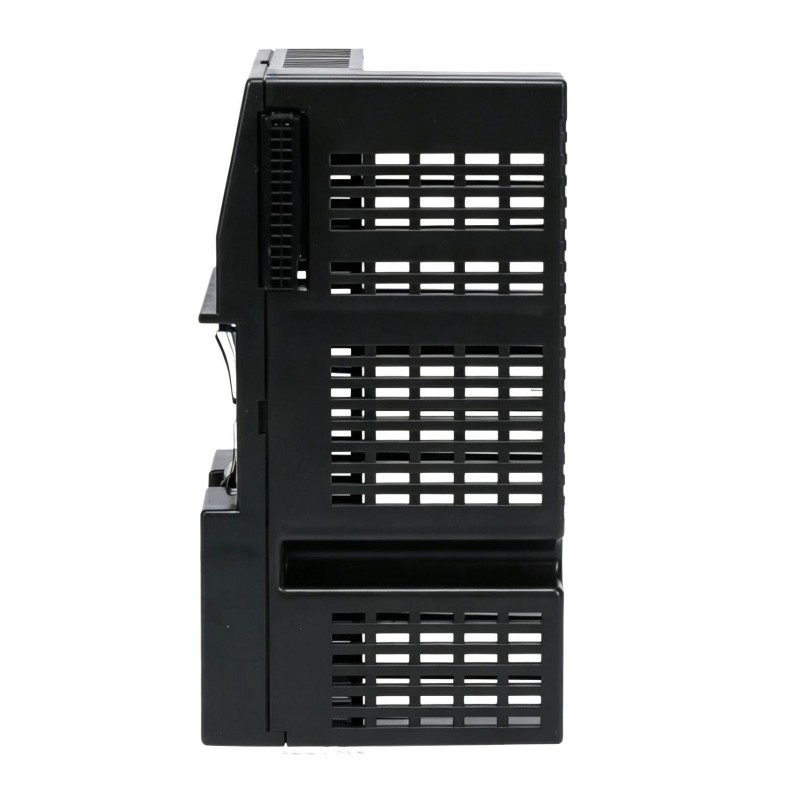

The GE IC200PWB001B VersaMax Power Supply Booster Carrier is a power-distribution and system-expansion component used within a GE VersaMax PLC architecture. Unlike a conventional input or output module, it does not primarily process field signals. Its function is associated with extending power availability within a VersaMax I/O arrangement.

In a VersaMax installation with a larger number of I/O modules or an extended physical configuration, power distribution can become a practical consideration. The IC200PWB001B can be incorporated into the system where additional power support is required for downstream I/O hardware.

A typical arrangement can be represented as:

VersaMax Power Supply → IC200PWB001B → Additional I/O Section → I/O Modules

This makes the carrier relevant to systems where the original power arrangement needs to be extended rather than replaced completely.

The IC200PWB001B is particularly relevant during VersaMax system expansion, cabinet modification, machine retrofit, and I/O capacity extension. Engineers working on an existing installation can use the carrier as part of the power architecture supporting additional I/O sections.

During replacement or troubleshooting, the carrier should be considered together with the power supply, connected I/O modules, carrier arrangement, and wiring. A power-related problem affecting several downstream modules does not necessarily indicate a failure of an individual I/O module.

Technical Specifications

Product Features

• GE VersaMax Power Supply Booster Carrier
• Model IC200PWB001B
• Used within the VersaMax power architecture
• Supports extended I/O arrangements
• Suitable for systems requiring additional power distribution support
• Applicable to VersaMax system expansion
• Useful in cabinet and machine retrofit projects
• Works with the surrounding VersaMax power and I/O hardware
• Suitable for maintenance and replacement applications
• Intended for system-level rather than field-signal processing functions

Working Principle

The IC200PWB001B is associated with the power path of an expanded VersaMax I/O arrangement.

A simplified system relationship is:

Power Supply → Booster Carrier → I/O Section → Individual I/O Modules

When additional I/O hardware is added to a VersaMax installation, the electrical arrangement must continue to support the connected modules. The booster carrier forms part of this extended power architecture.

For example, a machine retrofit may add several input and output modules to accommodate additional sensors, valves, motor feedback signals, or auxiliary equipment. Instead of treating each new module independently, the engineer must consider how power reaches the extended I/O section.

The practical arrangement can therefore look like:

Main VersaMax Power Section → IC200PWB001B → Expanded I/O Section → Input / Output Modules

The carrier itself does not determine the machine sequence or interpret sensor states. Those functions remain with the PLC CPU and individual I/O modules.

Role in a VersaMax Power and I/O Architecture

The IC200PWB001B belongs to the infrastructure surrounding the VersaMax I/O system.

PLC Controller → VersaMax I/O Architecture → Power Distribution → I/O Modules → Field Devices

The carrier should therefore be evaluated as part of the complete power and I/O structure rather than as a standalone controller component.

Power Distribution in Expanded I/O Systems

Power requirements become more significant as the number of connected modules increases.

A VersaMax system expansion may involve:

• Additional discrete input modules
• Additional discrete output modules
• Analog input modules
• Analog output modules
• Communication-related hardware
• Additional field devices
• Expanded machine sections

When several modules are installed in an extended arrangement, engineers need to verify the power architecture before commissioning the additional hardware.

The IC200PWB001B can be relevant in installations where the I/O arrangement requires additional power-support hardware.

Industrial Applications

Installation and Maintenance

Power-related components require a different troubleshooting approach from conventional I/O modules. If several I/O modules become unavailable at the same time, the power path should be checked before replacing individual modules.

• Confirm the complete IC200PWB001B model.
• Verify its position within the VersaMax architecture.
• Identify the associated power supply.
• Document the connected I/O sections.
• Check the carrier arrangement.
• Inspect physical connections.
• Check power-related wiring.
• Inspect connectors for damage or poor contact.
• Review the installed I/O configuration.
• Check for multiple modules affected by the same power condition.
• Follow the approved electrical isolation procedure.
• Remove and install the carrier according to the applicable maintenance procedure.
• Restore the required connections.
• Re-energize the system according to the approved procedure.
• Check VersaMax system diagnostics.
• Verify the status of downstream I/O modules.
• Test representative input and output functions.
• Confirm that the expanded I/O section operates correctly.
• Record the final hardware configuration.

If several modules lose operation simultaneously, compare their locations and power path before assuming that multiple I/O modules have failed independently.

Compatible System Components

Recommended Related Models

Key Advantages

• GE VersaMax Power Supply Booster Carrier.
• Model IC200PWB001B.
• Supports extended VersaMax I/O arrangements.
• Forms part of the system power architecture.
• Suitable for I/O expansion projects.
• Applicable to machine retrofit work.
• Useful when extending existing VersaMax installations.
• Works alongside VersaMax power and I/O hardware.

Technical FAQs

When is a power supply booster carrier relevant in a VersaMax installation?

It becomes relevant when the VersaMax system uses an extended I/O arrangement that requires additional power-support infrastructure. The actual requirement depends on the installed hardware configuration and power architecture.

What symptoms can indicate a problem in the I/O power path?

If several I/O modules in the same downstream section become unavailable simultaneously, a shared power or carrier-related issue should be considered. Checking the power source, carrier connections, and affected I/O section can help isolate the problem.

Is the IC200PWB001B responsible for processing discrete input or output signals?

No. Its role is associated with the power and expansion infrastructure. Discrete input modules acquire field conditions, while discrete output modules send control commands. The PLC CPU handles the application logic.

What should be checked before adding the IC200PWB001B to an existing VersaMax system?

The engineer should review the complete I/O arrangement, associated power supply, connected modules, physical installation, wiring, and system configuration. The expanded section should be evaluated as a complete electrical and control-system arrangement.
