Product Overview

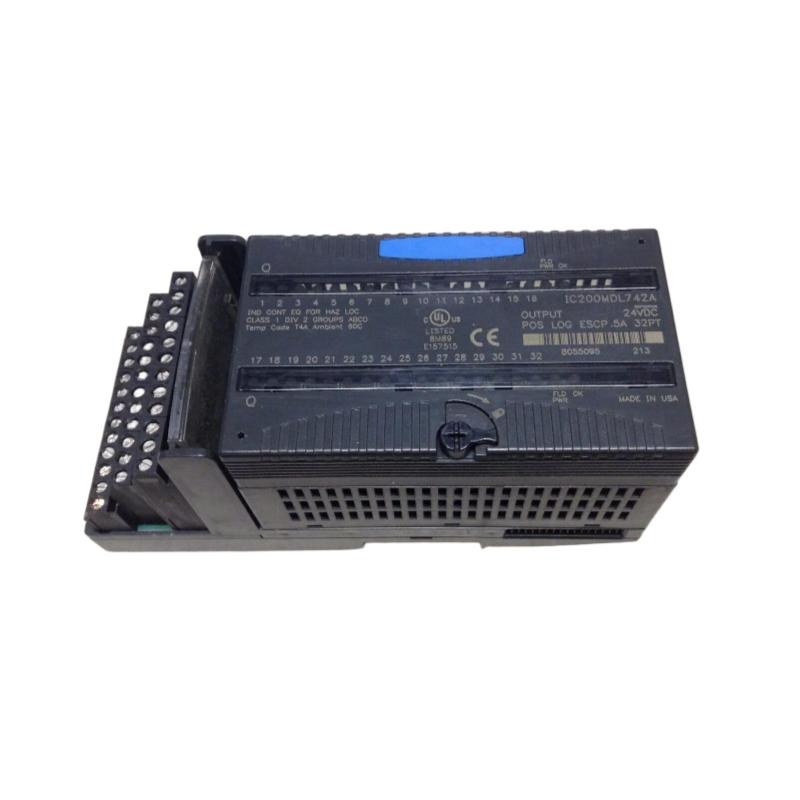

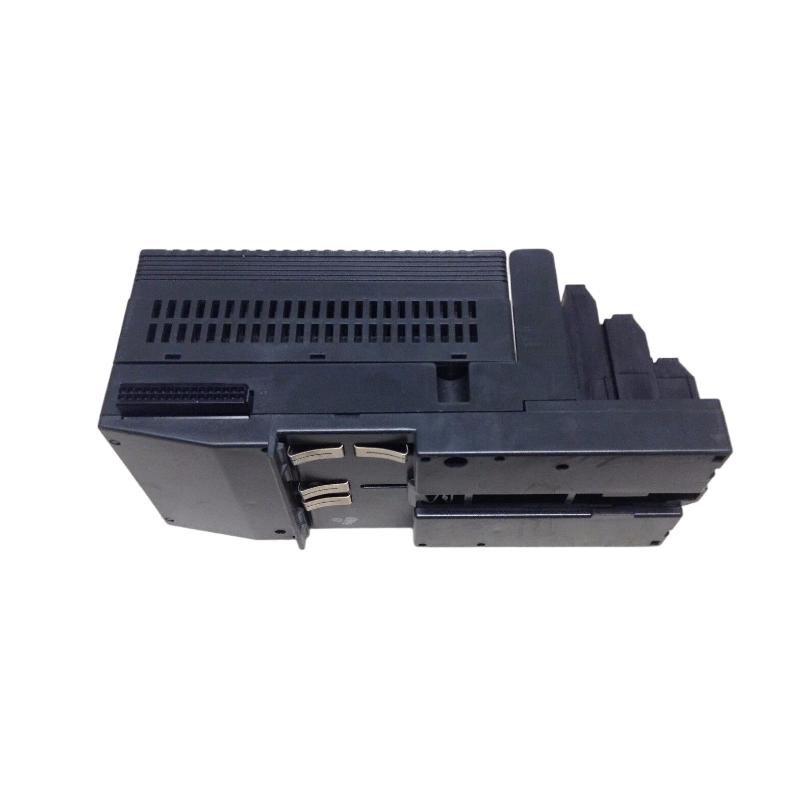

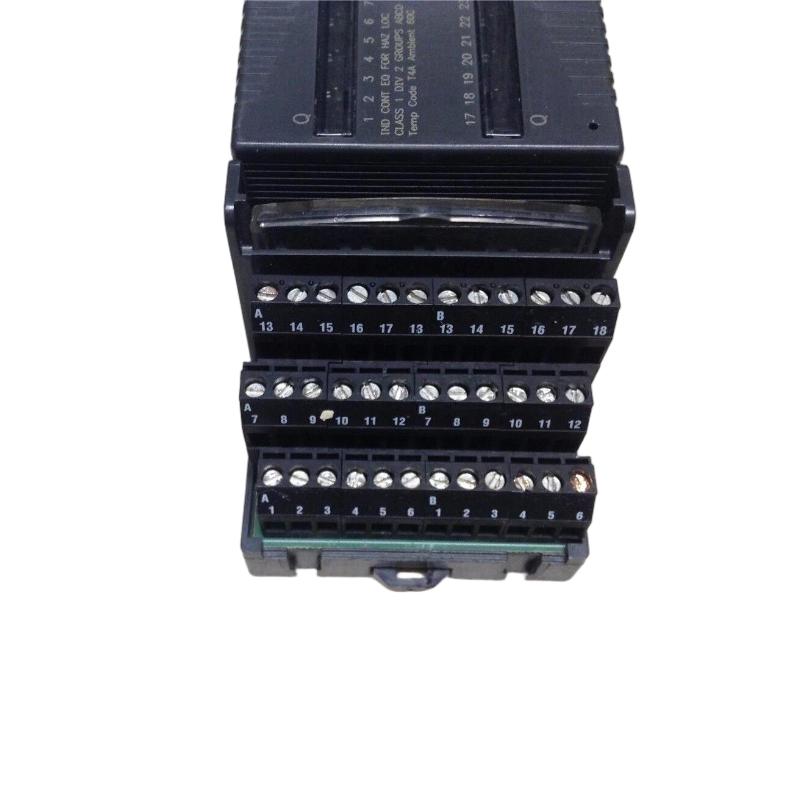

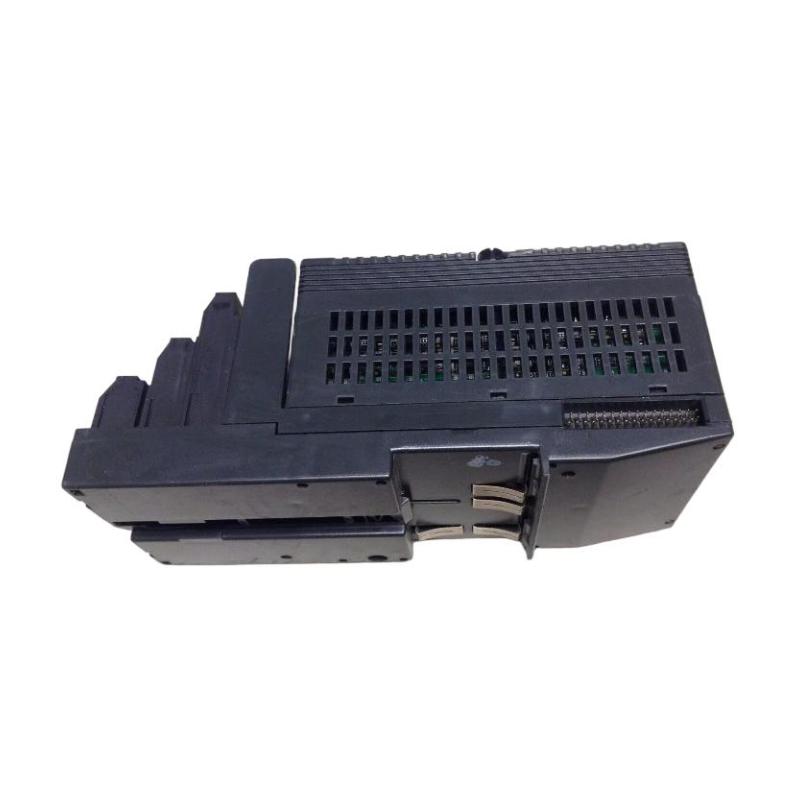

The GE IC200MDL742 VersaMax Discrete Output Module is a modular digital output component used in industrial automation systems based on the GE VersaMax platform. It provides the interface between PLC control logic and external field devices, allowing the controller to command discrete loads such as relays, solenoids, indicators, contactors, and other suitable control circuits.
Within a typical automation system, the PLC controller determines when a field device should be activated or deactivated. The IC200MDL742 receives these output commands through the VersaMax I/O architecture and provides the corresponding discrete output states to the connected field circuits.
This makes the module an important part of the control system’s output layer, particularly where multiple binary control signals must be transferred from the PLC to physical equipment.
The supplied product information is:
- Manufacturer: GE
- Product Family: VersaMax
- Model: IC200MDL742
- Product Type: Discrete Output Module
- Dimensions: 110 × 66.8 × 50 mm
- Weight: 0.15 kg
- Application: Industrial Automation
- Primary Function: Discrete Field Output Control
The exact output electrical characteristics, channel arrangement, voltage range, current rating, load limitations, protection requirements, and terminal configuration should be verified against the applicable system documentation before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Product Family | VersaMax |
| Model | IC200MDL742 |
| Product Type | VersaMax Discrete Output Module |
| Signal Type | Digital / Discrete Output |
| Main Function | Field Device Control |
| System Architecture | Modular I/O |
| Application | Industrial Automation |
| Dimensions | 110 × 66.8 × 50 mm |
| Weight | 0.15 kg |
| Installation | VersaMax Modular I/O System |
| Interface | VersaMax I/O Backplane |
| Field Interface | Discrete Output Circuits |
| Typical Applications | Relays, Solenoids, Indicators, Contactors, Control Devices |
Function and Working Principle
The IC200MDL742 receives discrete output commands from the VersaMax controller and transfers those commands to external field circuits.
The basic control path is:
PLC Program
↓
VersaMax Controller
↓
I/O Backplane
↓
IC200MDL742
↓
Field Wiring
↓
Actuator / Load
When the PLC program determines that an output should become active, the controller sends the corresponding command through the I/O architecture.
The appropriate output channel then changes state, allowing the connected field circuit to respond.
For example, a PLC sequence may require a pneumatic valve to open. The PLC generates the required output command, the VersaMax controller transfers it to the IC200MDL742, and the corresponding output circuit changes state. The external valve-control circuit can then respond.
When the PLC removes the command, the output returns to its inactive condition according to the characteristics of the output circuit and connected load.
Role in Industrial Control Systems
A typical VersaMax control architecture can be represented as:
Sensors
↓
Input Modules
↓
VersaMax Controller
↓
PLC Logic
↓
IC200MDL742
↓
Field Actuators
↓
Industrial Process
The IC200MDL742 therefore operates on the output side of the control system.
It can be incorporated into applications involving:
- Valve control
- Relay control
- Contactor interfaces
- Indicator control
- Alarm activation
- Machine sequencing
- Equipment enable signals
- Auxiliary control
- Process-control commands
- Interlock-related outputs
Typical Industrial Applications
Machine Automation
The IC200MDL742 can be used to control suitable discrete field circuits associated with:
- Solenoid valves
- Control relays
- Contactors
- Indicator lamps
- Alarm devices
- Auxiliary actuators
- Machine-control interfaces
The PLC can operate these outputs according to programmed sequence conditions.
Conveyor Systems
Discrete outputs can be used for control functions such as:
- Conveyor control interfaces
- Diverter mechanisms
- Pneumatic actuators
- Stack lights
- Alarm circuits
- Auxiliary equipment
- Product-routing mechanisms
The PLC can combine input feedback with output commands to coordinate conveyor operation.
Packaging Equipment
Packaging machines often require multiple discrete actuator commands.
Potential applications include:
- Cylinder-control valves
- Clamping mechanisms
- Product diverters
- Machine indicators
- Alarm circuits
- Auxiliary relays
- Sequence-control devices
Accurate output sequencing is important because several actuators may have to operate in a specific order.
Pump and Fan Systems
The module can provide discrete control signals to suitable interface circuits for:
- Pump enable
- Fan enable
- Starter control
- Auxiliary relays
- Alarm circuits
- Equipment-control interfaces
For larger motors, the output module should normally operate an appropriate external control or switching device rather than directly switching a load that exceeds the output circuit’s capabilities.
Process Automation
In process applications, discrete outputs can be associated with:
- Valve actuators
- Pump-control interfaces
- Alarm devices
- Equipment permissives
- Auxiliary relays
- Process sequence commands
Installation Guide
1. Verify the Module
Before installation, confirm the identification:
GE IC200MDL742
Inspect the module for:
- Cracked housing
- Physical deformation
- Damaged connectors
- Broken locking features
- Contamination
- Signs of overheating
- Damaged mounting surfaces
Do not install equipment with obvious physical damage.
2. Inspect the VersaMax Carrier
Before installing the module, inspect the associated carrier.
Check:
- Carrier condition
- Backplane connector
- Module position
- Adjacent modules
- Terminal assembly
- Field power connections
A carrier or connector problem can cause output faults that appear to originate from the module.
3. Follow Electrical Safety Procedures
Follow the site’s approved electrical isolation and maintenance procedures before installation or replacement.
Unless the particular system has been specifically designed for live module replacement, remove power before servicing the module.
The controlled machine should also be placed in an appropriate safe state.
4. Install the Module
Align the IC200MDL742 with its designated carrier position.
Carefully engage the module with the carrier.
Verify:
- Correct orientation
- Connector alignment
- Complete seating
- Secure mechanical locking
Do not force the module into position.
If the module does not seat correctly, inspect the module and carrier connector.
5. Connect Field Loads
Connect external loads according to the approved electrical drawings.
Possible applications include:
- Relays
- Solenoid valves
- Contactors
- Indicators
- Alarm devices
- Auxiliary control circuits
Before connecting a load, confirm that its electrical characteristics are appropriate for the output circuit.
6. Verify Output Wiring
Before energizing the system, inspect:
- Output terminals
- Common connections
- Field power
- Load conductors
- Terminal assignments
- Cable insulation
- Protective devices
Incorrect wiring can produce an inactive load, unintended activation, short circuits, or damage to external equipment.
7. Check Load Compatibility
Before commissioning, verify the connected load characteristics.
Important factors include:
- Operating voltage
- Normal current
- Inrush current
- Load type
- Switching frequency
- Inductive characteristics
- Required suppression
Special attention should be given to relay coils, contactors, and solenoid valves.
Commissioning Procedure
Step 1 — Mechanical Inspection
Confirm that the IC200MDL742 is securely seated.
Step 2 — Wiring Verification
Compare the field wiring against the approved electrical drawings.
Step 3 — Load Verification
Confirm that each connected load is suitable for the corresponding output circuit.
Step 4 — Field Power Verification
Verify the required field supply and common circuits.
Step 5 — Energize the System
Restore power according to the approved commissioning procedure.
Step 6 — Verify Controller Status
Confirm that the controller and I/O system operate normally.
Step 7 — Verify Module Recognition
Check that the installed output module is correctly recognized.
Step 8 — Test Individual Outputs
Activate output channels individually using an approved commissioning or maintenance procedure.
Step 9 — Verify Field Response
Confirm that each connected device responds correctly to its corresponding output command.
Step 10 — Test Interlocks
Verify that outputs cannot operate when required permissive conditions are absent.
Step 11 — Test Automatic Sequence
Operate the machine or process through its intended sequence and verify output timing and response.
Troubleshooting Guide
Problem 1: IC200MDL742 Is Not Recognized
Possible causes include:
- Incorrect module installation
- Poor connector engagement
- Carrier problem
- Configuration error
- Power problem
- Backplane problem
- Module fault
Recommended Checks
- Verify module seating.
- Inspect the carrier connector.
- Review controller diagnostics.
- Check I/O configuration.
- Verify system power.
- Inspect adjacent modules.
- Investigate the carrier and backplane if necessary.
Problem 2: PLC Commands an Output but the Load Does Not Operate
Possible causes include:
- Open field wiring
- Missing field power
- Incorrect terminal connection
- Failed load
- Common-circuit problem
- Output-channel problem
- Open protective device
Trace the complete circuit:
PLC Command → IC200MDL742 → Field Wiring → Field Power → Load
This makes it easier to identify where the control path is interrupted.
Problem 3: Output Remains OFF
If the PLC indicates that an output should be active but the field device does not operate, check:
- PLC program
- Output address
- Controller status
- Module status
- Field power
- Wiring
- Terminal connections
- Load
- Output channel
A programming or addressing problem can produce symptoms similar to a hardware failure.
Problem 4: Output Remains ON
Possible causes include:
- PLC logic
- Incorrect output mapping
- Wiring fault
- Output-channel fault
- External circuit condition
First determine whether the PLC continues to command the output.
If the PLC command is inactive but the physical output circuit remains active, investigate the output circuit and module.
Problem 5: Output Operates Intermittently
Potential causes include:
- Loose terminal
- Unstable field power
- Damaged load
- Voltage drop
- Connector problem
- Electrical interference
- Mechanical problems with the actuator
Test the circuit under actual operating conditions rather than only when the machine is stopped.
Problem 6: Output Becomes Unstable During Switching
If the problem occurs specifically when a relay, contactor, or solenoid switches, investigate:
- Inductive load characteristics
- Load suppression
- Field wiring
- Power stability
- Coil condition
- Excessive load
- Switching frequency
The cause may be in the external field circuit rather than the output module.
Problem 7: Several Outputs Stop Operating
When several outputs fail simultaneously, investigate shared components.
Check:
- Field power
- Common wiring
- Controller status
- Carrier
- Backplane
- Shared protective devices
- Configuration
A shared power or communication problem can affect multiple output channels.
Problem 8: Replacement Module Has the Same Fault
If replacing the IC200MDL742 does not correct the problem, investigate:
- PLC program
- Output addressing
- Field wiring
- Field power
- Load
- Carrier
- Backplane
- Common connections
Replacing the module repeatedly without checking the external circuit can lead to unnecessary maintenance.
Systematic Fault Diagnosis
A structured diagnostic method should trace the output command from the PLC toward the field load.
Stage 1 — PLC Program
Confirm that the required output command is generated.
↓
Stage 2 — Controller
Confirm that the controller processes the command correctly.
↓
Stage 3 — Backplane
Verify communication between the controller and output module.
↓
Stage 4 — IC200MDL742
Determine whether the corresponding output channel responds to the command.
↓
Stage 5 — Field Wiring
Check wiring continuity and terminal connections.
↓
Stage 6 — Field Power
Confirm that the required external supply is present.
↓
Stage 7 — Load
Verify that the connected actuator or control device operates correctly.
This method helps separate:
PLC Logic Problem
from
Configuration Problem
from
Module Problem
from
Wiring Fault
from
Power-Supply Fault
from
Load Failure
Inductive Load Considerations
Industrial output circuits frequently control inductive devices such as:
- Relay coils
- Contactors
- Solenoid valves
- Electromagnetic actuators
Inductive loads can produce electrical transients when switching.
For this reason, the external control circuit should incorporate suitable protection based on the actual load and system design.
Important factors include:
- Operating voltage
- Load current
- Inrush current
- Coil characteristics
- Switching frequency
- Suppression
- External protection
The appropriate suppression method depends on the actual electrical characteristics of the connected device.
Preventive Maintenance
| Inspection Item | Recommended Check |
|---|---|
| Module Housing | Inspect for physical damage |
| Module Seating | Verify secure installation |
| Connectors | Check for contamination |
| Terminals | Verify connection integrity |
| Field Wiring | Inspect insulation and routing |
| Load Devices | Verify operating condition |
| Field Power | Check stability |
| Carrier | Inspect mechanical condition |
| Cabinet | Check dust and moisture |
| Inductive Loads | Check protection |
| Diagnostics | Review recurring faults |
Preventive maintenance is particularly valuable in systems exposed to vibration, dust, humidity, temperature changes, or frequent switching.
Wiring Best Practices
Separate Control and Power Wiring
Keep output wiring away from high-current conductors wherever practical.
Pay particular attention to:
- Motor cables
- VFD cables
- Transformer circuits
- Large contactors
- High-current feeders
Secure All Terminations
Loose connections can result in:
- Intermittent loads
- Voltage drops
- Excessive heating
- Unexpected equipment operation
- Output faults
Terminal connections should be inspected during scheduled maintenance.
Verify Common Connections
A shared common or field-power problem can disable several output channels at the same time.
When multiple outputs fail together, inspect common circuits before replacing the module.
Use Appropriate Load Protection
Relay coils, contactors, and solenoid valves can produce switching transients. Appropriate external protection should be selected according to the actual load and circuit characteristics.
IC200MDL742 Troubleshooting Table
| Symptom | Possible Cause | Recommended Check |
|---|---|---|
| Module not recognized | Installation/configuration | Check module and carrier |
| Output command but no load | Wiring/power/load problem | Trace complete circuit |
| Output remains OFF | Logic/addressing/wiring | Check PLC and field circuit |
| Output remains ON | Logic/wiring/channel fault | Compare command and physical state |
| Intermittent output | Loose connection/power | Inspect field circuit |
| Fault during switching | Inductive transient | Check load and protection |
| Several outputs fail | Shared power/common | Check supply and common |
| Replacement does not help | External fault | Check PLC, wiring, load and carrier |
Key Advantages
- GE VersaMax modular I/O architecture
- Designed for discrete output control
- Suitable for industrial automation
- Provides a controller-to-field interface
- Suitable for relay and actuator control
- Suitable for machine sequencing
- Suitable for process-control applications
- Suitable for equipment enable functions
- Modular installation
- Compact physical dimensions
- Suitable for industrial control cabinets
- Supplied dimensions of 110 × 66.8 × 50 mm
- Supplied weight of 0.15 kg
Technical FAQs
What is GE IC200MDL742?
The GE IC200MDL742 is a VersaMax discrete output module designed to transfer digital output commands from the PLC controller to suitable external field devices.
What is the main function of IC200MDL742?
Its main function is to provide discrete output control for field circuits used by industrial machinery and process-control equipment.
What types of devices can it control?
Depending on the electrical characteristics of the specific output circuit and connected equipment, typical applications can include:
- Relays
- Solenoid valves
- Contactors
- Indicators
- Alarm devices
- Auxiliary control circuits
What are the dimensions of IC200MDL742?
The supplied dimensions are:
110 × 66.8 × 50 mm
What is the weight of IC200MDL742?
The supplied product information specifies:
0.15 kg
Is IC200MDL742 a standalone PLC?
No. It is a modular discrete output component designed to operate within a VersaMax control system.
Why does the PLC command an output but the field device remain OFF?
Check the PLC program, output address, controller status, module status, field power, wiring, terminal connections, protective devices, and connected load.
Why does an output remain OFF?
Possible causes include incorrect PLC logic, incorrect addressing, missing field power, wiring problems, incompatible load conditions, or an output-channel fault.
Why does an output remain ON?
First determine whether the PLC continues to command the output. If the command is OFF but the physical circuit remains active, investigate the field wiring and output channel.
Why does an output operate intermittently?
Check loose terminals, unstable field power, voltage drops, damaged loads, connector condition, and electrical interference.
Can solenoids and contactors affect output operation?
Yes. Inductive loads can generate switching transients. Appropriate external suppression and protection should therefore be considered based on the actual load.
Why do several outputs fail simultaneously?
Check shared field power, common wiring, controller status, carrier condition, backplane communication, and shared protective components.
Should I replace IC200MDL742 immediately after an output failure?
No. First verify the PLC command, output addressing, field wiring, field power, load, carrier, and common circuits.
How can I determine whether IC200MDL742 itself is faulty?
Confirm that the PLC is generating the expected command. Then verify field power, wiring, terminals, and the connected load. If the external circuit is correct but the corresponding output channel does not respond, the module becomes a stronger suspect.
What if a replacement module has the same problem?
Investigate the PLC program, output mapping, field wiring, power supply, connected load, carrier, and backplane. If a replacement produces identical symptoms, the root cause is likely elsewhere in the system.
Conclusion
The GE IC200MDL742 VersaMax Discrete Output Module provides the output interface between PLC logic and external industrial control circuits. It can be applied to machine automation, conveyor systems, packaging equipment, pump and fan control, process automation, alarm systems, and other applications requiring discrete control signals.
The supplied physical specifications are 110 × 66.8 × 50 mm, with a stated weight of 0.15 kg. The module should be installed within the appropriate VersaMax carrier, backplane, controller, field-power, and field-device architecture.
Successful commissioning requires correct module installation, accurate field wiring, compatible loads, reliable field power, and suitable protection for inductive devices. Each important output should be tested individually before the complete machine sequence is placed into normal operation.
For troubleshooting, the recommended diagnostic path is:
PLC Logic → Controller → Backplane → IC200MDL742 → Field Wiring → Field Power → Load
Following this signal path helps identify whether a fault originates in the PLC program, configuration, module, carrier, wiring, power supply, or connected field equipment.
