Product Overview

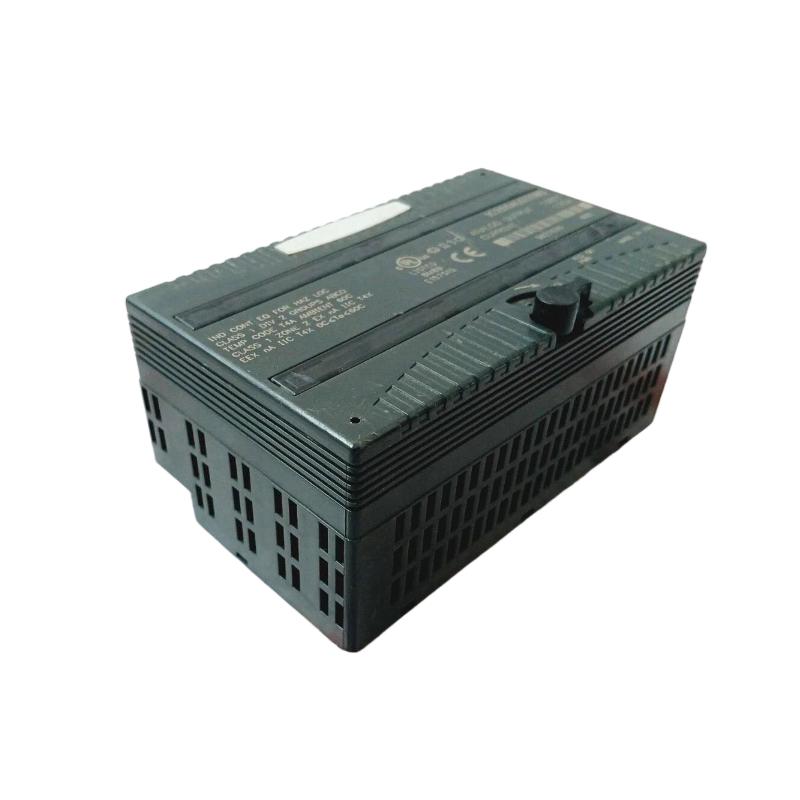

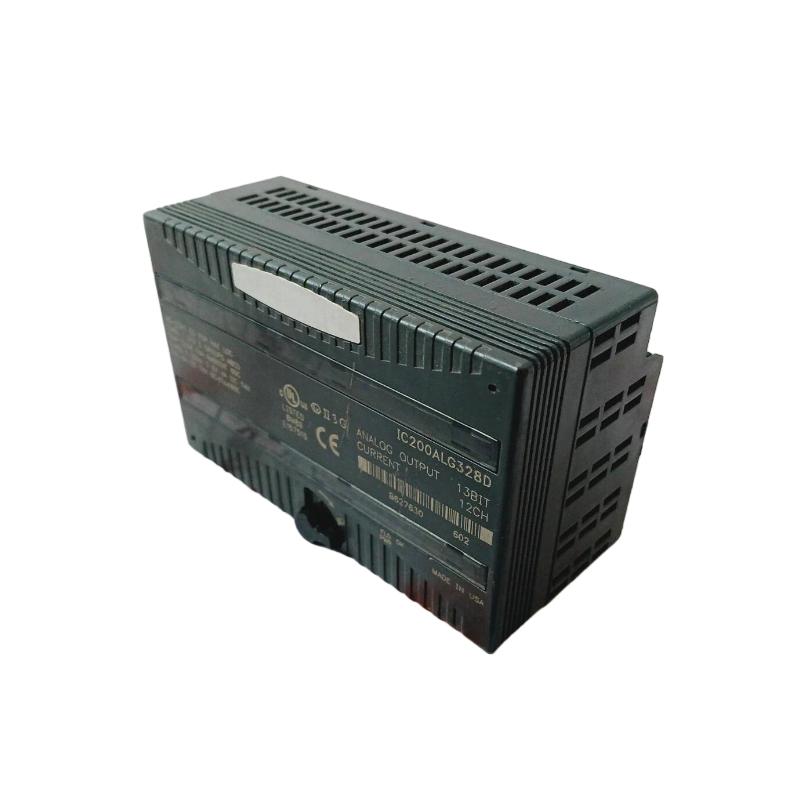

The GE IC200ALG328 is a VersaMax Analog Output Module designed to provide an interface between GE PLC control logic and compatible industrial field equipment. It belongs to the GE VersaMax family of modular automation components and is intended for applications where the controller needs to generate variable analog commands rather than simple discrete switching signals.

Analog output capability is important in industrial automation because many processes require gradual adjustment. A valve may need to move to an intermediate position, a pump may need to operate at a controlled level, or a compatible drive may require a variable reference command. In these applications, the analog output module forms the connection between the numerical control value calculated by the PLC and the physical equipment.

The IC200ALG328 can be incorporated into a VersaMax control architecture in which output values are determined by PLC logic, operator commands, process feedback, production recipes, or automatic control algorithms. The module provides the output-side interface needed to transfer those control decisions to compatible equipment.

In a typical feedback-controlled application, measurement devices provide process information to the PLC through appropriate input hardware. The controller evaluates the actual process condition against the desired value and calculates a corrective command. The IC200ALG328 can then participate in the output stage by providing the required analog control signal to the connected field device.

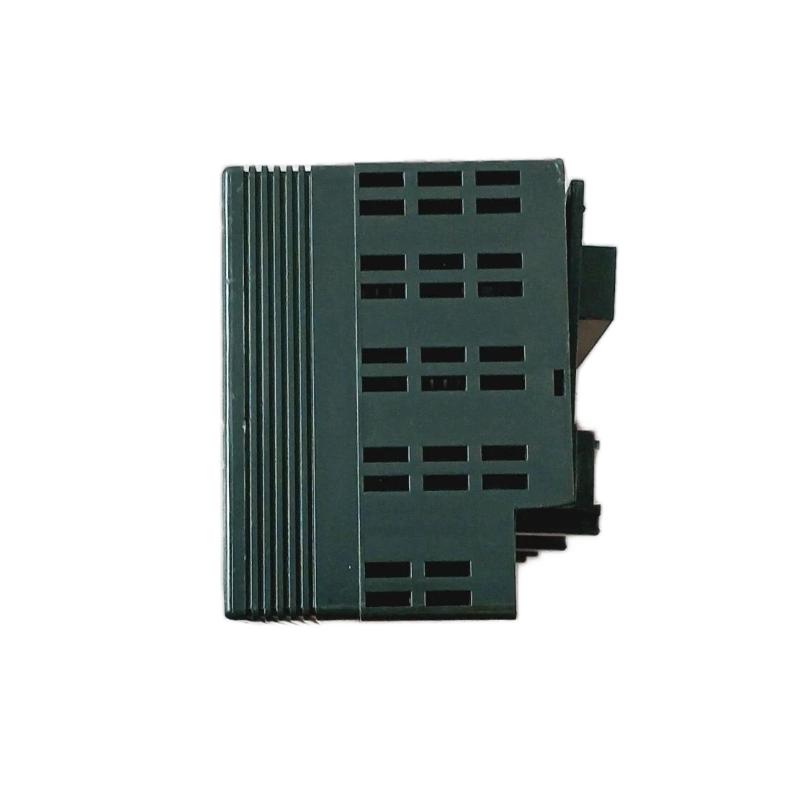

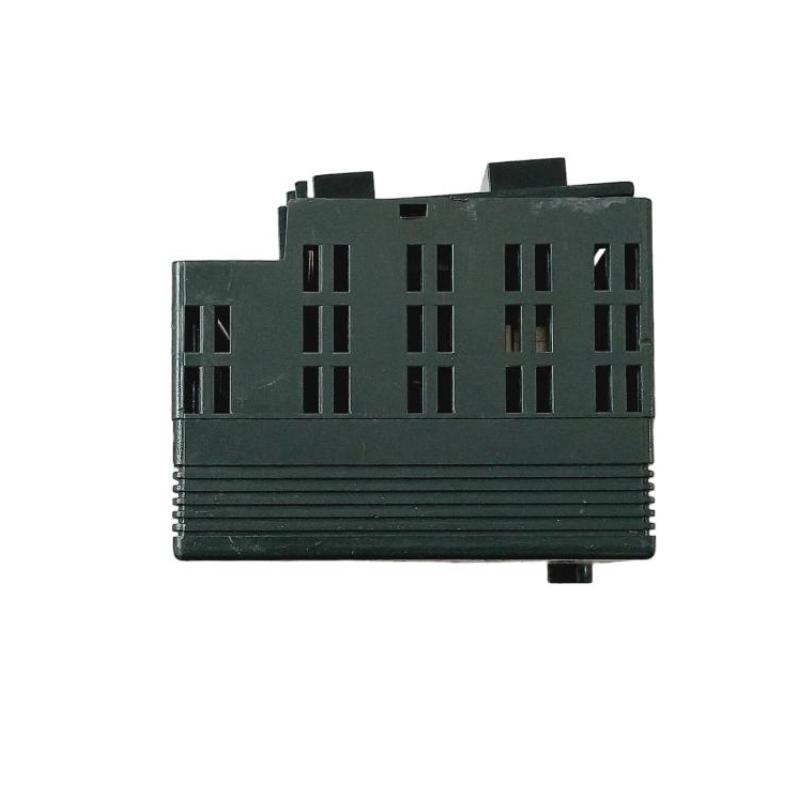

The supplied dimensions of the GE IC200ALG328 are approximately 110 × 66.8 × 50 mm, and the supplied weight is approximately 0.3 kg. Its modular form factor is suitable for industrial control cabinets and VersaMax-based I/O installations.

Technical Specifications

What Is the GE IC200ALG328?

The GE IC200ALG328 is an analog output module used within a GE VersaMax PLC system. Its role is to provide the output interface required when the controller must send a variable command to compatible external equipment.

PLC applications operate primarily through digital calculations and control logic, but industrial equipment often requires physical signals representing continuously changing values. An analog output module bridges this difference by allowing the PLC’s calculated command to be transferred to an appropriate field device.

For example, a PLC may determine that a process valve should be partially open rather than completely closed or open. The controller calculates the desired output value, and the analog output interface provides the corresponding command to the compatible valve-control system.

The same principle applies to other equipment such as pumps, fans, actuators, temperature controllers, and compatible motor drives. The exact use depends on the electrical characteristics of the connected equipment and the overall control-system design.

Function and Working Principle

The IC200ALG328 forms part of the output path of the VersaMax automation system. The PLC application generates a control value, and the analog output module transfers the command toward the connected field equipment.

A simplified control architecture is:

Operator Command / Process Feedback → PLC Logic → IC200ALG328 → Analog Control Signal → Field Device → Industrial Process

Consider a pressure-regulation system. A pressure sensor provides measurement data to the PLC. The control program compares the measured pressure with the target setpoint and determines whether the controlled equipment needs to increase or decrease its operating level.

The resulting command is sent through the analog output interface. A compatible valve, pump controller, or other receiving device responds to the signal and changes the process condition.

When feedback is available, the PLC can repeat this sequence continuously. This creates a control loop in which the controller monitors the process and adjusts the output according to changing operating conditions.

The same architecture can be applied to flow, temperature, level, speed, and other continuously variable process parameters.

Role in Industrial Control Systems

The IC200ALG328 is positioned between the PLC’s control logic and the physical process. It allows software-based decisions to be converted into practical control commands for compatible equipment.

Typical functions include:

• Variable equipment control
• Proportional valve positioning
• Motor speed reference control
• Pump output adjustment
• Fan speed regulation
• Flow control
• Pressure regulation
• Temperature control
• Liquid level management
• Actuator positioning
• Closed-loop process control

In a complete automation architecture, the analog output module can work alongside PLC processors, power supplies, analog input modules, digital I/O, communication modules, HMI equipment, and supervisory systems.

Industrial Applications

Process Automation

Industrial processing equipment frequently requires variable control of valves, pumps, motors, and other process devices. Analog output hardware allows the PLC to adjust these devices according to process requirements.

Flow Control

Flow systems can use compatible control valves or variable-speed pumps. The PLC can calculate the required operating command based on measured flow and process setpoints.

Pressure Regulation

Pressure-controlled systems may use analog feedback and proportional output commands. The PLC evaluates pressure measurements and adjusts compatible equipment accordingly.

Motor Speed Control

Where a drive supports an appropriate analog reference, the IC200ALG328 can be integrated into a PLC-based speed-control architecture. This can be useful for conveyors, pumps, fans, and other motor-driven machinery.

Temperature Control

Heating and cooling systems often require adjustable output commands. A PLC can use temperature measurements to determine the required control level for compatible equipment.

Water and Wastewater Systems

Water treatment installations commonly contain pumps, valves, blowers, and dosing equipment. Analog control can allow these devices to respond to changing process conditions.

Industrial HVAC

HVAC installations may require variable control of fans, dampers, pumps, and valves. The analog output interface can form part of the PLC architecture for these applications.

OEM Machinery

Machine builders can use VersaMax analog output technology in equipment requiring adjustable control of external devices. The module can be integrated into a larger PLC-based machine-control system.

Installation and System Integration

Correct installation is important because analog signals can be affected by incorrect wiring, electrical noise, configuration errors, and incompatible field devices. The IC200ALG328 should therefore be considered as part of the complete automation architecture rather than as an isolated component.

Module Installation

The module should be installed within the appropriate VersaMax I/O arrangement. It should be securely positioned and accessible for wiring inspection, commissioning, and maintenance.

Check Field Device Compatibility

Before connecting an external device, engineers should verify its analog input requirements. The expected signal characteristics, operating range, wiring method, grounding arrangement, and receiving-device specifications should match the system configuration.

Analog Wiring

Analog cables should be routed separately from high-power conductors whenever practical. Motor cables, contactors, switching equipment, and variable frequency drives can generate electromagnetic interference that may affect sensitive analog circuits.

Grounding and Shielding

Appropriate grounding and shielding practices can reduce unwanted electrical noise. The complete installation should use a consistent grounding strategy and avoid unnecessary ground-loop conditions.

PLC Configuration

The PLC hardware configuration should correctly recognize the installed module. Application software should also apply appropriate scaling so that the internal PLC command corresponds to the desired physical output.

Commissioning

During commissioning, technicians should test the analog output under controlled conditions. The PLC command should be compared with the response of the connected field device across the intended operating range.

Maintenance

Routine maintenance should include checking module condition, terminal connections, field wiring, grounding, shielding, PLC configuration, and connected equipment. When abnormal behavior occurs, technicians should diagnose the entire signal path before replacing the module.

Compatible System Components

Recommended Alternative Models

When selecting an alternative to the IC200ALG328, engineers should not rely only on the physical size or product description. Electrical characteristics, output requirements, system architecture, PLC configuration, wiring, and the receiving field device must all be considered before replacement.

Key Advantages

• Designed for GE VersaMax PLC architectures
• Provides analog control capability for compatible field equipment
• Suitable for variable and proportional control applications
• Useful for both process and machine automation
• Can support valve, pump, fan, actuator, and drive applications
• Can be combined with analog input modules for feedback control
• Compact modular dimensions
• Suitable for OEM machine-control systems
• Can be integrated into larger VersaMax I/O configurations
• Supports PLC-based industrial control architectures
• Can operate as part of HMI and supervisory control systems

Technical FAQs

What is the GE IC200ALG328?

The GE IC200ALG328 is a GE VersaMax analog output module used to provide variable analog control signals from a PLC to compatible industrial field equipment.

What is the main function of the IC200ALG328?

Its main function is to provide an analog output interface between PLC control logic and external equipment that requires a variable control signal.

Where is the IC200ALG328 typically used?

It can be used in industrial process control, machine automation, valve control, pump systems, fan applications, temperature systems, water treatment, and other applications requiring suitable analog output control.

Can an analog output module control a valve?

Yes, when the valve-control equipment accepts an electrically compatible analog command. The PLC can calculate the desired control level and send the corresponding output through the module.

Can the IC200ALG328 be used with a motor drive?

It can be considered for motor-control applications where the receiving drive provides a compatible analog reference input and the complete electrical interface has been properly verified.

Can the IC200ALG328 participate in closed-loop control?

Yes. When appropriate process feedback is provided through input hardware, the PLC can calculate corrective commands and use the analog output module to influence the controlled equipment.

What are the dimensions of the IC200ALG328?

The supplied dimensions are approximately 110 × 66.8 × 50 mm.

What is the weight of the IC200ALG328?

The supplied weight is approximately 0.3 kg.

What should be checked before installing the module?

Engineers should verify the VersaMax system configuration, field-device compatibility, wiring, grounding, signal requirements, PLC configuration, and application scaling before commissioning.

Why is analog signal wiring important?

Analog signals can be more sensitive to electrical interference than simple discrete signals. Proper cable routing, grounding, and shielding can help reduce noise and improve signal stability.

What should be done if the output value is incorrect?

Check the PLC program, output configuration, scaling, module connections, field wiring, grounding, receiving equipment, and actual signal behavior. Troubleshooting the complete control path can help identify the source of the problem.

Conclusion

The GE IC200ALG328 Analog Output Module is a VersaMax I/O component intended to connect PLC control logic with compatible equipment requiring variable analog commands. It provides an important interface for industrial systems where proportional adjustment is required instead of simple ON/OFF control.

The supplied dimensions of the module are approximately 110 × 66.8 × 50 mm, and the supplied weight is approximately 0.3 kg. Its compact modular construction makes it suitable for VersaMax-based industrial control cabinets and OEM machine applications.

For automation engineers, system integrators, and maintenance professionals, proper application of the IC200ALG328 requires attention to electrical compatibility, field wiring, signal scaling, grounding, PLC configuration, and commissioning. When correctly integrated with suitable controllers, input modules, and field equipment, it can provide an effective analog output interface for a wide range of industrial automation tasks.
