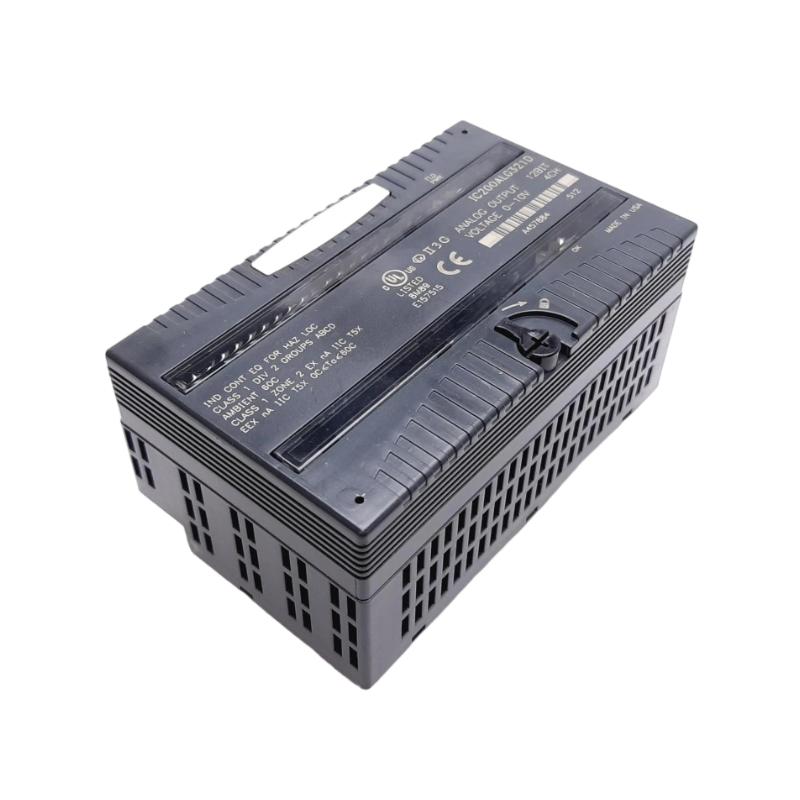

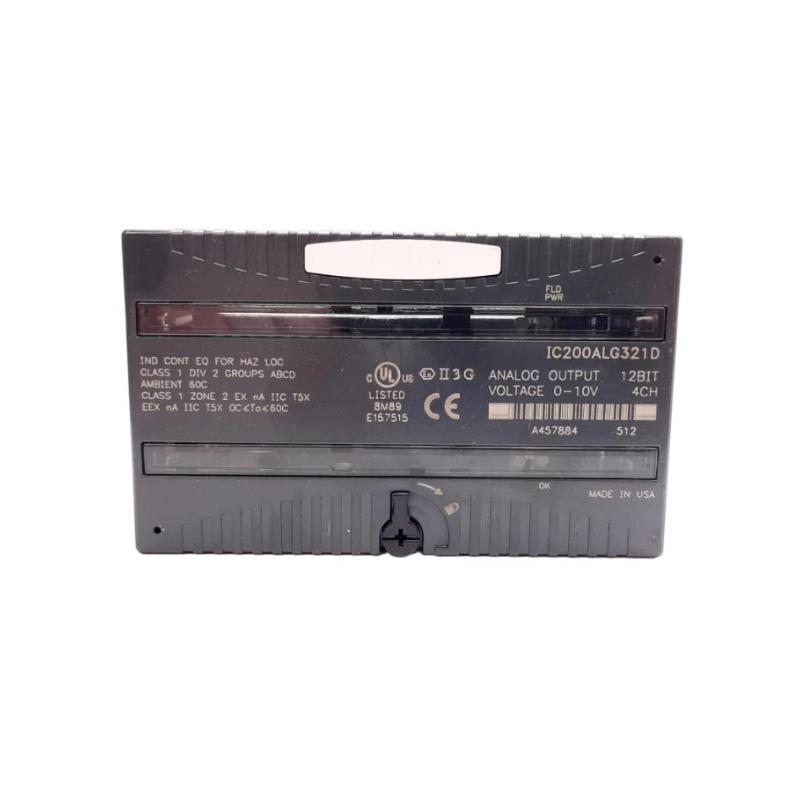

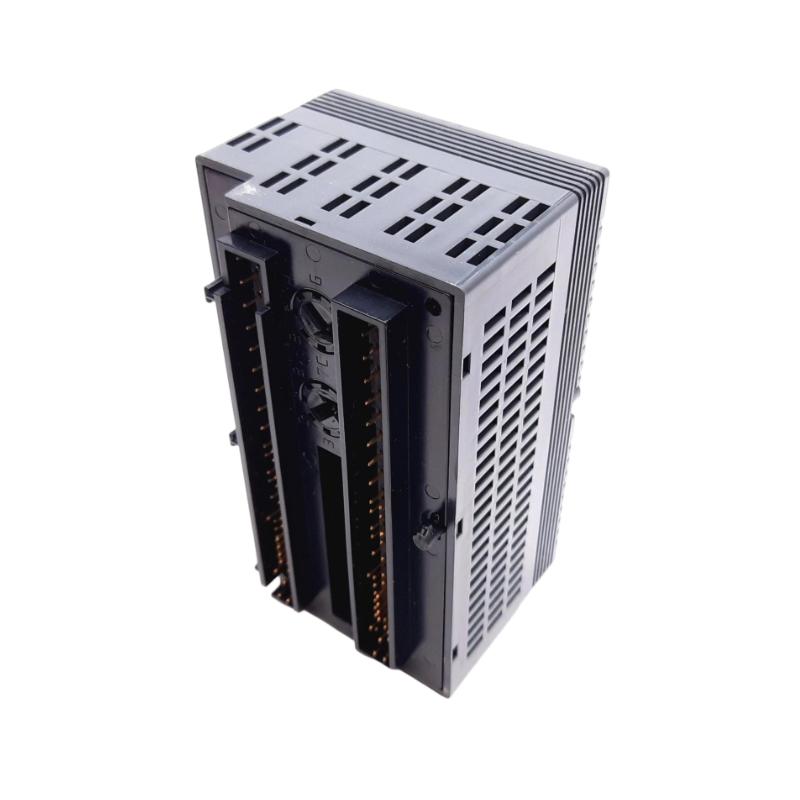

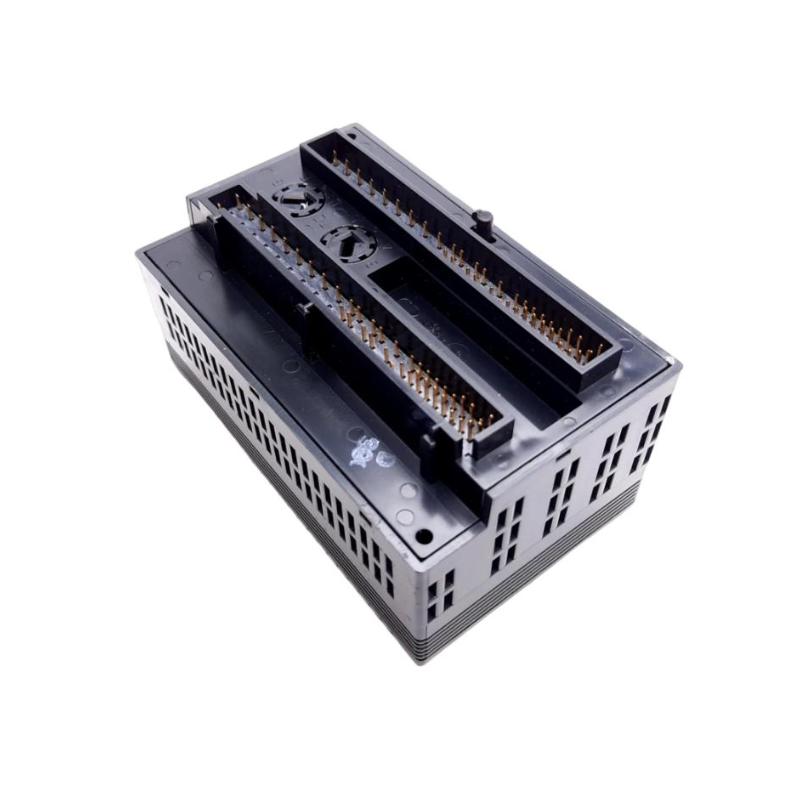

Product Overview

The GE IC200ALG321 is a VersaMax Analog Output Module designed to provide variable analog control signals from a GE PLC system to compatible industrial field devices. As part of the GE VersaMax modular I/O platform, the module connects PLC control logic with equipment that requires continuously adjustable commands rather than simple ON/OFF switching.

Modern industrial automation systems frequently need proportional control. Control valves, drives, actuators, temperature controllers, pumps, fans, and other process equipment may require a continuously changing reference signal to achieve the desired operating condition. An analog output module provides the interface between the PLC’s digital control calculations and these variable-control devices.

The IC200ALG321 can be used as part of a process control or machine automation architecture in which the PLC determines an output command according to programmed logic, operator settings, process feedback, or control algorithms. The module then provides the corresponding analog output to the connected field equipment.

A typical closed-loop application may combine an analog input module with the IC200ALG321. The input side measures the actual process condition, the PLC compares the measurement with a desired setpoint, and the analog output module sends a new command to the actuator. This creates a continuous feedback loop for more precise industrial control.

The supplied dimensions of the GE IC200ALG321 are approximately 110 × 66.8 × 50 mm, while the supplied weight is approximately 0.136 kg. Its compact modular construction makes it suitable for VersaMax-based control cabinets and industrial automation installations.

Technical Specifications

Function and Working Principle

The main purpose of the GE IC200ALG321 is to convert a control value generated by the PLC into an analog output signal for a compatible industrial device.

In a conventional digital output application, the controller generally commands equipment to one of two states. Analog control is different because the output value can change continuously according to process requirements.

The basic control path can be represented as:

PLC Application → IC200ALG321 → Analog Control Signal → Field Device → Industrial Process

For example, the PLC may determine that a control valve needs to open further to increase flow. The control program calculates the required output value, and the IC200ALG321 provides the corresponding analog command to the compatible valve interface.

Another example is motor speed regulation. When a compatible drive accepts an analog reference, the PLC can adjust the output command according to process demand. Increasing or decreasing the reference allows the equipment to respond proportionally rather than simply switching between running and stopped states.

In a closed-loop system, the analog output works together with analog feedback. The process is measured by an input device, the PLC evaluates the measurement, and the IC200ALG321 generates the corrective output.

Sensor → Analog Input → PLC → Control Logic → IC200ALG321 → Actuator → Process

This architecture is widely used when stable and responsive process regulation is required.

Role in Industrial Control Systems

The IC200ALG321 provides the output interface between PLC control logic and analog-controlled industrial equipment. It allows a VersaMax controller to influence physical processes using variable commands.

Typical control functions include:

• Control valve positioning
• Variable speed references
• Pressure regulation
• Flow regulation
• Temperature control
• Level control
• Fan speed control
• Pump control
• Proportional actuator control
• Closed-loop process control

The output value can be determined by operator commands, programmed sequences, process measurements, mathematical calculations, or automatic control algorithms.

This makes analog output hardware particularly useful for applications where precise process adjustment is more important than simple equipment switching.

Industrial Applications

Process Automation

Process plants often need to continuously regulate valves, pumps, heaters, and other equipment. The IC200ALG321 can provide the analog command required by compatible field devices.

Motor and Drive Control

Where compatible drive equipment accepts an analog reference, the module can be used to provide a variable speed command generated by the PLC.

Flow Control

Industrial flow systems may use proportional valves or variable speed pumps. An analog output allows the PLC to adjust the operating command according to the required flow rate.

Pressure Control

A PLC can use pressure feedback to determine the appropriate control command for a pump, valve, or other compatible actuator.

Temperature Control

Heating and cooling systems may require variable control commands to maintain a desired process temperature. Analog outputs can provide the command interface for compatible controllers or equipment.

Water Treatment

Water treatment systems can use analog control signals for pumps, valves, dosing systems, and other process equipment requiring proportional operation.

HVAC Automation

Industrial HVAC systems can use variable commands for fans, dampers, valves, and other equipment where continuous adjustment is required.

OEM Machinery

Machine builders can integrate the IC200ALG321 into VersaMax control systems when the machine requires analog control of actuators, drives, or process equipment.

Installation and System Integration

Correct installation is essential for dependable analog output performance. Before commissioning the IC200ALG321, engineers should verify the PLC architecture, module configuration, field device requirements, output signal characteristics, wiring, and grounding.

Module Installation

The IC200ALG321 should be installed within the appropriate VersaMax I/O configuration. The module should be securely positioned and accessible for field wiring and maintenance.

Field Device Compatibility

Before connecting an actuator or controller, verify that its analog input requirements match the configured output characteristics of the control system. Signal range, polarity, wiring arrangement, and device-specific requirements should be checked carefully.

Analog Wiring

Analog output cables should be routed away from high-power conductors whenever practical. Motor cables, contactors, variable frequency drives, and switching equipment can produce electrical noise that may affect analog control circuits.

Grounding and Shielding

Appropriate grounding and shielding practices can help minimize noise and signal instability. Engineers should avoid creating unintended ground loops and should follow the grounding architecture used by the complete control system.

PLC Configuration

The PLC hardware configuration and application program should correctly identify the installed output module. The program should also scale internal control values appropriately for the intended field device.

Commissioning

During commissioning, the output should be tested across an appropriate operating range. Engineers should verify that changes in the PLC command produce the expected response from the connected equipment.

Maintenance

Maintenance should include inspection of terminal connections, analog wiring, connected devices, grounding, shielding, and module status. If a field device responds incorrectly, the complete signal path should be checked before replacing the output module.

Compatible System Components

Recommended Alternative Models

When selecting an alternative module, engineers should compare the required output signal, electrical characteristics, channel configuration, resolution, system architecture, wiring requirements, and application needs. A similar physical appearance does not automatically mean that two analog output modules are directly interchangeable.

Key Advantages

• Designed for GE VersaMax PLC architectures
• Provides analog control signals to compatible field devices
• Supports continuously variable equipment control
• Suitable for industrial process automation
• Useful for closed-loop control applications
• Can work together with analog input modules for process feedback
• Suitable for proportional control applications
• Compact modular construction
• Useful for OEM machine applications
• Supports flexible PLC-based control architectures
• Can be integrated with HMI and SCADA systems

Technical FAQs

What is the GE IC200ALG321?

The GE IC200ALG321 is a GE VersaMax analog output module designed to provide continuously variable control signals from a PLC to compatible industrial field devices.

What is the main function of the IC200ALG321?

Its main function is to convert PLC control commands into analog output signals that can be used by compatible equipment requiring variable control.

What types of equipment can use an analog output?

Depending on electrical compatibility, typical applications include control valves, variable speed equipment, proportional actuators, temperature controllers, pumps, fans, and other devices that accept suitable analog reference signals.

Can the IC200ALG321 be used in closed-loop control?

Yes. When combined with suitable analog input feedback, the PLC can calculate corrective commands and use the IC200ALG321 to provide the corresponding output to a compatible actuator or controller.

Is the IC200ALG321 a digital output module?

No. It is an analog output module designed for continuously variable control signals rather than simple ON/OFF switching.

Where is the IC200ALG321 commonly used?

Typical applications include process automation, manufacturing equipment, water treatment, HVAC systems, variable speed applications, temperature control, and OEM machinery.

What are the dimensions of the IC200ALG321?

The supplied dimensions are approximately 110 × 66.8 × 50 mm.

What is the weight of the IC200ALG321?

The supplied weight is approximately 0.136 kg.

What should be checked if the analog output is incorrect?

Engineers should check the PLC command, module configuration, field wiring, power supply, grounding, signal scaling, connected device requirements, and actual output behavior before determining whether the module itself is defective.

Why is output scaling important?

Output scaling ensures that the numerical command generated by the PLC corresponds correctly to the intended physical control value. Incorrect scaling can cause a connected device to operate at an unexpected level.

Can the module control a variable speed drive?

It can be used for variable speed applications when the connected drive has an analog reference input that is electrically compatible with the configured output signal.

Can the IC200ALG321 work with an HMI?

Yes. An HMI can provide operator-adjustable setpoints or commands to the PLC, which can then use the analog output module to control compatible field equipment.

Conclusion

The GE IC200ALG321 Analog Output Module provides a practical interface between GE VersaMax PLC control logic and industrial equipment requiring continuously variable commands. By converting PLC-generated control values into analog output signals, it allows compatible valves, drives, controllers, actuators, and other equipment to be controlled proportionally.

With supplied dimensions of approximately 110 × 66.8 × 50 mm and a supplied weight of approximately 0.136 kg, the IC200ALG321 offers a compact solution for industrial automation systems requiring analog output control.

For OEM machine builders, system integrators, and industrial maintenance engineers, successful implementation depends on selecting electrically compatible field devices, configuring the PLC correctly, using appropriate wiring and grounding practices, and verifying the complete signal path during commissioning. When integrated with suitable feedback and control equipment, the IC200ALG321 can form an important part of a VersaMax-based process or machine control system.
