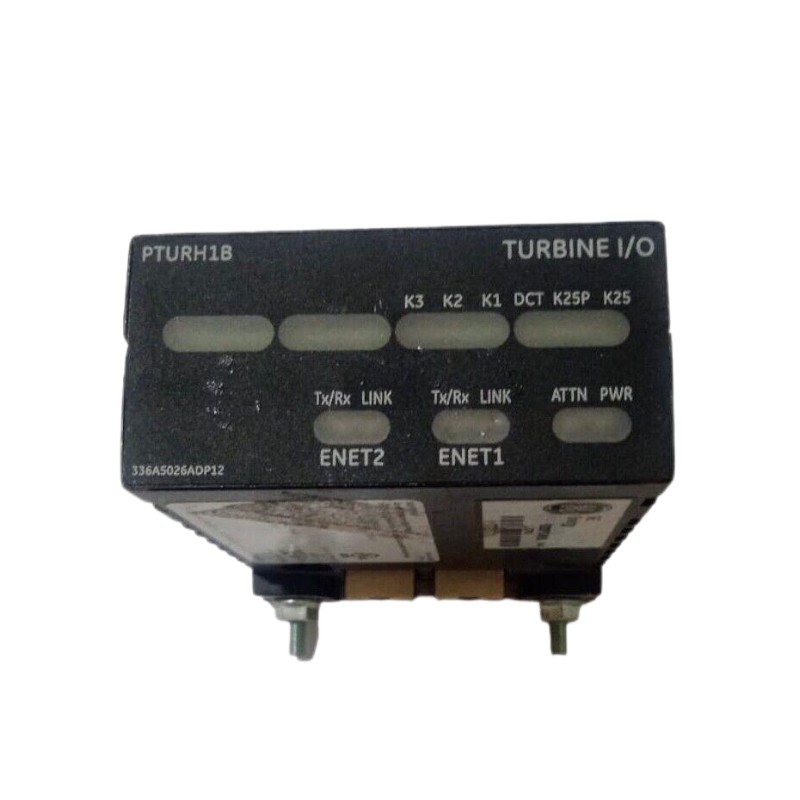

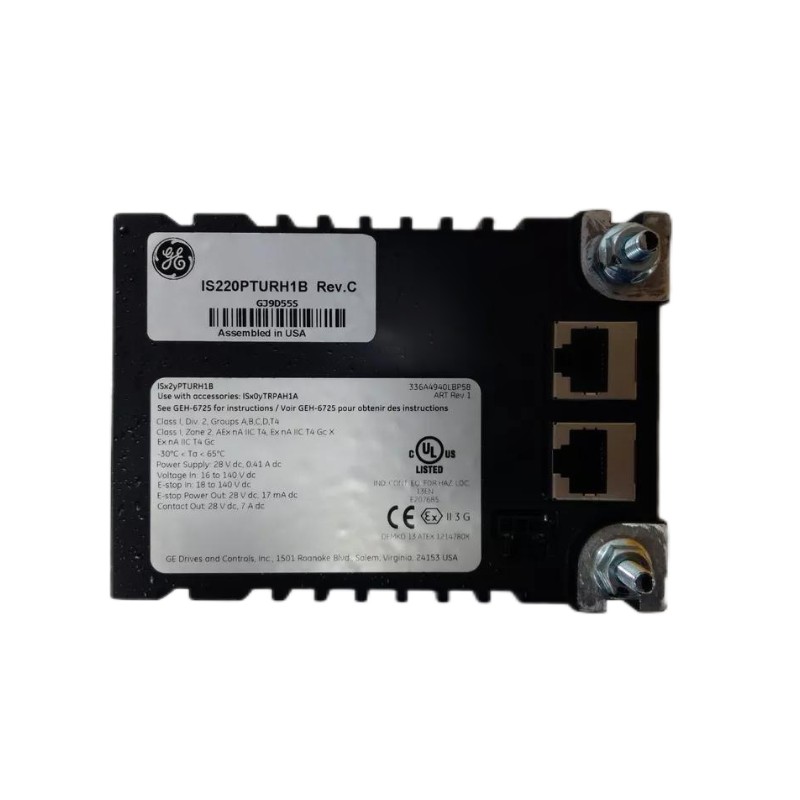

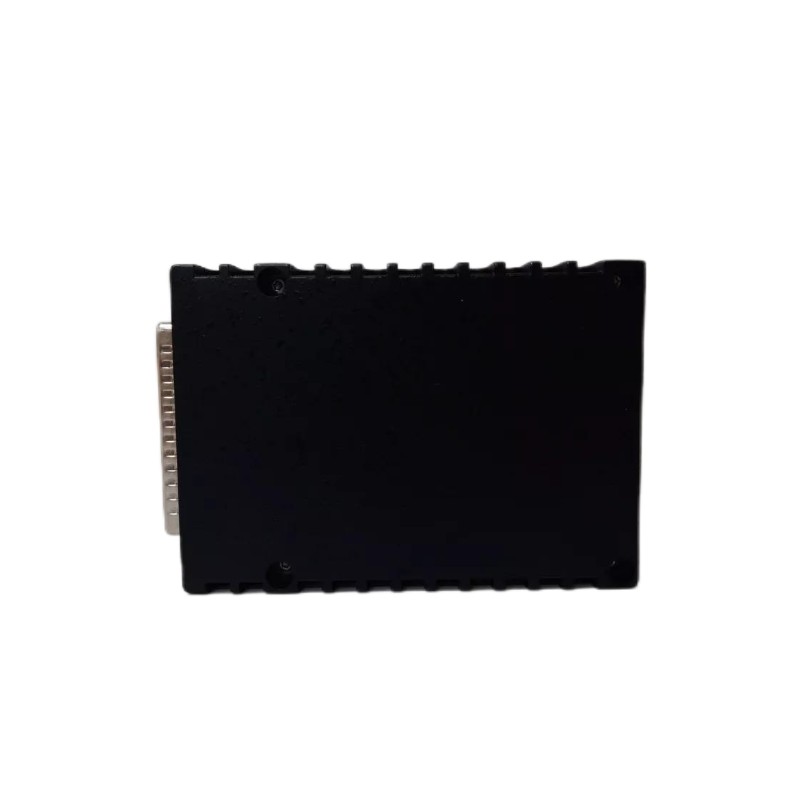

Product Overview – IS220PTURH1B
The IS220PTURH1B is a turbine-specific primary I/O trip pack module designed for use within the Mark VIe (and Mark VI) turbine control system family.
It handles primary trip logic, discrete I/O, speed and protection inputs/outputs, and is built for turbine applications requiring high reliability, fast response, and redundant network connectivity.
This module interfaces to turbine terminal boards, breaker coils, overspeed detectors, and emergency shutdown circuits, acting as a dedicated protection and I/O interface in power generation, gas/steam turbines, and process-industrial setups.
It supports simplex and triple modular redundant (TMR) configuration, dual Ethernet ports for communication, extensive diagnostics, and rugged design for harsh industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Supply Voltage | Nominal approx. 27.4-28.6 V DC |
| Input Signal Ranges | Voltage detection inputs: 16-140 V DC; Speed input voltage: ~28 V DC; E-stop input: –15 V to +15 V DC |
| Communication Ports | Dual RJ-45 Ethernet ports (10/100 Mbps) for network redundancy |
| Environmental Operating Range | Temperature approx. –10 °C to +70 °C (some variants) |
| Storage Temperature | –40 °C to +85 °C |
| Mounting Type | Module for Mark VI/Mark VIe I/O rack / terminal board interface |
| Dimensions | Approx. 241 mm × 194 mm × 152 mm (L×W×H) |
| Weight | Approx. 3.0 kg |
| Redundancy Support | Simplex and TMR configurations supported |
| Diagnostics | Built-in self-test, LEDs for status (PWR, ENET1, ENET2, fault) |
| Application Focus | Turbine trip logic, breaker coil control, primary I/O protection |
Applications
The IS220PTURH1B finds use in many critical industrial and power-generation environments:
-
Gas turbine emergency shutdown systems: implementing overspeed protection, flame failure detection, trip coil actuation.
-
Steam turbine control: handling primary I/O for turbine protection boards, synchroniser logic, trip circuits.
-
Power generation plants: acting as a dedicated primary I/O trip module, ensuring fast, reliable response for turbine and generator protection.
-
Oil & gas platforms and offshore facilities: where rugged, redundant protection modules are required to interface with turbine systems under harsh conditions.
-
Retrofit and modernization projects: replacing older trip-pack modules while maintaining compatibility with Mark VI/Mark VIe control architectures.
Advantages
Selecting the IS220PTURH1B brings several key advantages:
-
Dedicated turbine protection functionality: specifically designed for primary trip logic rather than general I/O, yielding faster response and fewer compromises.
-
Redundancy capable: supports both simplex and triple modular redundant architectures, giving high system availability and fault tolerance.
-
Dual Ethernet communication: provides network redundancy, reducing risk of communication failure.
-
Rugged environmental performance: many variants rated for wide temperature ranges, vibration/EMI resistance, and heavy-duty industrial use.
-
Heavy-duty physical specification: at ~3.0 kg and sizeable form factor, indicating robust internal design with ample electronics for the protection role.
-
Ease of integration: compatible with turbine control terminal boards, control systems in the Mark VI/Mark VIe family, simplifying engineering and replacement.
-
Strong diagnostics: built-in self-test, indicator LEDs, and fault-logging ease commissioning and maintenance.
Brand and Series
-
Brand: GE Fanuc
-
Series: Mark VIe (and Mark VI) I/O Pack Series – IS220 family
-
Product Type: Primary I/O Trip Pack Module for turbine protection
Within the IS220 family of modules, the “PTURH” designation denotes a turbine input/output or trip-pack variant focused on primary turbine I/O and trip logic. It sits alongside other IS220 modules covering analog I/O, discrete I/O, communication packs, servo outputs, etc.
Related Models – Same Series or Compatible
Here are five other models in the same series or closely related, with key parameters:
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PTURH1A | Earlier version turbine I/O module (trip/speed interface) | Approx. 165 mm × 100 mm × 35 mm ; ~0.68 kg |
| IS220PPROH1A | Turbine protection I/O pack – emergency trip interface | Approx. 222 mm × 144 mm × 88 mm ; ~2.5 kg |
| IS220PSVOH1A | Servo valve output pack – drives electro-hydraulic servo valves | Approx. 224 mm × 89 mm × 100 mm ; ~0.45 kg |
| IS220PAICH2A | Analog input/output pack – high-density analog I/O module | Approx. 170 mm × 100 mm × 35 mm ; ~0.72 kg |
| IS220PSCAH1A | Serial communication I/O pack – handles RS-232/422/485 devices | Approx. 292 mm × 130 mm × 27 mm ; ~0.36 kg |
Popular Models – Same Brand
Here are five popular modules from the GE Fanuc brand commonly used in similar systems:
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220UCSAH1A | Controller pack – main CPU/control module for Mark VIe system | Approx. 233 mm × 177 mm × 44.45 mm ; ~2.27 kg |
| IS220PAOCH1B | Analog output pack – high precision analog outputs for control loops | Approx. 150 mm × 100 mm × 50 mm ; ~0.36 kg |
| IS220PAICH1A | Analog input/output pack – earlier generation analog I/O module | Approx. 150 mm × 100 mm × 50 mm ; ~2.0 kg |
| IS220PCLAH1B | Power/control distribution module – rack power and signal distribution | Approx. 227 mm × 175 mm × 88 mm ; ~1.3 kg |
| IS220PPRFH1A | PROFIBUS master gateway pack – integrates PROFIBUS devices into Ethernet I/O | Approx. 263 mm × 58 mm × 28 mm ; ~0.43 kg |
FAQ (10 Questions & Answers)
Q1: What is the primary function of the IS220PTURH1B?
A1: Its primary function is to act as a primary I/O trip pack module for turbine systems, managing protection logic, discrete inputs/outputs, and communication in turbine control systems.
Q2: What supply voltage does the module use?
A2: The module is supplied via a nominal ~27.4-28.6 V DC system.
Q3: What are its physical dimensions and weight?
A3: Approximate dimensions are 241 mm × 194 mm × 152 mm, and weight is around 3.0 kg.
Q4: Does the module support redundant configurations?
A4: Yes. It supports both simplex and triple modular redundant (TMR) configurations depending on system architecture.
Q5: What communications ports are available?
A5: The IS220PTURH1B has dual Ethernet RJ-45 ports (10/100 Mbps) enabling redundant network links.
Q6: Which types of applications is this module suited for?
A6: It is suited for industrial power generation, gas/steam turbines, oil & gas platforms, and any application requiring turbine trip logic and protection I/O.
Q7: What diagnostics or status indication features does it have?
A7: It includes built-in self-test functionality and front-panel LEDs for power, communication channels (ENET1/2), turbine I/O status, and fault indication.
Q8: What environmental conditions can it handle?
A8: It is designed for industrial environments with operating temperature ranges from approximately –10 °C to +70 °C, and in some variants wider ranges.
Q9: What is the difference between IS220PTURH1B and its predecessor IS220PTURH1A?
A9: The “B” revision typically indicates enhanced features, improved diagnostics, updated firmware/hardware, and possibly broader environmental ratings compared to the “A” revision.
Q10: How does this module improve system reliability for turbine control?
A10: By providing dedicated primary trip logic, support for TMR architectures, redundant network links, and robust environmental tolerance, it enhances protection reliability and reduces risk of turbine downtimes.
