- GE
- IS220PPROH1A
- Backup Turbine Protection I/O Pack
- USA
- 222 mm × 144 mm × 88 mm
- 2.5kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 41
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| sales@plc-automations.com | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Introduction

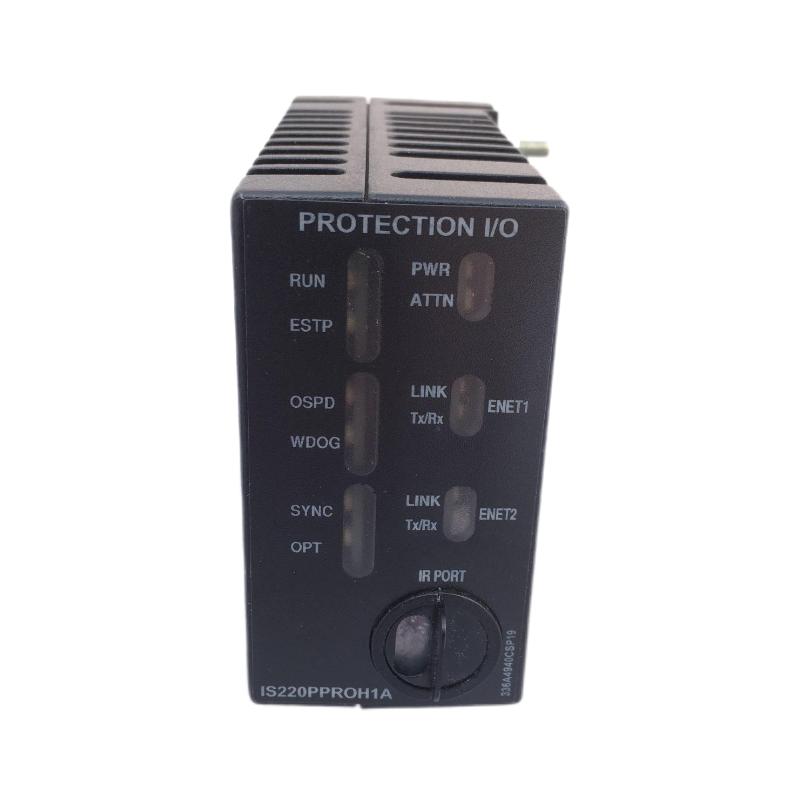

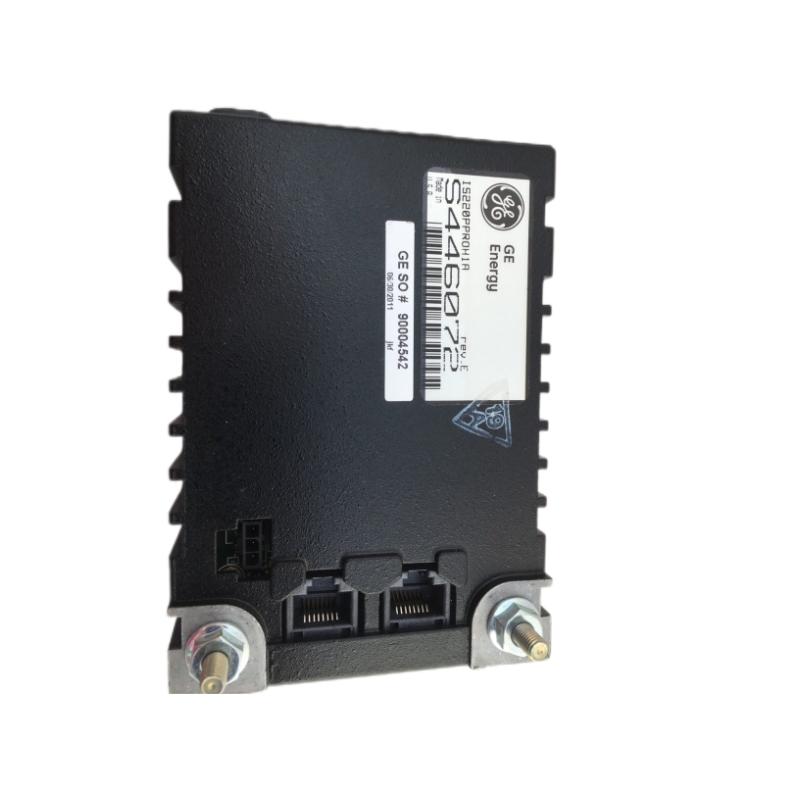

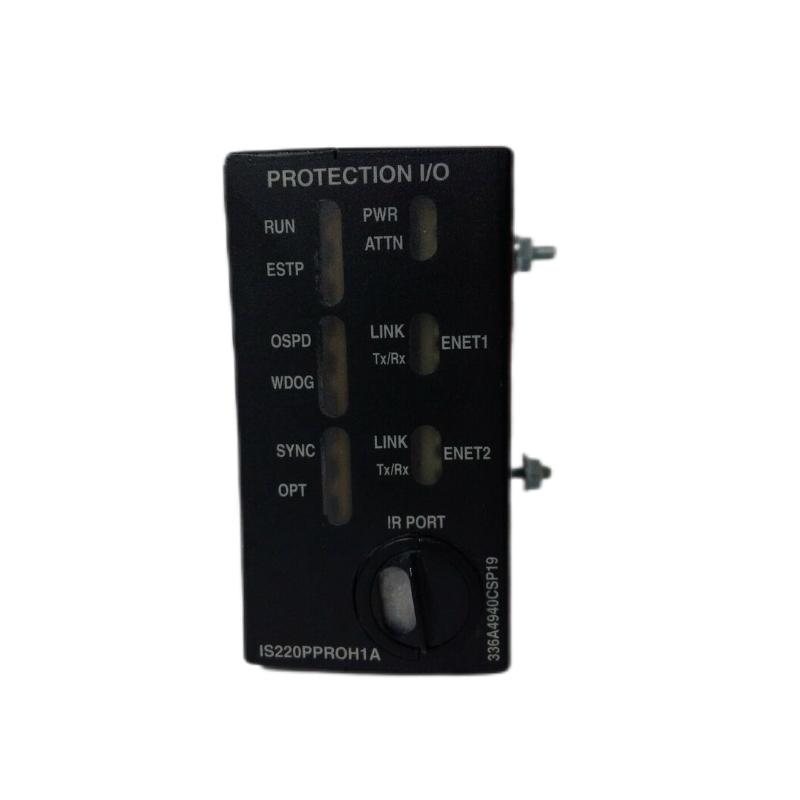

The IS220PPROH1A is a Backup Protection / Turbine Emergency Trip I/O Pack module belonging to the Mark VIe distributed control system family.
It is designed to act as a high-reliability protection interface for turbine systems, particularly aeroderivative gas turbines or steam turbines, providing backup trip logic, overspeed protection, generator synchronization monitoring, and redundant communication paths.
The module allows direct interface to specific turbine field devices (e.g., trip boards such as TREG, TREL, TRES, TREA) and can be configured for triple-modular redundancy (TMR) in protection architectures.
Its compact size, robust design and dedicated purpose make it suitable for emergency protection loops where fault tolerance and rapid response are critical.
Technical Specifications
| Parameter | Description |
|---|---|
| Supply Voltage | Nominal 24 V DC |
| Operating Voltage Range | Approx. 12-24 V DC (input) |
| Output Voltage | 0-10 V DC (signal output) |
| Accuracy | ± 0.1% |
| Repeatability | ± 0.05% |
| Dimensions | 222 mm × 144 mm × 88 mm |
| Weight | 2.5 kg |
| Operating Temperature | –40 °C to +85 °C |
| Ethernet Ports | Two 10/100 Mbps ports |
| Protection Architecture | Supports TMR (Triple Modular Redundant) |
| I/O Interface | Compatible with emergency trip terminal boards and turbine protection circuits |
Applications
The IS220PPROH1A is employed in high-demand industrial environments including:
-
Gas turbine emergency shutdown systems: providing independent protection logic separate from the main control system, implementing overspeed, deceleration fault, loss of flame, etc.
-
Steam turbine protection: handling trip logic, synchronous generator protection, and interfacing to dedicated trip boards.
-
Power generation plants: acting as backup protection layer in turbine control systems, improving safety and system uptime.
-
Oil & gas platforms: where turbines and generators must be protected with fault-tolerant hardware in offshore or harsh conditions.
-
Retrofit or modernization projects: replacing older protection modules with a dedicated I/O pack that fits into the Mark VIe rack and offers high reliability.
Advantages
-
High fault-tolerance: Designed for use in TMR architectures, ensuring backup protection even if main controller fails.
-
Dedicated protection functionality: Built specifically for turbine trip and protection systems rather than generic I/O, hence optimized for speed and reliability.
-
Compact size and significant weight margin: Dimensions 222 × 144 × 88 mm, weight 2.5 kg—easy to integrate into existing racks.
-
Wide temperature range: Operates from –40 °C up to +85 °C, enabling use in harsh environments.
-
Dual ethernet ports: Provides redundancy in communication links, improving system availability.
-
Direct interface to turbine trip boards: Reduces need for additional instrumentation, simplifies wiring and reduces maintenance.
-
Industry-specific heritage: Part of the Mark VIe I/O Pack family, widely used and trusted in turbine applications.
Brand and Series
-
Brand: GE Fanuc
-
Series: Mark VIe I/O Pack Series (IS220 family)
-
Product Type: Protection / I/O Pack module for turbine emergency trip systems
The IS220PPROH1A is part of the IS220 “pack” series modules used within Mark VIe systems, each module targeted at a specific function (analog I/O, discrete I/O, communication, protection). This module belongs to the “PPROH” variant, denoting a protection I/O pack.
Related Models – Same Series or Compatible
推荐五个同系列或紧密相关的型号，附简要参数说明：
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220PPDAH1A | Power Distribution I/O Pack—manages DC power in Mark VIe racks. | Approx. 170 mm × 110 mm × 30 mm ; ~0.65 kg |
| IS220PSVOH1A | Servo Valve Output Pack—controls servo valve position loops in turbines. | Approx. 224 mm × 89 mm × 100 mm ; ~0.45 kg |
| IS220PAICH2A | Analog Input/Output Pack—higher density analog I/O module. | Approx. 170 mm × 100 mm × 35 mm ; ~0.72 kg |
| IS220PSCAH1A | Serial Communication I/O Pack—interfaces RS-232/422/485 devices. | Approx. 292 mm × 130 mm × 27 mm ; ~0.36 kg |
| IS220PPRFH1A | PROFIBUS Master Gateway Pack—bridges PROFIBUS devices into Ethernet I/O. | Approx. 263 mm × 58 mm × 28 mm ; ~0.43 kg |
Popular Models – Same Brand
推荐五个该品牌中热门或广泛应用的模块，附参数说明：
| Model | Function Description | Key Parameters (Size / Weight) |
|---|---|---|
| IS220UCSAH1A | Controller Pack—primary CPU for Mark VIe control system. | Approx. 233 mm × 177 mm × 44.45 mm ; ~2.27 kg |
| IS220PCLAH1B | Power/Control Distribution Module—handles internal DC distribution. | Approx. 227 mm × 175 mm × 88 mm ; ~1.3 kg |
| IS220PAOCH1B | Analog Output Pack—high precision analog outputs for control loops. | Approx. 150 mm × 100 mm × 50 mm ; ~0.36 kg |
| IS220PAICH1A | Analog Input/Output Pack—earlier generation analog I/O module. | Approx. 150 mm × 100 mm × 50 mm ; ~2.0 kg |
| IS220PSCAH1A | Serial Communication I/O Pack—interfaces legacy serial devices. | Approx. 292 mm × 130 mm × 27 mm ; ~0.36 kg |
FAQ (10 Questions & Answers)
Q1: What is the primary role of the IS220PPROH1A?
A1: Its main role is to serve as a backup protection I/O pack module for turbine emergency trip systems — providing independent hardware logic, turbine overspeed protection and generator synchronization monitoring.
Q2: What supply voltage does this module use?
A2: It uses a nominal supply voltage of 24 V DC, with an operating input range approximately between 12 V and 24 V DC.
Q3: What is its size and weight?
A3: The module’s dimensions are approximately 222 mm × 144 mm × 88 mm and its weight is about 2.5 kg.
Q4: What temperature range can the module operate in?
A4: It is rated for a wide operating temperature range from –40 °C up to +85 °C, making it suitable for harsh environments.
Q5: How many Ethernet ports does it provide?
A5: It includes two Ethernet 10/100 Mbps ports, enabling network redundancy or dual-path communication.
Q6: Can this module be used in redundancy architectures?
A6: Yes — it supports TMR (Triple Modular Redundant) architectures and is designed for use in protection systems requiring fault tolerance.
Q7: In what industries is this module typically used?
A7: It is commonly used in turbine control systems (gas/steam), power generation, oil & gas platforms, and other critical industrial automation environments where emergency protection is required.
Q8: Does the module require additional separate trip boards?
A8: Yes — it interfaces with dedicated trip boards (such as TREG, TREL, TRES, TREA) to effect emergency trips, overspeed shutdowns and other protection logic.
Q9: What are the wiring or installation considerations?
A9: Because of its protection application, wiring must respect field wiring limits (e.g., 18 AWG cable length restrictions) and proper grounding, and the module should be installed in a cabinet with appropriate ventilation and mounting.
Q10: How does this module improve system reliability?
A10: By providing a dedicated backup protection path separate from the main control system, with hardware redundancy, dual communications paths, and high-quality build, it ensures that protection functions remain available even when the primary control path fails.
