📦 Product Overview

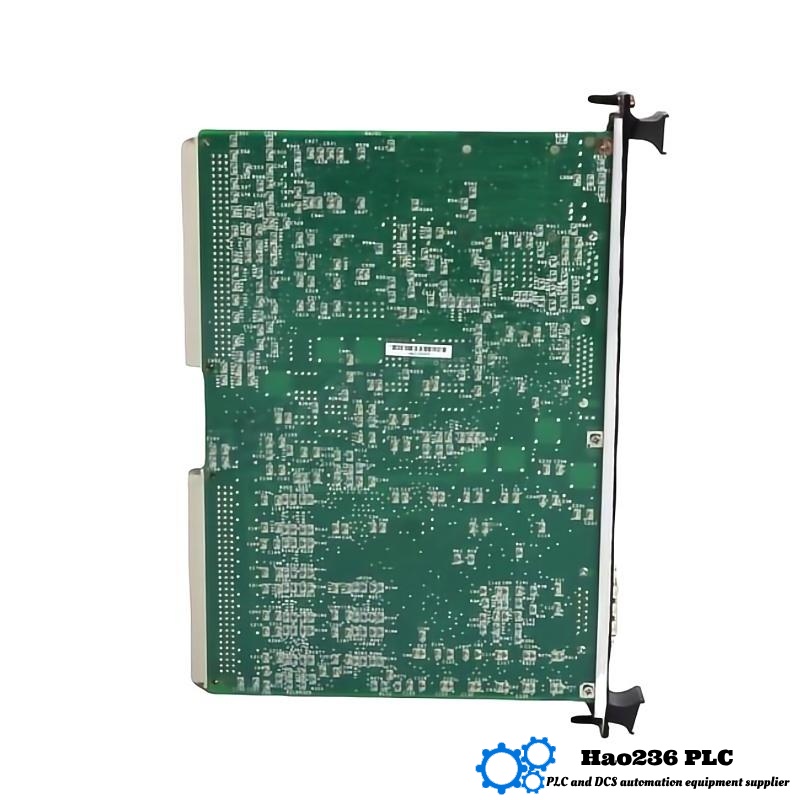

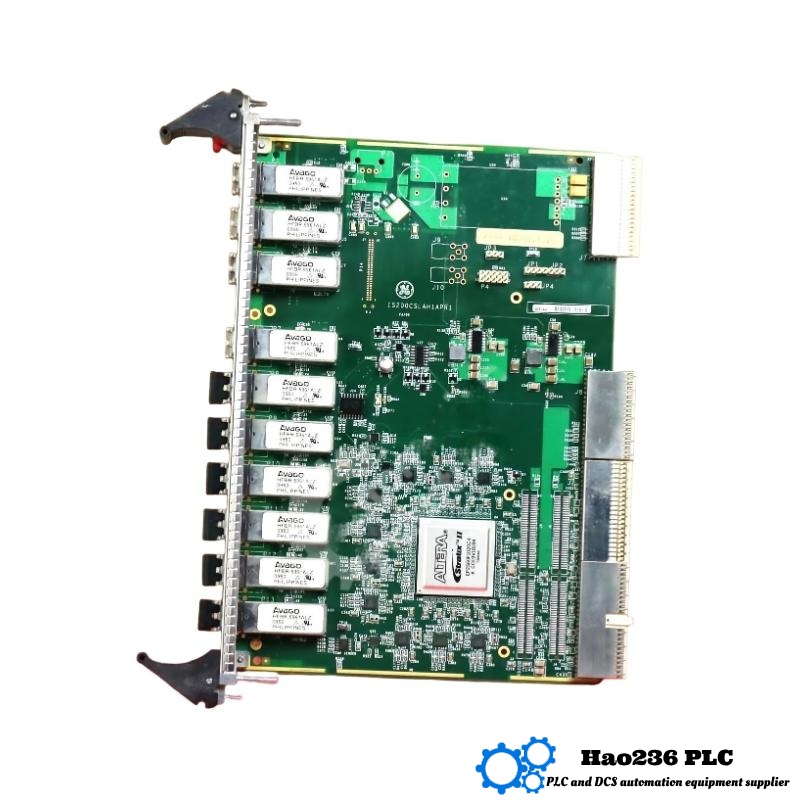

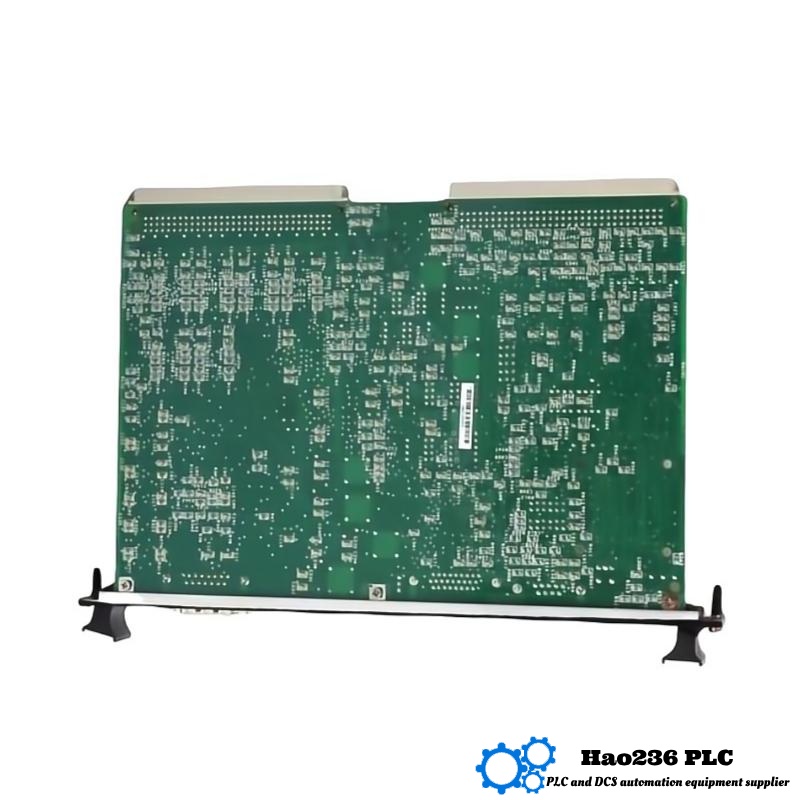

The IS200CSLAH1A is a Serial Link Expansion Board used within GE Fanuc control systems, especially in EX2100E and Mark VI environments. Designed for Compact PCI architectures, it extends high-speed serial communication links between control modules to enable synchronized data exchange, control signals, and system messaging across multiple subsystems.
This module is a vital component in excitation systems, power plant control rooms, and industrial automation cabinets. With industrial-grade build quality and clear status indicators, it provides robust communication infrastructure in demanding environments.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Model | IS200CSLAH1A |
| Module Type | Serial Link Expansion Board |
| Function | High-speed serial communication link extension |
| System Compatibility | EX2100E, Mark VI, Speedtronic turbine control systems |
| Communication Interface | Compact PCI + internal serial bus interface |
| LED Indicators | RUN (Green), STATUS (Yellow), FAIL (Red) |
| PCB Coating | Conformal coating for protection |
| Operating Temperature | –30 °C to +65 °C |
| Power Supply | Internally powered by control rack |
| Mounting Format | Plug-in slot module for control chassis |
| Dimensions | 210 mm × 202 mm × 26.1 mm |
| Weight | 0.30 kg |
🛠 Applications
-
Used in generator excitation control systems like EX2100E to provide fast communication between internal modules.
-
Enables data synchronization across critical control units in Mark VI turbine systems.
-
Applied in industrial control cabinets requiring high-reliability communication links.
-
Suitable for system upgrades where additional communication channels are needed.
-
Common in redundant or distributed control architectures where modular data flow is essential.
✅ Advantages
-
High-speed communication: Ensures rapid, reliable data exchange between modules.
-
Compact PCI format: Space-saving design suitable for rack-mounted systems.
-
Integrated diagnostics: Built-in LEDs help identify operation status and faults instantly.
-
Industrial-grade durability: Withstands harsh environments with extended temperature range.
-
Easy maintenance: Modular form factor allows easy replacement and troubleshooting.
-
Fully compatible with GE systems: Seamlessly integrates with EX2100E and Mark VI ecosystems.
🏷 Brand and Series
-
Brand: GE / GE Fanuc
-
Series / Family: IS200 Series / EX2100E Excitation System / Mark VI Platform
🔄 Related or Same-Series Modules
| Model | Description | Key Features | Dimensions | Weight (kg) |
|---|---|---|---|---|
| IS200CSLAH1A | Serial link expansion board | High-speed serial bus for GE systems | 210 × 202 × 26.1 mm | 0.30 |
| IS200CSLAH1B | Variant B of the above | Possibly improved firmware / diagnostics | Same format | 0.30–0.35 |
| IS200CSLAH2A | Alternate version with different specs | May support additional link types | PCI module size | ~0.35 |
| IS200SSCAH1A | Servo/Serial Control Board | Handles servo signal control + comms | Compact board | ~0.30 |
| IS200EDEXG1A | Exciter & I/O interface module | Analog + digital signal interface | 210 × 202 × 26.1 mm | ~0.42 |
⭐ Popular GE Fanuc Modules
| Model | Description | Main Use | Size / Mount Format | Weight (kg) |
|---|---|---|---|---|
| IS200DSPXH1D | Digital signal processor board | Mark VI core logic and control | Plug-in board | ~1.10 |
| IS200DTTCH1A | Turbine control logic board | Real-time turbine loop control | Rack module | ~1.20 |
| IS200EROCH1A | Output / actuator interface module | Controls actuators and output signals | Board module | ~1.00 |
| IS200EDEXG1A | Excitation I/O & communication module | Field-side signal conditioning | Modular plug-in | ~0.42 |
| IS200EISBH1A | Exciter bus interface board | Fiber-optic bus interface for EX2100E | Compact board | ~0.40–0.70 |
❓ Frequently Asked Questions (FAQ)
Q1: What is the main function of the IS200CSLAH1A?
A1: It provides high-speed serial communication between internal modules in GE control systems, especially within EX2100E and Mark VI.
Q2: Which systems use this board?
A2: It’s commonly used in generator excitation systems (EX2100E), gas/steam turbine controls (Mark VI), and other GE control rack systems.
Q3: What is the weight and size of this board?
A3: The board measures approximately 210 mm × 202 mm × 26.1 mm and weighs 0.30 kg.
Q4: What do the LED indicators represent?
A4: RUN = operational; STATUS = warnings or communication issues; FAIL = module fault or communication failure.
Q5: Is it hot-swappable?
A5: No. This board is not hot-swappable. The system should be powered down before replacing or servicing.
Q6: What’s the power source for this module?
A6: It draws power internally from the control rack—no separate external power connection is required.
Q7: Is it compatible with older GE systems?
A7: It is primarily designed for EX2100E and newer Mark VI systems. Compatibility with older systems should be verified per rack configuration.
Q8: Can I use multiple CSLAH1A modules in the same rack?
A8: Yes, provided that the system architecture supports multiple serial link channels. Refer to the control system manual.
Q9: What protection features does it include?
A9: It is coated for environmental protection and designed with GE’s industrial standards for thermal, signal, and bus protection.
Q10: What happens if the FAIL LED is on?
A10: This indicates a critical fault. Check physical connections, communication cables, and system diagnostics. If unresolved, consider board replacement.
