Product Overview

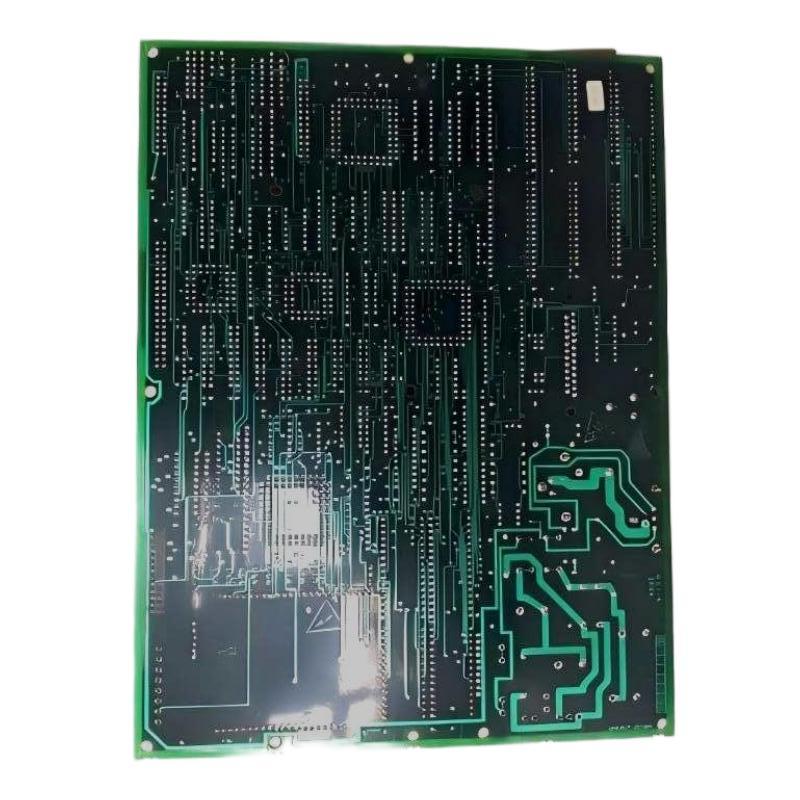

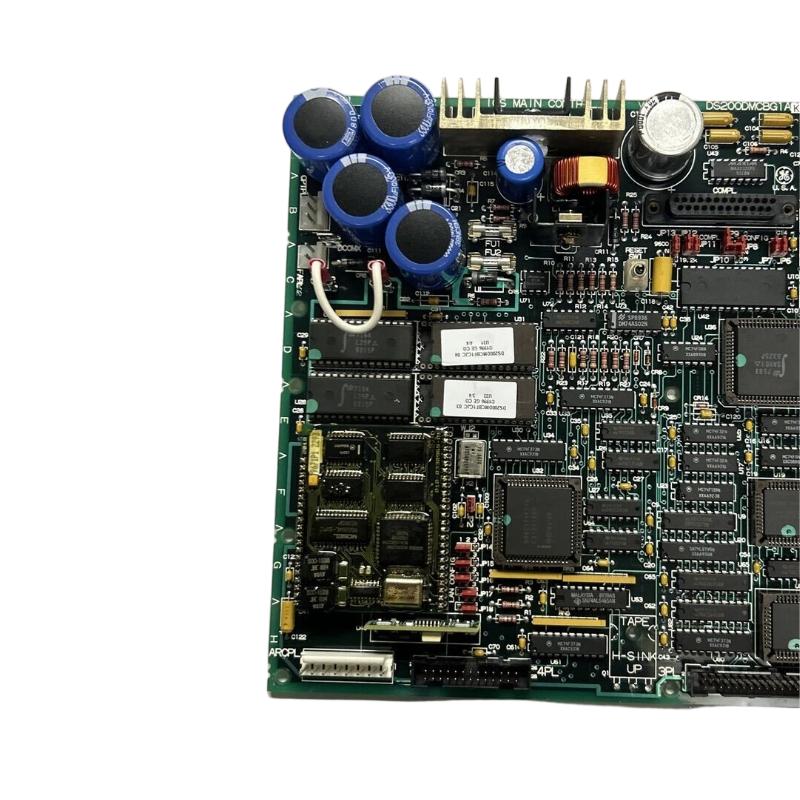

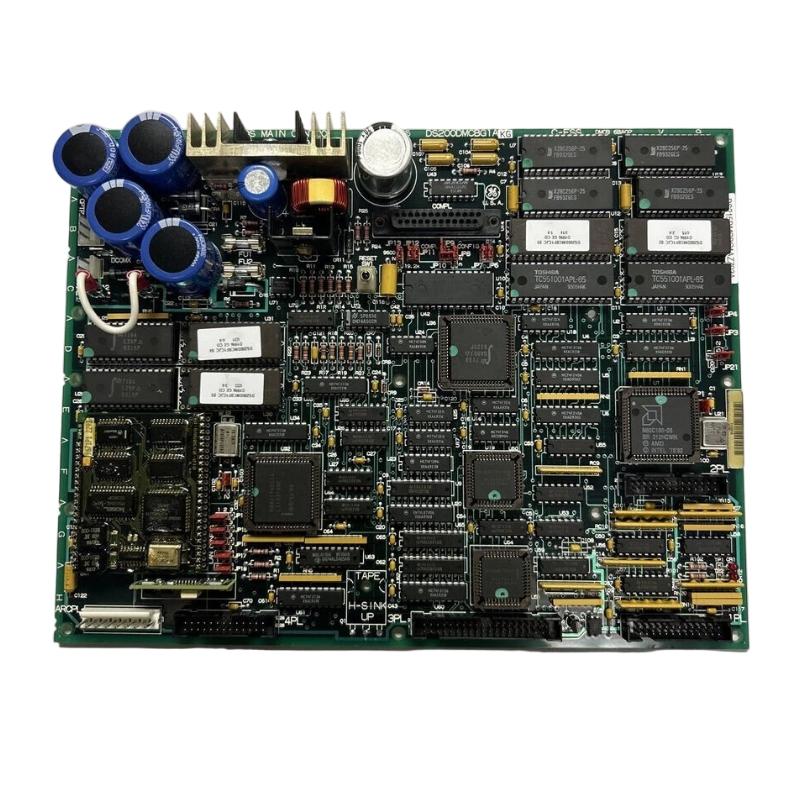

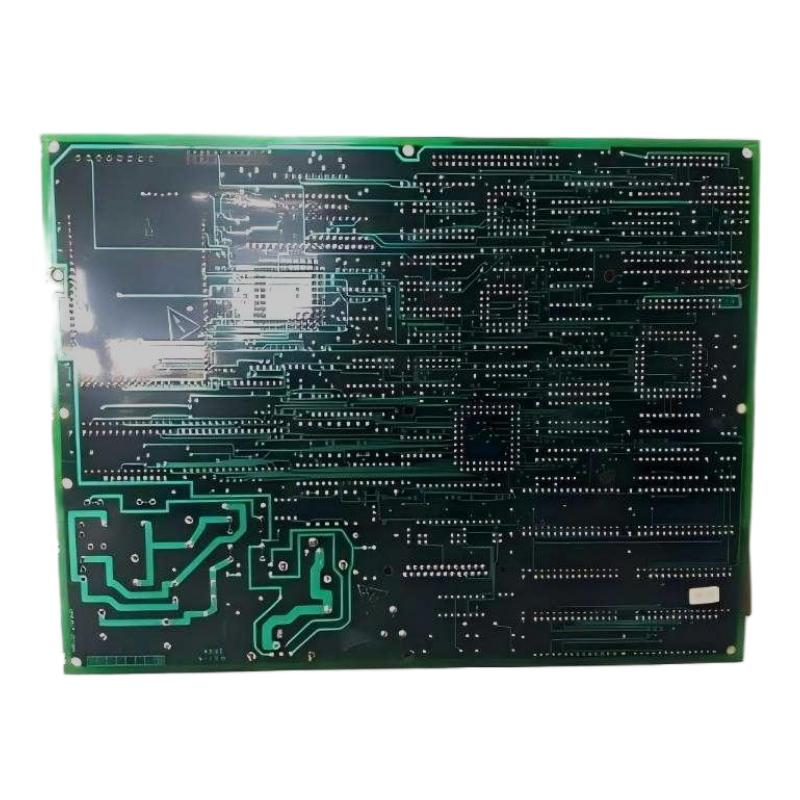

The GE DS215DMCBG1AZZ03A with associated board identification DS200DMCBG1AKG is a specialized industrial control circuit board used within GE legacy control architectures. The board belongs to the GE Mark V / DS200 series and is associated with the DMCB control-board platform used in IOS, IOS+, and IEI-related control hardware.

The DMCB board performs important processing, control-power, interface, and communication functions. It provides a central connection point between the control unit and several external or optional interfaces, including operator interface hardware, DLAN communication, serial communication, and I/O expansion components.

For maintenance and replacement applications, the relationship between DS215DMCBG1AZZ03A and DS200DMCBG1AKG is particularly important. The DS215 designation identifies the later board assembly, while DS200DMCBG1AKG is an associated DMCB board identification. They should be matched with the installed control-system configuration before replacement rather than treated as universally interchangeable circuit boards.

Technical Specifications

Function and Working Principle

The DS215DMCBG1AZZ03A operates as an important processing and interface board within the DMCB architecture. Its primary purpose is to provide the control unit with processing capability while managing internal control-power requirements and communication paths.

The board receives information from connected control circuits and interface devices, processes system information according to its hardware and firmware configuration, and communicates information to other parts of the control system.

The DMCB architecture can provide interfaces for:

• Operator keypad and display systems
• Drive Local Area Network communication
• DLAN+ communication through optional hardware
• Genius LAN communication through an optional daughterboard
• RS-232C serial communication
• Local logic input and output interface boards
• DS200IOEA input/output expansion hardware

This combination of processing and communication functions makes the DMCB more than a simple interface board. It operates as a central electronic element that connects several control-system information paths.

Role in Industrial Control Systems

Within compatible GE control equipment, the DMCB board provides an important link between processing functions, operator interfaces, communication networks, and I/O expansion hardware.

The board can participate in communication with:

• Operator control and display interfaces
• Control processors
• DLAN network devices
• DLAN+ communication hardware
• Genius LAN interface hardware
• RS-232C serial devices
• Local logic I/O interface boards
• DS200IOEA expansion hardware

This architecture allows information from different sections of the control system to be processed and exchanged through a coordinated control platform.

Industrial Applications

The GE DS215DMCBG1AZZ03A DS200DMCBG1AKG is associated with legacy GE industrial control equipment and is particularly relevant to maintenance of Mark V and related DS200-series systems.

Typical application areas include:

• Gas turbine control systems
• Steam turbine control systems
• Industrial turbine automation
• Power generation control systems
• GE Speedtronic Mark V installations
• Legacy excitation and industrial control equipment
• Industrial process control systems
• Long-life automation systems requiring replacement circuit boards

Because many Mark V installations have remained in service for extended periods, replacement circuit boards such as the DMCB remain important for plant maintenance, system restoration, and spare-parts management.

DMCB Board Architecture

The DMCB board is designed as a multi-function control PCB rather than a simple input or output module. Its architecture combines processing, communication, control-power, and interface functions in one board assembly.

DS215DMCBG1AZZ03A and DS200DMCBG1AKG Relationship

The two identification numbers are frequently listed together in the industrial spare-parts market. The DS200DMCBG1AKG is identified as a DMCB / IOS processor board within the GE Mark V DS200 series, while the DS215DMCBG1AZZ03A represents a DS215-series board assembly associated with the same DMCB architecture.

For engineering purposes, the important point is that the numbers should be treated as related board identifications rather than automatically interchangeable catalog numbers. Hardware revision, firmware, connectors, system configuration, and the original installed board should all be checked before replacement.

Installation and System Integration

Installation should be performed by qualified personnel familiar with legacy GE turbine and industrial control equipment. The board is an internal electronic assembly and should be protected from electrostatic discharge and mechanical damage during replacement.

A practical replacement procedure includes:

• Remove system power according to the applicable plant safety procedure.
• Record the existing board identification before removal.
• Document every cable and connector position.
• Record jumper and switch settings where applicable.
• Compare the replacement board with the original hardware.
• Check connector condition and board mounting points.
• Install the replacement board in the correct position.
• Reconnect all cables and associated interface hardware.
• Verify the board configuration before restoring power.
• Perform system diagnostics and communication checks after startup.

Special care should be taken when transferring configuration information or optional daughterboards. A board can appear physically compatible while still requiring a different configuration for the host system.

Compatible System Components

The DMCB board works as part of a larger control architecture. Several associated boards and interface components can be used with the DMCB depending on the specific IOS, IOS+, IEI, or related configuration.

Communication Functions

Communication is one of the major functions of the DMCB architecture. The board provides the control unit with pathways for exchanging information with network devices, operator interfaces, and expansion hardware.

The primary communication architecture is associated with GE’s DLAN system. Depending on the installed configuration, additional communication capability can be provided through DLAN+, Genius LAN, or serial communication interfaces.

This makes the board suitable for control systems in which several hardware layers must exchange information continuously. Communication faults should therefore be diagnosed at the complete system level rather than assuming that a network problem is always caused by the DMCB board itself.

Maintenance and Troubleshooting Considerations

Because the DMCB participates in several important system functions, a fault can produce a wide range of symptoms. A structured diagnostic process is recommended before replacing the PCB.

Inspection should include connectors, solder joints, visible components, PCB contamination, corrosion, signs of overheating, and mechanical damage. The surrounding control hardware should also be checked before installing another replacement board.

Recommended Alternative Models

For legacy GE systems, “alternative” should be interpreted as a related or potentially applicable board rather than an automatic drop-in replacement. Compatibility must be verified against the host system and board revision.

Replacement recommendation: If the original PCB is marked DS215DMCBG1AZZ03A and the associated board identification is DS200DMCBG1AKG, the preferred replacement should carry the same complete identification and compatible hardware revision whenever possible. A related DMCB board should only be substituted after verifying the host-system configuration.

Key Advantages

• Provides central control and processing functions within compatible GE industrial systems
• Supports multiple communication paths within the control architecture
• Interfaces with DLAN and optional communication hardware
• Supports operator interface and I/O expansion functions
• Designed for integration into GE Mark V / DS200-series control systems
• Suitable for maintenance and restoration of legacy turbine control equipment
• Combines processing, communication, and interface functions on one industrial PCB assembly
• Useful as a replacement spare for long-service GE industrial control installations

Technical FAQs

What is the GE DS215DMCBG1AZZ03A?

The GE DS215DMCBG1AZZ03A is a DMCB industrial control circuit board associated with GE Mark V and related control architectures. It provides processing, control-power, communication, and interface functions.

What is the DS200DMCBG1AKG?

DS200DMCBG1AKG is a specific DS200-series DMCB board identification associated with GE IOS / Mark V control hardware.

Are DS215DMCBG1AZZ03A and DS200DMCBG1AKG related?

Yes. They are commonly associated with the same DMCB control-board architecture. However, the exact interchangeability depends on hardware revision, firmware, connectors, and the host control-system configuration.

What is the main function of the DMCB board?

The DMCB provides control processing, internal control-power support, communication interfaces, and connections to operator and I/O expansion hardware.

What are the dimensions of the DS215DMCBG1AZZ03A?

The specified dimensions for this product are 273 × 218 × 60 mm.

How much does the DS215DMCBG1AZZ03A weigh?

The specified weight is 0.69 kg.

What communication interfaces are associated with the DMCB?

The DMCB architecture can support DLAN communication, optional DLAN+ and Genius LAN interfaces, as well as RS-232C serial communication depending on the installed configuration.

Where is this board used?

It is used in legacy GE industrial control systems, including Mark V-related turbine and power-generation applications and compatible IOS, IOS+ or IEI control hardware.

Can any DMCB board replace the DS215DMCBG1AZZ03A?

No. A replacement should be selected according to the complete board identification, hardware revision, firmware, connectors, and host-system configuration. Similar-looking DMCB boards should not automatically be treated as drop-in replacements.

Conclusion

The GE DS215DMCBG1AZZ03A DS200DMCBG1AKG Circuit Board is an important DMCB control and communication component for legacy GE industrial automation architectures. Its combination of processing, control-power, communication, operator-interface, and I/O expansion functions allows it to serve as a central electronic element within compatible control equipment.

With specified dimensions of 273 × 218 × 60 mm and a weight of 0.69 kg, the board is designed as an internal industrial control assembly. Its support for DLAN-related communication, serial communication, optional network interfaces, and I/O expansion makes it suitable for complex legacy control environments.

For maintenance engineers, system integrators, and spare-parts specialists, accurate board identification is essential. The DS215DMCBG1AZZ03A should be matched with the associated DS200DMCBG1AKG identification, hardware revision, firmware configuration, and host-system requirements before installation. Proper matching helps maintain communication stability, control-system reliability, and the long-term serviceability of GE Mark V-based industrial equipment.
