Product Overview

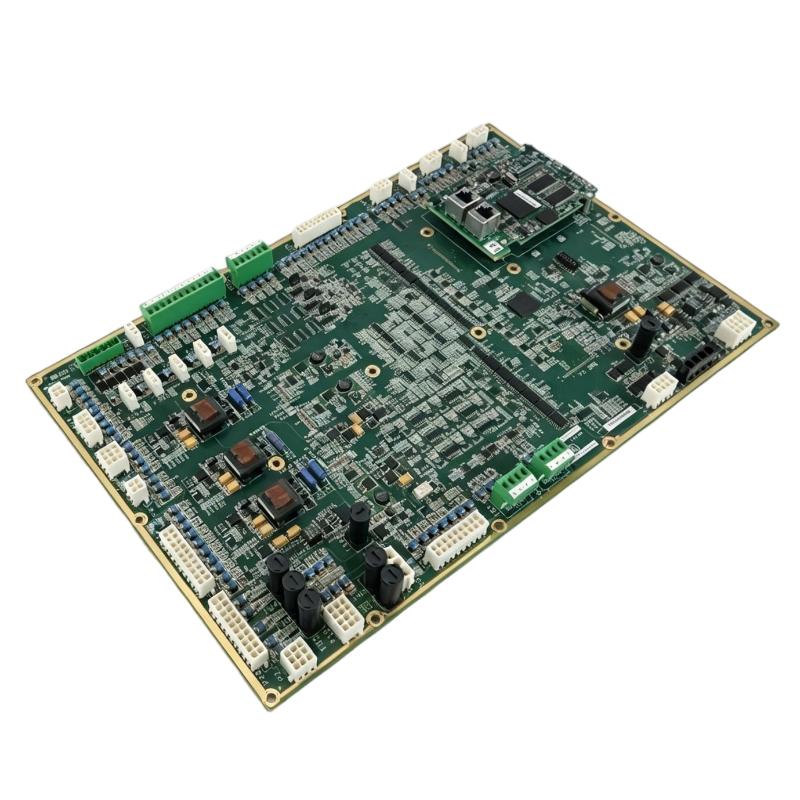

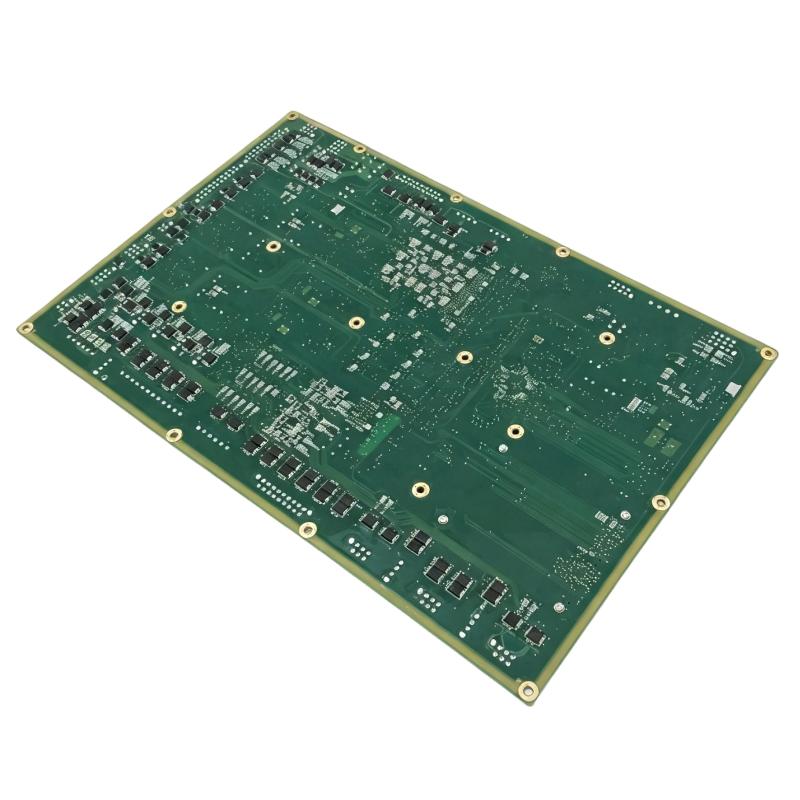

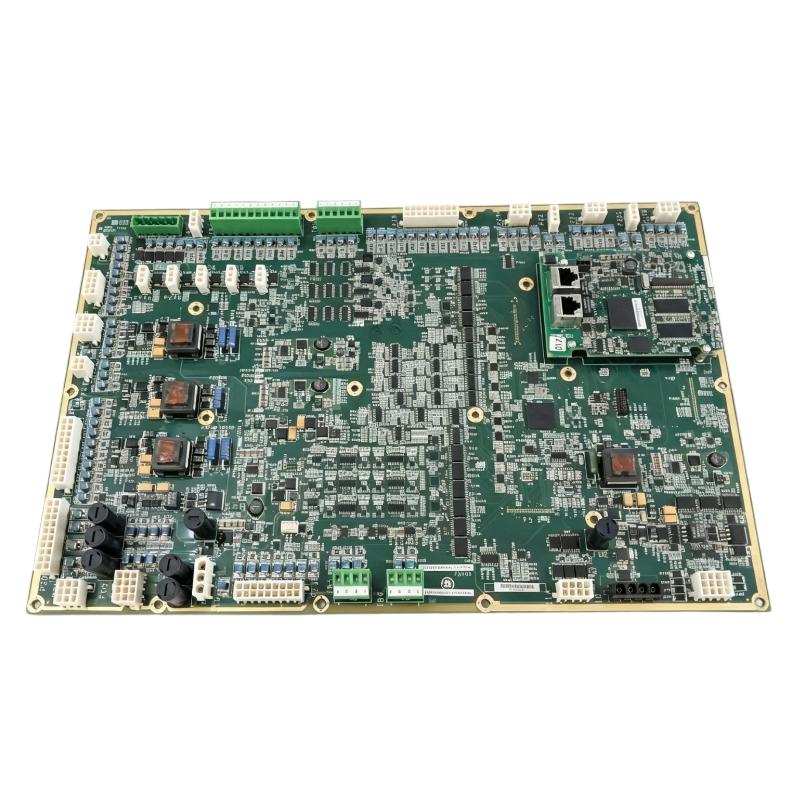

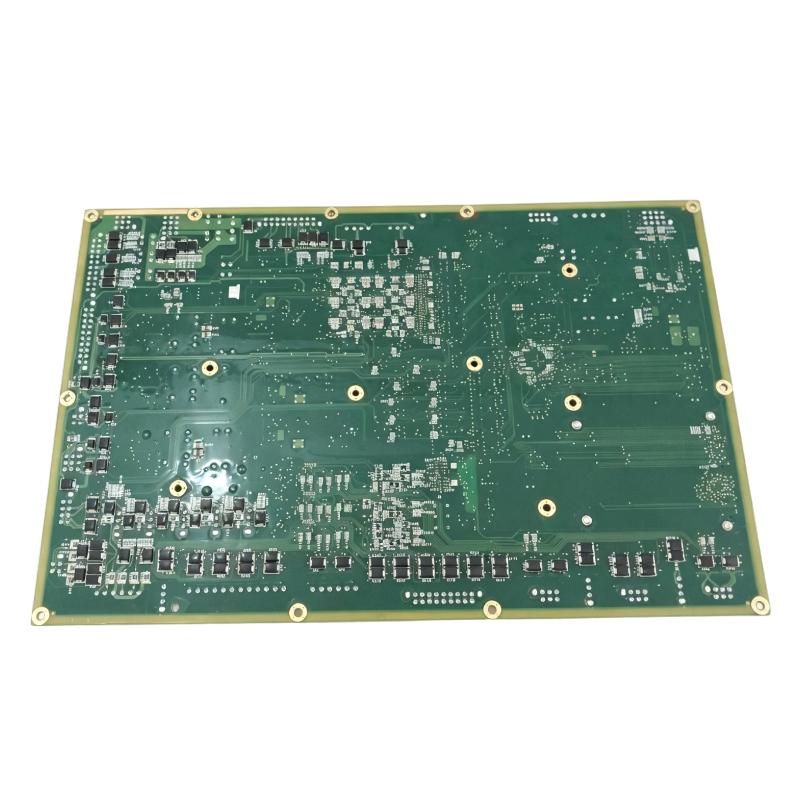

The GE 109W6503P001 WETA Topbox A Module is a hardware component used within GE industrial control and automation systems. As part of the WETA Topbox assembly, it serves as an interface and mounting-level component between system wiring and associated control hardware.
In a typical installation, the Topbox assembly is used to organize field-side connections and provide a structured interface to the control system. The 109W6503P001 is therefore more closely associated with system interconnection and hardware integration than with standalone PLC logic execution or I/O signal processing.
For replacement work, the module should be matched by its complete part number. The surrounding Topbox assembly, mating connectors, wiring arrangement, and system revision should also be checked before installation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE |
| Model | 109W6503P001 |
| Product Family | WETA |
| Product Type | WETA Topbox A Module |
| Module Category | Topbox Interface Module |
| Application | Industrial Control System Hardware Integration |
| System Function | Field Wiring and Control Hardware Interface |
| Module Type | WETA Topbox Module |
| Dimensions | 165 × 25 × 100 mm |
| Weight | 0.3 kg |
Product Features
- WETA Topbox A module for GE industrial control system hardware.
- Supports organized field-side and control-side interconnection within the Topbox assembly.
- Intended for system-level hardware integration rather than independent control logic execution.
- Uses a dedicated GE part number for replacement and maintenance identification.
- Suitable for retrofit and spare-parts applications where the existing WETA hardware configuration must be maintained.
- Works as part of a larger control-system hardware arrangement rather than as a standalone PLC module.
Working Principle
The 109W6503P001 operates as part of the WETA Topbox hardware interface. Signals or wiring associated with the field and control equipment are routed through the Topbox assembly, where the module contributes to the physical interconnection between external wiring and the associated control hardware.
A simplified system path can be represented as:
Field Wiring → WETA Topbox Assembly → 109W6503P001 → Control System Hardware
The module’s role is primarily hardware-level. Signal conditioning, control logic, diagnostics, and higher-level communication functions are handled by the associated control-system equipment rather than by the Topbox module itself.
During replacement, correct mating connections and the original wiring arrangement are important because an incorrectly installed interface module can affect multiple downstream signals even when the controller itself remains operational.
Role in a GE Control System Architecture
| System Element | Function |
|---|---|
| Field Devices | Generate or receive process signals |
| Field Wiring | Carries electrical signals between field equipment and the control cabinet |
| WETA Topbox Assembly | Organizes and interfaces field-side connections |
| GE 109W6503P001 | Provides the specified Topbox A hardware interface |
| Control Hardware | Processes signals and executes control functions |
| Engineering / Operator System | Provides configuration, monitoring, and operator interaction |
| Final Control Devices | Act on commands generated by the control system |
The 109W6503P001 should therefore be considered an interface-level component within the overall control architecture. Its correct installation helps preserve the intended signal routing between field wiring and the associated GE control hardware.
Industrial Applications
| Application | Typical Use |
|---|---|
| Industrial Control Cabinets | Topbox-level signal and hardware interconnection |
| Process Automation | Field wiring interface within a GE control installation |
| Power and Utility Systems | Hardware integration in control and monitoring cabinets |
| Manufacturing Equipment | Structured connection between external wiring and control hardware |
| System Retrofit | Replacement of an existing WETA Topbox A module |
| Maintenance Spares | Stock replacement for installed GE WETA hardware |
Installation and Maintenance
- Confirm the complete 109W6503P001 part number before removing the existing module.
- Isolate the associated control cabinet and follow the site’s electrical safety procedure.
- Record the existing wiring arrangement before disconnecting any field connections.
- Check mating connectors and terminals for signs of corrosion, looseness, or mechanical damage.
- Verify that the replacement module matches the existing WETA Topbox configuration.
- Install the module in the correct Topbox position and secure it according to the original hardware arrangement.
- Reconnect wiring to the same corresponding terminals or connectors.
- Inspect cables for damaged insulation, loose conductors, or excessive mechanical stress.
- Confirm that all connectors are fully seated before energizing the system.
- Restore power according to the plant’s commissioning procedure.
- Check associated control-system diagnostics for communication, wiring, or signal-related faults.
- Verify field signals and system operation after replacement before returning the equipment to normal service.
Related Components
| Component | Relationship |
|---|---|
| GE WETA Topbox Assembly | Main hardware assembly associated with the module |
| WETA Topbox Interface Hardware | Provides the surrounding connection and mounting arrangement |
| GE Control System Hardware | Receives or processes signals routed through the Topbox |
| Field Terminal Wiring | Connects external field equipment to the Topbox |
| Cabinet Power Distribution | Supplies power to associated control hardware where required |
| Control Cabinet Backplane / Mounting Hardware | Supports system-level hardware installation |
| Field Devices | Source or destination of process signals |
Recommended Related Models
| Model | Product Type / Application |
|---|---|
| GE 109W6503P001 | WETA Topbox A Module |
| GE WETA Topbox Assembly | WETA system-level interface hardware |
| GE Control System I/O Modules | Associated process signal interface hardware |
| GE Control System Communication Modules | Control-system network and data interface |
| GE Control Cabinet Hardware | Supporting installation and integration components |
Key Advantages
- Dedicated GE WETA Topbox hardware.
- Supports structured control-system interconnection.
- Suitable for replacement and retrofit work.
- Maintains the existing WETA hardware configuration when correctly matched.
- Useful as a maintenance spare for installed GE control systems.
Technical FAQs
What is the function of the GE 109W6503P001?
The 109W6503P001 is a WETA Topbox A Module used as part of the Topbox hardware interface. Its primary role is associated with physical system interconnection rather than PLC program execution or standalone signal processing.
Can the 109W6503P001 be replaced without changing the entire Topbox assembly?
Replacement of the individual module may be possible when the existing system configuration supports it. Before replacement, verify the complete part number, Topbox arrangement, connectors, wiring, and associated control hardware to ensure the replacement matches the installed configuration.
What should be checked if field signals are abnormal after replacement?
Start with the wiring and connector arrangement. Confirm that each connection was restored to its original position, connectors are fully seated, and there are no damaged conductors. The associated GE control-system diagnostics should then be checked to determine whether the problem is localized to the interface or originates elsewhere in the signal path.
Is the 109W6503P001 a standalone PLC or I/O module?
No. The 109W6503P001 is a WETA Topbox A Module and should be treated as an interface-level hardware component within the larger GE control-system installation. Control logic and process signal handling are performed by the associated control hardware.
