- Epro
- PR6426/010-110+CON011/916-120
- 32 mm Eddy Current Sensor
- Germany
- 32 mm
- 1.4 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

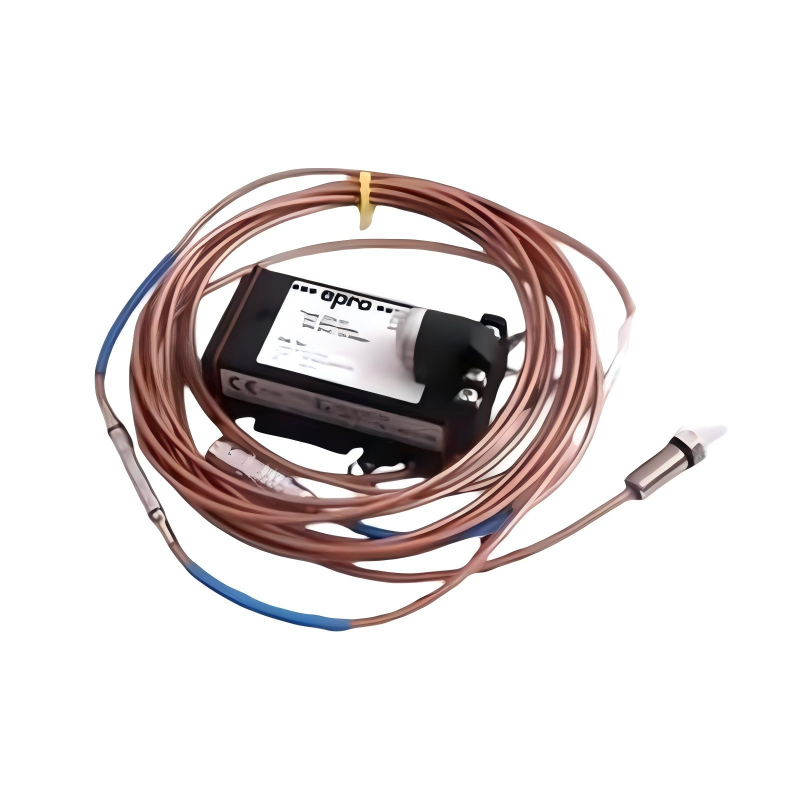

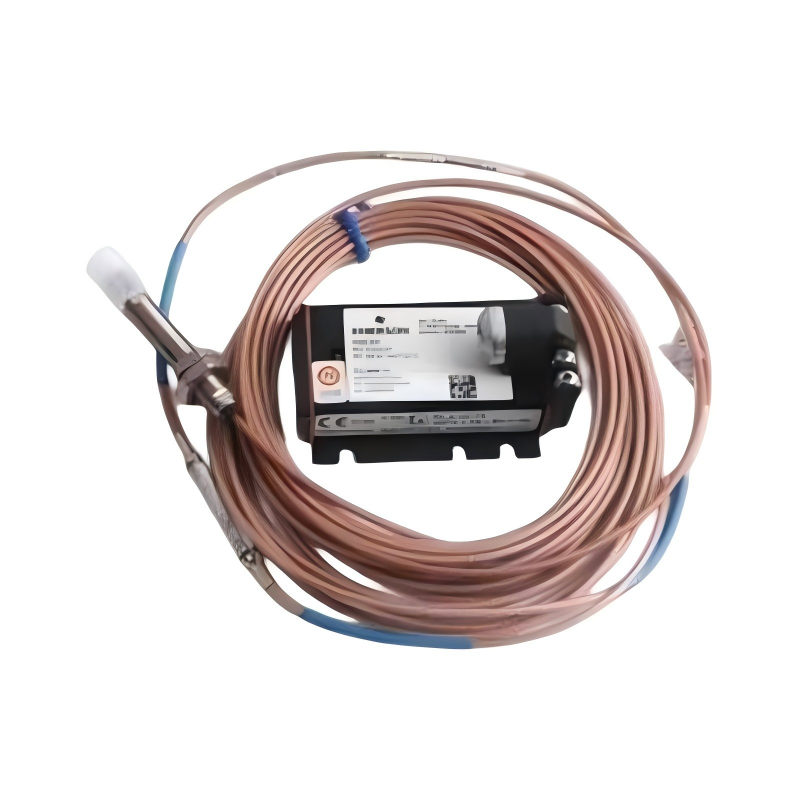

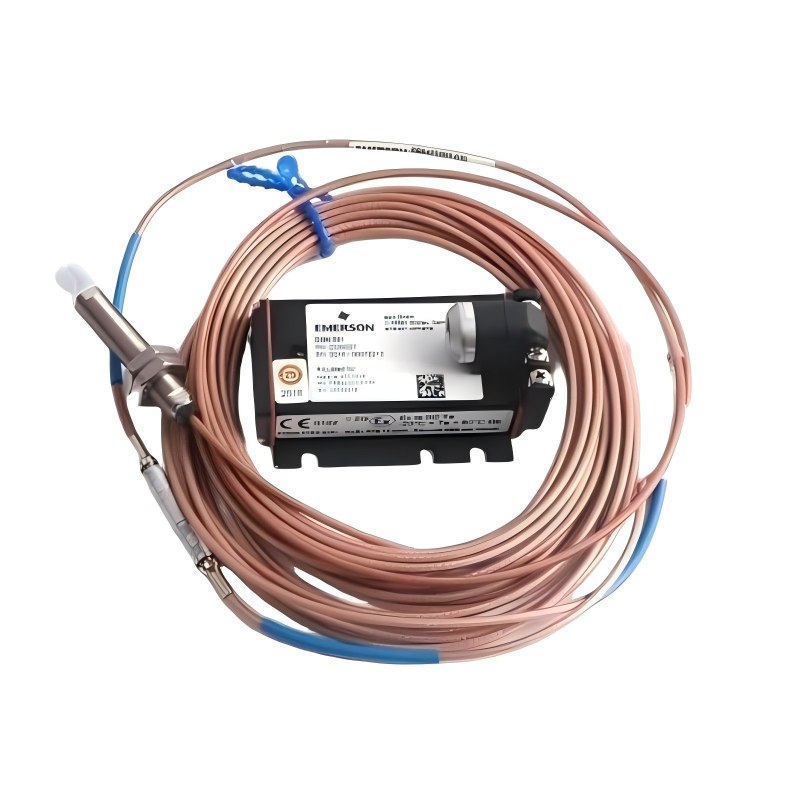

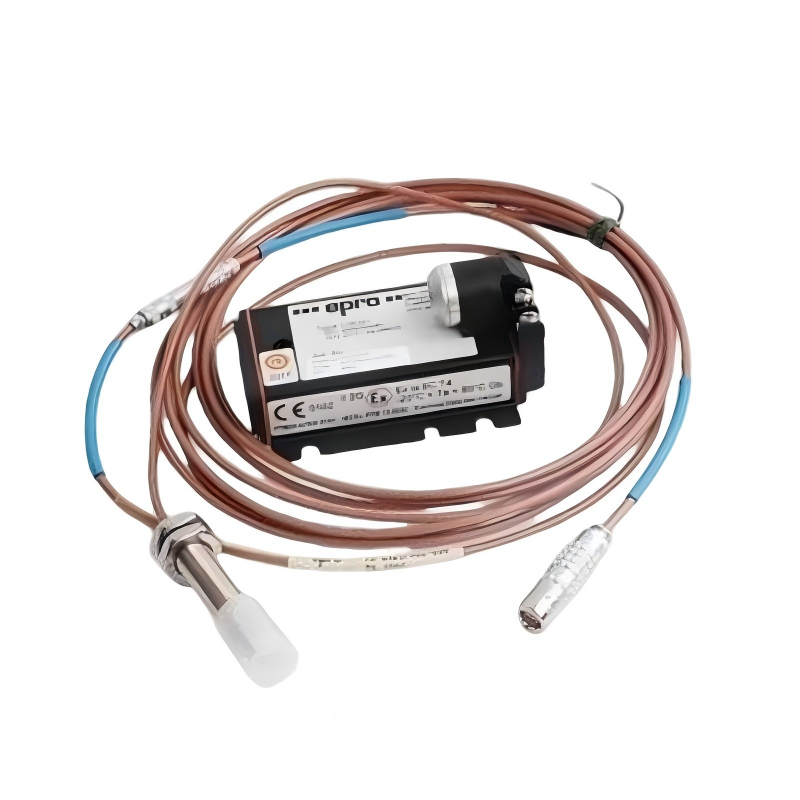

In advanced industrial monitoring systems, accurate measurement of large displacement and vibration is essential for maintaining the safety and efficiency of heavy rotating machinery. The Epro PR6426/010-110 + CON011/916-120 Eddy Current Sensor is designed to deliver high-precision, non-contact measurement using eddy current technology, particularly for applications requiring a larger sensing range.
This system combines a 32 mm probe (PR6426/010-110) with a signal converter (CON011/916-120), enabling reliable detection of shaft movement, vibration, and position. Its robust construction ensures stable operation in demanding industrial environments, making it ideal for critical machinery monitoring.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Epro |
| Model | PR6426/010-110 + CON011/916-120 |
| Product Type | Eddy Current Sensor |
| Sensor Head Diameter | 32 mm |
| Measurement Type | Non-contact displacement / vibration |
| Output Signal | Analog signal (via converter) |
| Probe Type | Eddy current probe |
| System Components | Sensor probe + signal converter |
| Weight | 1.4 kg |
| Installation | Threaded mounting / bracket installation |
| Application | Large-scale rotating machinery monitoring |
| Environment | Industrial-grade |
| Measurement Range | Extended range measurement |
| Accuracy | High precision detection |
| Reliability | Designed for continuous operation |
Function and Working Principle
The PR6426/010-110 + CON011/916-120 operates based on eddy current sensing principles. The probe generates an electromagnetic field that interacts with the surface of a conductive target.
This allows:
Non-contact measurement of large displacement
Accurate vibration monitoring of rotating components
High-speed response to dynamic changes
Stable operation in harsh environments
Variations in the distance between the probe and the target surface cause changes in the eddy current field, which are processed by the CON011 converter into a proportional electrical signal for monitoring systems.
Role in Industrial Control Systems
This sensor system is a key component in machinery protection and monitoring systems, supporting:
Large shaft displacement monitoring
Turbine and generator protection
Vibration analysis systems
Critical equipment safety systems
It enables early detection of abnormal conditions, helping to prevent costly failures and unplanned downtime.
Industrial Applications
The Epro eddy current sensor is widely used in:
Steam and gas turbines
Hydroelectric generators
Compressors and pumps
Power generation facilities
Oil and gas processing plants
Heavy-duty industrial machinery
Its large probe size makes it especially suitable for applications requiring extended measurement range.
Installation and System Integration
Proper installation is essential for optimal performance:
Mounted near the rotating shaft or monitored surface
Requires precise gap calibration
Connected to the CON011 signal converter
Integrated into monitoring or control systems
Must follow alignment and installation standards
Accurate installation ensures reliable measurements and long-term stability.
Compatible System Components
The PR6426/010-110 + CON011/916-120 typically works alongside:
Epro monitoring systems
Signal converters and interface modules
Vibration monitoring systems
Control and protection units
Data acquisition and analysis systems
Together, these components form a comprehensive condition monitoring solution.
Recommended Alternative Models
Depending on system requirements, the following alternatives may be considered:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| PR6426/010-110 | Eddy Current Sensor | 32 mm probe | Large displacement monitoring |
| PR6423 Series | Eddy Sensor Series | Smaller probe sizes | Compact applications |
| CON010 | Signal Converter | Standard signal processing | General systems |
| Bentley Nevada 3300 Series | Proximity Sensor | Industry-standard monitoring | Turbine systems |
| IFM Eddy Sensors | Non-contact Sensor | Compact and versatile | General automation |
Key Advantages
Non-contact measurement with no wear
Large 32 mm probe for extended range
High precision and fast response
Reliable performance in harsh environments
Suitable for heavy industrial applications
Supports continuous monitoring and protection
Technical FAQs
What is the main function of this sensor?
It measures large displacement and vibration in rotating machinery using non-contact eddy current technology.
What does the CON011 module do?
It converts the probe signal into a standardized output for monitoring systems.
Where is it typically used?
It is used in turbines, generators, and heavy machinery requiring extended measurement range.
Conclusion
The Epro PR6426/010-110 + CON011/916-120 Eddy Current Sensor (32 mm) is a high-performance solution for industrial monitoring applications requiring extended measurement capability. With its robust design and precise sensing technology, it plays a critical role in ensuring the safety and reliability of large rotating machinery.
For engineers and maintenance professionals, this sensor system offers a dependable solution for accurate condition monitoring, helping to improve operational efficiency and reduce downtime in demanding industrial environments.
