1. Product Overview

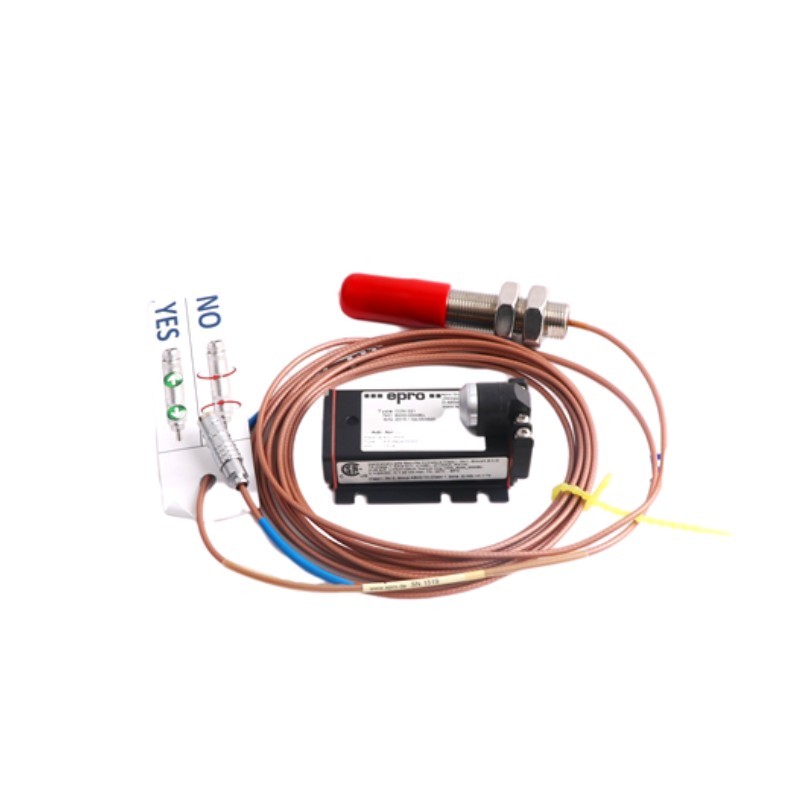

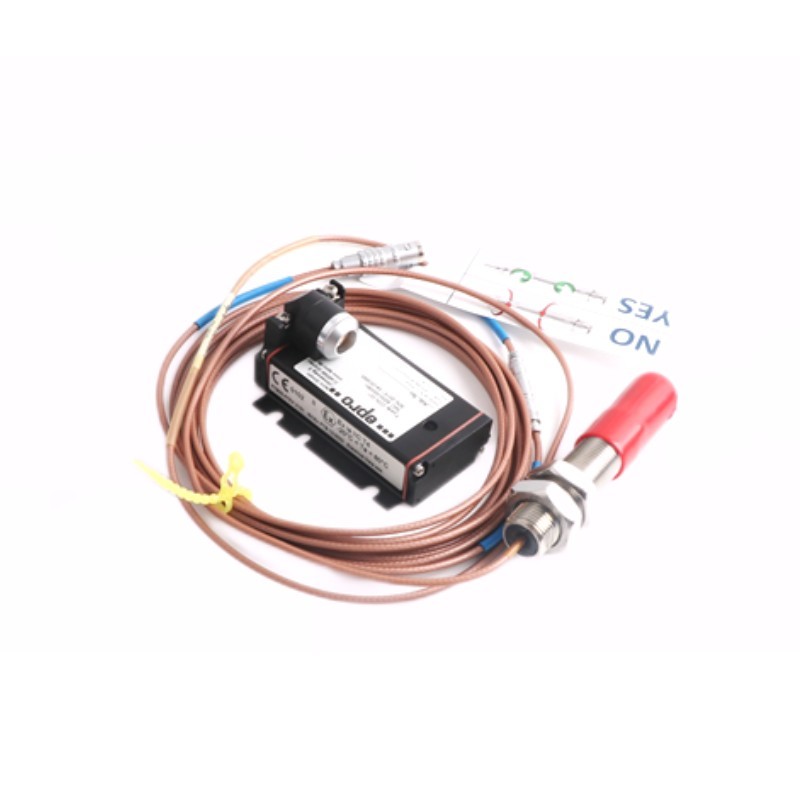

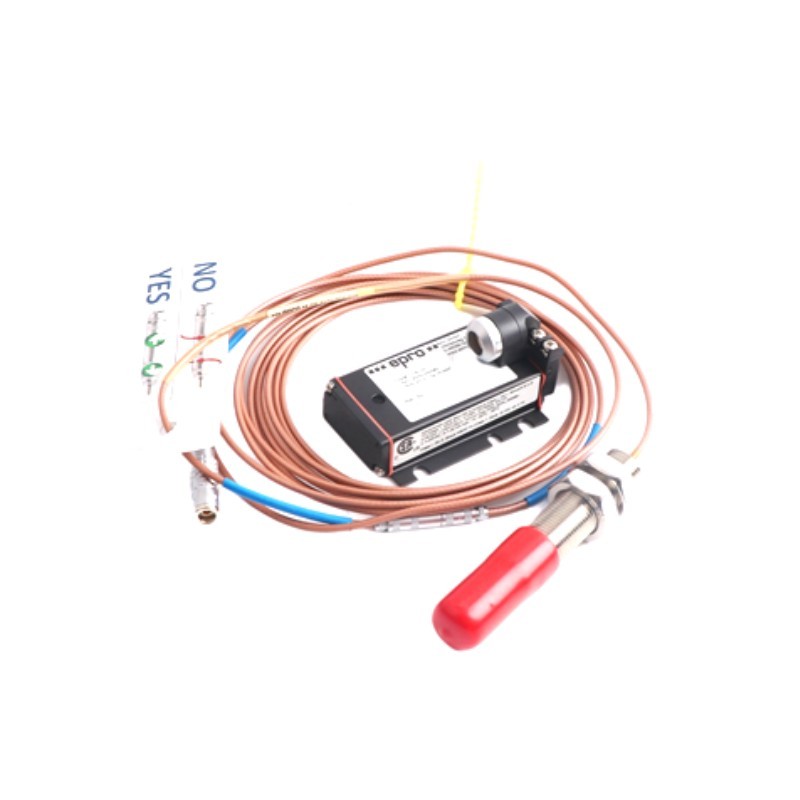

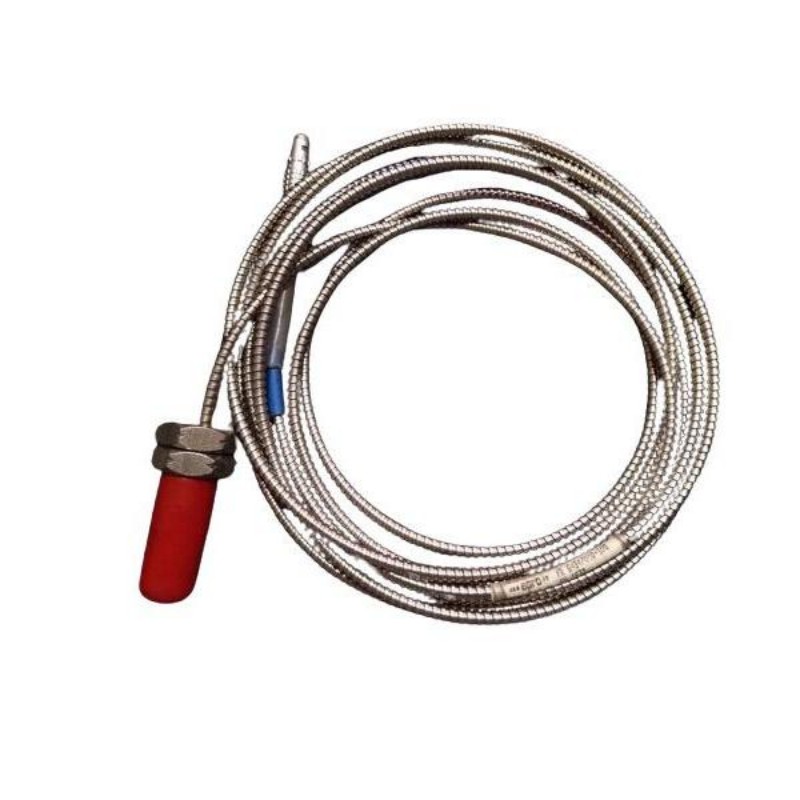

The Epro PR6424/007-030 is a 16 mm eddy current sensor associated with the PR6424 series of industrial displacement measurement products. Eddy current sensing technology is commonly used in machinery monitoring because it enables non-contact measurement of the distance between a probe and a conductive target. This measurement principle is particularly useful for applications involving rotating shafts and moving mechanical components.

In industrial plants, reliable displacement measurements help engineers observe shaft movement, monitor mechanical clearances, and assess changes in machinery operating conditions. When connected to compatible signal-conditioning electronics and monitoring equipment, an eddy current sensor can provide measurement data for condition monitoring, equipment protection, and maintenance planning.

The PR6424/007-030 model designation is important for identifying the correct component during procurement, installation, and replacement. Although related models in the PR6424 series may share a nominal 16 mm sensor head diameter, their electrical characteristics, probe configurations, cable arrangements, and calibration requirements should not be assumed to be identical.

According to the supplied product information, the Epro PR6424/007-030 has a sensor head diameter of 16 mm and a weight of 0.2 kg. These specifications provide a basic reference for product identification. Other parameters, such as the measurement range, sensitivity, probe length, cable type, connector arrangement, and compatible signal conditioner, should be confirmed using documentation for the exact model.

For industrial maintenance teams and automation equipment buyers, correct model identification is essential. Selecting a suitable sensor requires checking not only its physical dimensions but also its compatibility with the target material, mounting arrangement, signal-conditioning equipment, and existing monitoring system.

2. Technical Specifications

Specification note: The 16 mm sensor head diameter and 0.2 kg weight are based on the supplied product information. Other model-specific parameters have not been established here and should be verified before installation or replacement. The stated weight may refer to the sensor itself rather than the complete measurement assembly.

3. Function and Working Principle

3.1 Eddy Current Measurement Technology

An eddy current sensor measures displacement through electromagnetic interaction between the probe and an electrically conductive target. The probe generates an alternating electromagnetic field. When a conductive surface enters this field, electrical currents are induced within the target material.

These currents generate a secondary electromagnetic field that affects the electrical response of the probe. Compatible electronics evaluate this response and convert it into a measurement signal related to the distance between the probe tip and the target surface.

Because the probe does not need to touch the measured object, eddy current technology is suitable for many applications involving rotating shafts and moving machinery components. Non-contact operation avoids direct mechanical contact with the target and supports continuous measurement when the system is correctly configured.

The relationship between the sensor response and actual displacement depends on the probe design, target material, installation geometry, calibration, and signal-conditioning electronics. For this reason, the sensor should be evaluated as part of a complete measurement system.

3.2 Non-Contact Displacement Measurement

The primary function of an eddy current probe is to detect changes in the distance between the probe tip and a conductive target.

When installed near a rotating shaft, the sensor detects changes in the relative gap caused by shaft movement. Depending on the complete system configuration, the resulting signal may support several monitoring functions:

• Relative shaft vibration monitoring.
• Axial displacement measurement.
• Mechanical position monitoring.
• Changes in shaft clearance.
• Machinery condition assessment.
• Continuous displacement trend analysis.

The exact measurement functions available for the PR6424/007-030 must be confirmed against its model-specific documentation. Its series designation and nominal diameter alone do not establish its measurement range, accuracy, or calibration characteristics.

3.3 Signal Conditioning and Measurement Conversion

An eddy current sensor generally operates with compatible signal-conditioning electronics. Depending on the system design, these electronics provide the required excitation and convert the probe’s response into a usable measurement signal.

Correct signal conditioning is essential because the probe and associated electronics must have compatible electrical characteristics. An unsuitable signal conditioner, incorrect cable configuration, or incompatible connection may cause unstable readings, measurement errors, or signal loss.

During replacement, maintenance personnel should identify the existing probe, cable, signal conditioner, and monitoring input. Compatibility should be verified for the complete configuration rather than inferred from similarities between model names.

3.4 Continuous Machinery Monitoring

When connected to appropriate monitoring equipment, an eddy current sensor can provide ongoing displacement measurements during machine operation. The monitoring system may display readings, record trends, and compare measurements against configured operating limits.

Changes in vibration or shaft position can indicate that further investigation may be necessary. However, sensor readings should be interpreted alongside operating speed, load, temperature, historical trends, and other available condition-monitoring information.

A displacement change does not independently establish the cause of a mechanical problem. It is one source of information that can support a broader equipment assessment.

4. Role in Industrial Control and Machinery Monitoring

4.1 Rotating Machinery Monitoring

Rotating machinery requires stable shaft movement, suitable mechanical clearances, and reliable bearing performance. Imbalance, misalignment, looseness, bearing deterioration, and thermal movement may influence the operating behavior of a machine.

A properly installed eddy current sensor can measure relative movement at a designated point. Its output may be processed by compatible monitoring equipment to support condition assessment, trend analysis, and configured alarm functions.

The probe is only one component of the complete monitoring arrangement. Reliable measurement also depends on correct mounting, cable selection, calibration, signal conditioning, and monitoring-channel configuration.

4.2 Turbine and Generator Applications

Turbines and generators contain rotating assemblies that may require continuous monitoring of shaft movement and mechanical clearance. Eddy current probes can be installed at designated measurement points when the selected sensor meets the requirements of the machinery and monitoring system.

Engineers should verify the required measurement range, target material, mounting arrangement, operating environment, and signal interface before selecting a probe for these applications.

The PR6424/007-030 should only be used where its verified characteristics meet the requirements of the intended installation. The model designation alone does not establish suitability for every turbine or generator monitoring system.

4.3 Shaft and Bearing Condition Assessment

Relative shaft displacement measurements can help maintenance teams identify changes in machinery behavior. When multiple probes are installed at suitable locations, their combined readings may provide a broader view of shaft movement.

These measurements can contribute to investigations into abnormal vibration, unexpected displacement, or changing mechanical clearances. However, several different faults can produce similar symptoms. Engineers should evaluate sensor readings alongside other measurements, operating conditions, and inspection results.

4.4 Integration with Industrial Monitoring Systems

A typical eddy current measurement chain consists of the probe, the specified cable, compatible signal-conditioning electronics, and a monitoring device.

Depending on the system architecture, measurement data may also be made available to supervisory software or plant automation equipment. The available communication interfaces and processing functions depend on the associated hardware.

The PR6424/007-030 should not be treated as a standalone PLC communication module. Its primary role is to provide a measurement input to compatible instrumentation and monitoring equipment.

5. Industrial Applications

The following examples describe common applications for compatible eddy current measurement technology. They are representative use cases, not confirmation of model-specific approvals or suitability for every installation.

5.1 Power Generation

Power plants operate turbines, generators, pumps, and other rotating machinery that may require continuous condition monitoring.

Eddy current sensors can measure relative shaft movement at designated locations. The resulting data may help maintenance teams observe changes in machinery behavior and determine whether further inspection is needed.

Before deployment, engineers should verify the probe’s measurement characteristics, target material compatibility, mechanical mounting requirements, and signal-conditioning arrangement.

5.2 Oil and Gas Industry

Compressors, pumps, and other rotating machines are widely used in oil and gas processing facilities. Where the application requirements are satisfied, eddy current sensing can provide non-contact displacement measurements for machinery condition monitoring.

Installation planning should account for equipment geometry, ambient conditions, cable routing, electrical requirements, and maintenance access. Any application in a hazardous or classified area requires separate verification of the applicable approvals for the complete installation.

5.3 Petrochemical and Chemical Processing

Petrochemical and chemical plants depend on reliable rotating equipment to support continuous production. Suitable displacement sensors can contribute to condition-monitoring programs for machinery whose performance is important to plant operations.

The probe must be matched to the target material, mounting arrangement, operating environment, and associated monitoring electronics. Maintenance teams should also ensure that installation and inspection procedures meet the plant’s safety requirements.

5.4 Industrial Manufacturing

Manufacturing facilities use rotating machinery in production lines, utility systems, material-processing equipment, and industrial drives.

Where non-contact displacement measurement is required, an appropriately configured eddy current sensor may provide useful data for machinery condition assessment. The selected model must meet the measurement requirements and integrate with the existing instrumentation architecture.

5.5 Pumps and Compressors

Pumps and compressors may experience changes in shaft position or vibration as operating conditions and mechanical health change. Suitable eddy current measurement systems can provide data for continuous monitoring and maintenance analysis.

The appropriate probe location depends on the machinery design, bearing arrangement, shaft geometry, and intended measurement function. Installation should follow the equipment manufacturer’s requirements and the verified sensor specifications.

6. Installation and System Integration

Correct installation is essential for reliable displacement measurement. Mechanical positioning, target properties, cable configuration, and calibration can all influence system performance.

6.1 Verify the Complete Model Designation

Before purchasing or installing a replacement, confirm the complete model number: PR6424/007-030.

Do not rely solely on the PR6424 series name or the 16 mm sensor head diameter. Related models may have different electrical characteristics, cable arrangements, or calibration requirements.

Compare the product label with the installed system documentation. Record the existing probe model, cable arrangement, signal conditioner, connector configuration, and monitoring-channel settings before removing the original component.

6.2 Confirm Mechanical Mounting

Install the probe at the measurement location specified by the machinery or instrumentation design. Confirm the mounting thread, bracket arrangement, insertion depth, and retention method using the model-specific documentation.

The probe tip must not contact the moving target during normal operation or expected shaft movement. The installation should account for mechanical vibration, thermal expansion, and the required operating clearance.

A 16 mm sensor head diameter does not establish the mounting thread, overall probe length, or installation depth. These dimensions must be checked separately.

6.3 Verify Target Material and Surface Condition

Eddy current measurements depend on the electrical characteristics of the target material and the geometry of the measured surface.

Confirm that the target material is compatible with the probe’s calibration. Differences between the intended and actual target material may affect measurement response.

Surface curvature, nearby conductive objects, mounting hardware, and surrounding structures can also influence the electromagnetic field. Follow the applicable installation instructions to maintain the required clearances and positioning.

6.4 Check Cable and Signal Conditioner Compatibility

Use the specified cable and signal-conditioning equipment for the complete sensor configuration. Cable length, electrical characteristics, and connector arrangement may affect measurement performance.

Do not substitute a cable simply because its connector looks similar. Verify terminal assignments, electrical ratings, shielding, and grounding requirements against the correct wiring documentation.

The signal conditioner required for the PR6424/007-030 should be confirmed before installation.

6.5 Establish the Correct Measurement Gap

Many eddy current systems require the probe to operate within a defined gap range. The correct initial position depends on the exact probe, target material, calibration, and associated electronics.

Follow the model-specific installation procedure to establish the working gap and verify the output signal. Do not assume that a generic gap value from another PR6424 variant applies to this model.

6.6 Commissioning and Calibration

After installation, verify the complete measurement chain before relying on its readings for machinery monitoring.

Typical commissioning checks include:

1. Confirming the probe and associated electronics model numbers.
2. Inspecting the probe body, cable, and connectors.
3. Checking mounting security and target clearance.
4. Verifying wiring against the applicable documentation.
5. Confirming the expected signal response.
6. Establishing a baseline measurement under suitable operating conditions.
7. Checking monitoring-channel scaling and configured alarm thresholds.

Use the specified calibration equipment and procedures where required. Measurement scaling and alarm limits should follow the machinery requirements and monitoring-system documentation.

6.7 Routine Maintenance and Troubleshooting

Periodic inspection can help identify damaged cables, loose connectors, changes in mounting position, or other issues that affect measurement reliability.

If readings become unstable, investigate the complete measurement chain rather than assuming that the probe itself has failed. Possible causes include an incorrect gap, cable damage, connector problems, incompatible signal-conditioning electronics, target material differences, electrical interference, or a monitoring-channel fault.

Testing and maintenance should follow the plant’s safety procedures and applicable equipment documentation.

7. Compatible System Components

The PR6424/007-030 should be evaluated as part of a complete measurement system. The following table describes common component categories that may be involved; it does not confirm compatibility with specific part numbers.

Compatibility note: A shared product family or similar connector does not guarantee interchangeability. Confirm the complete probe, cable, and signal-conditioning combination against the applicable documentation before installation.

8. Recommended Models for Comparison

When evaluating a replacement for the PR6424/007-030, compare probe dimensions, measurement range, sensitivity, target material, cable configuration, signal conditioner, and monitoring-system requirements.

The following models or families may be used for technical comparison. They are not confirmed direct substitutes for the PR6424/007-030.

For procurement and maintenance projects, the complete measurement configuration is more important than general similarities in product descriptions. Two probes may share a nominal diameter but differ in calibration, cable requirements, or electrical characteristics.

If the original model is unavailable, document the installed system and obtain technical confirmation before selecting an alternative. A replacement may require changes to associated electronics, wiring, monitoring-channel configuration, or calibration procedures.

9. Key Advantages of Eddy Current Sensor Technology

9.1 Non-Contact Measurement

Eddy current technology measures the distance to a conductive target without direct physical contact. This makes it useful for monitoring rotating shafts and moving components where contact-based measurement would be unsuitable.

9.2 Continuous Measurement Capability

When connected to compatible electronics, an eddy current probe can provide ongoing displacement measurements. These readings can support trend analysis and help maintenance teams recognize changes in machinery behavior.

9.3 Suitability for Rotating Machinery

Non-contact displacement measurement is useful in suitable turbine, generator, pump, compressor, and industrial drive applications. Actual suitability depends on the verified sensor specifications and the requirements of the machinery.

9.4 Integration with Monitoring Equipment

A compatible measurement chain can supply data to machinery monitoring equipment and, where supported, supervisory systems. This allows operators to review selected measurements alongside other operating information.

9.5 Support for Preventive Maintenance

Historical measurement trends can help engineers identify changes that warrant investigation. Although sensor readings do not independently identify every failure mechanism, they can contribute to a more informed maintenance strategy.

9.6 Accurate Model Identification

Retaining the complete PR6424/007-030 designation helps distinguish the requested product from related variants. Correct identification is particularly important when maintaining existing instrumentation with established calibration and interface requirements.

10. Technical FAQs

Q1. What is the Epro PR6424/007-030?

The Epro PR6424/007-030 is identified as a 16 mm eddy current sensor associated with the PR6424 series. It is intended for non-contact displacement measurement applications when used in a compatible and correctly configured measurement system.

Q2. What is the sensor head diameter?

The supplied specification states a sensor head diameter of 16 mm. This does not independently establish the probe’s mounting thread, body dimensions, or overall length.

Q3. What is the weight of the PR6424/007-030?

The supplied weight is 0.2 kg. Confirm whether this value refers to the probe alone or includes additional components before using it for shipping or installation calculations.

Q4. What does an eddy current sensor measure?

An eddy current sensor measures the distance between a probe and an electrically conductive target. Depending on the installation, the measurement may support relative shaft vibration monitoring, axial displacement measurement, or mechanical position monitoring.

Q5. Can the PR6424/007-030 be used for turbine monitoring?

It may be suitable if its verified measurement characteristics, installation requirements, and electrical interface meet the turbine monitoring system’s requirements. Suitability should be confirmed against the relevant equipment documentation.

Q6. Is the PR6424/007-030 compatible with every PR6424 signal conditioner?

No. Compatibility must be verified for the exact probe configuration, cable arrangement, and signal conditioner. Components should not be assumed to be interchangeable simply because they belong to the same product family.

Q7. Can the PR6424/007-030 replace another PR6424 model?

Not without confirming the relevant specifications. Related models may differ in measurement characteristics, cable configuration, calibration, or other requirements. Check the original and proposed replacement part numbers before installation.

Q8. What should be checked before purchasing this sensor?

Confirm the full model designation, product condition, sensor dimensions, cable and connector arrangement, signal conditioner, measurement range, calibration requirements, and compatibility with the installed monitoring system.

For replacement orders, photographs of the product label and connector arrangement, together with the existing system part numbers, may help reduce identification errors.

Q9. What can cause unstable readings?

Potential causes include an incorrect probe gap, cable or connector damage, incompatible signal-conditioning electronics, target material differences, movement of the mounting arrangement, electrical interference, or a monitoring-channel fault. Troubleshooting should follow the applicable equipment procedures.

Q10. Does the 16 mm sensor head diameter determine the measurement range?

No. Sensor diameter alone does not establish measurement range, sensitivity, linearity, or electrical characteristics. These parameters must be confirmed for the exact model and its associated electronics.

11. Procurement and Replacement Considerations

When sourcing the Epro PR6424/007-030, accurate model identification and configuration matching should be the primary considerations.

Before placing an order, review the following points:

1. Confirm the complete model number: Verify that the product label identifies PR6424/007-030.
2. Check the supplied configuration: Establish whether the item includes only the probe or additional components.
3. Verify physical specifications: Confirm the 16 mm sensor head diameter and supplied 0.2 kg weight.
4. Check electrical compatibility: Identify the required cable, connector, and signal-conditioning arrangement.
5. Confirm application suitability: Compare verified product characteristics with the existing machinery monitoring requirements.
6. Review product condition: For new, unused, refurbished, or used equipment, obtain condition information appropriate to the purchase.
7. Validate proposed replacements: Ensure that any alternative meets the original system’s mechanical, electrical, calibration, and measurement requirements.

These checks are particularly important for industrial instrumentation used in existing installations, where visually similar components may have different technical requirements.

12. Conclusion

The Epro PR6424/007-030 is a 16 mm eddy current sensor intended for non-contact displacement measurement applications. Eddy current technology is widely used in machinery condition monitoring because it can measure the relative position of conductive targets without physical contact.

The supplied product information identifies a sensor head diameter of 16 mm and a weight of 0.2 kg. Other model-specific parameters, including measurement range, sensitivity, cable configuration, operating limits, and signal conditioner compatibility, should be verified before purchasing or installing the sensor.

For maintenance engineers, system integrators, and industrial automation buyers, the recommended approach is to confirm the complete model designation, review the existing measurement system, and verify compatibility before replacement. Careful product identification, installation, and calibration help maintain measurement reliability and reduce the risk of using an unsuitable component in a machinery monitoring application.
