1. Product Overview

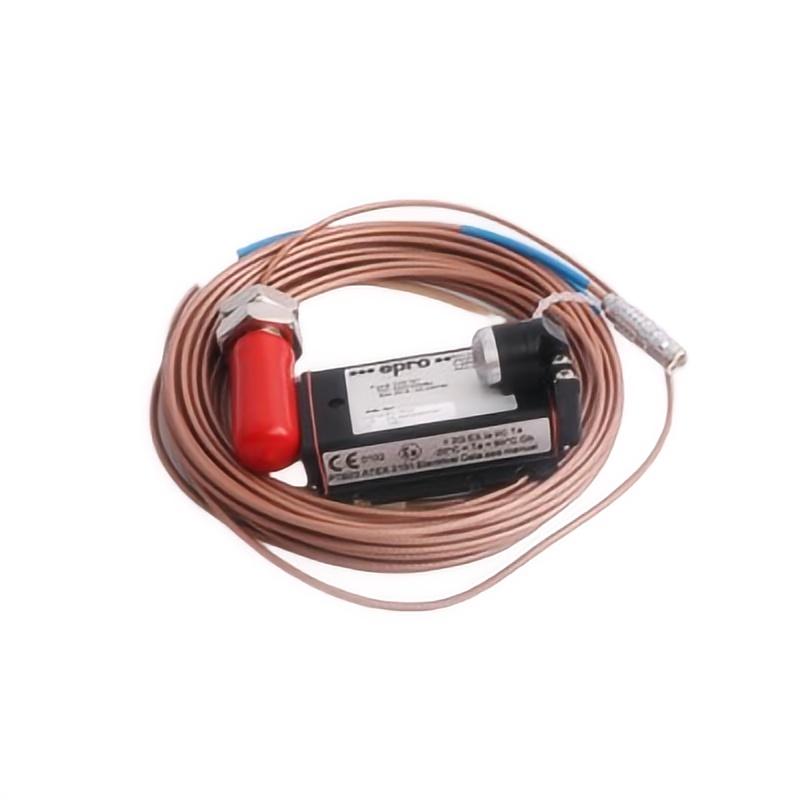

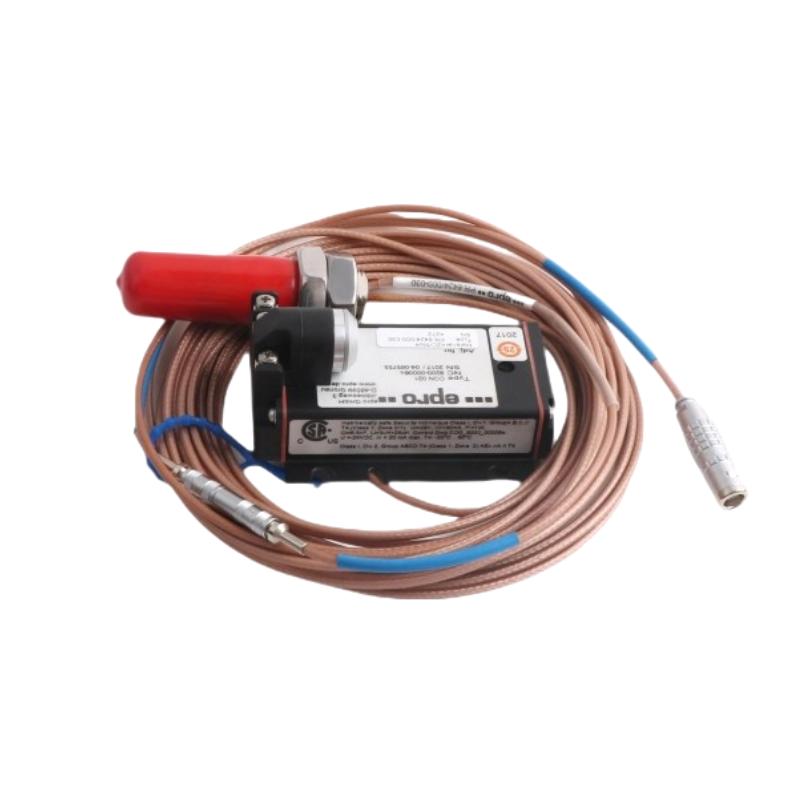

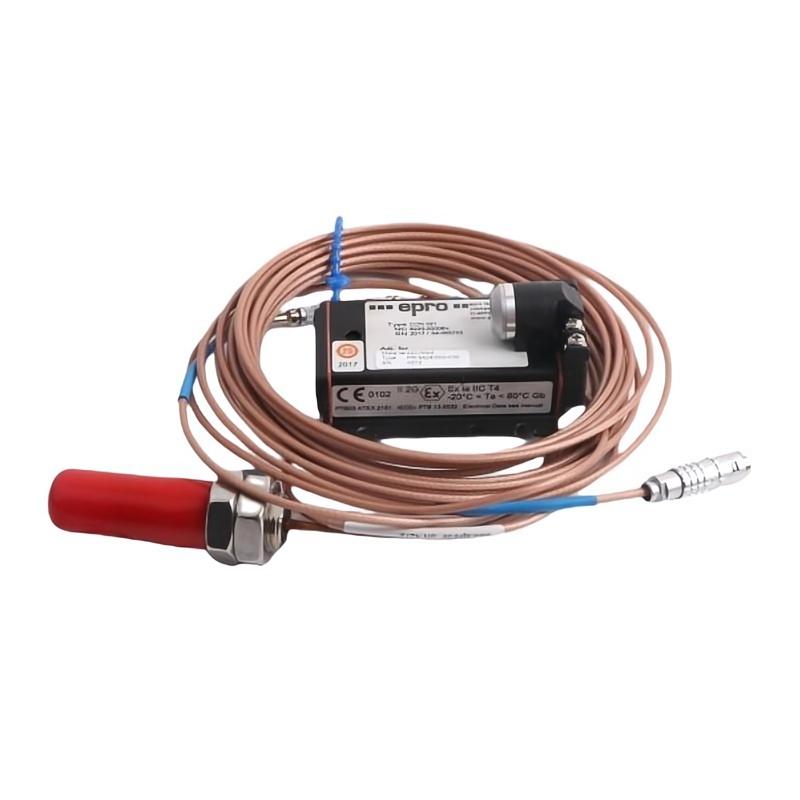

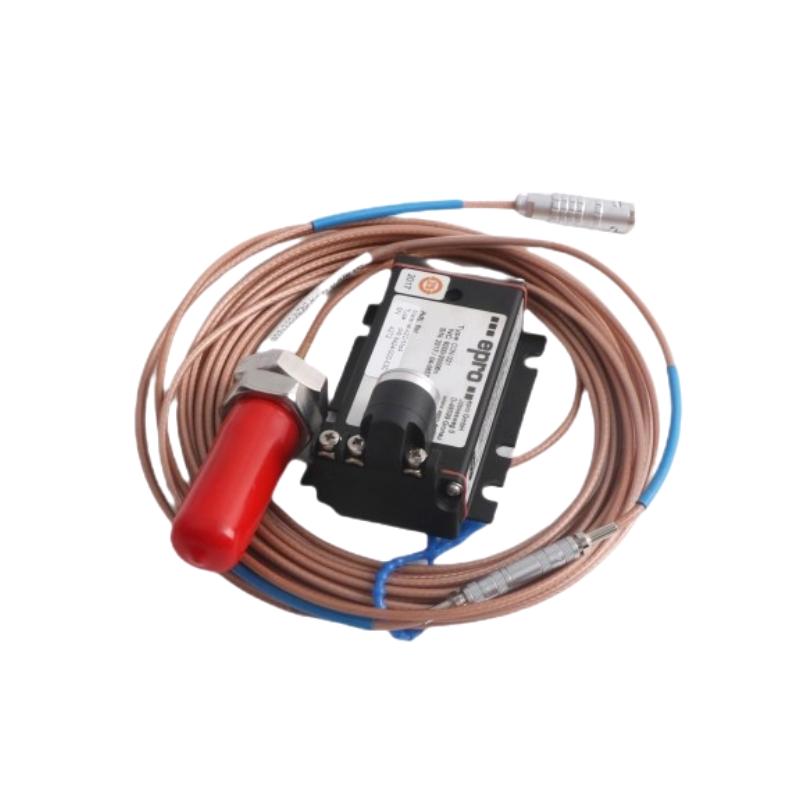

The Epro PR6424/005-121 16 mm Eddy Current Sensor is an industrial sensing component intended for non-contact measurement applications involving conductive metallic targets. Eddy current sensing technology is widely used in rotating machinery monitoring, shaft displacement measurement, position detection, and vibration-related measurement systems. By detecting changes in the electromagnetic interaction between the probe and a conductive target, the sensor system can provide displacement information without direct mechanical contact.

In industrial plants, accurate displacement measurement can help engineers monitor rotating equipment, identify changes in mechanical operating conditions, and support preventive maintenance activities. Typical equipment that may use eddy current measurement systems includes turbines, compressors, pumps, motors, and other rotating machinery.

The PR6424 family is associated with 16 mm eddy current probe designs. The PR6424/005-121 is identified in this product listing as a 16 mm eddy current sensor, with a stated weight of 0.2 kg. These details provide a starting point for product identification and installation planning. Exact electrical characteristics, measuring range, cable configuration, mounting dimensions, and compatible signal-conditioning equipment should be confirmed against the technical documentation for the complete model number.

As part of a properly configured measurement chain, an eddy current sensor can supply displacement-related signals to compatible monitoring instruments. Depending on the overall system design, these signals may support equipment condition monitoring, measurement trending, alarm evaluation, or machinery protection functions.

For industrial buyers, maintenance engineers, and system integrators, confirming the complete probe configuration is essential. Sensors that belong to the same product family should not automatically be treated as interchangeable, because individual model suffixes may indicate different configurations or specifications.

2. Technical Specifications

Specification Notes

The model number, sensor head diameter, and weight shown above are based on the supplied product information. Other technical parameters have not been assumed to be confirmed for the PR6424/005-121.

The performance of an eddy current measurement system depends on the probe design, target material, operating gap, cable arrangement, signal converter, and monitoring instrument. Before purchasing or replacing a sensor, verify these details using the technical documentation for the exact model.

The stated weight of 0.2 kg should also be checked against the actual supplied configuration to establish whether it refers to the probe alone or includes any cable or accessories.

3. Function and Working Principle

3.1 Electromagnetic Induction

An eddy current sensor operates through electromagnetic induction. The probe contains a coil that produces an alternating electromagnetic field when connected to compatible electronic equipment.

When a conductive target enters this field, electrical currents known as eddy currents are induced within the target material. These currents affect the electromagnetic characteristics of the probe coil. As the distance between the probe and the target changes, the interaction changes accordingly.

The associated electronics measure this response and convert it into a displacement-related signal. The resulting signal can then be processed by a compatible monitoring instrument or control system.

Because the sensing process does not require physical contact, eddy current technology is suitable for many applications involving moving metallic components.

3.2 Shaft Displacement Measurement

One important application of eddy current sensors is the measurement of relative shaft displacement. The probe is mounted near a conductive shaft surface, with its sensing face positioned at the operating gap specified for the complete measurement system.

When the shaft moves toward or away from the probe, the distance changes. The measurement electronics translate this change into a corresponding signal.

This information may help engineers evaluate shaft movement associated with changing mechanical loads, bearing clearances, thermal expansion, alignment conditions, or other operating factors. The measurement itself does not identify the cause of a change; additional operating data and engineering analysis may be needed.

3.3 Vibration-Related Measurement

When combined with suitable signal-conditioning equipment and monitoring instruments, eddy current probes can measure dynamic changes in the relative position of rotating shafts.

These measurements may be used to assess shaft vibration, provided that the complete system has an appropriate measurement range and frequency response. Probe mounting rigidity, target geometry, and electrical compatibility also influence measurement quality.

For critical rotating machinery, the probe should be selected as part of the complete monitoring channel rather than as an isolated component.

3.4 Position Monitoring

Eddy current technology can also support position measurement for conductive machine components. Depending on the installation, the measurement system may be used to observe axial movement, relative displacement, or other changes in position.

The actual capability depends on the probe’s verified specifications and the selected electronics. The intended measurement range and target geometry must be evaluated before the sensor is assigned to a specific application.

4. Role in Industrial Control and Machinery Monitoring

The Epro PR6424/005-121 should be understood as a sensing component that can form part of a larger measurement system. A typical arrangement may include the following elements:

1. Eddy current probe: Detects changes in the distance between the probe and a conductive target.
2. Extension cable, where required: Connects the probe to compatible signal-conditioning equipment.
3. Signal converter or driver: Excites the probe and processes its electrical response.
4. Monitoring instrument: Displays, records, or evaluates the measurement signal.
5. Control or protection system: Uses the measurement for configured monitoring, alarm, or protection functions where applicable.

The required components depend on the manufacturer’s system architecture. The probe, cable, and signal converter must be compatible with one another.

4.1 Machinery Condition Monitoring

Continuous measurement provides information that can be compared over time. Changes in displacement or vibration-related readings may prompt maintenance teams to investigate machine operating conditions.

For useful trend analysis, the measurement setup should remain consistent. Changes in probe position, cable configuration, target geometry, or mounting stability may influence readings and should be considered when interpreting trends.

4.2 Machinery Protection

In a machinery protection installation, measurements from a compatible sensor channel may be evaluated against configured alarm or shutdown thresholds. The exact function depends on the monitoring equipment, protection architecture, and site configuration.

The sensor alone does not provide a complete protection function. Appropriate signal conditioning, monitoring equipment, configuration, commissioning, and maintenance procedures are required.

4.3 Maintenance and Troubleshooting

Displacement-related data can support troubleshooting by providing information about changes in machine behavior. Engineers may compare the readings with shaft speed, load, temperature, bearing condition, and other available operating data.

Measurement trends can help guide further inspection, but conclusions should be based on the complete operating context rather than a single sensor value.

5. Industrial Applications

5.1 Steam and Gas Turbines

Turbines operate under demanding mechanical and thermal conditions. Non-contact displacement measurements can contribute to shaft movement monitoring and machinery condition assessment when the probe and measurement system meet the installation requirements.

Before using the PR6424/005-121 in a turbine installation, verify its measuring range, environmental ratings, mounting arrangement, and compatibility with the existing monitoring system.

5.2 Industrial Compressors

Compressors are widely used in gas processing, petrochemical plants, refineries, and manufacturing facilities. Monitoring shaft movement can provide useful information about rotating equipment behavior.

An eddy current measurement system may be suitable where the target material, shaft geometry, operating speed, and measurement requirements match the verified probe specifications.

5.3 Pumps and Motors

Large pumps and motors may require monitoring of relative shaft movement or vibration-related behavior. Non-contact sensing can be useful where direct contact with the moving component is unsuitable.

The installation should account for the probe mounting location, target material, operating gap, and signal-processing requirements. Compatibility should be established before integrating the sensor into an existing system.

5.4 Power Generation

Power generation equipment often relies on continuous condition monitoring to support availability and maintenance planning. Eddy current measurement systems can contribute to the monitoring of selected rotating assets.

Whether the PR6424/005-121 is suitable for a particular turbine, generator, or auxiliary machine must be determined from its exact specifications and the requirements of the monitoring channel.

5.5 Petrochemical and Process Industries

Process plants operate a range of rotating machinery, including compressors, pumps, and turbines. Non-contact displacement measurements can support condition monitoring in suitable installations.

Selection should consider temperature, moisture, vibration, electromagnetic interference, mounting access, and any applicable hazardous-area requirements. Environmental suitability must be verified for the complete installation.

5.6 Industrial Test Equipment

Eddy current sensors are also used in industrial test rigs and specialized machinery to observe changes in the position of conductive components.

For these applications, repeatability depends on the sensor system, calibration, target properties, mechanical stability, and operating conditions. The probe should be selected according to the actual measurement requirements.

6. Installation and System Integration

Correct installation is essential for reliable measurement. Mechanical mounting, operating gap, target material, and electrical compatibility all influence the performance of an eddy current measurement system.

6.1 Verify the Complete Model Number

Confirm that the product label identifies the probe as PR6424/005-121. Use the technical documentation for this exact suffix when checking installation dimensions, wiring, cable selection, and converter compatibility.

Do not assume that specifications from another PR6424 model automatically apply to this version.

6.2 Check Mechanical Dimensions

The stated sensor head diameter is 16 mm. Before installation, also verify the probe body’s external dimensions, mounting thread, installation depth, connector arrangement, and required clearance.

A secure mounting arrangement helps prevent unwanted probe movement and reduces the risk of measurement errors caused by mechanical instability.

6.3 Establish the Correct Operating Gap

The probe-to-target gap must be set according to the requirements of the exact measurement system. An unsuitable gap can reduce the available measuring range or result in an unreliable signal.

Do not select a gap based solely on a value associated with another model suffix. Follow the approved installation and setup instructions for the PR6424/005-121 and its compatible electronics.

6.4 Confirm Target Material

Eddy current measurements depend on the electrical properties and geometry of the target. Material composition, shaft diameter, surface condition, and nearby conductive objects can influence the measurement response.

Use the recommended target conditions wherever possible. If the actual target differs from the specified reference material or geometry, verify whether application-specific calibration or compensation is necessary.

6.5 Verify the Cable and Converter

Some eddy current systems require a specific combination of probe, extension cable, and signal converter. Differences in cable length or electrical characteristics can affect system performance.

Before installation, confirm that the cable and converter are approved for the exact probe configuration. Mechanical connector fit alone does not establish electrical compatibility.

6.6 Route Cables Properly

Protect measurement cables from crushing, sharp edges, abrasion, excessive bending, high temperatures, and moving machine components.

Follow the system manufacturer’s guidance for shielding and grounding. Where practical, separate measurement cables from high-current power cables and other potential sources of electrical interference.

6.7 Commission the Measurement Channel

After installation, use the approved commissioning procedure to verify that the probe produces a plausible signal across the intended operating range.

Check signal stability, measurement scaling, polarity where applicable, and the response of the connected monitoring instrument. Record the initial installation conditions and baseline readings to support future maintenance.

6.8 Plan Replacement and Maintenance

During routine maintenance, inspect the mounting arrangement, probe condition, cable, connectors, and surrounding mechanical structure.

When replacing a probe, compare the complete model number and technical characteristics. Verify measurement range, sensitivity, dimensions, cable configuration, converter compatibility, and environmental ratings before treating another model as a replacement.

7. Compatible System Components

The following table lists the component categories that may be required in a typical eddy current measurement system. It does not confirm compatibility with any particular part number.

A reliable measurement chain requires the correct combination of components. Selecting a probe without confirming the associated electronics may result in compatibility problems or incorrect measurement performance.

8. Recommended Alternative Models

Alternative selection should be based on the measurement requirements and compatibility of the complete system. Similar model numbers or product-family names do not guarantee direct interchangeability.

Replacement note: These are comparison candidates, not confirmed direct replacements for the PR6424/005-121. Before selecting an alternative, verify probe dimensions, measurement range, sensitivity, cable and converter requirements, operating environment, and mounting constraints.

For critical machinery, replacement decisions should follow the equipment manufacturer’s documentation and the site’s approved maintenance procedures.

9. Key Advantages of Eddy Current Measurement

9.1 Non-Contact Sensing

Eddy current technology measures distance without direct physical contact with the target. This is valuable when monitoring rotating or moving metallic components where contact could cause wear or interfere with operation.

9.2 Support for Dynamic Measurement

When paired with suitable electronics, an eddy current probe can measure changing relative positions over time. This capability supports shaft displacement and vibration-related applications within the verified limits of the measurement system.

9.3 Integration with Monitoring Equipment

Measurement signals can be incorporated into compatible monitoring architectures for display, recording, trending, and configured alarm functions.

9.4 Flexible Industrial Use

Eddy current measurement technology is used in many rotating machinery and industrial test applications. Suitability for a specific installation depends on the exact probe specifications, target properties, and operating environment.

9.5 Better Replacement Planning

Recording the complete model number and measurement-chain configuration helps maintenance teams select appropriate spare parts. Documentation of probe dimensions, cables, converters, and commissioning results can reduce the risk of incompatible substitutions.

10. Technical FAQs

Q1. What is the Epro PR6424/005-121?

It is identified in this product listing as an Epro 16 mm eddy current sensor for non-contact measurement applications involving conductive targets. Exact performance specifications should be verified for the complete model designation.

Q2. What is the sensor head diameter?

The specified sensor head diameter is 16 mm.

Q3. What is the product weight?

The supplied weight is 0.2 kg. Confirm whether this figure applies to the probe alone or to a configuration that includes cable or accessories.

Q4. How does an eddy current sensor work?

The probe produces an alternating electromagnetic field. A conductive target affects that field through induced eddy currents. Changes in the distance between the probe and target alter the electrical response, allowing compatible electronics to determine displacement.

Q5. Can the PR6424/005-121 measure shaft vibration?

Eddy current measurement systems are commonly used for shaft displacement and vibration-related monitoring. Suitability for a specific vibration channel depends on the verified measurement range, sensitivity, frequency response, mounting arrangement, and associated electronics.

Q6. What is its exact measurement range?

The exact range should be confirmed from the technical documentation for the PR6424/005-121. It should not be inferred solely from specifications for other PR6424 variants.

Q7. Does the sensor require a signal converter?

A complete eddy current measurement system commonly uses compatible signal-conditioning electronics. The required arrangement depends on the specific probe and system architecture.

Q8. Can I use a cable from another PR6424 sensor?

Only after compatibility has been confirmed. Cable characteristics and length may affect the performance of the measurement chain. Follow the manufacturer’s specified probe, cable, and converter combination.

Q9. Is the PR6424/005-121 interchangeable with other PR6424 models?

Not automatically. Verify the exact suffix, mechanical dimensions, measurement range, sensitivity, cable arrangement, converter compatibility, and environmental ratings before selecting a substitute.

Q10. What should I verify before purchasing?

Confirm the complete model number, probe dimensions, measuring range, sensitivity, cable and connector configuration, compatible electronics, operating environment, and intended application. For replacement orders, compare the proposed unit with the installed configuration.

Q11. What maintenance is recommended?

Inspect the probe mounting, cable, connectors, and surrounding mechanical structure. Investigate unexpected changes in measurement readings and verify that the installation remains within the specified operating conditions.

Q12. Is the sensor suitable for every industrial environment?

No. Suitability depends on the exact model configuration and installation conditions. Temperature, moisture, vibration, electromagnetic interference, chemical exposure, and hazardous-area requirements should all be assessed where relevant.

11. Conclusion

The Epro PR6424/005-121 16 mm Eddy Current Sensor is a non-contact sensing component that can be evaluated for industrial displacement measurement and rotating machinery monitoring. The supplied product details specify a 16 mm sensor head diameter and a weight of 0.2 kg.

When integrated with compatible signal-conditioning and monitoring equipment, eddy current sensing can provide information about relative shaft movement, position changes, and vibration-related behavior. The actual measurement capability depends on the exact probe configuration, target material, operating gap, cable, converter, and monitoring instrument.

For procurement, installation, and replacement planning, verify the complete PR6424/005-121 technical specifications rather than assuming all variants in the PR6424 family share identical parameters. Confirming the measurement range, sensitivity, environmental ratings, and system compatibility helps reduce installation risk and supports reliable long-term operation.
