1. Product Overview

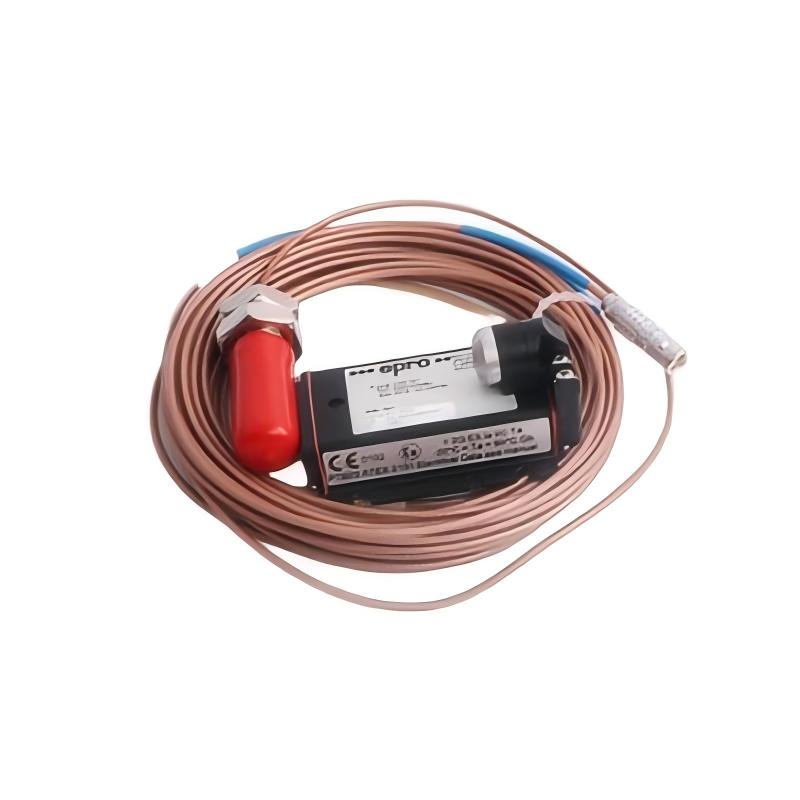

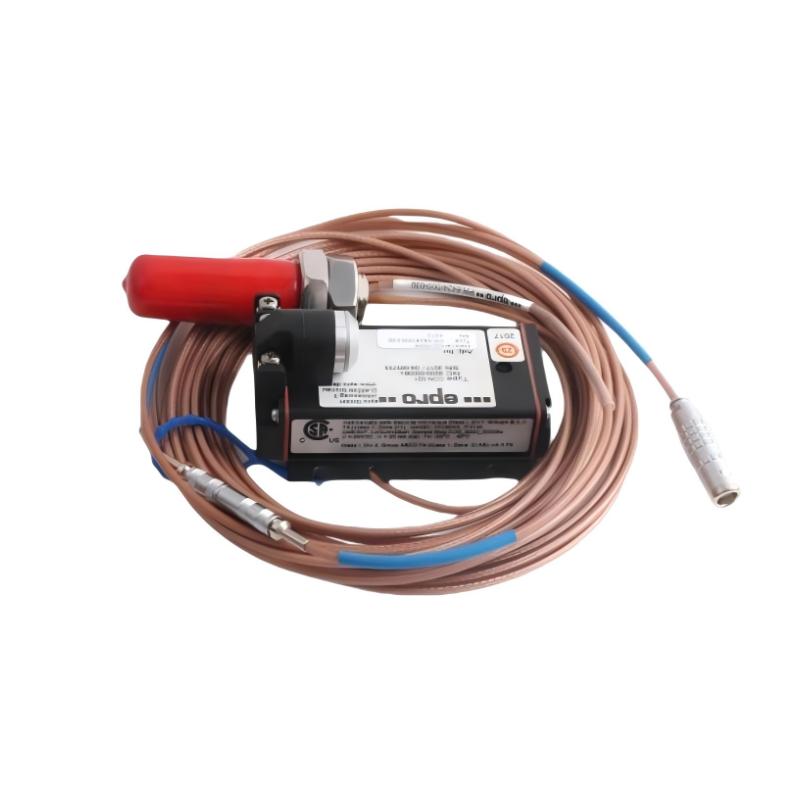

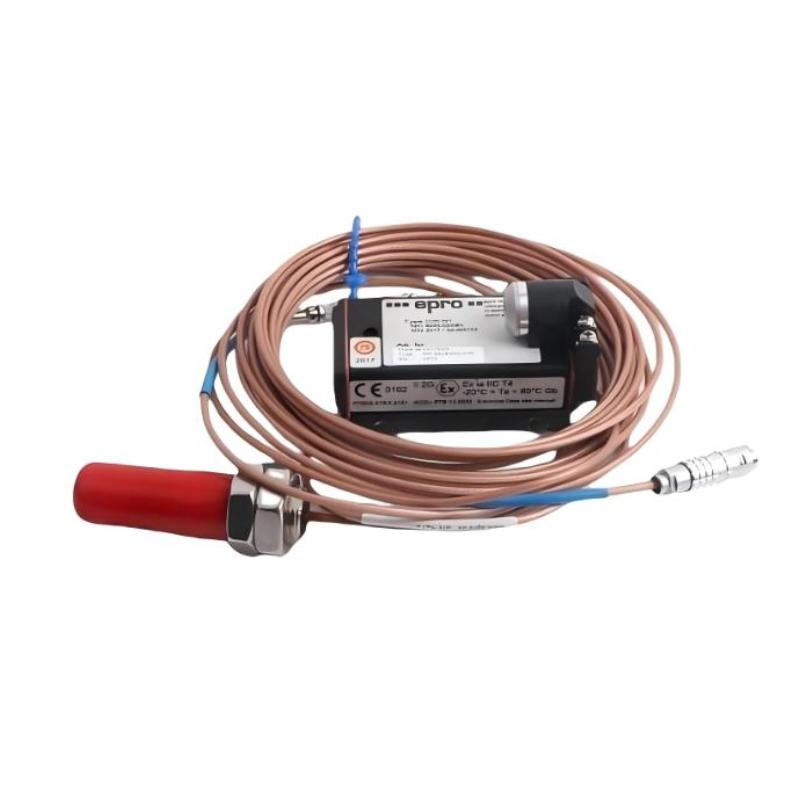

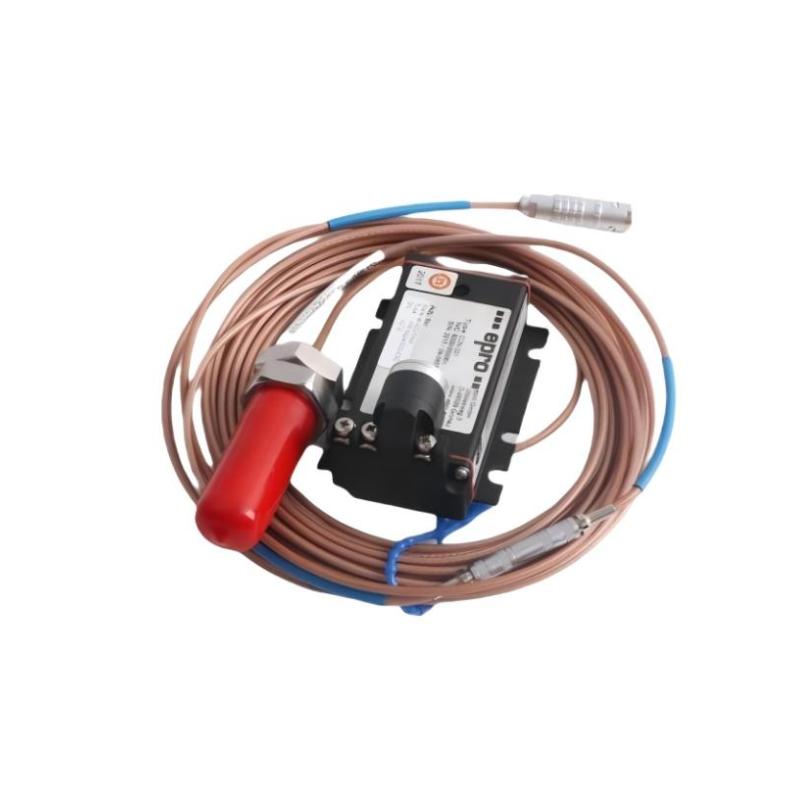

The Epro PR6424/004-121 16 mm Eddy Current Sensor is an industrial displacement sensor designed for non-contact measurement in rotating machinery and equipment condition monitoring systems. As part of the EPRO PR6424 sensor family, it is intended for applications that require reliable monitoring of shaft displacement, vibration, axial position, eccentricity, and other dynamic mechanical characteristics.

With a nominal sensor head diameter of 16 mm and a stated product weight of approximately 0.2 kg, the PR6424/004-121 can be integrated into suitable machinery monitoring arrangements where contact-based measurement would introduce wear or interfere with the moving component. Eddy current sensing allows the probe to measure the relative distance between its sensing tip and a suitable conductive target without physical contact.

This measurement method is particularly valuable in critical rotating equipment. Changes in shaft position, radial vibration, and axial displacement can provide important information about machine operating conditions. When the sensor is installed and calibrated correctly, its measurements can support condition monitoring, machinery protection, maintenance planning, and fault diagnosis.

Typical application environments for the PR6424 sensor family include steam turbines, gas turbines, hydroelectric turbines, compressors, pumps, fans, and other large rotating machines. The suitability of the exact PR6424/004-121 configuration depends on the required measuring range, target material, probe mounting arrangement, cable configuration, and compatible signal conditioning equipment.

For industrial buyers, maintenance engineers, and automation system integrators, selecting the correct sensor configuration is essential for achieving dependable measurements and maintaining compatibility with the existing monitoring system.

2. Technical Specifications

The following table separates the supplied product information from typical PR6424 family characteristics. Specifications associated with the sensor family should be checked against the exact model documentation before final system design.

Specification note: The measuring range, sensitivity, frequency response, air gap, temperature rating, thread, and cable arrangement above are family-level reference values rather than independently verified details for every PR6424/004-121 suffix configuration. Confirm the exact ordering code and current manufacturer documentation before using these values for procurement or engineering approval.

3. Function and Working Principle

3.1 Eddy Current Measurement Principle

The PR6424 sensor family operates according to the eddy current principle. The probe generates an alternating electromagnetic field near its sensing tip. When a suitable conductive target, such as a ferromagnetic steel shaft, enters this field, eddy currents are induced in the target surface.

These currents influence the electromagnetic characteristics of the probe. Changes in the distance between the probe and the target alter the measured response, allowing the system to determine relative displacement.

Unlike a contact displacement sensor, an eddy current probe does not need to touch the rotating shaft. This reduces mechanical contact and makes the technology suitable for continuous measurement of moving machinery components.

3.2 Shaft Displacement Measurement

Shaft displacement monitoring helps determine whether a rotating shaft remains within its expected operating position. Radial or axial movement may result from changes in load, bearing clearance, thermal expansion, alignment, or mechanical wear.

When installed at an appropriate measurement location, the sensor can detect changes in the gap between the probe tip and the target surface. The resulting signal can be processed by compatible monitoring equipment to represent shaft position or displacement.

3.3 Vibration Monitoring

Shaft vibration is an important indicator of rotating machinery condition. Abnormal vibration may be associated with imbalance, misalignment, looseness, bearing-related problems, or other mechanical conditions.

An eddy current measurement system can monitor dynamic changes in shaft position over time. Monitoring equipment can analyze the resulting signal to help maintenance personnel identify abnormal operating patterns and investigate developing faults.

3.4 Signal Conditioning and System Output

A complete eddy current measurement system generally requires more than the sensor probe alone. Depending on the selected configuration, the system may include a probe, extension cable, signal converter, monitoring module, and control or protection interface.

The compatible converter conditions the probe signal and provides an output suitable for the intended monitoring equipment. The precise output type, connector arrangement, cable length, and converter compatibility must be checked against the complete sensor system specification.

4. Role in Industrial Control and Machinery Protection Systems

The Epro PR6424/004-121 is intended for use as a sensing component within a larger monitoring or machinery protection arrangement. It does not independently replace the controller, signal processing equipment, alarm logic, or shutdown system.

4.1 Continuous Equipment Monitoring

In continuous industrial processes, rotating equipment may operate for long periods under changing loads and temperatures. Monitoring shaft position and vibration provides information that can help operators assess machine behavior during startup, normal operation, and shutdown.

The sensor can supply measurement information to compatible monitoring equipment for ongoing condition assessment.

4.2 Alarm and Protection Functions

When connected to an appropriate monitoring system, sensor measurements may be used as inputs for configurable alarm and protection functions. Engineering teams can establish limits according to equipment design, operating requirements, and applicable machinery protection standards.

Alarm thresholds, trip logic, voting arrangements, and shutdown actions are determined by the connected monitoring system and the plant’s protection design, not by the sensor alone.

4.3 Integration With Plant Automation

Measurement information may be incorporated into a plant’s broader automation architecture through compatible monitoring equipment and communication or signal interfaces.

This allows machinery condition information to be reviewed alongside operating variables such as speed, load, temperature, pressure, and process flow. The resulting information can help engineers distinguish between process-related changes and possible mechanical abnormalities.

5. Industrial Applications

5.1 Steam and Gas Turbines

Turbines operate at high rotational speeds and require reliable monitoring of shaft behavior. Properly configured eddy current measurement systems can monitor radial vibration and axial shaft displacement, helping engineers evaluate changes in mechanical condition.

5.2 Hydroelectric Turbines

Hydroelectric generating equipment depends on stable shaft alignment and bearing performance. Non-contact displacement measurements can contribute to long-term monitoring of shaft movement and machine operating stability.

5.3 Industrial Compressors

Centrifugal and other high-performance compressors often operate continuously in demanding process environments. Shaft vibration and displacement data can help maintenance teams investigate imbalance, alignment problems, and changes in rotor behavior.

5.4 Pumps and Fans

Industrial pumps and fans are widely used in water treatment, power generation, chemical processing, and manufacturing. Where the machine design and monitoring arrangement require shaft displacement measurements, an eddy current probe can provide useful operating data.

5.5 Rotating Machinery Condition Monitoring

The PR6424 sensor family may be considered for other suitable rotating machinery applications where non-contact measurement of a conductive target is required. Final selection should account for shaft diameter, target material, operating temperature, mounting space, and the required measurement performance.

6. Installation and System Integration

Correct installation is essential to achieving stable and repeatable measurement results.

6.1 Verify the Model Configuration

Before installation, confirm the complete part number, probe dimensions, mounting thread, cable type, connector arrangement, and required signal converter. The suffix in PR6424/004-121 identifies a specific configuration and should not be assumed interchangeable with other variants solely because they share the same sensor family.

6.2 Prepare the Mounting Position

Select a stable mounting location that allows the probe to face the intended target surface. The mounting structure should resist vibration and prevent unintended probe movement during machine operation.

The probe must be installed with sufficient clearance and in accordance with the manufacturer’s mechanical installation instructions.

6.3 Set the Measurement Gap

The initial gap between the probe tip and the target affects the usable measurement range. Set the gap using the applicable calibration procedure and the specifications for the exact probe and converter combination.

Do not use a typical family-level air-gap value as a substitute for the installation instructions supplied for the selected configuration.

6.4 Check Target Material and Geometry

Eddy current measurement performance depends on the target material and surface characteristics. Verify that the shaft material, diameter, surface condition, and measurement location are suitable for the sensor system.

The standard PR6424 family specifications reference ferromagnetic steel targets. Different materials or geometries may affect calibration and measurement accuracy.

6.5 Connect the Signal Conditioning Equipment

Use the specified cable and compatible converter. Check the connector type, cable length, grounding arrangement, and routing requirements before energizing the system.

Signal cables should be routed to reduce interference from power conductors and other potential electrical noise sources, following the equipment manufacturer’s installation guidance.

6.6 Commission and Validate the Measurement

After installation, verify the sensor gap, signal response, calibration, and monitoring channel configuration. Compare the measurement behavior with known machine conditions where appropriate.

The commissioning process should also confirm that alarms and protection functions operate according to the approved plant design.

7. Compatible System Components

The PR6424/004-121 should be selected as part of a complete, compatible measurement chain. Exact compatibility depends on the sensor’s cable and connector configuration and the input requirements of the receiving equipment.

Before ordering replacement components, verify the complete system configuration rather than selecting parts based only on a shared product family name.

8. Recommended Alternative Models

The following models are examples for comparison within the EPRO eddy current sensor family. They are not guaranteed direct replacements for PR6424/004-121.

A replacement decision should consider the full part number, mechanical dimensions, sensor characteristics, cable and connector configuration, converter compatibility, calibration requirements, and environmental conditions. Similar appearance or a common manufacturer does not establish electrical or mechanical interchangeability.

9. Key Advantages

Non-Contact Measurement

The sensor measures the distance to a suitable target without touching the rotating component. This makes the technology suitable for continuous displacement and vibration monitoring.

Suitable for Critical Rotating Equipment

The PR6424 family is designed for machinery monitoring applications involving equipment such as turbines, compressors, pumps, and fans.

Supports Multiple Monitoring Objectives

Depending on the system configuration, measurements can support shaft position, radial or axial displacement, vibration, and eccentricity monitoring.

Compact 16 mm Sensor Head

The stated 16 mm head diameter provides a defined probe size for engineers planning mounting arrangements and replacement installations.

Integration Into a Larger Monitoring System

When paired with compatible signal conditioning and monitoring equipment, the sensor can contribute to a broader machinery condition monitoring and protection architecture.

Useful for Maintenance Planning

Consistent measurement data can help maintenance teams identify changes in machine behavior, investigate abnormal trends, and plan inspections based on equipment condition.

10. Technical FAQs

Q1. What is the Epro PR6424/004-121?

It is a 16 mm eddy current sensor used for non-contact measurement applications. In a compatible system, it can support monitoring of shaft displacement, vibration, position, and eccentricity.

Q2. What is the sensor head diameter?

The stated sensor head diameter is 16 mm.

Q3. What is the product weight?

The supplied product information lists a weight of approximately 0.2 kg. Confirm whether the quoted weight includes the cable, connector, or other accessories when comparing shipping or installation weights.

Q4. Does the sensor contact the rotating shaft?

No. Eddy current sensing measures the gap between the probe and a suitable conductive target without requiring physical contact.

Q5. What is the measurement range?

Published PR6424 family information lists a typical static measurement range of ±2.0 mm and a dynamic range of 0–1,000 μm. Confirm the applicable specifications for the exact PR6424/004-121 configuration before use.

Q6. What is the sensor sensitivity?

A sensitivity of 4 V/mm is listed in PR6424 family specifications. The applicable value and calibration conditions should be verified against the exact sensor and converter documentation.

Q7. Can the sensor measure shaft vibration?

It can be used in a suitable eddy current measurement system to monitor dynamic shaft displacement associated with vibration. Signal processing and vibration evaluation are performed by the connected monitoring equipment.

Q8. Does the sensor require a signal converter?

A complete PR6424 measurement system generally uses compatible signal conditioning equipment. The required converter depends on the specific probe configuration, connector, cable arrangement, and monitoring system.

Q9. Can the PR6424/004-121 replace the PR6424/004-101?

Not automatically. Although both models belong to the same 16 mm sensor family, their suffixes may indicate different configurations. Confirm the mechanical, electrical, cable, connector, and calibration requirements before substitution.

Q10. What should be checked before purchasing?

Verify the full model number, probe dimensions, mounting thread, cable length, connector type, compatible converter, operating environment, target material, and required measurement performance. Confirm the exact configuration with the supplier before placing an order.

11. Conclusion

The Epro PR6424/004-121 16 mm Eddy Current Sensor is a non-contact sensing component for industrial machinery measurement and condition monitoring. Its 16 mm sensor head and approximately 0.2 kg stated weight provide useful initial information for product selection and installation planning.

When correctly configured with compatible signal conditioning and monitoring equipment, the sensor can contribute to shaft displacement, vibration, position, and eccentricity monitoring in suitable rotating machinery applications. It is relevant to engineers, maintenance teams, automation integrators, and industrial spare-parts buyers working with critical equipment.

For replacement procurement or new system design, the complete ordering code and associated technical documentation should be checked carefully. Confirming the exact probe configuration and its compatibility with the existing measurement chain helps reduce installation risk and supports reliable long-term operation.
