1. Product Overview

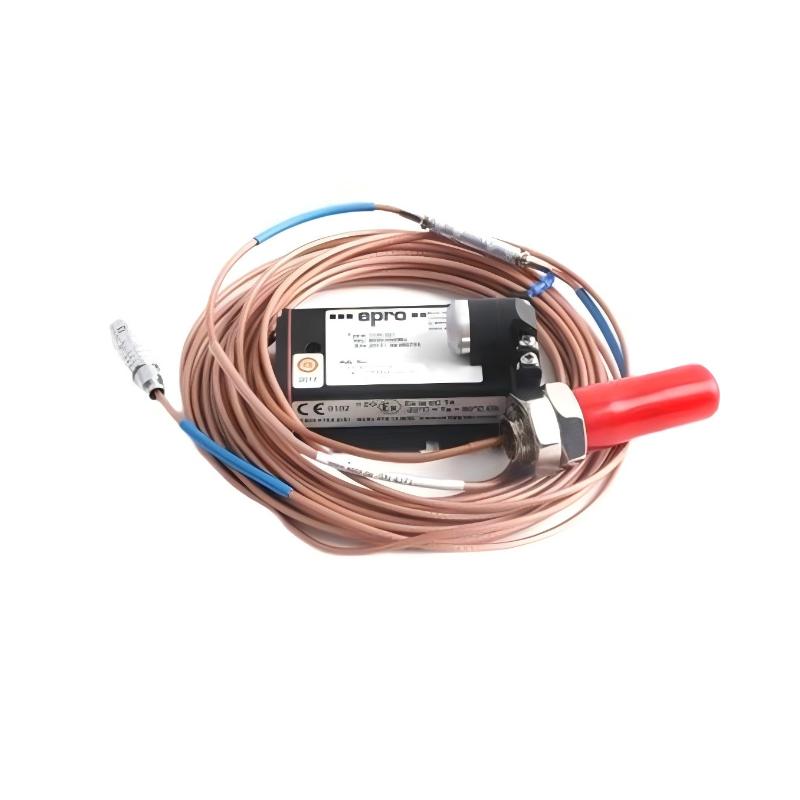

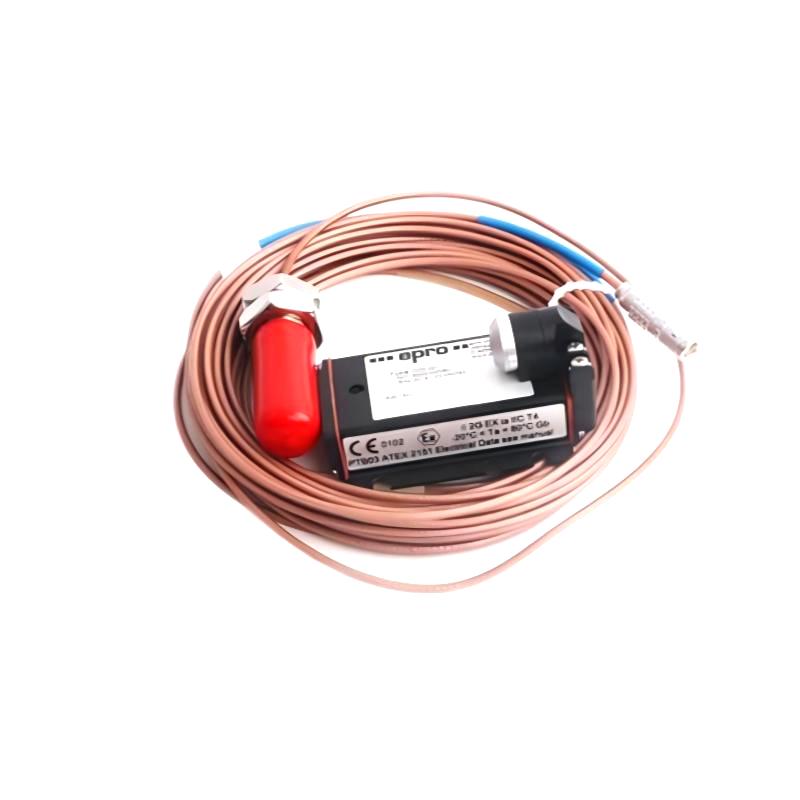

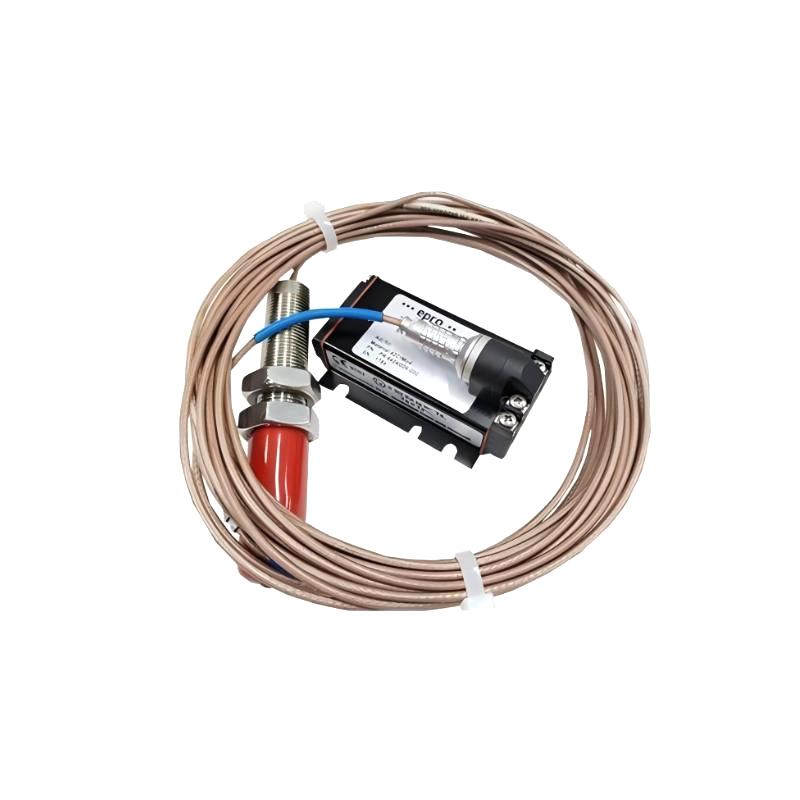

The Epro PR6424/004-021 16 mm Eddy Current Sensor is an industrial sensing component designed for non-contact measurement applications involving conductive metal targets. Eddy current technology is widely used in machinery monitoring because it allows displacement and relative movement to be measured without direct physical contact between the sensor and the target.

In industrial environments, accurate shaft position and vibration measurements can help maintenance personnel identify changes in rotating machinery behavior. Eddy current sensors are commonly incorporated into monitoring arrangements for turbines, compressors, pumps, motors, and other critical equipment.

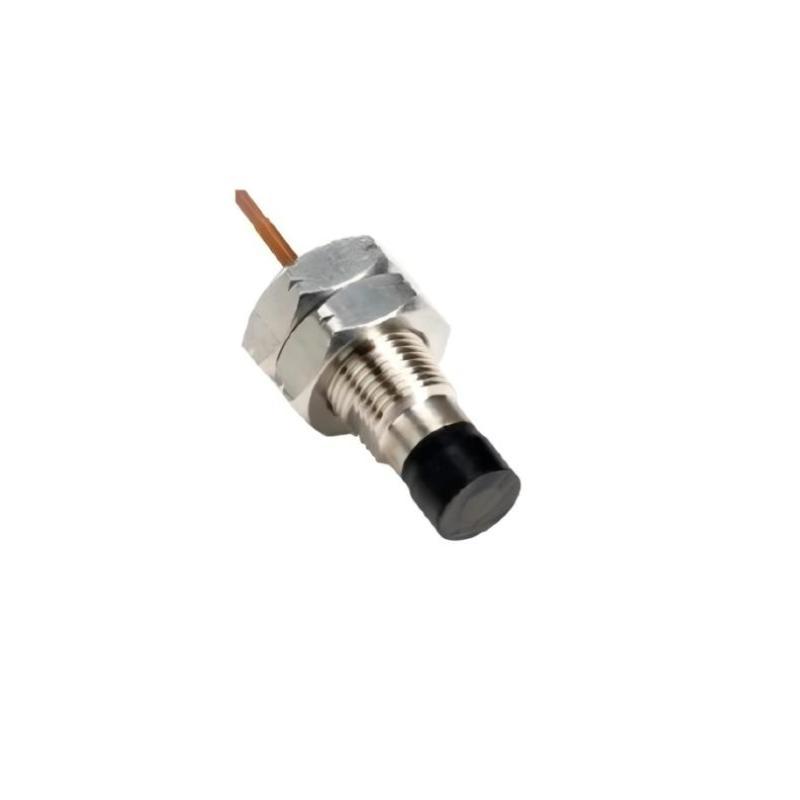

The Epro PR6424/004-021 has a specified sensor head diameter of 16 mm and a listed weight of 0.2 kg. These physical characteristics are useful when assessing installation space, replacement requirements, mounting arrangements, and spare-parts inventory.

For maintenance engineers and industrial automation system integrators, selecting the correct probe configuration is essential. Before installation, the model number, measurement range, electrical interface, cable arrangement, and compatibility with the associated signal conditioning equipment should be verified against the applicable technical documentation.

2. Technical Specifications

The table includes the supplied product information and general characteristics of eddy current sensing. Detailed electrical and performance parameters should not be assumed from the sensor head diameter or product family alone.

3. Function and Working Principle

3.1 Non-Contact Eddy Current Measurement

An eddy current sensor operates by generating an alternating electromagnetic field around its sensing element. When a conductive metal target is positioned within this field, eddy currents are induced in the target surface. These currents influence the electromagnetic field and change the electrical response of the sensing system.

The associated electronics evaluate these changes and convert them into a measurement signal related to the distance between the sensor and the target.

Because the sensor does not need to touch the measured surface, this technology is suitable for many applications involving rotating shafts and other moving metal components. Correct operation depends on the sensor being installed within its specified measuring range and connected to compatible signal conditioning equipment.

3.2 Displacement Measurement

In machinery applications, the sensor may be positioned near a shaft or another conductive component to detect changes in the gap between the target and the probe.

These measurements can help engineers evaluate relative movement and position changes. Depending on the complete installation, displacement information may be used to monitor axial movement, radial movement, or other machine-specific parameters.

The sensor must be mounted securely and aligned with the intended measurement direction. Incorrect positioning, unsuitable target materials, or an out-of-range gap can result in inaccurate or unstable readings.

3.3 Vibration Monitoring

Eddy current sensing is commonly used to measure relative shaft vibration in compatible machinery monitoring systems. As a shaft moves during operation, the distance between the shaft surface and the probe changes. The resulting signal can be processed to evaluate vibration behavior.

The quality of the final measurement depends on the entire measurement chain, including the probe, any required extension cable, signal conditioner, monitoring module, and configured processing parameters.

The PR6424/004-021 should therefore be evaluated as a component of a complete monitoring system rather than as a standalone vibration protection device.

3.4 Continuous Condition Monitoring

When installed in a suitable system, an eddy current sensor can provide continuous measurement data during machinery operation. Monitoring equipment can compare these readings with established operating baselines and configured alarm thresholds.

This information supports condition-based maintenance, helping plant personnel investigate unusual machine behavior before it develops into a more serious operational issue.

4. Role in Industrial Machinery Monitoring Systems

Rotating Equipment Monitoring

Rotating equipment can experience changes in shaft position and vibration because of operating conditions, mechanical wear, alignment issues, or other factors. A correctly selected eddy current sensor can supply non-contact measurements for evaluating these changes.

Applications may include turbines, compressors, industrial motors, and other machines where shaft displacement measurements are required.

Machinery Condition Assessment

Trend data can help maintenance personnel identify changes from normal operating conditions. However, an abnormal measurement does not independently identify the underlying fault. It should be assessed alongside operating speed, load, temperature, maintenance history, and other available machine data.

Integration with Monitoring Equipment

The sensor may form part of a larger system containing signal conditioning equipment, monitoring modules, protection devices, data acquisition hardware, and industrial control interfaces.

The exact integration method depends on the sensor’s electrical characteristics and the system architecture. Verify compatibility before connecting the probe to a monitoring module or control system.

Support for Preventive Maintenance

Continuous measurement data can help maintenance teams establish operating baselines, track developing trends, and schedule inspections according to actual equipment condition.

This approach can reduce unnecessary maintenance while helping identify equipment that requires further investigation.

5. Industrial Applications

5.1 Turbine Monitoring

Steam and gas turbines require appropriate monitoring of shaft behavior and mechanical operating conditions. Eddy current sensors are used in suitable turbine monitoring arrangements to measure relative shaft movement without direct contact.

The PR6424/004-021 may be considered for an application when its verified performance and system compatibility satisfy the turbine’s monitoring requirements.

5.2 Compressor Systems

Industrial compressors in chemical processing, petrochemical facilities, and other process industries often operate continuously under demanding conditions. Non-contact shaft measurements can support the assessment of vibration and displacement trends.

Selection should account for the compressor design, shaft material, mounting position, required measurement range, and associated monitoring electronics.

5.3 Industrial Pumps

Pumps used in process plants and utility systems can benefit from machinery condition monitoring. Where shaft displacement measurements are required, a suitable eddy current sensor may provide useful data for troubleshooting and maintenance planning.

5.4 Electric Motors

Large industrial motors and associated rotating equipment may use non-contact sensing as part of a wider vibration monitoring strategy. Measurement data can be evaluated alongside electrical, thermal, and mechanical operating parameters.

5.5 Power Generation and Process Industries

Power generation facilities and continuous-process plants often rely on integrated machinery monitoring systems. Correctly selected sensors provide measurement inputs that help operators and maintenance personnel assess equipment behavior and investigate abnormal trends.

6. Installation and System Integration

Proper installation is essential for measurement accuracy and long-term reliability. The following steps provide a general checklist. The approved instructions for the exact PR6424/004-021 configuration take precedence.

Step 1: Verify the Product

Confirm the full model number on the product label and compare it with the equipment documentation. Check the sensor head, connector, cable arrangement, and any supplied mounting components.

Do not assume that all sensors in the same series have identical measuring ranges, sensitivities, or connection requirements.

Step 2: Inspect the Sensor and Cable

Inspect the probe for visible damage, contamination, corrosion, or deformation. Examine the cable and connector for cuts, crushing, loose contacts, or other signs of damage.

If the sensor has been exposed to impact, excessive heat, or severe operating conditions, verify its condition before installation.

Step 3: Prepare the Mounting Position

Choose a mounting location that provides sufficient mechanical stability and the required clearance from the moving target.

The 16 mm sensor head diameter is a useful dimensional reference, but the mounting bore, thread, bracket arrangement, and total installation clearance must be confirmed from the actual sensor design.

Step 4: Set the Measurement Gap

Position the sensor relative to the conductive target using the specified installation procedure. Set the initial gap within the approved measurement range and ensure that expected shaft movement will not cause contact between the probe and target.

Avoid estimating the gap by sight alone. An incorrect gap can produce an out-of-range signal or reduce measurement accuracy.

Step 5: Route the Cable Correctly

Protect the cable from abrasion, crushing, excessive bending, high temperatures, and moving machinery. Follow the system’s requirements for cable routing and separation from electrical noise sources.

If the installation uses an extension cable, confirm that its type and length are appropriate for the probe and associated electronics.

Step 6: Confirm Signal Conditioning Compatibility

Check the electrical interface, connector arrangement, and signal conditioning requirements before connecting the sensor. Confirm that the connected electronics are designed for the exact probe configuration.

Do not assume that the probe can connect directly to a standard PLC analog input. A compatible signal conditioning or monitoring device may be required.

Step 7: Perform Commissioning Checks

After installation, inspect all connections and verify the sensor’s mechanical position. Check that the monitoring equipment displays a plausible measurement and that the signal responds as expected under the approved test procedure.

Investigate unstable, saturated, or out-of-range readings before returning the monitored equipment to normal service.

Step 8: Record Baseline Measurements

Document the sensor model, installation position, probe gap, cable arrangement, associated monitoring equipment, and commissioning results. Record relevant baseline measurements under known operating conditions.

These records provide a reference for future maintenance and help technicians distinguish normal variations from changes requiring investigation.

7. Troubleshooting Common Problems

Problem 1: No Signal Output

Possible causes:

• Disconnected or damaged cable.
• Incorrect connector or wiring arrangement.
• Incompatible signal conditioning equipment.
• Missing power to the associated electronics.
• Faulty sensor or monitoring input.

Recommended troubleshooting:

Inspect the complete signal path from the probe to the monitoring equipment. Verify all connections and confirm that the associated electronics support the exact sensor configuration. Test the cable and probe using the approved procedure before deciding which component requires replacement.

Problem 2: Unstable Measurement Readings

Possible causes:

• Loose probe mounting.
• Excessive vibration at the mounting bracket.
• Incorrect probe gap.
• Electrical interference.
• Cable damage or poor connections.
• Irregular target surface conditions.

Recommended troubleshooting:

Check the mounting hardware and cable condition. Verify the probe position and review the signal conditioning setup. Compare the measurement with the machine’s operating state to determine whether the fluctuation represents actual shaft movement or an issue within the measurement chain.

Problem 3: Measurement Outside the Expected Range

Possible causes:

• Incorrect installation gap.
• Incompatible probe and signal conditioner.
• Incorrect scaling or configuration settings.
• Unsuitable target material or geometry.
• Damaged sensor or cable.

Recommended troubleshooting:

Confirm the probe position and compare the connected equipment settings with the approved documentation. Verify the specified measurement range and scaling parameters. Do not change alarm thresholds simply to suppress an abnormal value without identifying its cause.

Problem 4: Incorrect Readings After Sensor Replacement

Possible causes:

• Incorrect replacement model.
• Different cable configuration.
• Incorrect mounting gap.
• Incompatible signal conditioning.
• Incomplete commissioning or calibration.

Recommended troubleshooting:

Verify the replacement part number and the complete system configuration. Check the mounting arrangement, cable type, and measurement settings. Repeat the approved commissioning procedure and document the verified results.

Problem 5: Physical Damage

A non-contact sensor can still be damaged by incorrect installation, accidental impact, contamination, excessive heat, or contact with a moving machine component.

Inspect the probe and mounting arrangement. If the sensor’s condition or measurement performance cannot be verified, test or replace it according to the site’s maintenance procedure.

Safety note: Follow the plant’s isolation and lockout procedures before inspecting or replacing sensors near operating machinery. Changes to a sensor used by a protection system must be managed in accordance with the site’s approved maintenance and safety requirements.

8. Compatible System Components

The PR6424/004-021 should be assessed as part of the complete measurement chain. The component categories below describe typical system functions and do not confirm compatibility with any specific part number.

Before purchasing additional components, verify the probe type, cable configuration, signal conditioning requirements, and system architecture. Components should not be considered interchangeable solely because they share the same manufacturer.

9. Recommended Alternative Models and Replacement Selection

When the original sensor is unavailable, replacement selection should be based on documented technical compatibility rather than physical similarity alone.

A sensor with the same 16 mm head diameter is not necessarily a direct replacement. Confirm the required electrical characteristics, performance parameters, mechanical installation, and compatibility with the existing monitoring equipment before ordering.

10. Key Advantages of Eddy Current Sensing

Non-Contact Measurement

The sensing method measures a conductive target without requiring direct contact. This is useful for applications where the target moves continuously or rotates at high speed.

Continuous Measurement Capability

When integrated into a compatible monitoring system, the sensor can provide ongoing data for condition assessment and trend analysis.

Application in Rotating Machinery

Eddy current technology is widely used in suitable shaft displacement and vibration monitoring applications, helping maintenance teams assess changes in machinery behavior.

Integration with Industrial Monitoring Systems

The probe can serve as a sensing element in a complete measurement chain that includes signal conditioning, monitoring, data acquisition, and alarm management.

Defined Physical Dimensions

The specified 16 mm sensor head diameter and 0.2 kg weight provide useful reference information for product identification, storage, and installation planning.

11. Technical FAQs

Q1: What is the Epro PR6424/004-021?

It is an Epro 16 mm eddy current sensor intended for non-contact measurement applications involving conductive targets. Its suitability for a particular installation depends on the verified product specifications and monitoring system requirements.

Q2: What is the sensor head diameter?

The specified sensor head diameter is 16 mm.

Q3: What is the weight of the PR6424/004-021?

The listed weight is 0.2 kg.

Q4: Can it be used for shaft vibration monitoring?

Eddy current sensors are commonly used for non-contact shaft vibration monitoring. Confirm the measurement range, sensitivity, frequency response, and monitoring equipment compatibility for this exact model before using it in a particular application.

Q5: Can it connect directly to a PLC?

Do not assume direct compatibility with a standard PLC input. The required connection depends on the probe’s electrical characteristics and the input design. Suitable signal conditioning or monitoring equipment may be necessary.

Q6: What should be checked before installation?

Verify the complete model number, mounting dimensions, measurement gap, cable configuration, electrical interface, and compatibility with the associated monitoring equipment.

Q7: Why are sensor readings unstable?

Possible causes include loose mounting, incorrect probe gap, electrical interference, cable damage, an incompatible interface, or unsuitable target conditions. Check the complete measurement chain rather than replacing the probe immediately.

Q8: Can another 16 mm probe replace this model?

Not automatically. Matching the head diameter alone does not establish interchangeability. The measurement range, sensitivity, electrical characteristics, cable arrangement, and signal conditioning requirements must also be compatible.

Q9: How can sensor reliability be maintained?

Inspect the sensor and cable periodically, maintain secure mounting, follow the approved installation requirements, and monitor changes in signal behavior. Record maintenance activities and baseline measurements to support future troubleshooting.

Q10: What details should buyers confirm?

Confirm the full part number, required quantity, physical condition, cable and connector configuration, application requirements, and compatibility with the existing monitoring system.

12. Conclusion

The Epro PR6424/004-021 16 mm Eddy Current Sensor is a non-contact sensing component for suitable industrial displacement and machinery monitoring applications. Its specified sensor head diameter of 16 mm and listed weight of 0.2 kg provide useful physical identification information for maintenance, installation planning, and spare-parts purchasing.

Reliable operation depends on correct mounting, an appropriate measurement gap, compatible signal conditioning, proper cable installation, and systematic commissioning. Before installing or replacing the sensor, verify the exact model configuration and its compatibility with the complete monitoring system.

For industrial maintenance teams, system integrators, and spare-parts purchasers, careful verification helps reduce replacement errors, improve measurement reliability, and support effective machinery condition monitoring.
