1. Product Overview

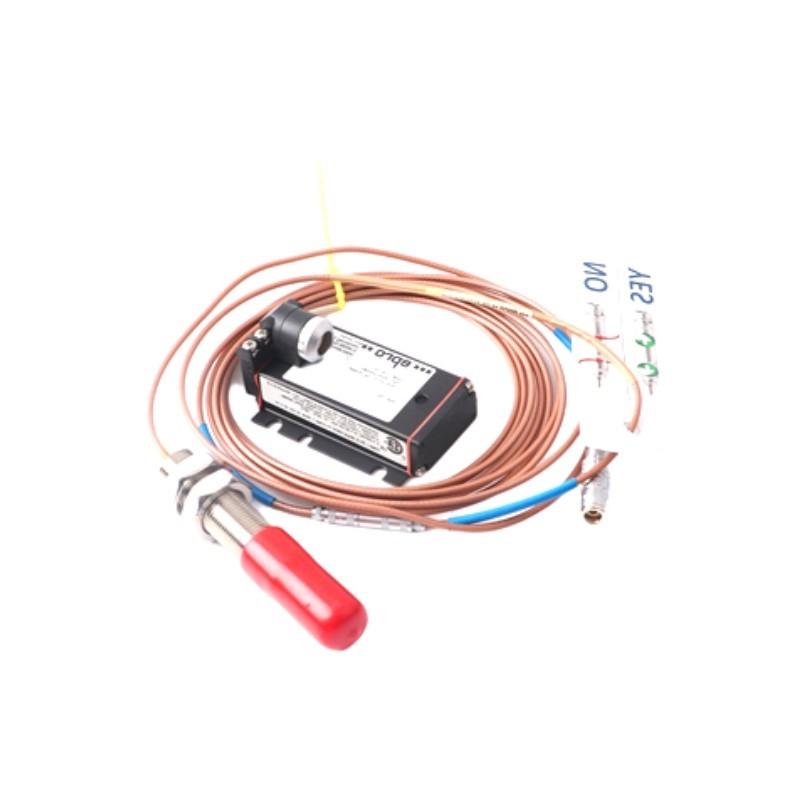

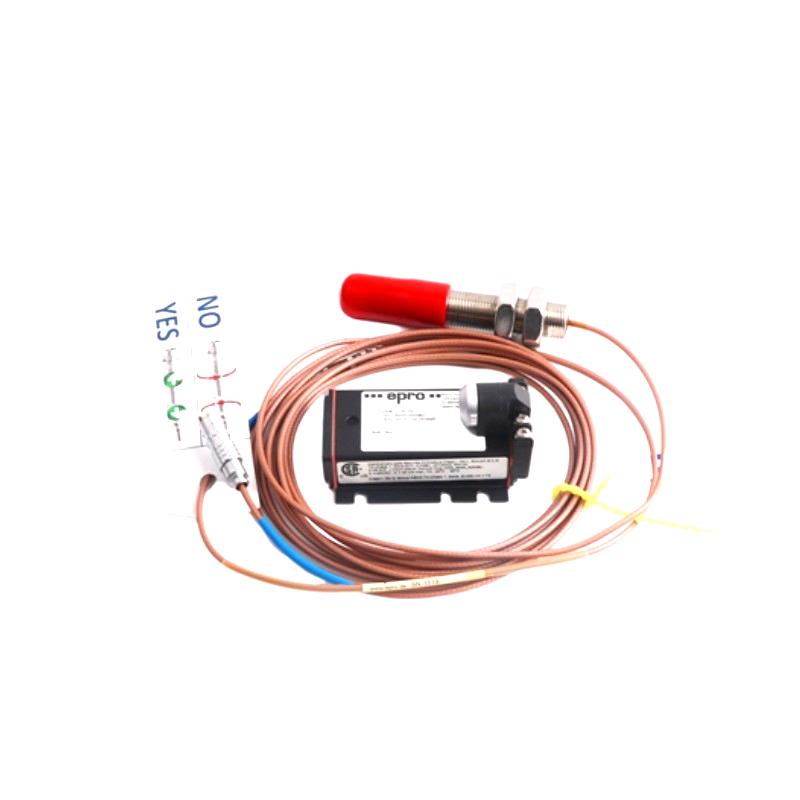

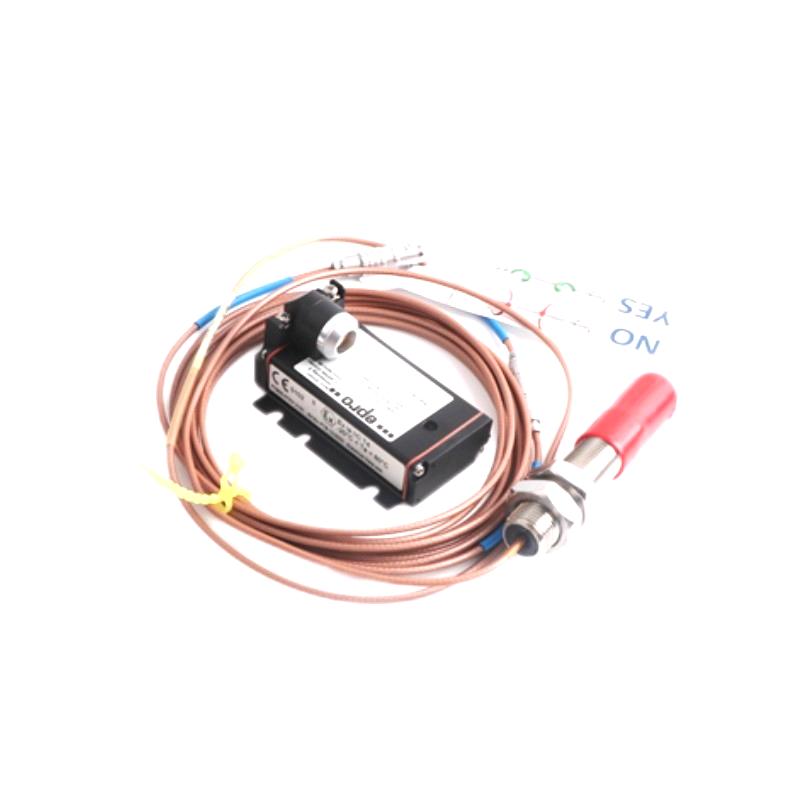

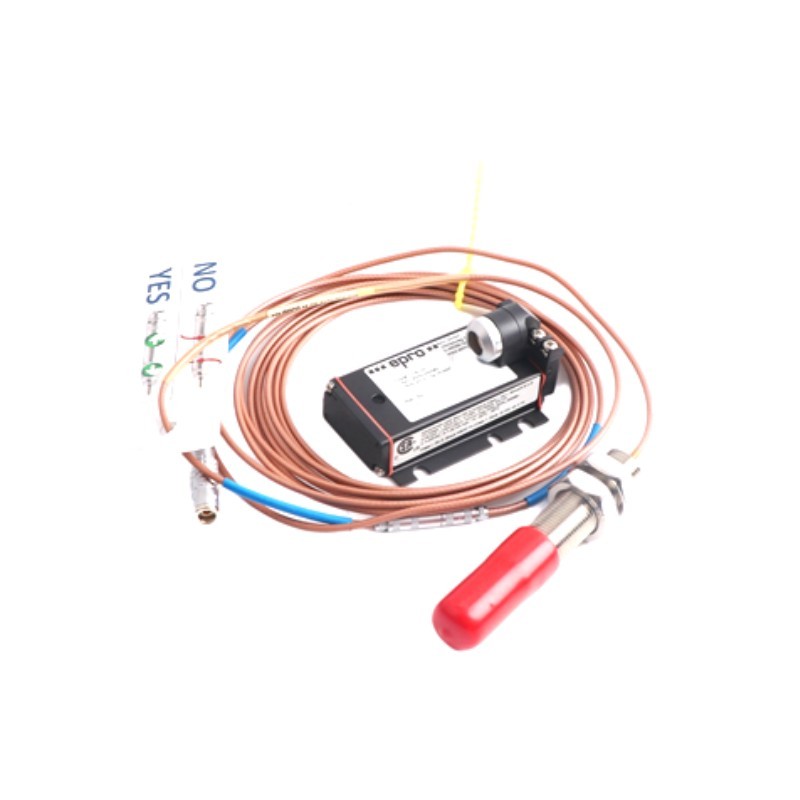

The Epro PR6424/004-000 16 mm Eddy Current Sensor is an industrial proximity measurement component designed for non-contact monitoring of conductive metal targets. Eddy current sensing technology is widely used in industrial machinery monitoring because it can measure relative movement between a sensor and a conductive surface without requiring direct mechanical contact.

In rotating equipment, small changes in shaft position, vibration, or relative displacement can provide important information about machine operating conditions. Eddy current sensors are commonly integrated into monitoring systems for applications involving turbines, compressors, pumps, motors, and other critical rotating machinery.

The PR6424/004-000 belongs to the Epro PR6424 sensor series. Its specified sensor head diameter is 16 mm, and its listed weight is 0.2 kg. These physical characteristics are useful when evaluating installation space, mounting arrangements, cable routing, and replacement requirements.

When selecting this sensor for an existing installation, engineers should confirm the complete part number, electrical characteristics, probe configuration, cable arrangement, and compatibility with the associated signal conditioning and monitoring equipment. These details are essential for achieving reliable measurements and maintaining the integrity of the machine protection system.

2. Technical Specifications

The listed dimensions and weight should be used as initial identification information rather than as a complete installation specification. The required measurement gap, linear measuring range, sensitivity, frequency response, cable length, and electrical interface must be verified for the exact PR6424/004-000 configuration.

3. Function and Working Principle

3.1 Eddy Current Measurement Technology

An eddy current sensor operates by generating an alternating electromagnetic field near a conductive target. When a metal surface enters this field, electrical currents are induced in the target. These currents influence the electromagnetic field and change the electrical characteristics of the sensor system.

The associated signal conditioning electronics interpret these changes and convert them into a usable measurement signal. Within the sensor’s specified operating range, the signal can represent the distance between the probe and the conductive target.

Unlike contact-based measurement devices, an eddy current sensor does not need to touch the shaft or other monitored surface. This makes the technology suitable for continuous measurement in machinery operating at high rotational speeds, provided the sensor and monitoring system are correctly selected and installed.

3.2 Shaft Displacement Monitoring

One important application is measuring the relative position of a rotating shaft. A properly installed sensor can detect changes in the gap between the probe tip and the shaft surface.

This information can support monitoring of shaft movement, axial position, and other displacement-related conditions, depending on the sensor arrangement and the capabilities of the complete monitoring system.

For reliable measurements, the probe must be positioned according to the specified installation gap and aligned with the intended measurement direction. Incorrect positioning can reduce measurement accuracy or cause the output to operate outside its intended range.

3.3 Vibration Measurement

Eddy current probes are frequently used in non-contact shaft vibration monitoring. As the shaft moves relative to the probe, the sensor system detects corresponding changes in the measured gap.

When the signal is processed by compatible monitoring equipment, the resulting data can help maintenance personnel evaluate shaft vibration, identify changes in operating behavior, and investigate potential mechanical problems.

The final vibration measurement depends on the complete measurement chain, including the probe, extension cable if applicable, signal conditioner, monitor, and data processing configuration. The sensor alone should not be treated as a complete vibration protection system.

3.4 Continuous Industrial Monitoring

A permanently mounted eddy current sensor can provide ongoing measurements while machinery is operating. Continuous data allows monitoring systems to compare present conditions with established operating baselines and configured alarm limits.

This capability is valuable in industrial plants where unexpected equipment shutdowns can affect production, maintenance costs, and operational safety.

4. Role in Industrial Machinery Monitoring Systems

The Epro PR6424/004-000 can serve as a sensing component within an appropriately configured machinery monitoring arrangement. Its specific role depends on the installation design and the measurement requirements of the monitored equipment.

Rotating Shaft Monitoring

In turbine, compressor, and motor installations, non-contact sensing can help detect relative shaft movement. Engineers can use the resulting measurements to investigate abnormal vibration patterns, changes in shaft position, or deviations from normal operating conditions.

Equipment Condition Assessment

Sensor measurements can contribute to trend analysis and condition-based maintenance. A gradual change in vibration or displacement may indicate that further inspection is necessary, although the measurement alone does not establish the root cause of a mechanical problem.

Integration with Monitoring and Protection Equipment

The probe normally operates as part of a broader measurement chain. Depending on the actual system design, this may include signal conditioning modules, monitoring racks, protection relays, data acquisition equipment, and plant control systems.

Before integration, verify that the probe’s electrical and mechanical characteristics match the connected equipment. Similar-looking sensors may not share the same measuring range, sensitivity, cable requirements, or signal interface.

5. Industrial Applications

5.1 Steam and Gas Turbines

Turbines require careful monitoring because shaft movement and vibration can affect machine reliability. Eddy current sensing technology is commonly used for non-contact shaft measurements in appropriately designed turbine monitoring systems.

The PR6424/004-000 may be considered for a turbine application when its exact specifications and system compatibility meet the installation requirements.

5.2 Industrial Compressors

Compressors used in chemical processing, petrochemical production, and other continuous-process industries often operate under demanding conditions. Shaft vibration and displacement measurements can help maintenance teams assess changes in equipment behavior.

Sensor selection must account for the compressor design, shaft material, mounting arrangement, environmental conditions, and monitoring system requirements.

5.3 Pumps and Rotating Machinery

Industrial pumps and other rotating machines can benefit from continuous condition monitoring. Non-contact displacement sensing may be appropriate where shaft movement needs to be measured without introducing mechanical contact.

The suitability of this particular model should be confirmed against the intended measurement range and installation environment.

5.4 Electric Motors and Drive Systems

Large motors and associated rotating equipment may require shaft vibration or displacement monitoring as part of a wider maintenance strategy. Sensor data can support condition trending and troubleshooting when interpreted alongside other operating parameters.

5.5 Power Generation and Process Industries

Power generation facilities and process plants often use integrated monitoring systems to maintain equipment availability. Correctly selected eddy current sensors can provide measurement inputs for these systems, supporting early investigation of abnormal machinery behavior.

6. Installation and System Integration

Correct installation is essential for obtaining stable and meaningful measurement results. The following procedure provides a general engineering checklist; the model-specific installation instructions take precedence.

Step 1: Verify the Model and Configuration

Confirm that the supplied component is identified as Epro PR6424/004-000. Check the product label, connector arrangement, cable configuration, and associated system documentation.

Do not assume that every sensor in the same product family has identical electrical or measurement characteristics.

Step 2: Inspect the Sensor

Before installation, inspect the sensor head, cable, connector, and mounting hardware for visible damage. Check for bent or damaged components, contamination, corrosion, and signs of previous overheating.

If the sensor has been subjected to mechanical impact or severe environmental conditions, evaluate its condition before returning it to service.

Step 3: Prepare the Mounting Location

The mounting point should provide adequate mechanical support and allow the sensor to be positioned securely. Confirm that the probe will not contact the shaft or target during normal operation or expected machine movement.

The 16 mm sensor head diameter is a useful dimensional reference, but the required mounting bore, thread, bracket dimensions, and clearance must be checked against the actual sensor design.

Step 4: Position the Sensor

Position the probe relative to the intended conductive target in accordance with the applicable installation requirements. Set the initial gap using the specified procedure and measuring equipment.

Do not select the gap by visual estimation alone. An incorrect gap can result in an out-of-range signal, reduced measurement accuracy, or potential probe-to-target contact.

Step 5: Check Cable Routing

Route the sensor cable in a way that protects it from abrasion, excessive bending, vibration damage, heat, and mechanical interference. Maintain appropriate separation from sources of electrical noise according to the installation design.

Where an extension cable or separate signal conditioner is required, confirm that the complete cable and probe combination is approved for the connected measurement system.

Step 6: Verify Electrical Compatibility

Before connecting the sensor, verify the interface requirements of the signal conditioning unit or monitoring module. Confirm the approved probe type, cable arrangement, connector pinout, and applicable electrical limits.

Never assume that a sensor can be connected directly to a PLC analog input or another general-purpose input without suitable interface equipment.

Step 7: Perform Commissioning Checks

Following installation, check the mechanical mounting, cable connections, signal conditioning configuration, and displayed measurement value.

Where the system design permits, compare the measurement against a known reference or an approved commissioning procedure. Confirm that the signal responds consistently to changes in the target position and that the monitoring equipment reports plausible values.

Step 8: Establish a Baseline

After successful commissioning, document the initial measurement conditions, operating state, alarm configuration, and relevant installation details. Baseline data helps maintenance personnel distinguish normal operating variation from meaningful changes over time.

7. Troubleshooting Common Problems

Problem 1: No Measurement Signal

Possible causes:

• Loose or disconnected cable.
• Incorrect connector or pinout.
• Incompatible signal conditioning equipment.
• Damaged sensor or cable.
• Missing power or an unavailable monitoring input.

Recommended checks:

Inspect the complete signal path from the probe to the monitoring equipment. Verify the cable connections and confirm that the connected electronics support the exact sensor configuration. If the wiring and interface are correct, perform the approved sensor and cable tests before replacing components.

Problem 2: Unstable or Fluctuating Readings

Possible causes:

• Loose mechanical mounting.
• Excessive vibration at the mounting bracket.
• Electrical interference.
• Cable damage or poor connections.
• Incorrect probe gap or target alignment.
• Surface irregularities or unsuitable target conditions.

Recommended checks:

Check the mechanical stability of the installation and inspect the cable routing. Review the signal conditioning setup and compare the measurements with the machine’s actual operating state. Determine whether the fluctuations correspond to real shaft movement or originate in the measurement chain.

Problem 3: Measurement Outside the Expected Range

Possible causes:

• Incorrect initial gap.
• Incorrect system configuration.
• Mismatched probe and signal conditioner.
• Incorrect scaling or calibration settings.
• An unsuitable target or mounting arrangement.

Recommended checks:

Verify the probe position and compare the configuration with the applicable technical documentation. Check the measuring range and scaling settings of the connected monitoring equipment. Avoid changing alarm limits simply to suppress an abnormal reading before the cause has been identified.

Problem 4: Inconsistent Measurements After Replacement

Possible causes:

• Replacement sensor has a different configuration.
• Cable or connector differences.
• Incorrect mounting gap.
• Different calibration or scaling settings.
• Incomplete commissioning.

Recommended checks:

Confirm that the replacement part matches the required model and system configuration. Review the cable arrangement and installation gap, then perform the prescribed commissioning procedure. Record the results so that future maintenance can use the verified configuration as a reference.

Problem 5: Sensor Damage or Physical Wear

Although eddy current sensing is non-contact, the probe can still be damaged by improper installation, accidental impact, contamination, excessive heat, or contact with a moving shaft.

Inspect the sensor and mounting arrangement for visible damage. If the probe has been damaged or its performance cannot be verified, replace or test it according to the approved maintenance procedure.

Important maintenance note: Before inspecting or replacing a sensor on operating machinery, follow the site’s isolation, lockout, and safety procedures. Do not disconnect or adjust a sensor in a way that compromises an active machine protection function.

8. Compatible System Components

The PR6424/004-000 should be evaluated as part of a complete measurement system. The following table lists functional component categories that may be relevant; it does not confirm compatibility with any specific part number.

Before purchasing replacement components, confirm the required system architecture, probe type, cable specification, and signal conditioning requirements. A shared brand name or similar model designation does not guarantee interchangeability.

9. Recommended Alternative Models and Replacement Selection

When the PR6424/004-000 is unavailable or a replacement is required, selection should be based on technical equivalence rather than appearance alone.

A different 16 mm sensor should not automatically be treated as a direct replacement. Confirm the measurement characteristics, signal interface, mechanical dimensions, and approved monitoring-system configuration before ordering.

10. Key Advantages of Eddy Current Sensing

Non-Contact Measurement

Eddy current technology measures a conductive target without requiring direct mechanical contact. This reduces dependence on contacting elements and makes the technology useful for suitable rotating machinery applications.

Support for Continuous Monitoring

When integrated into a compatible monitoring system, the sensor can provide ongoing measurement data for equipment condition assessment and maintenance planning.

Suitability for Rotating Machinery

Non-contact measurement is particularly useful when shaft displacement or vibration needs to be observed while machinery is operating.

Integration into Industrial Monitoring Architectures

A properly selected probe can form part of a broader monitoring arrangement involving signal conditioning, measurement processing, alarm handling, and data recording.

Compact Sensor Head Design

The specified 16 mm sensor head diameter provides a useful reference for evaluating installation space. The complete mounting arrangement must still be checked against the equipment design.

11. Technical FAQs

Q1: What is the Epro PR6424/004-000?

The Epro PR6424/004-000 is a 16 mm eddy current sensor intended for non-contact measurement applications involving conductive targets. Its suitability for a particular machine depends on the exact configuration and measurement requirements.

Q2: What is the sensor head diameter?

The specified sensor head diameter is 16 mm.

Q3: How much does the PR6424/004-000 weigh?

The listed weight is 0.2 kg.

Q4: Can this sensor be used for shaft vibration monitoring?

Eddy current sensors are commonly used in non-contact shaft vibration monitoring. For the PR6424/004-000, verify the required measurement range, sensitivity, frequency response, and compatibility with the complete monitoring system before use.

Q5: Can the sensor connect directly to a PLC?

Direct connection should not be assumed. The required interface depends on the sensor’s electrical characteristics and the PLC input design. A compatible signal conditioning or monitoring device may be necessary.

Q6: What should be checked before replacing the sensor?

Verify the complete model number, sensor head dimensions, cable and connector arrangement, signal conditioning compatibility, measurement range, and mounting requirements. Commission the replacement according to the approved procedure.

Q7: Why might the sensor produce unstable readings?

Potential causes include loose mounting, incorrect probe gap, damaged cabling, electrical interference, unsuitable target conditions, or an incompatible signal conditioning arrangement. Troubleshooting should examine the complete measurement chain.

Q8: Is another 16 mm eddy current sensor automatically compatible?

No. Sensor head diameter alone does not establish interchangeability. Electrical characteristics, measuring range, cable configuration, calibration, and system compatibility must also match.

Q9: What information should be recorded during installation?

Record the full model number, mounting location, probe gap, cable arrangement, associated monitoring equipment, commissioning results, and baseline operating measurements where applicable.

Q10: What information should be confirmed before purchasing?

Confirm the exact part number, physical condition, required quantity, cable and connector configuration, compatibility with the existing monitoring system, and any applicable installation requirements.

12. Conclusion

The Epro PR6424/004-000 16 mm Eddy Current Sensor is a non-contact sensing component for suitable industrial measurement applications involving conductive targets. With a specified sensor head diameter of 16 mm and a listed weight of 0.2 kg, it can be evaluated for installation or replacement in machinery monitoring systems where its technical characteristics meet the application requirements.

Reliable performance depends on more than physical dimensions. Correct probe positioning, suitable cable arrangements, compatible signal conditioning, proper commissioning, and regular inspection are all important for obtaining meaningful measurement data.

For maintenance teams, system integrators, and industrial spare-parts purchasers, verifying the exact configuration before installation or replacement helps reduce compatibility risks and supports dependable machinery monitoring.
