1. Product Overview

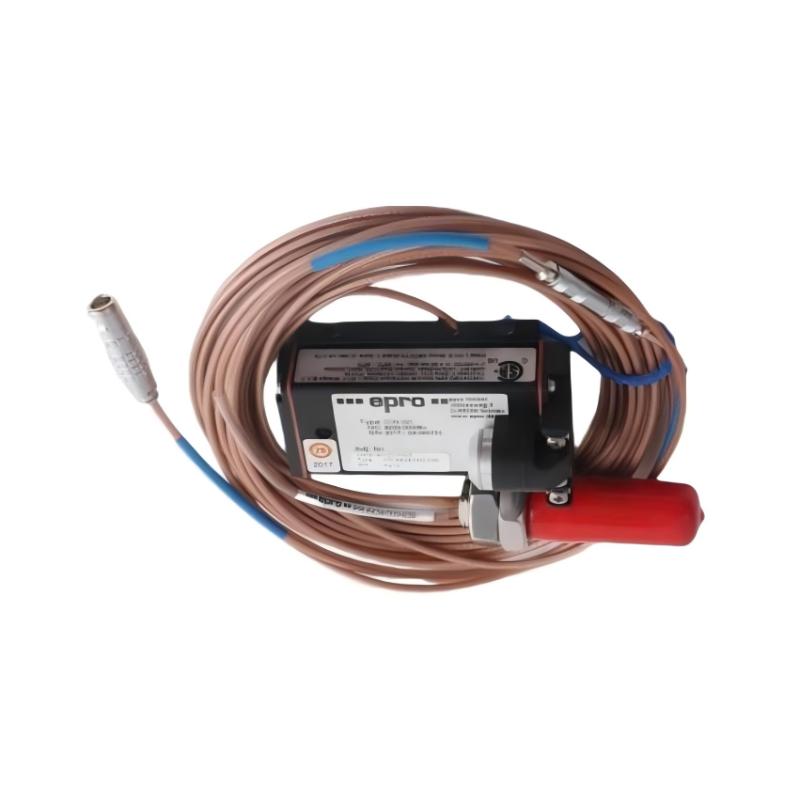

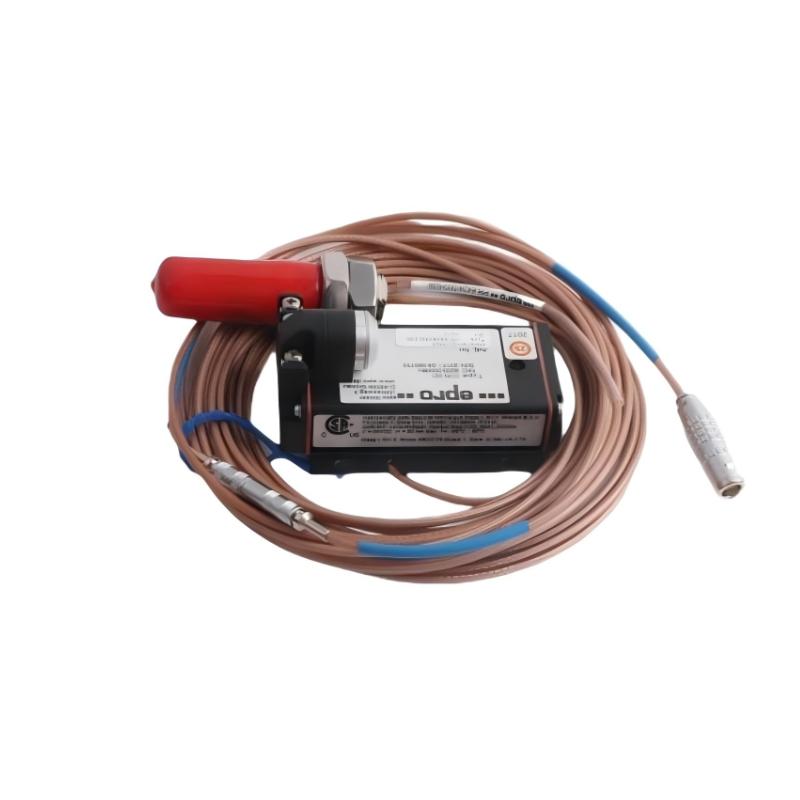

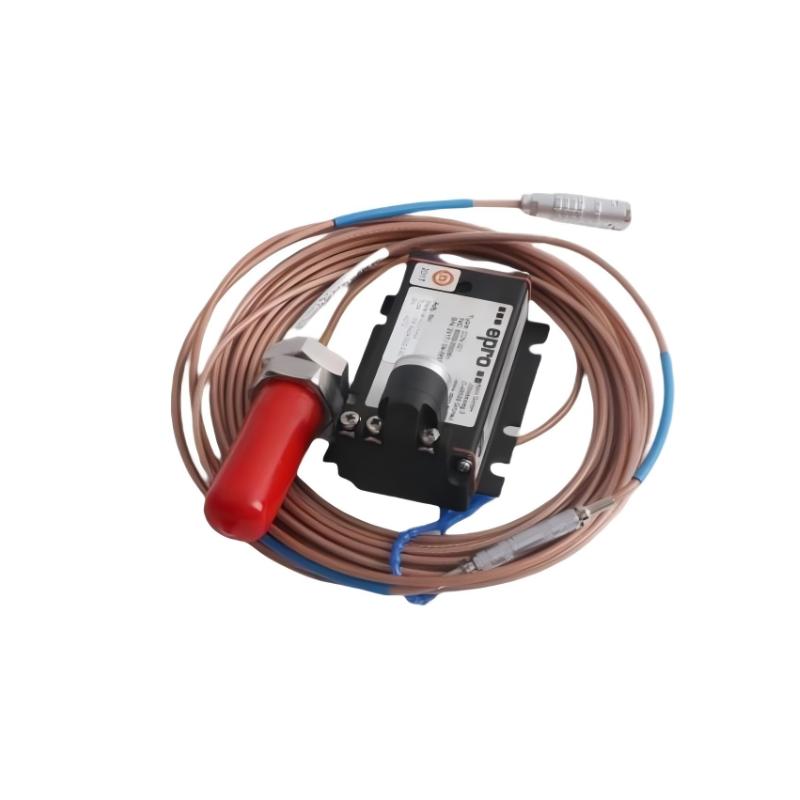

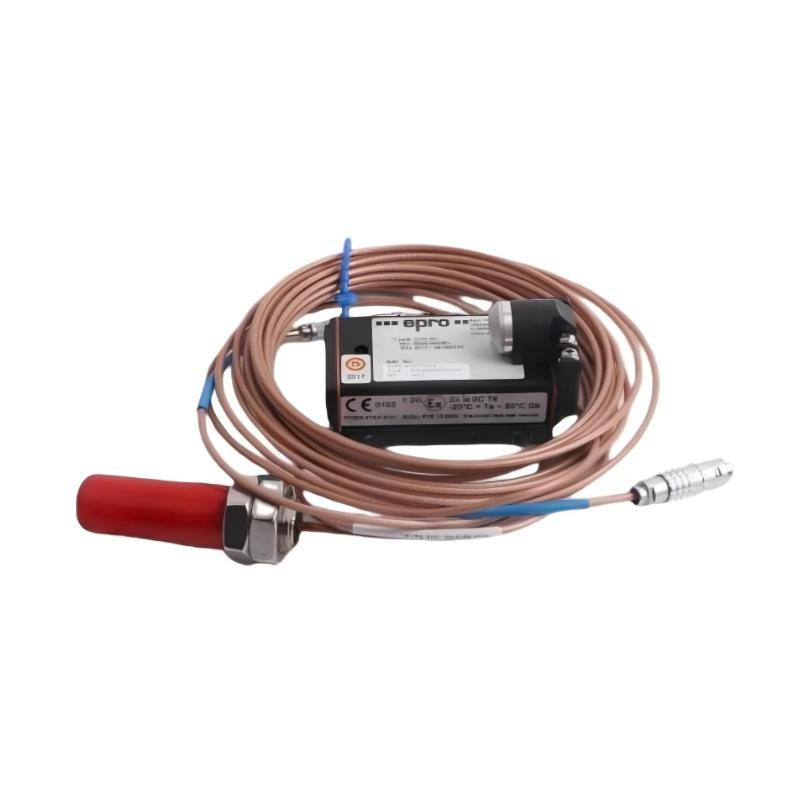

The Epro PR6424/003-021 16 mm Eddy Current Sensor is an industrial sensing component designed for non-contact displacement measurement and machinery condition monitoring applications. Eddy current sensing technology is widely used in industrial environments where engineers need to measure the relative position or movement of conductive metal targets without direct physical contact.
In rotating machinery, displacement measurements can help maintenance personnel evaluate shaft movement, monitor mechanical clearances, and identify changes in equipment operating conditions. When integrated with compatible signal conditioning and monitoring equipment, an eddy current sensor can support machinery diagnostics, preventive maintenance, and equipment protection strategies.
The Epro PR6424/003-021 has a specified sensor head diameter of 16 mm and a stated weight of 0.2 kg. These physical characteristics are useful when planning sensor installation, checking mounting space, and identifying replacement components.
For industrial replacement projects, it is important to verify the complete model number rather than relying only on the sensor diameter. Measurement range, electrical characteristics, cable configuration, target material, calibration requirements, and compatibility with the installed monitoring system should all be confirmed before commissioning.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Epro |
| Model | PR6424/003-021 |
| Product Type | Eddy Current Sensor |
| Sensor Head Diameter | 16 mm |
| Weight | 0.2 kg |
| Measurement Principle | Eddy current sensing |
| Measurement Method | Non-contact |
| Primary Function | Displacement and relative movement measurement |
| Typical Application | Industrial machinery monitoring |
| Target Type | Suitable conductive material |
| Measurement Range | Verify against the exact product configuration |
| Sensitivity | Confirm using applicable technical documentation |
| Frequency Response | Confirm using applicable technical documentation |
| Output Characteristics | Verify with the associated measuring system |
| Cable Configuration | Confirm for the installed arrangement |
| Compatible Signal Conditioner | Verify the exact model and system requirements |
The listed dimensions and weight are based on the supplied product information. Detailed electrical and measurement parameters should be confirmed against the documentation for the exact sensor configuration.
3. Function and Working Principle
3.1 Eddy Current Sensing Principle
An eddy current sensor operates by generating an alternating electromagnetic field near a conductive target. When the target enters this field, electrical currents are induced in its surface. These currents influence the electromagnetic response of the sensor system.
As the distance between the sensor head and the target changes, the electrical response changes accordingly. Compatible signal conditioning equipment processes this response, and calibration establishes the relationship between the signal and the physical distance.
Because the sensor does not require direct contact with the target, eddy current technology avoids mechanical contact wear and can be suitable for continuous measurement in demanding industrial environments.
3.2 Displacement Measurement in Rotating Machinery
In a typical machinery monitoring installation, the sensor is positioned close to a suitable conductive surface. Relative movement between the target and the sensor changes the measured gap.
Depending on the complete system configuration, displacement measurements can support the monitoring of:
- Relative shaft displacement.
- Axial movement of rotating components.
- Changes in mechanical clearance.
- Dynamic shaft movement and vibration-related displacement.
- Changes in machinery behavior during operation.
The actual capabilities depend on the specific sensor configuration, target geometry, calibration, and associated electronic equipment.
3.3 Signal Conditioning and Calibration
The sensor should be evaluated as part of a complete measurement chain. Associated electronics process the sensor response and provide a usable measurement signal to monitoring equipment.
Calibration is important because it establishes the relationship between sensor output and target distance. Incorrect calibration, unsuitable target material, or an incompatible signal conditioner can lead to inaccurate readings even when the sensor is physically intact.
4. Role in Industrial Machinery Monitoring Systems
The Epro PR6424/003-021 can be considered for applications that require non-contact displacement measurement. Its role is to detect changes in the position of a suitable conductive target and provide measurement information through the associated electronics.
A typical measurement chain may include:
- Sensor: Detects changes in the distance between the sensor head and target.
- Signal conditioning equipment: Processes the sensor response according to the applicable system design.
- Monitoring module: Receives and evaluates the measurement signal.
- PLC, DCS, or machinery protection system: Uses compatible measurement data for display, recording, alarms, or other configured functions.
The actual architecture depends on the installed equipment. Direct connection to a PLC or independent machinery protection functionality should not be assumed without verifying the output characteristics and system requirements.
In industrial plants, displacement measurements can be combined with vibration, temperature, pressure, speed, and other operating data. This allows engineers to assess changes in equipment behavior and investigate potential mechanical issues.
5. Industrial Applications
5.1 Turbine Monitoring
Turbines operate under demanding mechanical and thermal conditions. Non-contact displacement measurements can help engineers observe shaft movement and evaluate changes in rotating equipment behavior.
Before installing the PR6424/003-021 in a turbine monitoring system, confirm the required measurement range, target geometry, installation clearance, operating environment, and compatibility with the existing monitoring equipment.
5.2 Compressor Condition Monitoring
Industrial compressors often operate continuously under changing process loads. Displacement measurements can contribute to the assessment of shaft movement and mechanical stability.
Reliable monitoring requires correct sensor placement, compatible signal conditioning, and appropriate calibration. The sensor’s suitability must be verified against the compressor’s specific requirements.
5.3 Pump and Motor Monitoring
In suitable pump and motor installations, displacement sensing can help identify changes in shaft position or relative movement. These measurements can complement vibration analysis, temperature monitoring, and other condition-monitoring methods.
Stable mounting and correct alignment are essential. A loose mounting bracket or inappropriate sensor-to-target gap may affect the quality of the measurement.
5.4 Power Generation Equipment
Power generation facilities use machinery monitoring systems to evaluate the condition of turbines, generators, and auxiliary equipment. Eddy current sensors may be used where non-contact displacement measurement is required.
Correct integration depends on sensor selection, calibration, signal conditioning, and the configuration of the receiving monitoring channel.
5.5 Industrial Process Plants
Manufacturing facilities and process plants rely on pumps, compressors, motors, and other rotating equipment for continuous operation. Displacement measurements can provide additional information for evaluating machine behavior and planning maintenance.
Before selecting the sensor for a particular installation, verify the operating environment, target material, measurement requirements, and system compatibility.
6. Installation and System Integration
Correct installation is essential for stable and repeatable measurement performance.
6.1 Verify the Complete Model Number
Confirm that the component is the Epro PR6424/003-021. Compare the complete part number with the original equipment records and the requirements of the existing monitoring system.
Do not assume that another 16 mm eddy current sensor is interchangeable simply because its physical dimensions are similar. Electrical characteristics, calibration requirements, and associated electronics may differ.
6.2 Inspect the Sensor and Mounting Location
Inspect the sensor housing, cable, connector, and mounting surfaces for visible damage. Confirm that the installation area provides sufficient space for secure mounting and correct alignment.
The sensor must be positioned so that it cannot contact the moving target during normal operation or expected mechanical movement. Follow the applicable installation requirements for sensor-to-target clearance.
6.3 Check Target Material and Geometry
Eddy current sensing depends on the interaction between the electromagnetic field and a conductive target. Target material, dimensions, surface condition, and geometry can affect the measurement response.
Verify that the target is suitable for the sensor system and that the installation gap is within the specified operating range.
6.4 Verify Wiring and Cable Routing
Check the cable and connector arrangement against the applicable system documentation. Inspect for loose connections, damaged insulation, contamination, and excessive cable strain.
In electrically noisy environments, follow established instrumentation wiring practices. Where appropriate, separate measurement cables from high-current power wiring to reduce potential interference.
Use only a verified cable configuration because cable characteristics can influence the performance of the complete measurement chain.
6.5 Confirm Signal Conditioner Compatibility
Verify that the associated signal conditioning equipment is suitable for the PR6424/003-021 configuration. Check the connection arrangement, calibration requirements, supply conditions, and output characteristics.
If the measurement is transferred to a PLC, DCS, or machinery protection system, confirm that the receiving interface supports the signal provided by the associated electronics.
6.6 Commissioning and Functional Testing
After installation, carry out the approved commissioning procedure for the complete measurement system.
Recommended checks include:
- Confirming the sensor model and connection arrangement.
- Checking sensor mounting and alignment.
- Verifying the status of the signal conditioning equipment.
- Confirming appropriate measurement response under approved test conditions.
- Checking calibration and engineering-unit scaling.
- Verifying alarm configuration where applicable.
- Recording baseline readings for future comparison.
Commissioning should be performed by qualified personnel in accordance with site safety procedures.
7. Troubleshooting Common Problems
7.1 No Measurement Signal
Possible causes:
- Disconnected or damaged cable.
- Incorrect wiring.
- Incompatible signal conditioning equipment.
- Missing supply to the associated electronics.
- Monitoring-channel fault.
- Sensor damage.
Recommended actions:
Inspect the cable and connectors, verify the wiring arrangement, and check the status of the associated electronics. Use an approved diagnostic procedure to determine whether the issue originates in the sensor, signal conditioner, or monitoring module.
Check the complete measurement chain before replacing the sensor.
7.2 Unstable or Fluctuating Readings
Possible causes:
- Loose mounting hardware.
- Electrical interference.
- Damaged or incorrectly routed cables.
- Incorrect calibration.
- Unsuitable target geometry.
- Actual mechanical movement.
Recommended actions:
Inspect the mounting arrangement and cable condition. Compare the readings with other machinery data to determine whether the variation corresponds to actual equipment movement.
Review calibration and signal conditioning before concluding that the sensor has failed.
7.3 Incorrect Displacement Values
Possible causes:
- Incorrect sensor-to-target gap.
- Calibration error.
- Incorrect channel scaling.
- Unsuitable target material.
- Incompatible cable or electronic components.
- Incorrect replacement configuration.
Recommended actions:
Verify the installation geometry and calibration procedure. Confirm that the target and associated electronics meet the system requirements. Check engineering units and scaling in the monitoring system.
7.4 Persistent Alarm Conditions
An alarm does not necessarily indicate a defective sensor. It may reflect genuine machinery movement, signal interruption, incorrect scaling, a configuration issue, or a problem elsewhere in the measurement chain.
Review channel status, measurement trends, alarm settings, and related machinery data. Follow established protection procedures before changing system settings.
Do not disable machinery protection functions or adjust alarm thresholds merely to suppress an unexplained alarm.
7.5 Suspected Sensor Failure
If the sensor has visible damage or continues to produce abnormal readings after installation and electronics checks, further investigation may be required.
Use diagnostic procedures appropriate to the exact configuration. Avoid applying arbitrary electrical tests unless they are permitted by the relevant technical instructions.
8. Compatible System Components
The PR6424/003-021 should be assessed as part of a complete measurement chain.
| Component Category | Function | Verification Requirement |
|---|---|---|
| Signal Conditioner | Processes the sensor response | Confirm the exact compatible model |
| Extension Cable | Connects the sensor to associated electronics | Verify cable type and permitted length |
| Monitoring Module | Receives and evaluates measurement data | Confirm input and channel requirements |
| PLC or DCS Interface | Transfers compatible measurement data | Verify signal type and input characteristics |
| Machinery Protection System | Monitors configured machinery parameters | Confirm system and channel compatibility |
| Mounting Hardware | Secures and aligns the sensor | Check dimensions, clearance, and mounting requirements |
The components required depend on the existing installation. Compatibility should be established using the complete product designation and the technical requirements of the monitoring system.
9. Recommended Alternative Selection
If the Epro PR6424/003-021 is unavailable, a substitute should be selected according to the complete measurement requirements.
| Alternative Category | Selection Considerations |
|---|---|
| Equivalent 16 mm Eddy Current Sensor | Verify measurement range, sensitivity, calibration, and output characteristics |
| Compatible Sensor from the Same Product Family | Confirm the complete model number and electronic-system compatibility |
| Different-Size Eddy Current Sensor | Check mounting space, target geometry, and measurement requirements |
| Alternative Displacement Sensor Technology | Evaluate measurement principle, accuracy, interface, and environmental suitability |
A sensor with the same head diameter is not automatically a direct replacement. Verify the full part number, cable configuration, associated electronics, calibration requirements, and application suitability before ordering.
10. Key Advantages of Eddy Current Sensing
Non-Contact Measurement
The sensor measures the distance to a suitable conductive target without direct physical contact. This avoids contact wear and supports continuous measurement in suitable industrial applications.
Support for Dynamic Measurement
When paired with appropriate electronics, eddy current sensing can measure changes in distance and support the analysis of shaft movement and other dynamic mechanical behavior.
Integration into Industrial Monitoring Systems
Measurement data can be incorporated into broader monitoring arrangements for recording, trend analysis, alarm processing, and equipment condition assessment, provided the interfaces are compatible.
Contribution to Preventive Maintenance
Changes in displacement measurements can help maintenance teams identify conditions that require further investigation. Combined with vibration, temperature, and other operating data, these measurements can support maintenance planning.
Defined Physical Dimensions
The 16 mm sensor head diameter and stated weight of 0.2 kg provide useful information for mounting assessments, replacement planning, and spare-parts identification.
11. Technical FAQs
Q1: What is the Epro PR6424/003-021?
It is a 16 mm eddy current sensor intended for non-contact displacement measurement applications. Its suitability depends on the requirements of the specific installation and the associated measuring electronics.
Q2: What is the sensor head diameter?
The specified sensor head diameter is 16 mm.
Q3: What is the weight of the PR6424/003-021?
The stated weight is 0.2 kg.
Q4: Can this sensor be used for shaft displacement monitoring?
Eddy current sensing is commonly used for non-contact displacement measurement of suitable conductive targets, including in rotating machinery. Confirm the exact model’s measurement characteristics and system compatibility before using it for a specific shaft-monitoring application.
Q5: Can the sensor connect directly to a PLC?
Direct connection should not be assumed. The measurement system may require compatible signal conditioning equipment before transferring data to a PLC or DCS. Verify the actual output and receiving-input requirements.
Q6: What causes unstable readings?
Potential causes include loose mounting, electrical interference, cable damage, incorrect calibration, unsuitable target geometry, or actual machinery movement. Troubleshoot the complete measurement chain before replacing the sensor.
Q7: Is it interchangeable with another 16 mm sensor?
Not automatically. Matching the sensor head diameter does not establish electrical, calibration, or system compatibility. The complete model number and installation requirements must be verified.
Q8: What should be checked before purchasing a replacement?
Confirm the complete model designation, sensor head diameter, weight, measurement characteristics, cable configuration, compatible signal conditioner, and mounting requirements.
12. Conclusion
The Epro PR6424/003-021 16 mm Eddy Current Sensor is an industrial sensing component intended for non-contact displacement measurement involving suitable conductive targets. Its specified sensor head diameter of 16 mm and stated weight of 0.2 kg provide useful physical information for equipment integration and spare-parts planning.
Reliable performance depends on correct mounting, suitable target geometry, verified cable and signal conditioning arrangements, and proper calibration. When troubleshooting abnormal readings, engineers should evaluate the complete measurement chain before determining whether the sensor requires replacement.
For industrial maintenance and procurement, verifying the exact model and its compatibility with the installed monitoring system is essential to supporting dependable measurement and machinery condition monitoring.
