1. Product Overview

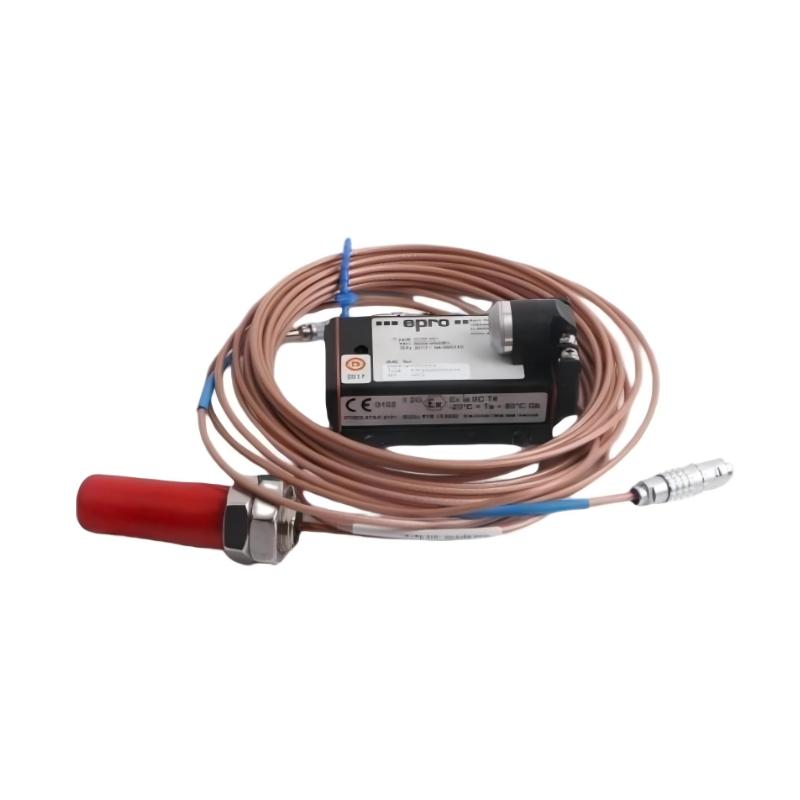

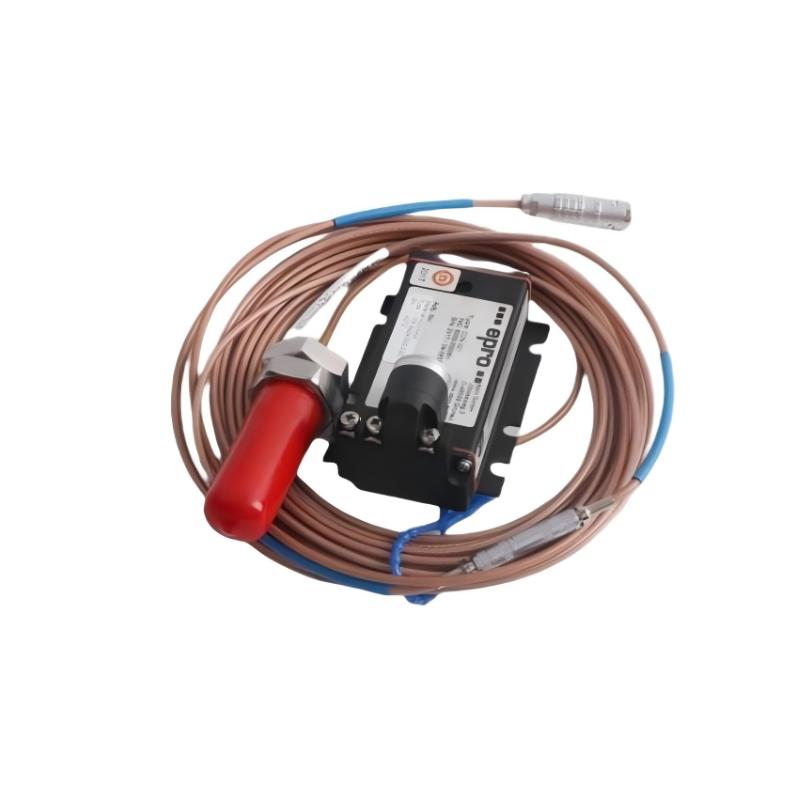

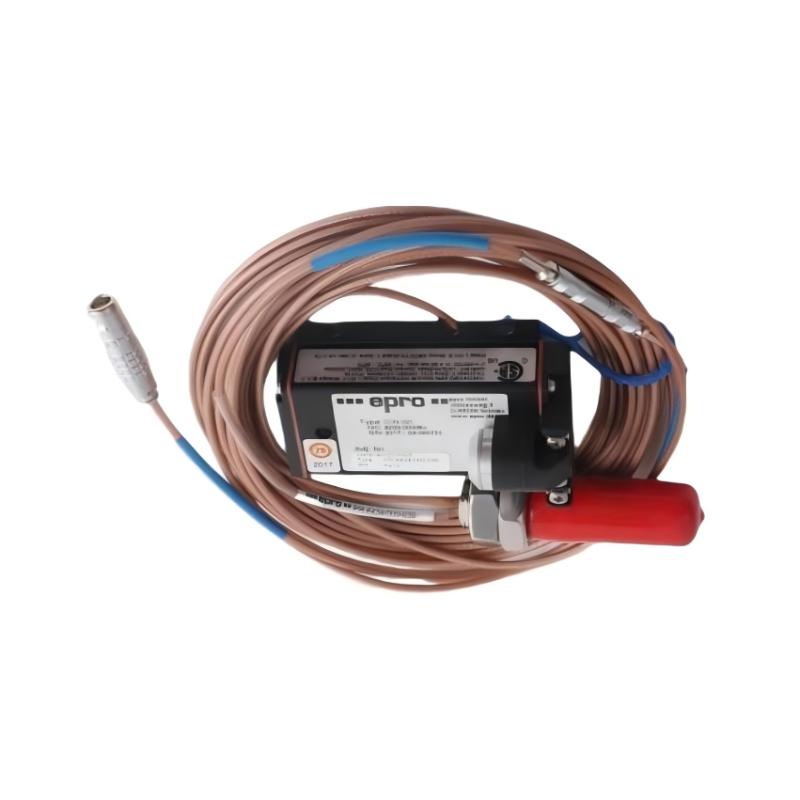

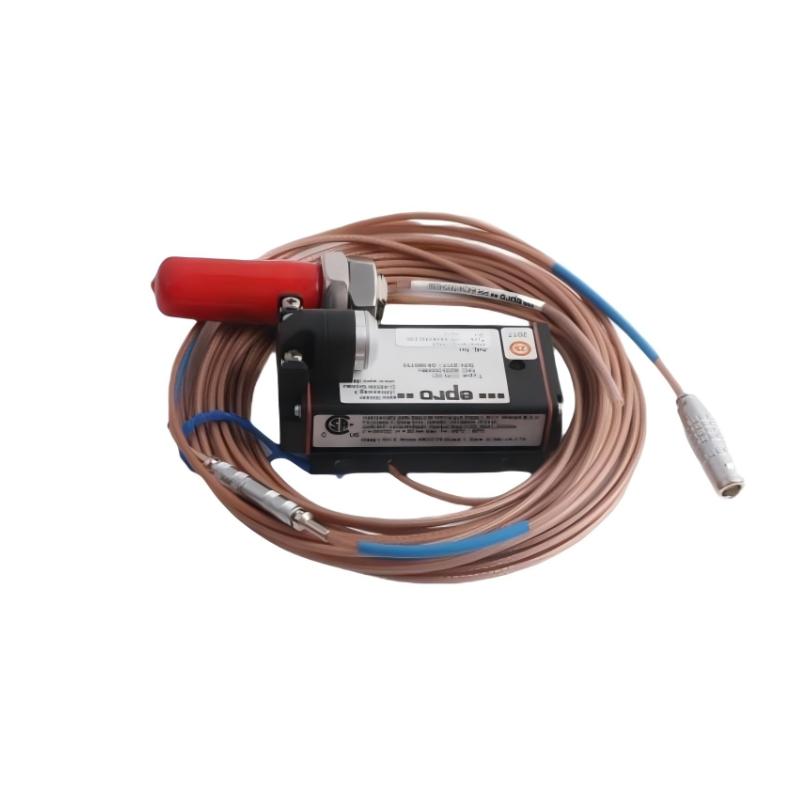

The Epro PR6424/003-000 16 mm Eddy Current Sensor is an industrial displacement sensor designed for non-contact measurement in machinery monitoring and condition monitoring applications. Eddy current sensing technology is widely used in rotating equipment because it can measure the position and movement of conductive metal targets without requiring direct mechanical contact.

In industrial environments, non-contact displacement measurements help engineers monitor shaft movement, mechanical clearances, vibration-related displacement, and changes in rotating machinery operating conditions. These measurements can support equipment protection strategies, preventive maintenance, and fault diagnosis.

The PR6424/003-000 features a 16 mm sensor head diameter and a stated weight of 0.2 kg. Its suitability for a particular monitoring system depends on the required measurement range, target material, mounting arrangement, signal conditioning equipment, and system configuration.

When selecting or replacing an Epro PR6424/003-000 sensor, engineers should confirm the complete model designation and the electrical and mechanical requirements of the existing installation. Matching the sensor’s physical dimensions alone does not guarantee measurement accuracy or system compatibility.

2. Technical Specifications

The table includes the supplied physical specifications and general characteristics of eddy current sensing. Parameters not provided should be verified against the documentation for the exact sensor and associated measuring system before commissioning.

3. Function and Working Principle

3.1 Eddy Current Measurement Technology

An eddy current sensor operates by generating an alternating electromagnetic field near a conductive target. When the target enters this field, electrical currents are induced in its surface. These currents influence the sensor’s electromagnetic characteristics, allowing the associated measuring electronics to determine changes in the distance between the sensor head and the target.

As the distance changes, the electrical response of the sensing system changes accordingly. With appropriate calibration and signal conditioning, this response can be converted into a measurement representing the target’s position or displacement.

Because the sensor does not need to touch the target, the measurement process avoids the friction and mechanical wear associated with contact-based sensing methods.

3.2 Displacement and Shaft Movement Monitoring

In rotating machinery, an eddy current sensor may be installed near a shaft or another suitable conductive component. As the component moves relative to the sensor, the measuring system detects the resulting changes in distance.

Depending on the sensor configuration and monitoring system, measurements can support the analysis of:

• Relative shaft displacement.
• Axial movement of rotating components.
• Changes in mechanical clearance.
• Shaft vibration and dynamic movement.
• Abnormal movement associated with mechanical wear or operating disturbances.

The actual measurement capability depends on the complete sensor system, installation geometry, calibration, and monitoring equipment.

3.3 Importance of Calibration

Calibration establishes the relationship between sensor output and the physical distance to the target. An incorrect calibration can cause measurement errors even when the sensor and monitoring electronics are functioning normally.

For reliable results, calibration should account for the target material, mounting position, measurement gap, cable configuration, and the requirements of the connected signal conditioner.

4. Role in Industrial Machinery Monitoring Systems

The Epro PR6424/003-000 can be considered for applications in which non-contact displacement measurements are required. In a machinery monitoring architecture, the sensor typically serves as the measurement point, while additional electronic equipment processes the signal and makes the measurement available to monitoring or protection systems.

A typical measurement chain may include:

1. Sensor: Detects changes in the distance between the sensor head and the conductive target.
2. Signal conditioning equipment: Processes the sensor response according to the applicable system design.
3. Monitoring equipment: Displays, records, or evaluates the measured parameter.
4. Control or protection system: Uses configured measurements and alarm logic where the system design supports these functions.

The sensor itself should not be assumed to provide a direct PLC-compatible output or an independent protection function. The actual interface depends on the complete measurement system.

In turbine, compressor, pump, and other rotating-equipment installations, displacement measurements can provide useful information about machine condition. When combined with other instrumentation, they help maintenance teams identify changes that may require further investigation.

5. Industrial Applications

5.1 Turbine Monitoring

Turbines contain rotating components that operate under demanding mechanical and thermal conditions. Suitable displacement measurements can help engineers observe shaft movement and evaluate changes in operating behavior.

For turbine installations, sensor selection must account for the machine design, target geometry, temperature conditions, mounting constraints, and the requirements of the monitoring system.

5.2 Compressor Condition Monitoring

Industrial compressors often operate continuously and may be exposed to changing loads and operating conditions. Non-contact displacement measurement can contribute to the assessment of shaft movement and mechanical stability.

The PR6424/003-000 should only be used in a compressor monitoring application after confirming that its measurement characteristics and associated electronics meet the installation requirements.

5.3 Pump and Motor Monitoring

In suitable pump and motor arrangements, displacement sensing can help identify changes in shaft position or movement. These measurements may complement vibration, temperature, pressure, and other operating data.

The sensor mounting location should be selected carefully to prevent interference with moving components and to maintain a stable measurement geometry.

5.4 Power Generation Facilities

Power generation facilities use machinery monitoring systems to assess the condition of turbines, generators, auxiliary equipment, and other rotating assets. Eddy current sensors can form part of these systems where non-contact displacement measurement is required.

Reliable integration depends on correct sensor installation, suitable signal conditioning, and appropriate configuration of the monitoring equipment.

5.5 Industrial Process Plants

Chemical processing, petrochemical, manufacturing, and other process industries rely on rotating machinery for continuous production. Displacement measurement can support maintenance planning by providing information about mechanical movement and changes in equipment behavior.

The selected sensor must be suitable for the environmental conditions, equipment configuration, and monitoring objectives of the specific application.

6. Installation and System Integration

Correct installation is essential for accurate measurement and long-term sensor reliability.

6.1 Verify the Model and Application

Before installation, confirm that the component is the Epro PR6424/003-000 and that it is suitable for the intended measurement system. Check the complete part number, sensor head dimensions, required cable arrangement, signal conditioner, and mounting accessories.

If replacing an existing sensor, compare the removed unit with the replacement using the original system documentation. Do not assume that another 16 mm sensor is electrically or mechanically interchangeable.

6.2 Inspect the Sensor and Mounting Location

Examine the sensor housing, cable, connector, and mounting surfaces for visible damage. Ensure that the installation location provides adequate mechanical clearance and allows the sensor to be secured firmly.

The sensor must not contact the moving target during normal operation or foreseeable movement. The required clearance should be established from the applicable installation specifications.

6.3 Position the Sensor Correctly

Align the sensor with the intended conductive target according to the system’s installation requirements. Incorrect alignment, unstable mounting, or an unsuitable target surface can affect measurement performance.

Check the target’s material, dimensions, surface condition, and geometry. These factors can influence the response of an eddy current sensing system and should be considered during commissioning.

6.4 Check Cable Routing and Connections

Follow the specified cable and connector arrangement for the complete sensor system. Inspect connections for looseness, contamination, damaged insulation, or incorrect termination.

Where the installation is exposed to electrical noise, route instrumentation cables in accordance with the site’s wiring practices. Avoid routing sensitive signal cables alongside high-current power cables when this could introduce interference.

Never substitute an unverified cable or connector based only on physical appearance. Cable characteristics may form part of the calibrated measurement system.

6.5 Configure the Signal Conditioning Equipment

Confirm that the connected signal conditioner or measuring module is appropriate for the PR6424/003-000 configuration. Check the required supply, connection arrangement, calibration data, and output interface using the applicable technical documentation.

If the sensor is connected to a PLC, DCS, or machinery protection system, verify that the receiving input is compatible with the output provided by the measuring electronics. The interface should be confirmed rather than assumed.

6.6 Commissioning and Functional Testing

After installation, carry out the commissioning procedure specified for the complete measurement system.

Recommended checks include:

• Confirming the sensor model and wiring arrangement.
• Verifying mechanical alignment and mounting stability.
• Checking the signal conditioner and monitoring channel status.
• Confirming the expected response under approved test conditions.
• Comparing the measured output with an appropriate reference where available.
• Checking alarm thresholds and scaling in the receiving system.
• Recording the initial readings for future comparison.

Testing should follow site safety procedures. Where machinery operation is required, commissioning must be performed by qualified personnel under approved operating conditions.

7. Troubleshooting Common Problems

7.1 No Measurement Signal

Possible causes:

• Disconnected or damaged cable.
• Incorrect connection or wiring.
• Incompatible signal conditioning equipment.
• Missing or incorrect supply to the associated electronics.
• Sensor or measuring-system failure.

Recommended checks:

Inspect the cable and connectors, verify the documented wiring arrangement, and check the status of the signal conditioning equipment. If possible, compare the affected channel with a known-good channel using an approved procedure.

Avoid replacing the sensor before checking the rest of the measurement chain.

7.2 Unstable or Fluctuating Readings

Possible causes:

• Loose sensor mounting.
• Electrical interference.
• Damaged or unsuitable cabling.
• Mechanical movement of the mounting bracket.
• Inconsistent target geometry or surface conditions.
• Incorrect calibration or configuration.

Recommended checks:

Inspect the mounting hardware and cable route. Compare the reading with independent machine-condition data and determine whether the fluctuation corresponds to actual mechanical movement. Review calibration and signal-conditioning settings before concluding that the sensor is defective.

7.3 Incorrect Displacement Values

Possible causes:

• Incorrect calibration.
• Improper sensor-to-target gap.
• Incorrect measurement scaling.
• Unsuitable target material.
• Incorrect configuration of the monitoring channel.
• Use of an incompatible sensor or cable.

Recommended checks:

Verify the sensor installation gap and the calibration procedure. Check the scaling and engineering units configured in the monitoring system. Confirm that the target and cable arrangement meet the system requirements.

7.4 Persistent Alarm or Abnormal Channel Status

A monitoring alarm does not necessarily mean that the sensor has failed. The alarm may result from genuine machine movement, an incorrect threshold, signal interruption, or a problem elsewhere in the measurement chain.

Review the channel status, recent measurement trends, alarm configuration, and other relevant machine data. Follow the plant’s established protection procedures before making adjustments.

Important: Do not disable machinery protection functions or change alarm thresholds simply to suppress an unexplained alarm. Investigate the underlying cause first.

7.5 Suspected Sensor Damage

If the sensor has visible physical damage or continues to produce abnormal readings after the installation, wiring, and conditioning equipment have been checked, further testing may be necessary.

Use an approved diagnostic procedure and compare results with the applicable acceptance criteria. Do not apply an arbitrary resistance, voltage, or continuity test unless it is permitted by the manufacturer’s procedure for the exact configuration.

8. Compatible System Components

The PR6424/003-000 should be evaluated as part of a complete measurement chain rather than as an isolated component.

The specific components required depend on the existing installation. A replacement should be evaluated against the original system configuration and not selected solely by sensor diameter or weight.

9. Recommended Alternative Selection

If the Epro PR6424/003-000 is unavailable or a replacement is required, the alternative should be selected according to the measurement system’s actual requirements.

A sensor from the same product family is not automatically interchangeable. Before ordering a substitute, confirm the complete part number, sensor head dimensions, electrical characteristics, compatible electronics, and calibration requirements.

10. Key Advantages of Eddy Current Sensing

Non-Contact Measurement

The sensing head measures a conductive target without direct physical contact. This avoids the friction and contact wear associated with mechanical displacement probes.

Suitability for Dynamic Measurement

When used with appropriate electronics, eddy current technology can measure changing distances and support analysis of dynamic shaft movement.

Integration into Machinery Monitoring

The measurement can be incorporated into a broader monitoring architecture that includes signal conditioning, data acquisition, alarm processing, and equipment protection.

Support for Preventive Maintenance

Consistent displacement measurements can help maintenance personnel identify changes in machine behavior. When combined with vibration, temperature, and operating data, they can contribute to more informed maintenance decisions.

Compact Sensor Head Design

The 16 mm sensor head diameter provides a defined physical dimension for evaluating mounting space and mechanical integration. Actual suitability depends on the available clearance and installation requirements.

11. Technical FAQs

Q1: What is the Epro PR6424/003-000?

The Epro PR6424/003-000 is a 16 mm eddy current sensor intended for non-contact measurement applications. Its use in a particular monitoring system depends on the complete configuration and required measurement characteristics.

Q2: What is the sensor head diameter?

The specified sensor head diameter is 16 mm.

Q3: What is the weight of the PR6424/003-000?

The stated weight is 0.2 kg.

Q4: Can this sensor measure rotating shaft displacement?

Eddy current sensing is commonly used for non-contact displacement measurement of suitable conductive targets, including in rotating machinery. Confirm that the PR6424/003-000 and its associated electronics meet the requirements of the intended shaft-monitoring application.

Q5: Can the sensor connect directly to a PLC?

Direct connection should not be assumed. Many industrial displacement measurement arrangements use associated signal conditioning equipment before transferring measurement data to a PLC, DCS, or monitoring system. Verify the actual output and receiving-input requirements.

Q6: Why might the measurement be unstable?

Possible causes include loose mounting, electrical interference, damaged cables, incorrect calibration, unsuitable target geometry, or actual mechanical movement. Troubleshooting should examine the complete measurement chain.

Q7: Is another 16 mm eddy current sensor a direct replacement?

Not necessarily. Matching the head diameter does not establish electrical, mechanical, or calibration compatibility. Confirm the full model number and all relevant system requirements before replacement.

Q8: What information should be checked before ordering?

Confirm the full model designation, sensor head dimensions, weight, cable and connector configuration, compatible signal conditioner, measurement range, and application requirements.

12. Conclusion

The Epro PR6424/003-000 16 mm Eddy Current Sensor is intended for non-contact displacement measurement applications where a suitable conductive target and compatible measurement electronics are available. With a sensor head diameter of 16 mm and a stated weight of 0.2 kg, it can be assessed for integration into industrial machinery monitoring arrangements according to the mechanical and electrical requirements of the installation.

For reliable performance, attention should be given to sensor positioning, target characteristics, cable routing, signal conditioning, calibration, and commissioning. When troubleshooting, engineers should evaluate the complete measurement chain before deciding that the sensor itself has failed.

For replacement planning and industrial spare-parts procurement, verifying the exact model and system compatibility is essential. Correct selection and installation help maintain measurement reliability and support effective machinery condition monitoring.
