1. Product Overview

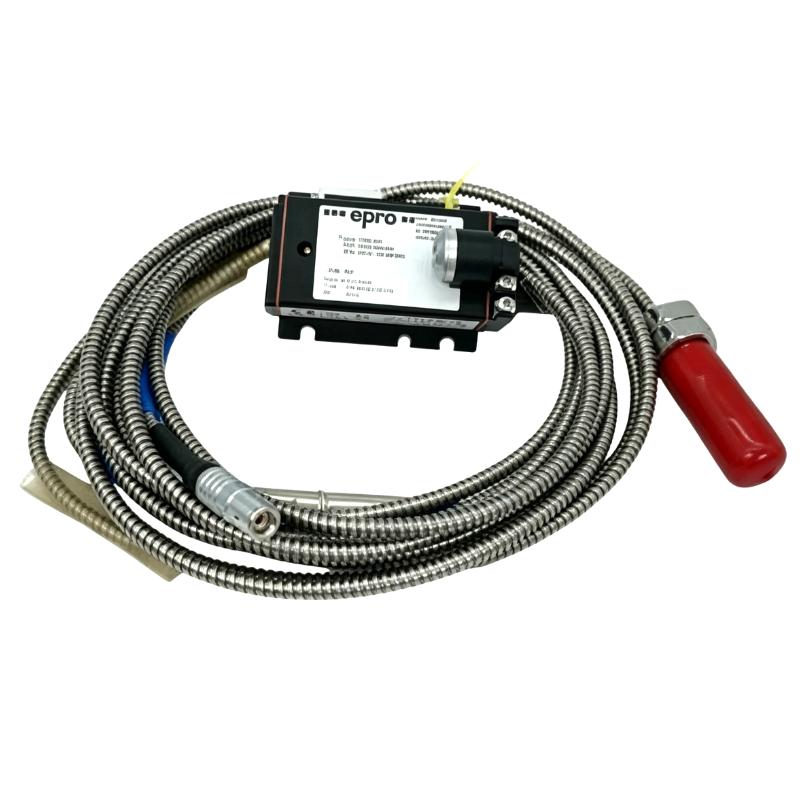

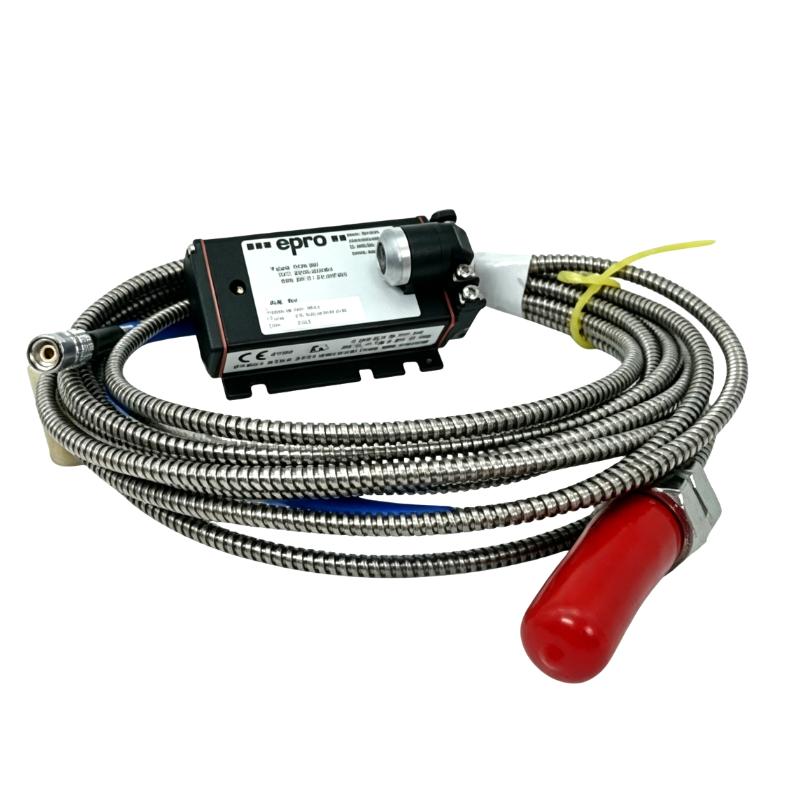

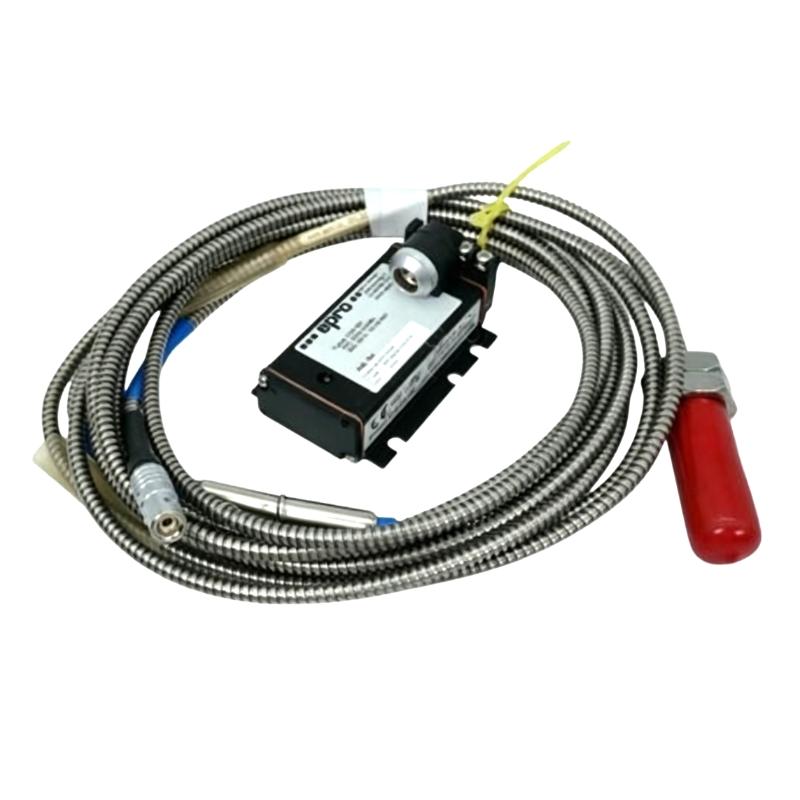

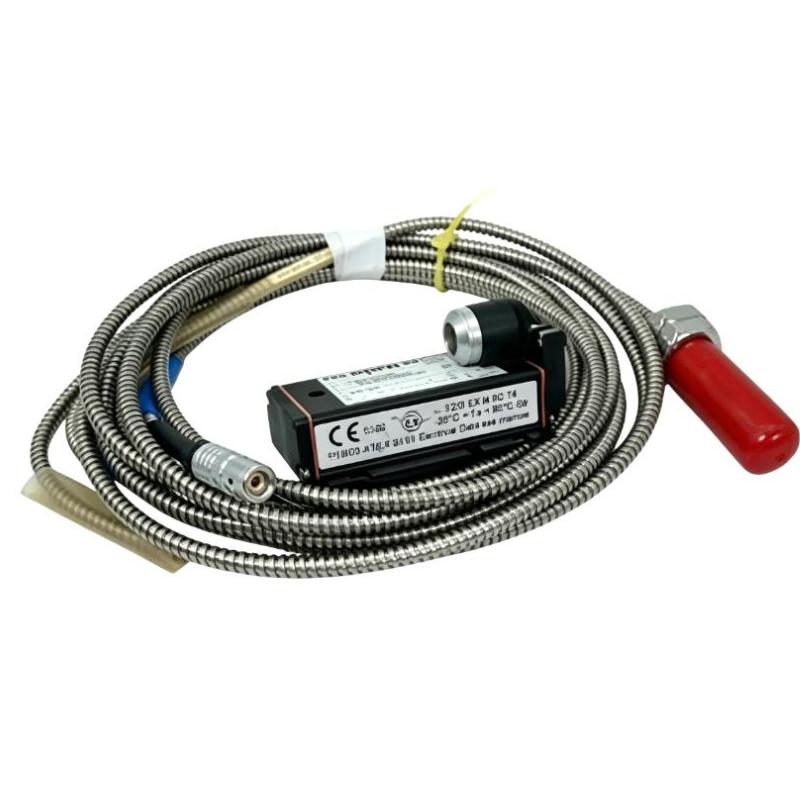

The Epro PR6424/002-101 16 mm Eddy Current Sensor is an industrial sensing component intended for non-contact measurement applications in machinery monitoring and industrial automation systems. Eddy current sensors are commonly used to measure the relative distance between a sensor and a conductive target, making the technology suitable for various rotating machinery monitoring tasks.

In industrial facilities, equipment such as turbines, compressors, pumps, and other rotating assets may experience shaft movement and vibration as operating conditions change. A properly configured eddy current sensor system can provide measurement signals to compatible monitoring equipment, helping engineers evaluate mechanical behavior and investigate potential equipment problems.

The Epro PR6424/002-101 has a stated sensor head diameter of 16 mm and a weight of 0.2 kg. These specifications help identify the component and support preliminary installation planning. However, the exact measurement range, sensitivity, frequency response, cable arrangement, and compatible signal-conditioning electronics should be verified for this specific model before commissioning or replacement.

For maintenance engineers, system integrators, and industrial spare-parts buyers, confirming the complete model number is important. Sensors with similar dimensions may have different electrical characteristics, calibration requirements, or connection configurations.

2. Technical Specifications

The table includes the supplied model identification and physical specifications. Unconfirmed electrical and performance parameters should be checked before purchasing, installing, or integrating the sensor into an existing monitoring system.

3. Function and Working Principle

3.1 Eddy Current Measurement Principle

An eddy current sensor generates an electromagnetic field near a conductive target. When the target enters this field, eddy currents are induced in its surface. Changes in the distance between the sensor and the target affect the electromagnetic interaction.

The associated electronics process this response and produce an electrical signal related to the target’s relative position within the calibrated measurement range.

Because the sensor measures without physical contact, it can be used in applications involving continuous movement and rotating machinery, provided the sensor configuration is suitable for the operating conditions.

3.2 Shaft Displacement Monitoring

When installed near a rotating shaft, the sensor detects changes in the gap between its sensing face and the shaft surface. These changes can provide information about relative shaft displacement or position.

The reliability of the measurement depends on the sensor’s calibrated characteristics, target material, mounting stability, installation gap, and the compatibility of the associated electronics.

3.3 Shaft Vibration Measurement

A rotating shaft may move periodically because of its mechanical condition, operating load, or other factors. Changes in the sensor-to-shaft gap can generate a signal that a compatible monitoring system processes to evaluate shaft vibration.

Such measurements can help maintenance personnel identify changes in machine behavior and determine when further inspection may be necessary. Actual measurement performance depends on the specifications of the complete sensor system.

3.4 Signal Conditioning and Data Processing

The sensor is normally one part of a complete measurement chain. Depending on the application, the system may include a compatible driver, cable assembly, monitoring module, and machinery protection platform.

The driver and monitoring input must match the sensor’s electrical characteristics and calibration requirements. Incorrect component selection can result in inaccurate readings, unstable output, or failure to obtain a valid measurement.

4. Role in Industrial Machinery Monitoring Systems

The Epro PR6424/002-101 can serve as a sensing component in a compatible industrial machinery monitoring arrangement.

A typical measurement system may include the following elements:

• Eddy current sensor: Detects changes in the distance between the sensor and a conductive target.
• Cable and connector assembly: Transfers the sensor signal to the associated electronics.
• Driver or signal conditioner: Provides the required sensor interface and converts the response into a usable measurement signal.
• Monitoring module: Receives and processes the measurement data.
• Control or protection system: Uses configured measurements and alarm logic to support machinery supervision and protective functions.

In rotating machinery applications, these measurement signals may contribute to monitoring shaft displacement, position, or vibration. The exact function depends on the installed system architecture and channel configuration.

When replacing an existing sensor, engineers should check the complete measurement chain rather than relying on the sensor head diameter alone. The sensor, cable, driver, and receiving input must be compatible to achieve reliable results.

5. Industrial Applications

5.1 Steam and Gas Turbines

Turbines operate with high-speed rotating assemblies and often require continuous condition monitoring. Suitable eddy current sensor systems can provide shaft displacement or vibration measurement signals when correctly configured for the application.

5.2 Industrial Compressors

Compressors frequently operate under changing loads and process conditions. Non-contact shaft measurements can help maintenance teams observe changes in mechanical behavior and investigate possible issues involving alignment, bearings, or rotor dynamics.

5.3 Pumps and Rotating Equipment

Industrial pumps and other rotating assets may require continuous monitoring to assess changes in operating condition. Eddy current sensing can provide useful measurement inputs when the selected sensor and associated electronics are suitable for the equipment.

5.4 Power Generation Facilities

Power generation facilities depend on reliable rotating machinery. Compatible sensor assemblies can contribute to monitoring strategies intended to identify abnormal mechanical behavior and support maintenance planning.

5.5 Petrochemical and Process Industries

Petrochemical plants and other continuous-process facilities rely on pumps, compressors, and other rotating equipment. Properly installed monitoring systems can help maintenance personnel evaluate operating trends and investigate unusual measurements.

These are general applications of eddy current sensing technology. The suitability of the PR6424/002-101 for a specific machine must be confirmed against the exact product specifications and the installed monitoring system requirements.

6. Installation and System Integration

Correct installation is essential for obtaining stable and repeatable measurement results.

Step 1: Verify the Complete Model Number

Confirm that the component is identified as Epro PR6424/002-101 and that its configuration matches the requirements of the intended application.

Do not assume that a sensor with the same 16 mm head diameter is a direct substitute for another model. Verify the complete sensor and associated electronics configuration.

Step 2: Inspect the Sensor and Connections

Inspect the sensor head, housing, cable, connectors, and applicable mounting features. Look for impact damage, contamination, corrosion, damaged insulation, or loose connection points.

A component showing signs of damage should be assessed before installation.

Step 3: Prepare the Mounting Position

Ensure that the sensor mounting arrangement is mechanically stable and correctly aligned with the intended conductive target. The installation must provide sufficient clearance to prevent unintended contact with the target during operation.

Consider the equipment’s vibration, temperature, and environmental conditions when selecting the mounting position.

Step 4: Establish the Correct Sensor Gap

The distance between the sensor tip and the target must comply with the requirements of the exact sensor configuration.

Do not use an assumed gap or copy a value from a different model. Follow the applicable setup and calibration procedure for the installed sensor and driver.

Step 5: Connect the Cable and Driver

Verify that the cable type, connector arrangement, and driver are suitable for the sensor. Check all connections and secure them according to the applicable installation requirements.

Route cables to reduce exposure to mechanical damage, excessive heat, moisture, and electrical interference. Follow the system’s grounding and shielding requirements.

Step 6: Configure the Monitoring Input

Confirm that the receiving monitoring channel supports the sensor system and is configured with the appropriate measurement type, calibration parameters, scaling, and engineering units.

Incorrect configuration can produce misleading readings even when the sensor is functioning correctly.

Step 7: Perform Commissioning Checks

After installation, verify that the measurement signal is stable and responds appropriately to changes in target position. Compare the readings with expected mechanical conditions and the system’s commissioning criteria.

Record the sensor location, installation details, calibration settings, and baseline readings for future maintenance and troubleshooting.

Safety note: Follow plant lockout/tagout procedures and equipment-specific safety requirements. Installation or adjustment near rotating machinery should only be performed under approved safe working conditions.

7. Troubleshooting Common Problems

7.1 No Measurement Signal

Possible causes:

• Loose or damaged cable connections.
• Incorrect driver or signal conditioner.
• Damaged cable or connector.
• Incorrect monitoring channel configuration.
• Faulty sensor or associated electronics.

Recommended checks:

Inspect the cable and connections, verify the sensor-driver compatibility, and confirm the monitoring input settings. Use approved diagnostic procedures to isolate the fault before replacing components.

7.2 Unstable or Noisy Readings

Possible causes:

• Loose sensor mounting.
• Electrical interference.
• Poor cable shielding or grounding.
• Incorrect sensor-to-target gap.
• Unsuitable target surface conditions.
• Problems with the driver or monitoring input.

Recommended checks:

Check the mechanical mounting and cable routing. Verify the sensor gap and target conditions against the system requirements. Review grounding and shielding practices and compare related measurement channels where appropriate.

7.3 Incorrect Measurement Offset

Possible causes:

• Incorrect initial sensor gap.
• Incorrect calibration settings.
• Movement of the sensor mounting bracket.
• Incorrect channel scaling.
• Incompatible sensor and driver combination.

Recommended checks:

Confirm the complete sensor configuration and calibration parameters. Inspect the mounting position and verify the monitoring channel settings. Investigate an unexplained offset before changing alarm thresholds or other protective settings.

7.4 Problems After Sensor Replacement

Possible causes:

• Replacement sensor does not match the original configuration.
• Cable or connector arrangement is incompatible.
• Sensor position has changed.
• Calibration settings were not verified.
• The original fault is located elsewhere in the measurement chain.

Recommended checks:

Compare the complete replacement part number with the original. Verify the cable, driver, mounting gap, and monitoring configuration before concluding that the replacement sensor is defective.

7.5 Repeated Sensor Failures

Repeated failures may indicate mechanical damage, cable stress, excessive environmental exposure, unstable mounting, or problems with associated electronics.

Review operating conditions and maintenance records to identify the root cause instead of repeatedly replacing the sensor without further investigation.

8. Compatible System Components

The following component categories may be used in an eddy current measurement system. Compatibility with any specific part number must be verified separately.

Before ordering associated components, verify the complete part numbers and system requirements. Similar product descriptions or dimensions do not guarantee compatibility.

9. Recommended Alternative Models

Replacement selection should be based on the complete measurement-system requirements rather than the sensor head diameter alone.

No specific substitute is confirmed as a direct replacement in this guide. Any alternative should be evaluated against the original equipment requirements and approved by the responsible engineering team where necessary.

10. Key Advantages

Non-Contact Measurement

Eddy current sensing measures the distance to a conductive target without requiring physical contact. This makes the technology suitable for many rotating machinery applications.

Support for Continuous Condition Monitoring

When integrated into a compatible monitoring platform, the sensor can provide measurement data that helps engineers evaluate changes in shaft movement and machinery behavior.

Defined Mechanical Dimensions

The stated 16 mm sensor head diameter provides a useful reference for product identification and installation planning. Actual mounting dimensions and clearances should still be checked against the equipment.

Integration with Industrial Monitoring Equipment

The sensor can form part of a measurement chain incorporating compatible cables, signal-conditioning electronics, and monitoring modules. Correct component selection and configuration are essential for reliable performance.

Support for Maintenance and Spare-Parts Management

Accurate identification of the complete product number helps reduce the risk of ordering an incompatible replacement and supports more efficient maintenance planning.

11. Technical FAQs

Q1: What is the Epro PR6424/002-101?

The Epro PR6424/002-101 is identified as a 16 mm eddy current sensor intended for industrial measurement applications. Its exact performance and system compatibility should be confirmed for the intended configuration.

Q2: What is the sensor head diameter?

The stated sensor head diameter is 16 mm.

Q3: What is the weight of the PR6424/002-101?

The stated weight is 0.2 kg.

Q4: Can this sensor be used for shaft vibration monitoring?

Eddy current sensors are commonly used for non-contact shaft vibration and displacement measurement. For this exact model, confirm the measurement range, sensitivity, frequency response, driver, and monitoring interface before use.

Q5: Can the PR6424/002-101 replace another 16 mm sensor?

Not automatically. Compatibility depends on the complete model number, electrical characteristics, calibration, cable configuration, driver, and monitoring-system requirements.

Q6: What causes an unstable measurement signal?

Possible causes include an incorrect sensor gap, loose mounting, electrical interference, damaged cabling, incompatible signal-conditioning electronics, or incorrect monitoring channel settings.

Q7: What should be checked before ordering a replacement?

Verify the full part number, physical dimensions, measurement characteristics, cable and connector arrangement, driver compatibility, calibration requirements, and monitoring interface.

Q8: Does replacing the sensor require recalibration?

Verification or recalibration may be required depending on the sensor configuration, installation procedure, and monitoring platform. Follow the approved commissioning requirements for the specific equipment.

12. Conclusion

The Epro PR6424/002-101 16 mm Eddy Current Sensor is an industrial sensing component intended for non-contact measurement applications involving conductive targets and machinery monitoring. Its stated sensor head diameter is 16 mm, and its stated weight is 0.2 kg.

Reliable operation depends on correct model identification, proper mechanical installation, an appropriate sensor gap, compatible signal-conditioning electronics, and accurate monitoring-system configuration.

For procurement, maintenance, and replacement applications, confirm the exact product configuration and all application-critical specifications before installation. This helps reduce compatibility risks, supports effective commissioning, and improves the reliability of the overall machinery monitoring system.
