- Epro
- PR6423/01M-030+CON011

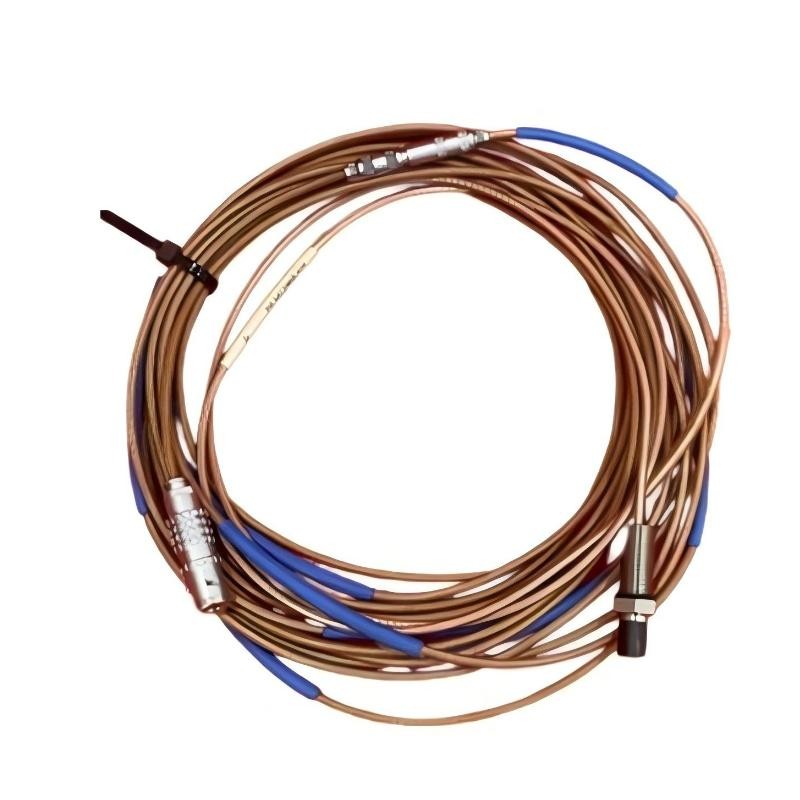

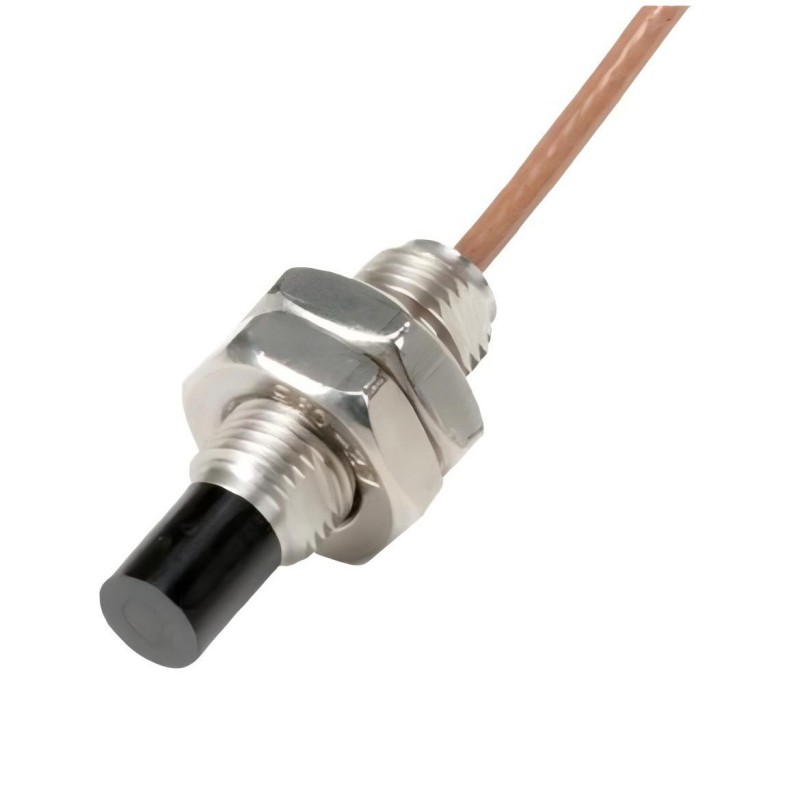

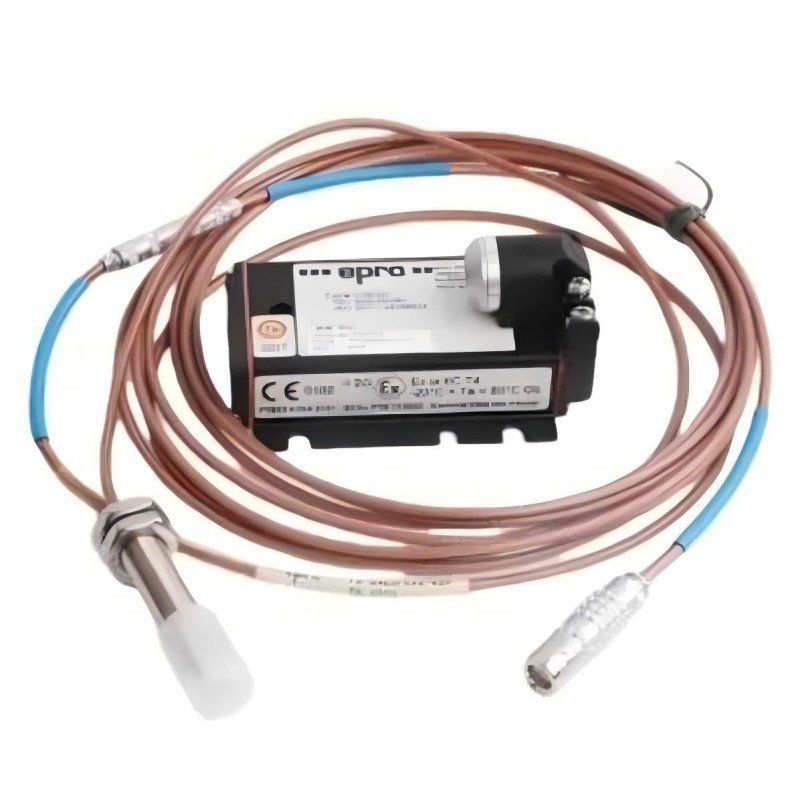

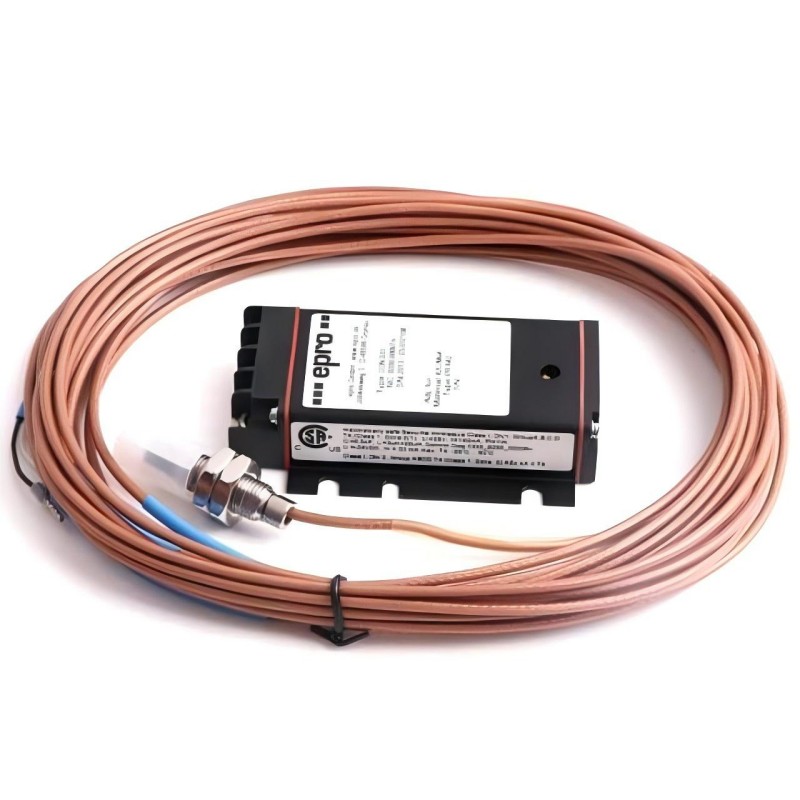

- 8mm Eddy Current Sensor + Eddy Current Signal Converter
- Germany
- 8 mm
- 0.7 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 46
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Epro PR6423/01M-030+CON011 combines an 8 mm eddy current sensor with an eddy current signal converter for non-contact measurement of shaft position and movement in rotating machinery. The combined assembly forms a defined measurement channel from the machine-side sensing point to the conditioned output used by the monitoring system.
The sensor is installed close to a conductive rotating target, such as a turbine shaft, compressor rotor, generator shaft, or other precision-machined surface. Changes in the distance between the sensor tip and target produce corresponding changes in the eddy current sensing circuit.
The CON011 signal converter handles the sensor-side signal conditioning so that the measurement can be transferred to compatible monitoring or control equipment. This arrangement is useful where the sensor and signal-conditioning stage need to operate together as part of a machinery monitoring channel.
For maintenance work, the sensor and converter should be treated as one configured measurement path while still checking their connections to the downstream monitoring system. Probe alignment, target condition, cabling, converter operation, and the final monitoring input can all influence the observed signal.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/01M-030+CON011 |
| Product Family | PR6423 Series |
| Product Type | 8mm Eddy Current Sensor + Eddy Current Signal Converter |
| Primary Function | Non-contact shaft position and movement measurement |
| System Role | Eddy current measurement and signal-conditioning channel |
| Sensing Principle | Eddy Current |
| Typical Application | Rotating machinery vibration and shaft-position monitoring |
| Sensor Head Diameter | 8 mm |
| Weight | 0.7 kg |
Product Features
- Combined PR6423 8 mm eddy current sensor and CON011 signal converter.
- Provides non-contact measurement of a conductive rotating target.
- Suitable for shaft position, displacement, and vibration-related monitoring.
- Integrates the sensing and signal-conditioning stages into one defined measurement arrangement.
- Applicable to turbines, compressors, generators, motors, pumps, and other rotating machinery.
- Suitable for continuous machinery condition-monitoring installations.
- Supports measurement systems where accurate probe positioning is required.
- Useful for maintenance and replacement of compatible Epro measurement channels.
Working Principle
The PR6423 sensor generates an eddy current sensing field at the probe tip. When a conductive shaft or target enters this field, the electrical response changes according to the relative distance between the target and sensor.
The sensor signal is transferred to the CON011 signal converter, where the sensing response is conditioned into a usable measurement signal for the associated monitoring equipment. The downstream system can then use this information for shaft displacement, position, vibration-related analysis, alarm, or protection functions.
Conductive Shaft / Target → PR6423/01M-030 Sensor → CON011 Signal Converter → Monitoring System → Alarm / Protection
The measurement depends on the complete sensor channel. Probe-to-target gap, shaft surface condition, probe alignment, cable integrity, converter operation, and downstream input compatibility should therefore be considered together when commissioning or troubleshooting.
Role in an Epro Eddy Current Monitoring Architecture
The PR6423/01M-030+CON011 occupies both the sensing and signal-conditioning stages of the machinery monitoring chain. The probe establishes the physical measurement point, while the converter prepares the resulting signal for use by the monitoring system.
Rotating Shaft → PR6423 Eddy Current Sensor → CON011 Signal Converter → Machinery Monitoring System → Alarm / Protection
| System Element | Function |
|---|---|
| Rotating Shaft / Target | Provides the conductive surface being monitored |
| PR6423/01M-030 | Detects changes in target-to-probe distance |
| CON011 | Conditions and converts the sensor response for system use |
| Monitoring System | Evaluates shaft position, displacement, or vibration information |
| Alarm / Protection System | Generates configured warning or protective responses |
| Control / Automation System | Uses monitoring information for machine operation or protection |
The combined sensor and converter should be installed as a compatible measurement channel, with the downstream interface verified against the requirements of the monitoring system.
Industrial Applications
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft position and vibration-related measurement |
| Gas Turbines | Rotor movement and machinery condition monitoring |
| Compressors | Non-contact shaft displacement monitoring |
| Generators | Rotor position and movement monitoring |
| Large Motors | Shaft movement and condition monitoring |
| Pumps | Rotating shaft monitoring |
| Turboexpanders | High-speed shaft displacement measurement |
| Industrial Turbomachinery | Continuous non-contact machinery monitoring |
| Machinery Protection Systems | Input measurement for alarm and protective functions |
Installation and Maintenance
- Verify the complete PR6423/01M-030+CON011 part number before installation.
- Confirm compatibility between the combined sensor/converter channel and the intended monitoring equipment.
- Isolate the rotating machinery and follow the applicable site safety procedure before working on the installation.
- Inspect the sensor tip for contamination, impact damage, or abnormal wear.
- Verify the mounting arrangement and ensure that the sensor can be positioned correctly relative to the conductive target.
- Establish the required probe-to-target relationship according to the associated Epro measurement system requirements.
- Maintain proper probe alignment and ensure that the mounting structure remains mechanically secure.
- Inspect sensor and converter cabling for damage, excessive bending, loose connections, or environmental exposure.
- Check the CON011 converter connections and confirm that the signal path is correctly terminated.
- Verify the measurement output after installation and compare it with expected machine conditions.
- If the signal is unstable, inspect the probe position, target surface, wiring, converter, and downstream monitoring input before replacing components.
- After replacement, perform a complete measurement-channel and monitoring-system functional test before returning the machinery to normal operation.
Compatible System Components
| Component | Function |
|---|---|
| Epro PR6423 Series Sensor | Provides non-contact eddy current measurement |
| Epro CON011 Signal Converter | Conditions the sensor signal |
| Sensor Cable / Extension | Transfers the sensor signal to the converter |
| Machinery Monitoring System | Evaluates shaft position and vibration-related information |
| Monitoring Input Channel | Receives the conditioned measurement signal |
| Alarm / Protection System | Generates configured alarm or shutdown responses |
| Rotating Shaft / Conductive Target | Provides the monitored target surface |
| Probe Mounting Hardware | Maintains the sensor position and alignment |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423 Series | 8mm Eddy Current Sensor | Shaft displacement and vibration monitoring |
| Epro PR6423/01M-010 | 8mm Eddy Current Sensor | Non-contact shaft measurement |
| Epro PR6423/01M-010+CON021 | 8mm Eddy Current Sensor + Signal Converter | Combined measurement channel |
| Epro PR6423/01M-030 | 8mm Eddy Current Sensor | Rotating machinery monitoring |
| Epro PR6423 Series + CON021 | Eddy Current Sensor + Signal Converter | Condition monitoring |
| Epro PR6423 Series + CON031 | Eddy Current Sensor + Signal Converter | Shaft position and machinery monitoring |
| Epro Eddy Current Signal Converters | Signal Conditioning Equipment | Sensor signal processing |
| Epro Machinery Monitoring Systems | Machinery Monitoring Equipment | Alarm and protection applications |
Key Advantages
- Combines an 8 mm eddy current sensor with a dedicated signal converter.
- Establishes a complete sensing and signal-conditioning path for compatible monitoring systems.
- Supports non-contact measurement of rotating shaft movement.
- Suitable for vibration, displacement, and shaft-position monitoring.
- Useful for machinery protection installations where continuous measurement is required.
- Simplifies maintenance of applications using a defined PR6423 and converter combination.
Technical FAQs
Why is the CON011 included with the PR6423/01M-030 in this configuration?
The CON011 forms the signal-conditioning stage of the measurement channel. It processes the response from the PR6423 sensor so that the resulting measurement can be transferred to compatible downstream monitoring equipment.
What installation condition has the greatest effect on measurement quality?
The probe-to-target relationship is critical. Incorrect gap, poor alignment, an unsuitable target surface, or mechanical movement of the mounting arrangement can change the measured response even when the sensor and converter are functioning normally.
Can the combined assembly be connected to any machinery monitoring input?
Not automatically. The output characteristics of the CON011 must match the input requirements of the receiving monitoring equipment. The complete sensor, converter, cabling, and monitoring-system configuration should be verified before installation.
How can a fault be isolated between the PR6423 sensor and CON011 converter?
Check the probe installation and target relationship first, then inspect the sensor cable and converter connections. If the mechanical installation and wiring are correct, the converter output can be checked against the expected measurement behavior before investigating the downstream monitoring input.
