Product Overview

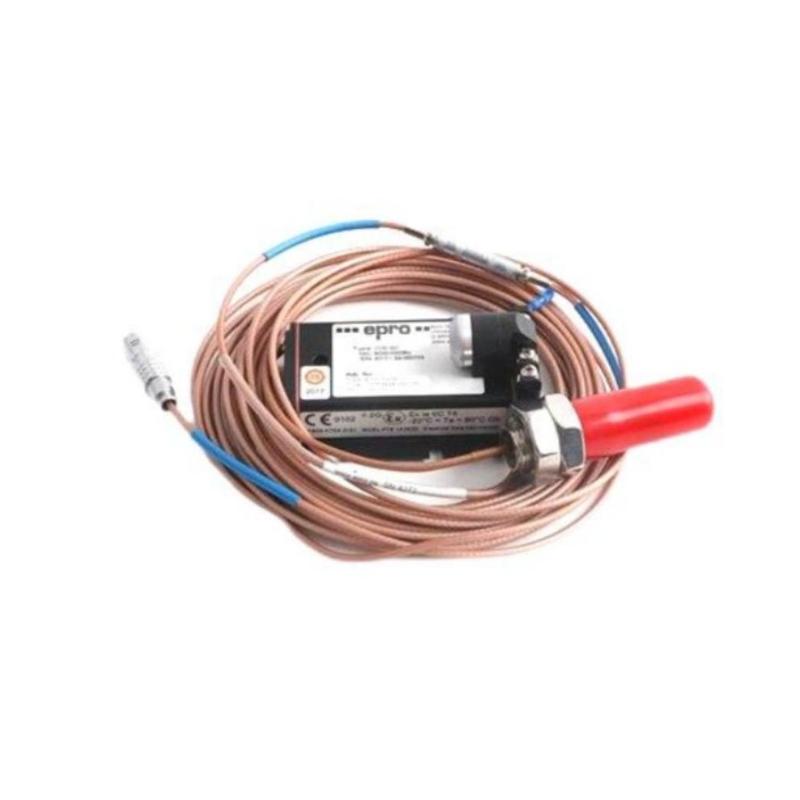

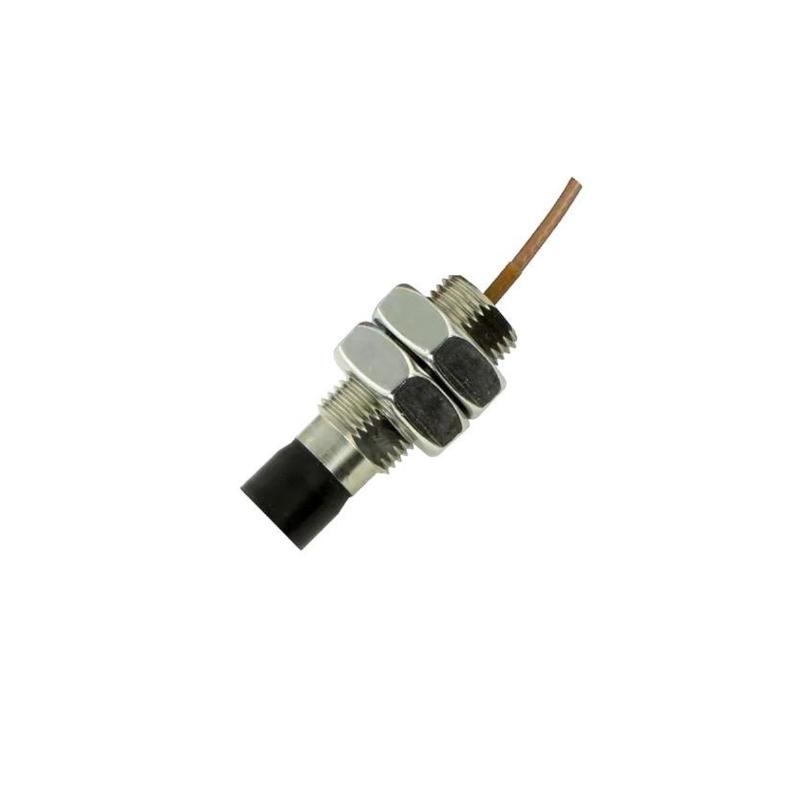

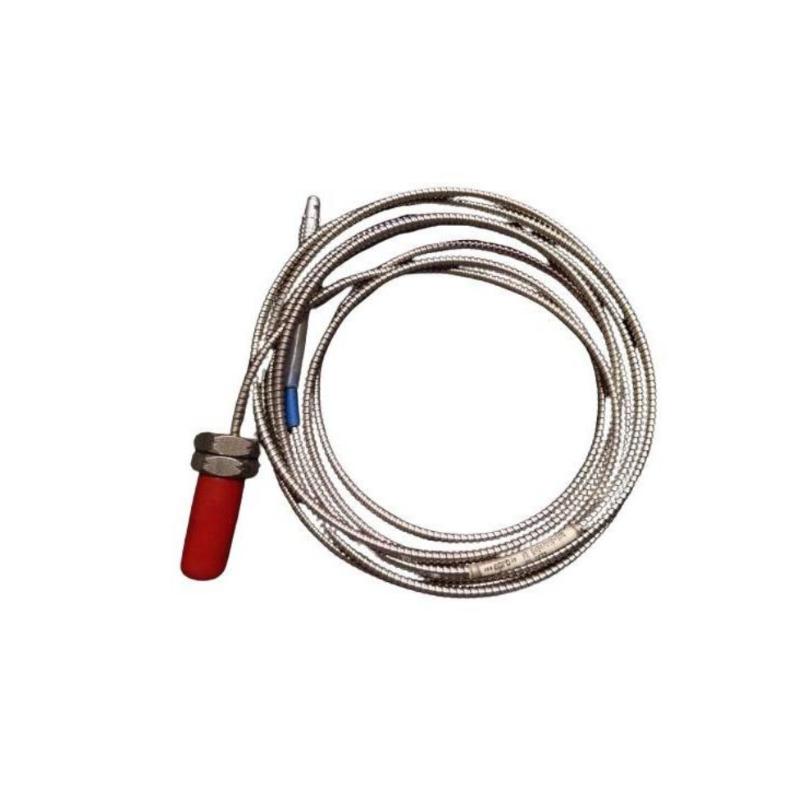

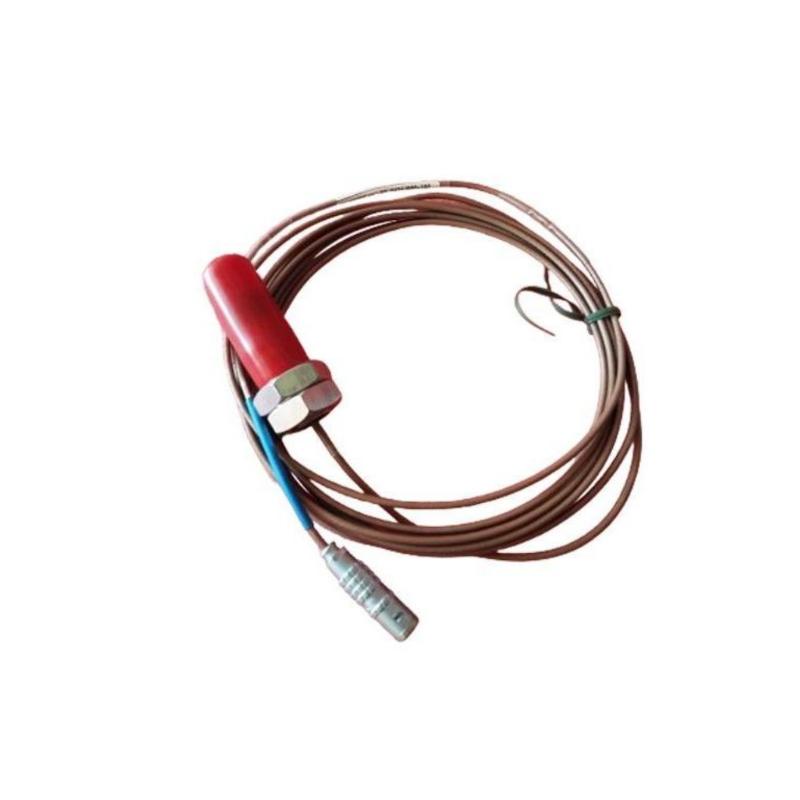

The Epro PR6423/010-010 8mm Eddy Current Sensor is a non-contact proximity sensor for measuring the relative movement of conductive targets in rotating machinery. As part of the Epro PR6423 sensor family, it can be incorporated into machinery monitoring arrangements where shaft displacement, position, or dynamic movement needs to be detected without physical contact.

The probe works at the front end of the measurement chain. It detects changes in the electromagnetic interaction between the sensing element and the monitored metal target, while compatible signal-conditioning electronics convert the sensor response into a usable monitoring signal.

This type of sensor is particularly useful around turbines, compressors, generators, pumps, and other rotating equipment where continuous shaft monitoring is required. The PR6423/010-010 should therefore be selected according to the intended measurement point, target characteristics, installation arrangement, and associated monitoring electronics.

For maintenance work, an abnormal proximity signal should not automatically be attributed to the probe. Probe gap, mounting stability, target surface condition, cabling, signal-conditioning electronics, and the monitoring channel can all affect the final measurement.

Technical Specifications

Product Features

The PR6423/010-010 combines compact probe construction with non-contact electromagnetic sensing for rotating-equipment applications.

Key characteristics include:

• Epro PR6423 series eddy-current sensor
• Model PR6423/010-010
• 8 mm sensor head diameter
• Non-contact sensing principle
• Suitable for conductive machine targets
• Applicable to shaft displacement measurement
• Suitable for position-related monitoring
• Can be incorporated into vibration-monitoring systems
• Works with compatible signal-conditioning electronics
• Suitable for continuous machinery monitoring
• Useful for turbine and rotating-equipment applications
• Suitable for maintenance and replacement projects

The probe is normally one element of a larger measurement loop, so compatibility with the associated electronics should be confirmed before installation.

Working Principle

The PR6423/010-010 detects target movement by monitoring changes in an electromagnetic field generated around the probe tip.

A typical measurement chain is:

Conductive Target → PR6423/010-010 → Signal Conditioning → Monitoring System

1. Electromagnetic Sensing

The probe establishes an electromagnetic field around its sensing tip. A conductive machine surface positioned within the sensing range interacts with this field.

2. Eddy-Current Formation

The electromagnetic field induces eddy currents in the conductive target. The resulting electrical response varies according to the relationship between the probe and target.

3. Detection of Mechanical Movement

When a shaft moves toward or away from the probe, the sensing gap changes. This produces a corresponding change in the electrical characteristics detected by the sensor.

4. Signal Conditioning

The probe output is passed to compatible signal-conditioning electronics, which convert the sensor response into a measurement suitable for the monitoring system.

5. Condition Monitoring

The resulting signal can then be used to evaluate shaft position, displacement, or dynamic movement according to the measurement channel configuration.

In practical terms:

Shaft Movement → Gap Change → Eddy-Current Variation → Electrical Signal → Machine Monitoring

Because the sensor does not physically contact the shaft, it can continuously observe movement while the equipment is operating.

Role in a Rotating Machinery Monitoring System

The PR6423/010-010 serves as the proximity sensing element within the monitoring loop.

A simplified architecture is:

Rotating Shaft → PR6423/010-010 → Signal Conditioner → Monitoring Module → Protection / Control System

The probe’s measurement quality therefore depends on both the sensor and the surrounding installation.

Industrial Applications

The actual measurement parameter depends on where the probe is installed and how the monitoring channel is configured.

Installation and Maintenance

The physical installation of an eddy-current probe directly influences its measurement behavior. The sensor should be positioned according to the requirements of the associated machinery-monitoring system.

Recommended practices include:

• Confirm the complete PR6423/010-010 model.
• Verify the 8 mm sensor head specification.
• Identify the intended measurement location.
• Inspect the probe tip before installation.
• Check the probe mounting arrangement.
• Verify the monitored target surface.
• Establish the appropriate probe-to-target gap.
• Confirm correct probe alignment.
• Inspect sensor cabling and connectors.
• Check cable routing for mechanical damage.
• Verify compatible signal-conditioning electronics.
• Confirm the monitoring-channel configuration.
• Check the sensor response under known operating conditions.
• Compare readings with expected shaft movement.
• Inspect mounting stability if readings fluctuate.
• Record the installed probe location and monitoring channel.

When a signal changes unexpectedly, investigate the complete measurement chain. Mechanical movement, probe gap variation, cable deterioration, and signal-conditioning problems can all create symptoms similar to a defective sensor.

Related Components

Recommended Related Models

Key Advantages

• Epro PR6423 series eddy-current sensor.
• Model PR6423/010-010.
• 8 mm sensor head diameter.
• Non-contact measurement technology.
• Suitable for conductive rotating-machine targets.
• Supports shaft displacement monitoring.
• Applicable to position and movement measurements.
• Suitable for vibration-related monitoring.
• Integrates with compatible signal-conditioning electronics.
• Useful for turbine and rotating-equipment maintenance.

Technical FAQs

What determines the measurement quality of an 8 mm PR6423 probe?

The sensor itself is only one factor. Probe-to-target spacing, alignment, target material and surface condition, mounting rigidity, cable integrity, and the associated signal-conditioning electronics all influence the resulting measurement.

Can the PR6423/010-010 be used for both stationary and rotating targets?

Its non-contact eddy-current principle can detect changes in distance to a conductive target. In industrial applications, its value is particularly evident when monitoring moving or rotating machine components, where continuous measurement without physical contact is required.

What happens if the probe mounting becomes loose during machine operation?

A change in probe position can change the effective sensing gap and introduce an apparent displacement signal. For this reason, unstable readings should be investigated for mechanical mounting problems before concluding that the electronic sensor has failed.

Why should the replacement probe be identified by its complete model number?

PR6423 sensors can have different model configurations and application characteristics. Using the complete PR6423/010-010 designation helps ensure that the replacement corresponds to the installed measurement arrangement rather than merely matching the general series or sensor diameter.
