Product Overview

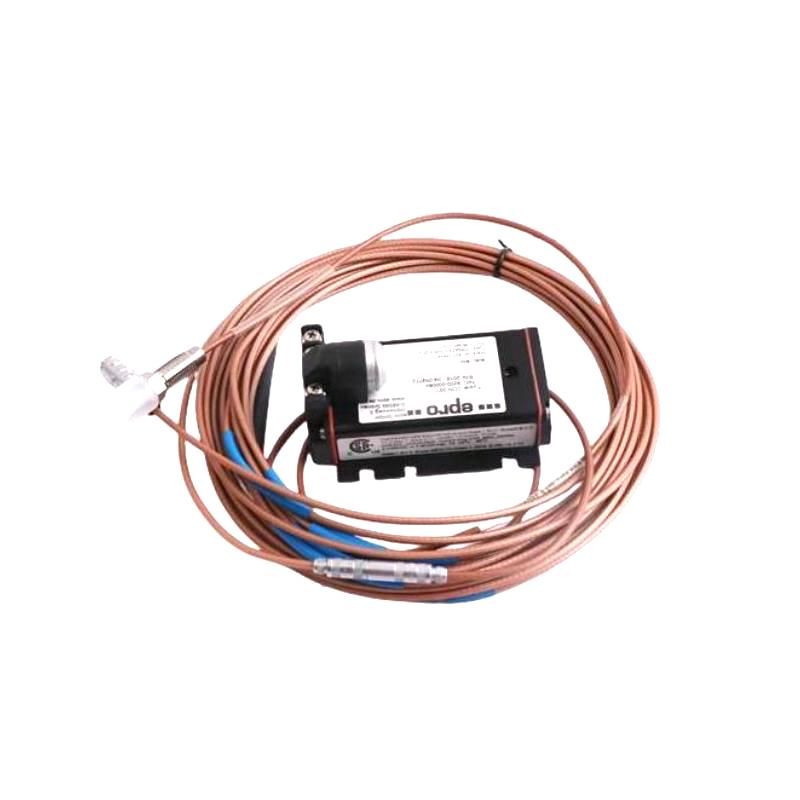

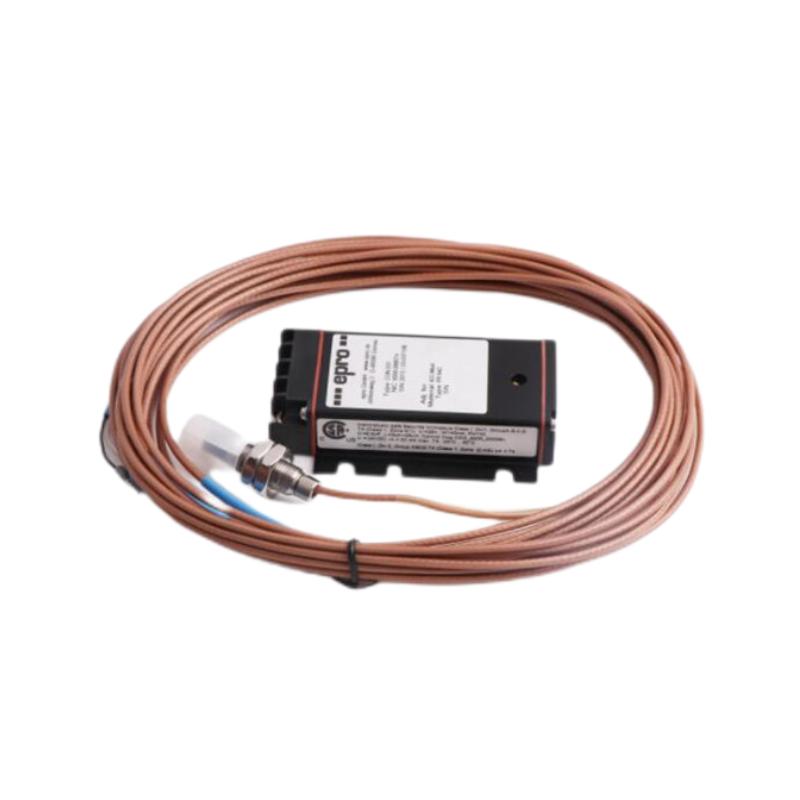

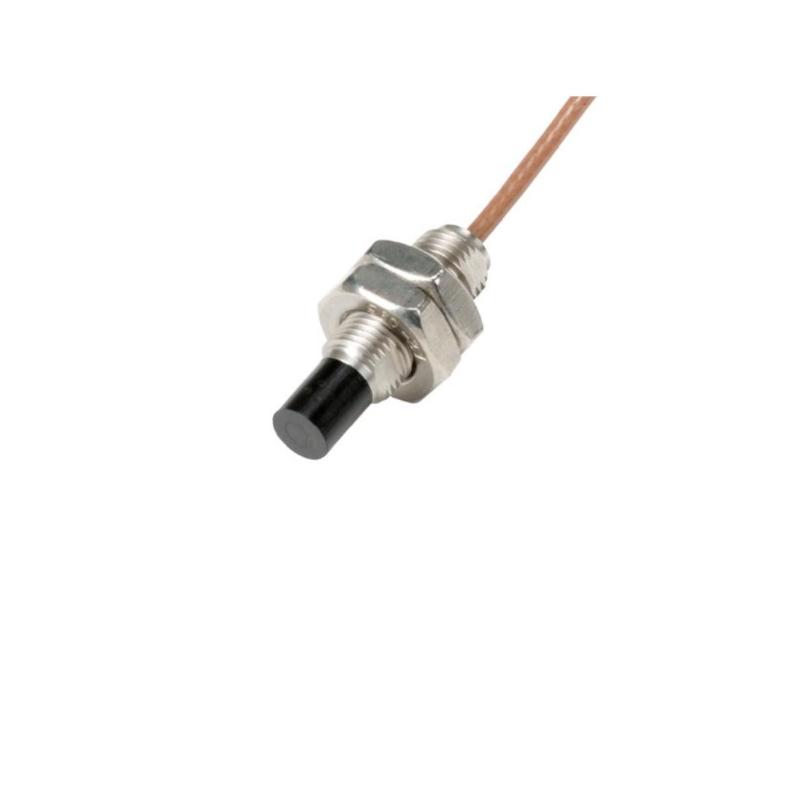

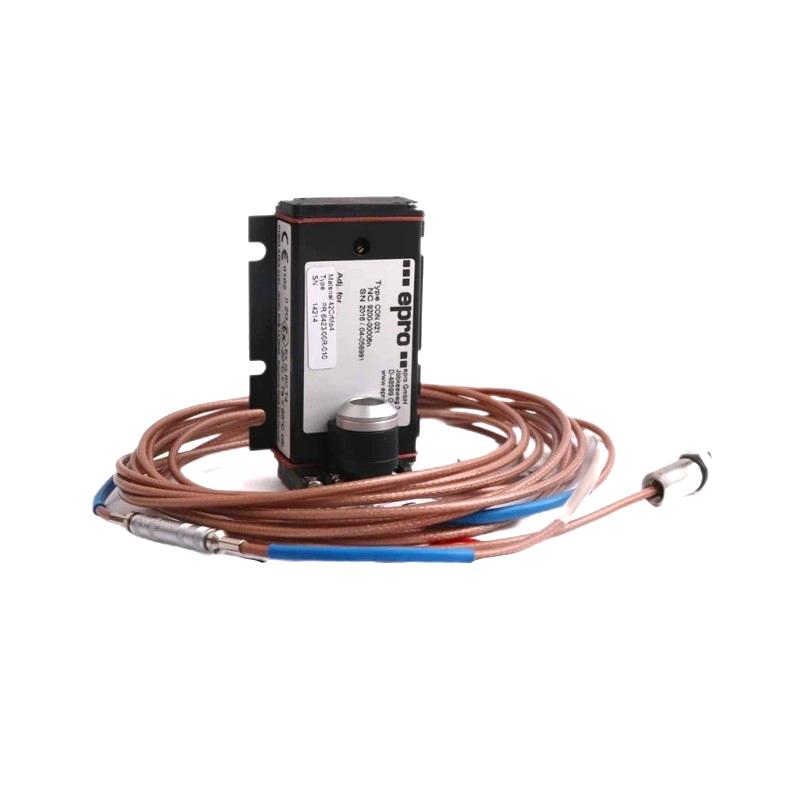

The Epro PR6423/010-000 8mm Eddy Current Sensor is a non-contact displacement and position sensor used in rotating machinery monitoring systems. It operates on the eddy-current measurement principle, allowing the sensor to detect changes in the distance between its probe tip and a conductive machine target.

This type of sensor is commonly associated with shaft vibration, radial displacement, axial position, and other dynamic mechanical measurements where direct physical contact with the rotating component would be undesirable.

The PR6423/010-000 belongs to the Epro PR6423 eddy-current sensor family and is intended to work as part of a complete proximity measurement chain. The probe itself is only one part of the system; the associated driver/converter, extension cable where applicable, monitoring module, and rotating-machine target all affect the final measurement.

For turbine and rotating-equipment maintenance, the sensor can be used as part of a continuous condition-monitoring arrangement. Correct probe installation, target condition, gap setting, cable integrity, and signal conditioning should all be considered when evaluating measurement quality.

Technical Specifications

Product Features

The PR6423/010-000 is intended for precise non-contact monitoring of conductive machine targets.

Key characteristics include:

• Epro PR6423 series eddy current sensor
• Model PR6423/010-000
• 8 mm sensor head diameter
• Non-contact measurement technology
• Suitable for rotating machinery monitoring
• Can be used for shaft displacement measurement
• Applicable to vibration-monitoring systems
• Suitable for position-related measurements
• Works with associated signal-conditioning hardware
• Useful for turbine and rotating-equipment maintenance
• Suitable for continuous machine-condition monitoring applications

The sensor does not physically contact the monitored shaft or target. This allows measurements to be taken while the machine is operating at speed without introducing mechanical wear at the sensing point.

Working Principle

The PR6423/010-000 uses eddy-current proximity measurement to determine changes in the distance between the sensor and a conductive target.

A simplified measurement chain is:

Probe → Conductive Shaft / Target → Eddy-Current Response → Signal Conditioning → Monitoring System

The operating process can be understood as follows:

1. High-Frequency Electromagnetic Field

   The sensor generates an electromagnetic field around its sensing area.

2. Interaction With the Target

   When the probe is positioned near a conductive machine surface, the electromagnetic field induces eddy currents in the target material.

3. Target Distance Changes the Response

   Changes in the gap between the probe and target alter the electrical characteristics of the sensing circuit.

4. Electrical Response Is Converted Into Measurement Information

   The associated signal-conditioning electronics interpret the probe response and produce a usable displacement-related signal.

5. Monitoring System Evaluates the Signal

   The resulting measurement can be used by a machinery monitoring system to observe shaft position, displacement, vibration-related movement, or other configured parameters.

For rotating equipment, a typical arrangement can be represented as:

Rotating Shaft Movement → Probe Gap Variation → Electrical Response → Condition Monitoring

Because the measurement is non-contact, the probe can continuously observe shaft movement without physically touching the rotating surface.

Role in a Rotating Machinery Monitoring System

The PR6423/010-000 normally forms the sensing element within a broader proximity measurement system.

A typical architecture is:

Rotating Shaft → PR6423/010-000 → Signal Conditioner / Driver → Monitoring Module → Control / Protection System

The probe therefore should not be evaluated independently when diagnosing a complete machinery-monitoring loop.

Industrial Applications

The exact measurement function depends on the probe installation location and the monitoring system configuration.

Installation and Maintenance

Correct installation is particularly important for eddy-current sensors because probe position and target characteristics directly affect the measurement.

Recommended practices include:

• Confirm the complete PR6423/010-000 model.
• Verify the 8 mm sensor head specification.
• Confirm the intended measurement location.
• Inspect the probe tip for mechanical damage.
• Check the probe mounting arrangement.
• Verify the target surface condition.
• Set the required probe-to-target gap according to the applicable system requirements.
• Inspect associated cabling and connectors.
• Check for cable shielding or grounding issues where applicable.
• Verify the compatible driver or signal-conditioning hardware.
• Confirm the monitoring-channel configuration.
• Check the sensor output under known machine conditions.
• Compare readings with expected shaft behavior.
• Inspect the installation for excessive vibration or mechanical movement.
• Record the final probe position and measurement channel.

When a proximity signal becomes unstable, do not immediately assume that the sensor has failed. Probe gap, shaft condition, cable integrity, driver electronics, mounting stability, and target material can all influence the resulting signal.

Related Components

Recommended Related Models

Key Advantages

• Epro PR6423 series eddy current sensor.
• Model PR6423/010-000.
• 8 mm sensor head diameter.
• Non-contact measurement principle.
• Suitable for conductive rotating-machine targets.
• Supports displacement and position monitoring.
• Applicable to shaft vibration-related measurements.
• Suitable for continuous rotating-equipment monitoring.
• Useful in turbine, compressor, pump, and generator applications.
• Integrates with a complete proximity monitoring chain.

Technical FAQs

Why is an eddy-current sensor suitable for measuring a rotating shaft?

The sensor measures the distance to the conductive target without physical contact. This allows shaft movement to be monitored while the machine is rotating, avoiding mechanical contact between the probe and shaft surface.

What can cause an incorrect PR6423/010-000 measurement even when the probe is electrically functional?

An incorrect probe gap, damaged target surface, unstable mounting, cable problems, incompatible signal-conditioning hardware, or electrical interference can all affect the measurement. The complete sensing loop should therefore be checked rather than testing only probe continuity.

Why is the conductive target important for eddy-current measurement?

The measurement depends on the electromagnetic interaction between the sensor and the conductive target. Target material, surface condition, and geometry can therefore influence the sensor response and should be considered when installing or troubleshooting the probe.

How can a proximity sensor signal be checked during machinery maintenance?

First verify the physical installation and probe gap, then inspect the cable and associated driver or signal-conditioning electronics. The measured signal should subsequently be compared with known machine operating conditions and the expected shaft movement for that monitoring position.
