Product Overview

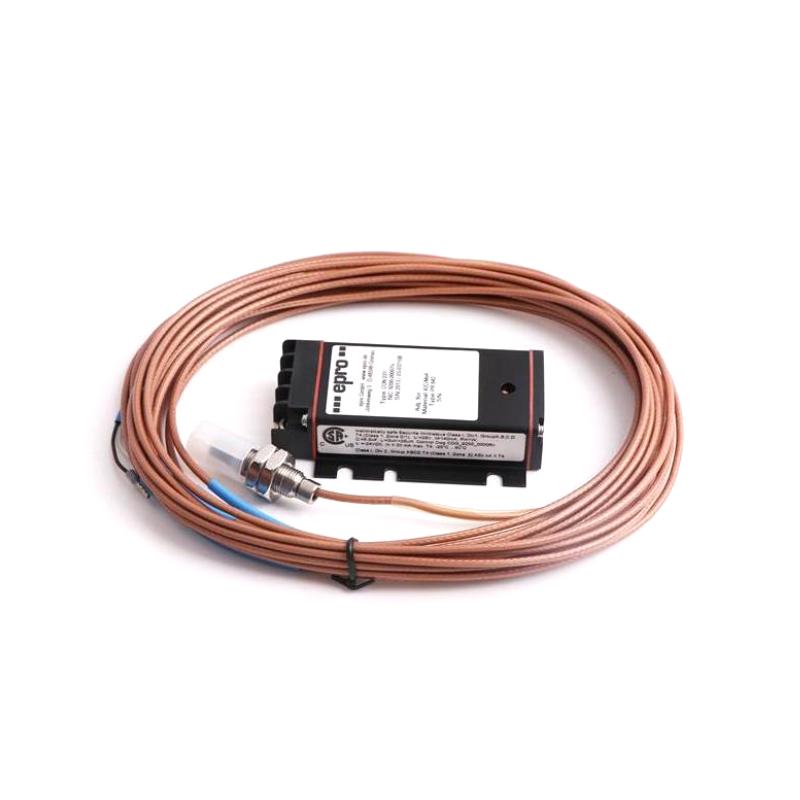

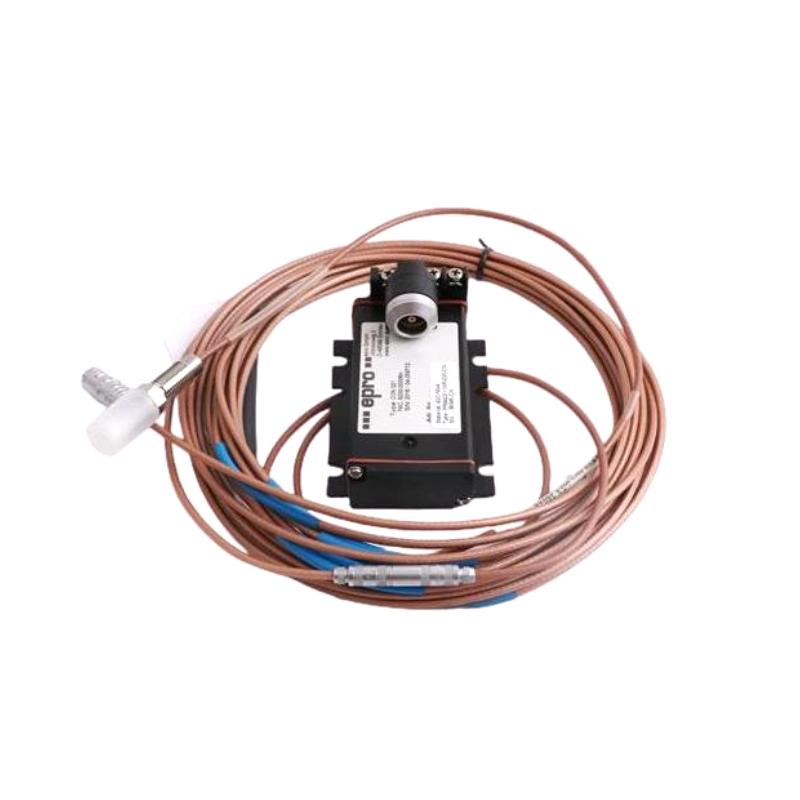

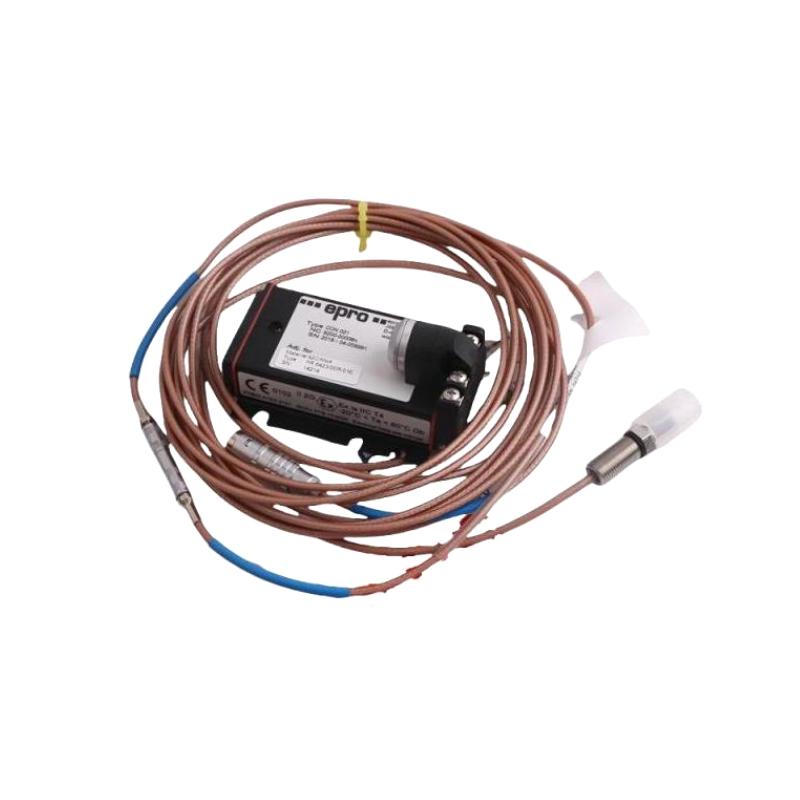

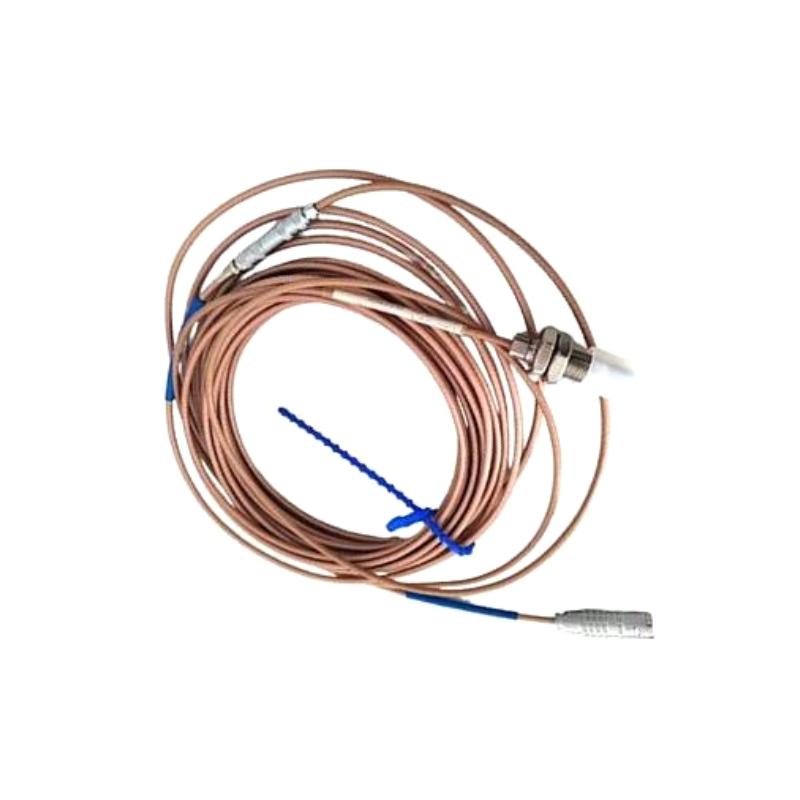

The Epro PR6423/00R-101 8mm Eddy Current Sensor is a non-contact proximity measurement probe designed for monitoring shaft displacement, vibration, and position changes in rotating machinery.
As a member of the Epro PR6423 series, this sensor is used in industrial condition monitoring systems where accurate measurement of rotating components is required. The probe detects variations in the distance between the sensor tip and the conductive target surface, providing continuous displacement information without mechanical contact.
Rotating equipment such as turbines, compressors, generators, and pumps relies on precise shaft monitoring to maintain safe and stable operation. The PR6423/00R-101 provides measurement data that can be analyzed by compatible monitoring systems for equipment diagnostics and protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/00R-101 |
| Product Type | 8mm Eddy Current Sensor |
| Measurement Technology | Eddy Current Proximity Measurement |
| Sensor Head Diameter | 8 mm |
| Application | Shaft Displacement and Vibration Monitoring |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/00R-101 provides stable and accurate displacement measurement for industrial rotating equipment.
Key characteristics include:
- Epro PR6423 series proximity sensor
- 8 mm sensor head design
- Non-contact eddy current measurement
- Suitable for shaft position monitoring
- Supports vibration condition analysis
- Designed for rotating machinery applications
- Compatible with Epro signal converters
- Used in machinery protection and diagnostic systems
The sensor provides continuous measurement capability for applications requiring reliable monitoring of rotating components.
Working Principle
The PR6423/00R-101 uses eddy current technology to measure the distance between the sensor probe and a conductive rotating target.
The measurement process is:
Rotating Shaft → PR6423/00R-101 Sensor → Signal Converter → Monitoring System
The sensor generates a high-frequency electromagnetic field around the probe tip. When the shaft moves closer or farther from the sensor, the electromagnetic interaction changes due to variations in the eddy current effect.
These changes are converted into displacement information by a compatible signal converter and then transmitted to the machinery monitoring system.
The measurement data can be used for:
- Shaft vibration monitoring
- Radial displacement measurement
- Axial position detection
- Rotor condition evaluation
- Equipment protection analysis
Role in a Machinery Protection System
The Epro PR6423/00R-101 acts as a precision sensing element in rotating machinery monitoring systems.
A typical monitoring structure is:
Rotating Shaft → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
The sensor continuously measures shaft movement and provides real-time information about mechanical operating conditions.
In critical machinery applications, this data helps identify abnormal vibration behavior, shaft movement changes, and possible mechanical issues before they develop into major failures.
Industrial Applications
The Epro PR6423/00R-101 8mm Eddy Current Sensor is commonly applied in industrial equipment monitoring systems.
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft vibration and displacement monitoring |
| Gas Turbines | Rotor position measurement |
| Compressors | Monitoring shaft movement conditions |
| Generators | Machinery protection applications |
| Pumps | Rotating equipment diagnostics |
| Industrial Machinery | Predictive maintenance monitoring |
The final application depends on equipment structure and monitoring system requirements.
Installation and Maintenance
Proper installation ensures reliable sensor performance and measurement accuracy.
Recommended procedures include:
- Confirm sensor model before installation
- Check probe mounting position
- Maintain correct measurement gap
- Inspect sensor cable condition
- Verify signal converter compatibility
- Monitor signal stability
- Check mechanical mounting condition
- Confirm monitoring system settings
During sensor replacement, engineers should verify the complete measurement channel configuration to ensure proper operation.
Related Components
The PR6423/00R-101 is commonly used with additional Epro monitoring components.
| Component | Function |
|---|---|
| Epro Signal Converter | Processes sensor measurement signals |
| Extension Cable | Connects sensor and converter |
| Monitoring Module | Analyzes vibration and displacement data |
| Machinery Protection System | Provides alarms and equipment protection |
| Rotating Equipment | Provides the measurement target surface |
These components work together to create a complete condition monitoring system.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/00R-101 | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/00R-030 | 8mm Eddy Current Sensor | Rotating machinery monitoring |
| Epro PR6423/00R-010 | 8mm Eddy Current Sensor | Proximity measurement |
| Epro PR6423/00N-030 | 8mm Eddy Current Sensor | Vibration monitoring |
| Epro PR6423/00M-030 | 8mm Eddy Current Sensor | Industrial displacement measurement |
Model selection should consider machinery requirements, measurement range, converter compatibility, and existing monitoring system design.
Key Advantages
- Epro PR6423 series 8mm eddy current sensor.
- Provides accurate non-contact displacement measurement.
- Suitable for high-speed rotating equipment.
- Supports vibration and shaft position monitoring.
- Reduces mechanical wear compared with contact measurement methods.
- Integrates with industrial machinery protection systems.
Technical FAQs
What is the Epro PR6423/00R-101 mainly used for?
The sensor is mainly used for measuring shaft displacement and vibration conditions in rotating machinery monitoring applications.
How does an 8mm eddy current probe support turbine and compressor protection?
The probe continuously detects shaft movement, allowing monitoring systems to identify abnormal rotor behavior and potential mechanical issues.
What components are normally installed with the PR6423/00R-101?
A complete measurement channel typically includes the sensor, compatible signal converter, connection cable, and machinery monitoring module.
Why are Epro PR6423 series sensors suitable for predictive maintenance systems?
They provide continuous displacement data that helps engineers analyze equipment condition and detect mechanical changes before failures occur.
