Product Overview

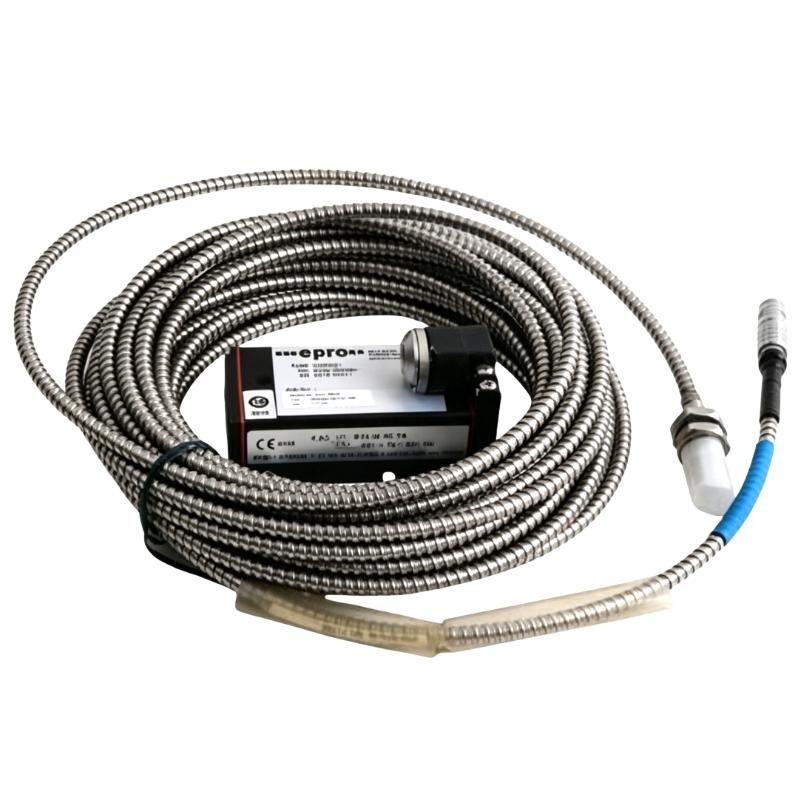

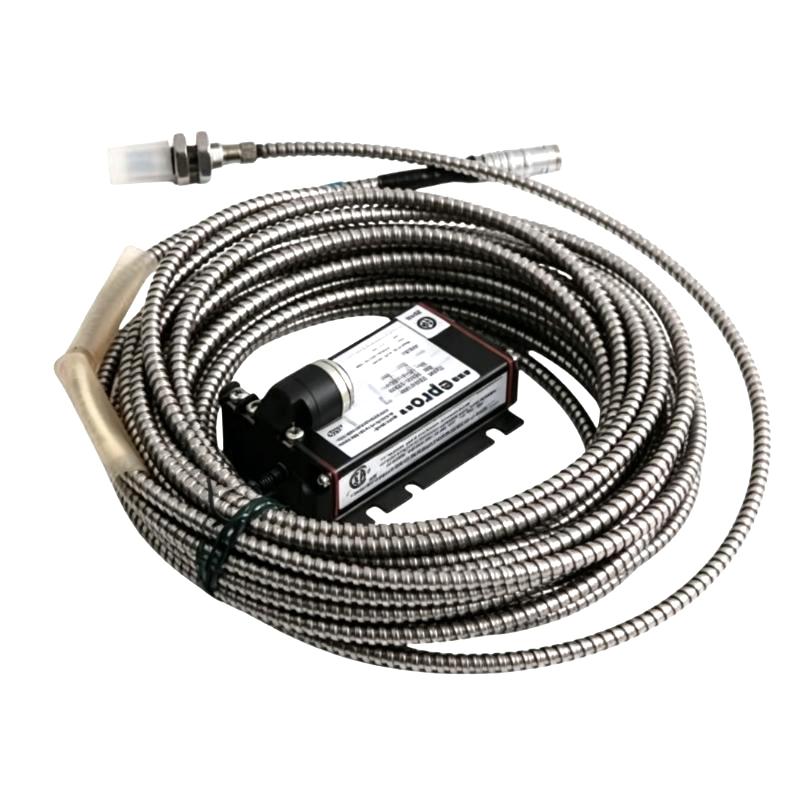

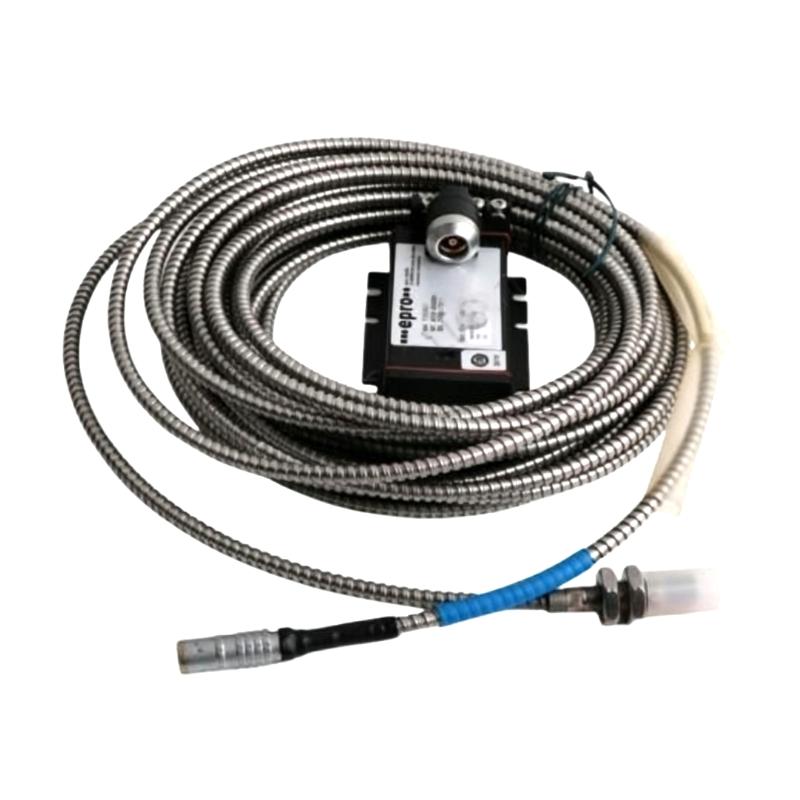

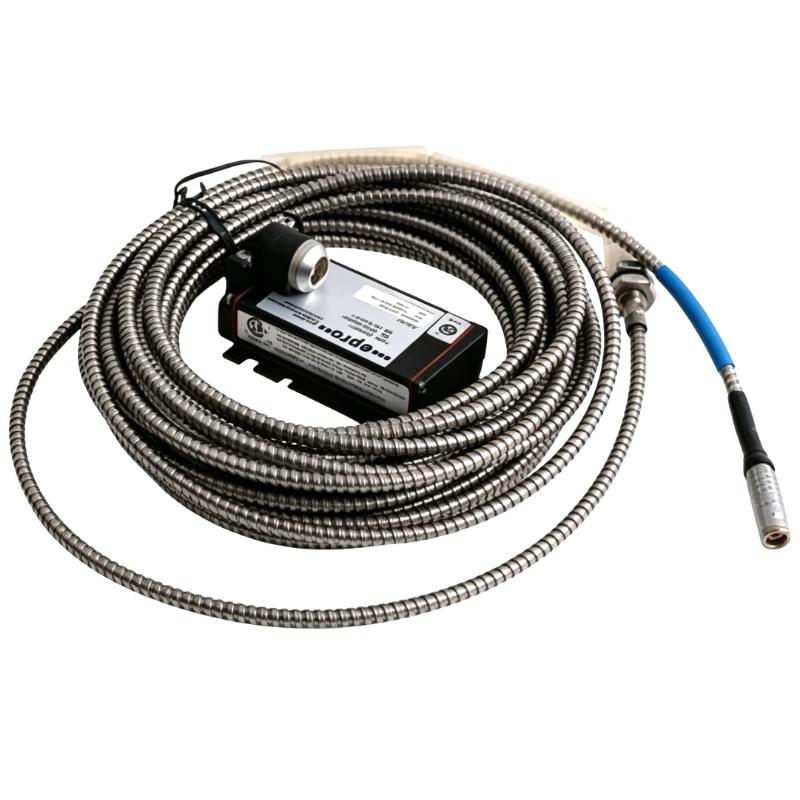

The Epro PR6423/00R-010-CN+CON021 8mm Eddy Current Sensor and Signal Converter is a combined displacement measurement system used for monitoring shaft position, vibration, and mechanical movement in rotating equipment.
This configuration integrates the PR6423/00R-010-CN eddy current sensor with the CON021 signal converter, forming a complete measurement channel for industrial machinery condition monitoring. The sensor detects the distance between the probe tip and the conductive target surface, while the converter processes the signal for connection with monitoring and protection systems.
In applications such as turbines, compressors, generators, and large rotating machinery, accurate shaft displacement measurement helps operators identify abnormal operating conditions and maintain equipment reliability.
The PR6423/00R-010-CN+CON021 combination is typically installed as part of a vibration monitoring or machinery protection system where continuous, non-contact measurement is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/00R-010-CN+CON021 |
| Product Type | 8mm Eddy Current Sensor + Signal Converter |
| Sensor Model | PR6423/00R-010-CN |
| Signal Converter | CON021 |
| Measurement Technology | Eddy Current Proximity Measurement |
| Sensor Head Diameter | 8 mm |
| Application | Shaft Displacement and Vibration Monitoring |
| Weight | 0.22 kg |
Product Features
The Epro PR6423/00R-010-CN+CON021 provides an integrated solution for rotating machinery measurement applications.
Key characteristics include:
- Epro PR6423 series 8mm eddy current sensor
- Includes CON021 signal converter
- Non-contact displacement measurement technology
- Designed for rotating shaft monitoring
- Supports vibration and position measurement
- Provides stable signal processing for monitoring systems
- Suitable for machinery protection applications
- Simplifies integration of sensor and converter components
The integrated configuration allows easier deployment in systems requiring accurate shaft measurement and condition monitoring.
Working Principle
The PR6423/00R-010-CN+CON021 system uses eddy current technology to measure changes in the distance between the sensor probe and the rotating shaft.
The measurement process is:
Rotating Shaft → PR6423/00R-010-CN Sensor → CON021 Converter → Monitoring System
The sensor generates an electromagnetic field at the probe tip. When the distance between the probe and the conductive shaft changes, the eddy current effect changes, causing variations in the sensor signal.
The CON021 signal converter processes these changes and converts them into usable measurement information for monitoring equipment.
The system can provide data for:
- Shaft vibration analysis
- Radial displacement monitoring
- Axial position detection
- Machinery protection
- Predictive maintenance systems
Role in a Machinery Protection System
The Epro PR6423/00R-010-CN+CON021 functions as a complete displacement measurement channel within rotating equipment monitoring systems.
A typical installation structure is:
Machine Shaft → Eddy Current Probe → Signal Converter → Monitoring Module → Protection System
The sensor continuously detects shaft movement, while the converter prepares the signal for analysis by the monitoring system.
For critical rotating equipment, this measurement information helps identify mechanical conditions such as excessive vibration, rotor movement changes, and potential equipment faults.
Industrial Applications
The Epro PR6423/00R-010-CN+CON021 Eddy Current Sensor System is widely applied in industrial machinery monitoring.
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft displacement and vibration monitoring |
| Gas Turbines | Rotor position measurement |
| Compressors | Monitoring shaft operating conditions |
| Generators | Machinery protection and diagnostics |
| Pumps | Rotating equipment condition analysis |
| Industrial Machinery | Predictive maintenance monitoring |
The specific installation depends on the machine design and protection system requirements.
Installation and Maintenance
Correct installation ensures stable measurement performance.
Recommended procedures include:
- Confirm sensor and converter compatibility
- Install probe with correct mounting position
- Maintain proper sensor gap distance
- Check cable connection condition
- Verify converter operation
- Monitor measurement stability
- Inspect probe tip condition
- Confirm monitoring system configuration
During replacement, both the sensor model and converter model should be verified to ensure correct system performance.
Related Components
The PR6423/00R-010-CN+CON021 works together with several machinery monitoring components.
| Component | Function |
|---|---|
| PR6423 Eddy Current Sensor | Detects shaft displacement changes |
| CON021 Signal Converter | Processes sensor signals |
| Extension Cable | Connects sensor and converter |
| Vibration Monitoring Module | Analyzes displacement data |
| Machinery Protection System | Provides alarm and shutdown functions |
These components create a complete rotating equipment monitoring solution.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/00R-010-CN+CON021 | Sensor + Signal Converter Set | Shaft displacement monitoring |
| Epro PR6423/00R-010+CON021 | Sensor + Signal Converter Set | Rotating machinery monitoring |
| Epro PR6423/00N-030+CON041 | Sensor + Signal Converter Set | Vibration monitoring |
| Epro PR6423/00M-030 | 8mm Eddy Current Sensor | Proximity measurement |
| Epro PR6423/00E-030 | 8mm Eddy Current Sensor | Machinery condition monitoring |
Model selection should consider machine type, measurement requirements, converter compatibility, and existing monitoring system configuration.
Key Advantages
- Integrated Epro eddy current sensor and converter solution.
- Provides accurate non-contact displacement measurement.
- Supports rotating machinery vibration monitoring.
- Reduces system integration complexity.
- Suitable for continuous industrial operation.
- Helps improve machinery condition analysis.
Technical FAQs
What is the difference between PR6423/00R-010-CN+CON021 and a standalone PR6423 sensor?
The combined model includes both the proximity sensor and signal converter, providing a complete measurement channel for direct connection to monitoring equipment.
Why are Epro eddy current sensors widely used for turbine and compressor monitoring?
They provide non-contact measurement, allowing continuous monitoring of high-speed rotating shafts without mechanical wear.
What parameters can be monitored using the PR6423/00R-010-CN+CON021 system?
The system is commonly used for shaft displacement, rotor position changes, and vibration-related measurements in rotating machinery.
What should be considered when selecting an Epro proximity sensor system?
Selection should consider sensor size, measurement range, converter compatibility, machine structure, and the requirements of the monitoring system.
