Product Overview

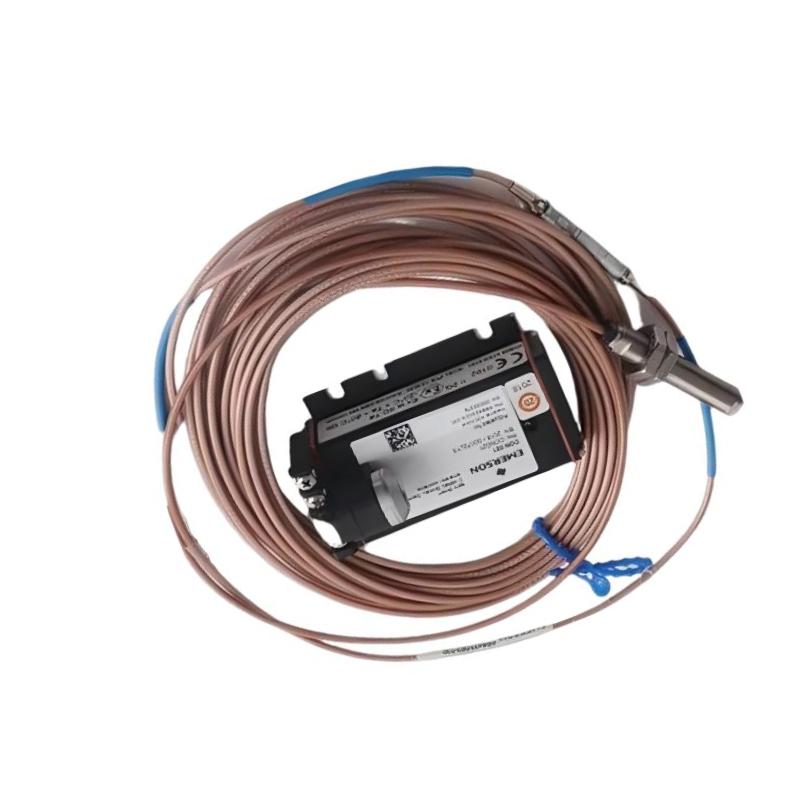

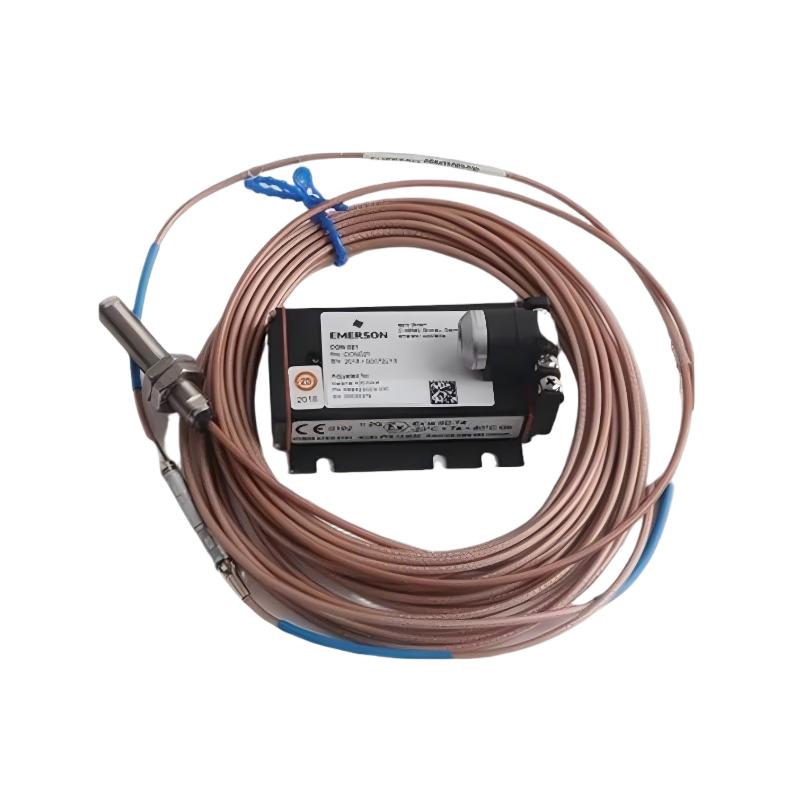

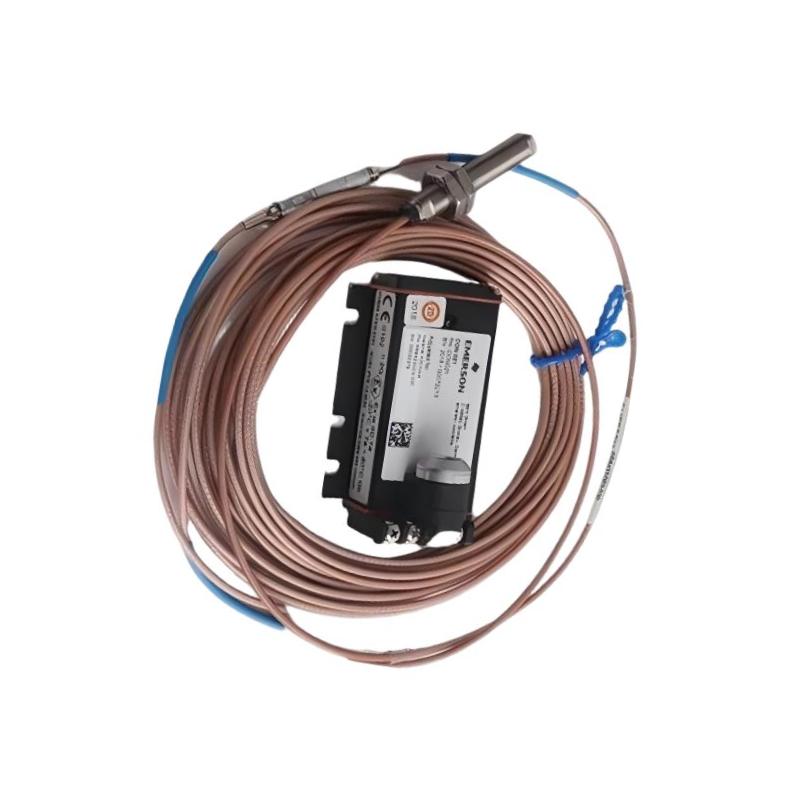

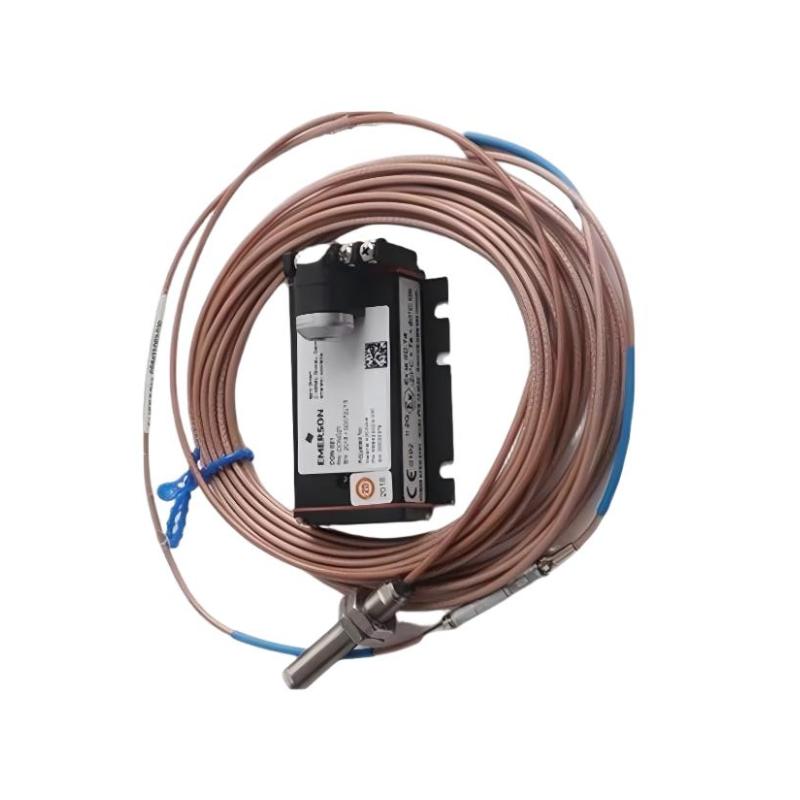

The Epro PR6423/00N-030 8mm Eddy Current Sensor is a non-contact displacement measurement sensor used for monitoring the position, vibration, and movement of rotating machinery components.
In industrial condition monitoring systems, accurate shaft displacement measurement is essential for protecting critical rotating equipment such as turbines, compressors, pumps, and generators. The PR6423 series eddy current sensor detects the distance between the probe tip and the target surface without physical contact, allowing continuous monitoring under high-speed operating conditions.
The PR6423/00N-030 belongs to the Epro proximity measurement product family and is commonly integrated with signal converters, monitoring systems, and protection platforms to provide reliable vibration and position information for rotating machinery.
This sensor is typically installed near rotating shafts where precise gap measurement and stable vibration monitoring are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/00N-030 |
| Product Type | 8mm Eddy Current Sensor |
| Measurement Technology | Eddy Current Proximity Measurement |
| Sensor Head Diameter | 8 mm |
| Application | Shaft Displacement and Vibration Monitoring |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/00N-030 Eddy Current Sensor provides accurate non-contact measurement for rotating machinery monitoring applications.
Key characteristics include:
- Epro PR6423 series proximity sensor
- 8 mm sensor head design
- Eddy current measurement technology
- Non-contact displacement detection
- Suitable for rotating equipment condition monitoring
- Supports vibration and shaft position measurement
- Designed for industrial machinery protection systems
- Compatible with Epro signal processing equipment
The sensor is normally used together with a compatible signal converter and monitoring module to create a complete vibration measurement channel.
Working Principle
The PR6423/00N-030 operates based on eddy current measurement technology.
The typical measurement system includes:
Sensor Probe → Signal Converter → Monitoring System → Control / Protection System
The sensor generates a high-frequency electromagnetic field at the probe tip. When the probe approaches a conductive target such as a rotating shaft, eddy currents are generated on the target surface.
Changes in the gap distance between the probe and shaft affect the electromagnetic characteristics of the sensor circuit. The signal converter processes these changes and converts them into proportional displacement information.
The measured data can be used for:
- Shaft vibration monitoring
- Radial displacement measurement
- Axial position monitoring
- Machinery protection
- Predictive maintenance analysis
Because the sensor does not require physical contact, it can operate reliably in high-speed rotating equipment environments.
Role in a Machinery Protection System
The Epro PR6423/00N-030 functions as a precision measurement element within rotating equipment monitoring systems.
A typical configuration is:
Rotating Shaft → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
The sensor continuously measures shaft movement and provides displacement information to the monitoring system.
In applications such as turbines and compressors, this measurement helps detect abnormal vibration conditions, mechanical wear, shaft misalignment, and other potential equipment issues before serious failures occur.
Industrial Applications
The Epro PR6423/00N-030 8mm Eddy Current Sensor is widely used in industrial machinery monitoring applications.
| Application | Typical Use |
|---|---|
| Steam Turbines | Monitoring shaft vibration and displacement |
| Gas Turbines | Detecting rotor movement conditions |
| Compressors | Monitoring rotating shaft stability |
| Pumps | Checking mechanical vibration behavior |
| Generators | Supporting machinery protection |
| Industrial Rotating Equipment | Condition monitoring and fault diagnosis |
The actual installation depends on machinery design and monitoring system requirements.
Installation and Maintenance
Correct installation is important for accurate eddy current measurement.
Recommended procedures include:
- Confirm correct sensor model before installation
- Maintain proper probe mounting position
- Verify sensor gap distance
- Check cable and connector condition
- Confirm signal converter compatibility
- Inspect probe tip condition
- Monitor measurement stability
- Verify calibration settings during maintenance
During replacement, engineers should confirm sensor type, mounting dimensions, and monitoring system compatibility.
Related Components
The PR6423/00N-030 is commonly used with other Epro monitoring components.
| Component | Function |
|---|---|
| Epro Signal Converter | Converts sensor signal into monitoring data |
| Eddy Current Extension Cable | Connects sensor to converter |
| Monitoring Module | Processes vibration and displacement information |
| Machinery Protection System | Provides alarm and shutdown functions |
| Rotating Equipment | Provides the monitored target surface |
Together, these components form a complete rotating machinery condition monitoring system.
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/00N-030 | 8mm Eddy Current Sensor | Shaft displacement measurement |
| Epro PR6423/00M-030 | 8mm Eddy Current Sensor | Rotating equipment monitoring |
| Epro PR6423/00E-030 | 8mm Eddy Current Sensor | Vibration measurement applications |
| Epro PR6423/00C-030-CN | 8mm Eddy Current Sensor | Machinery protection systems |
| Epro PR6423/009-031-CN | 8mm Eddy Current Sensor | Industrial condition monitoring |
Model selection should consider sensor range, installation requirements, converter compatibility, and monitoring system configuration.
Key Advantages
- Epro 8mm eddy current proximity sensor.
- Provides non-contact displacement measurement.
- Suitable for high-speed rotating machinery.
- Supports vibration and shaft position monitoring.
- Integrates with industrial protection systems.
- Helps improve equipment condition monitoring.
Technical FAQs
What is the main application of the Epro PR6423/00N-030 sensor?
The sensor is mainly used for non-contact measurement of shaft displacement and vibration in rotating machinery monitoring systems.
How does an eddy current sensor measure shaft movement?
The sensor detects changes in electromagnetic field characteristics caused by variations in the distance between the probe tip and the conductive shaft surface.
Why are 8mm proximity probes commonly used in turbine and compressor monitoring?
The 8mm probe size provides a suitable measurement range for many large rotating machines where accurate shaft displacement monitoring is required.
What components are required to build a complete Epro vibration monitoring channel?
A complete system typically includes the eddy current sensor, signal converter, extension cable, and monitoring/protection module.
