Product Overview

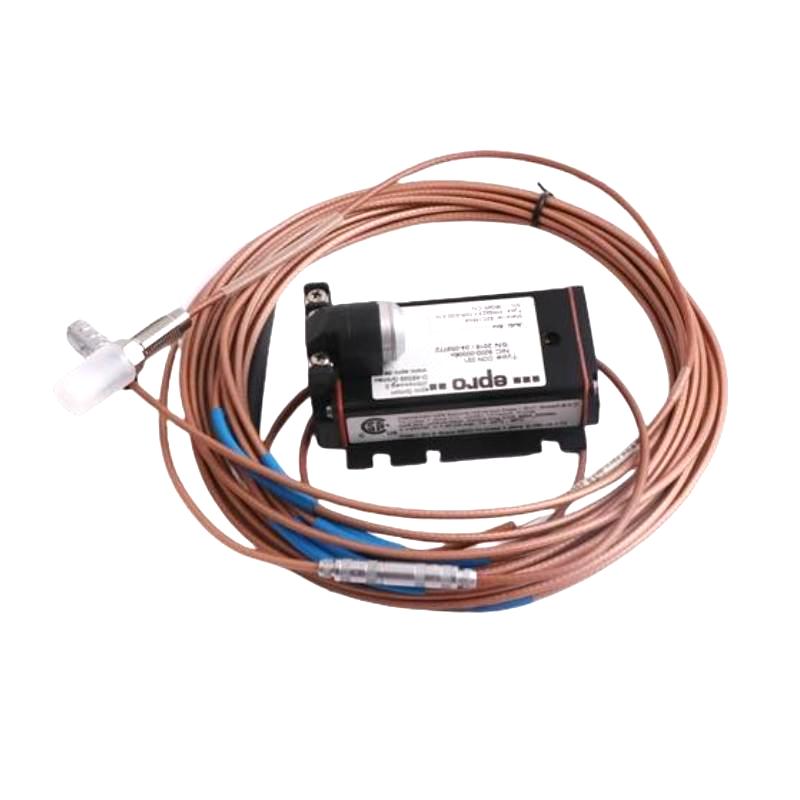

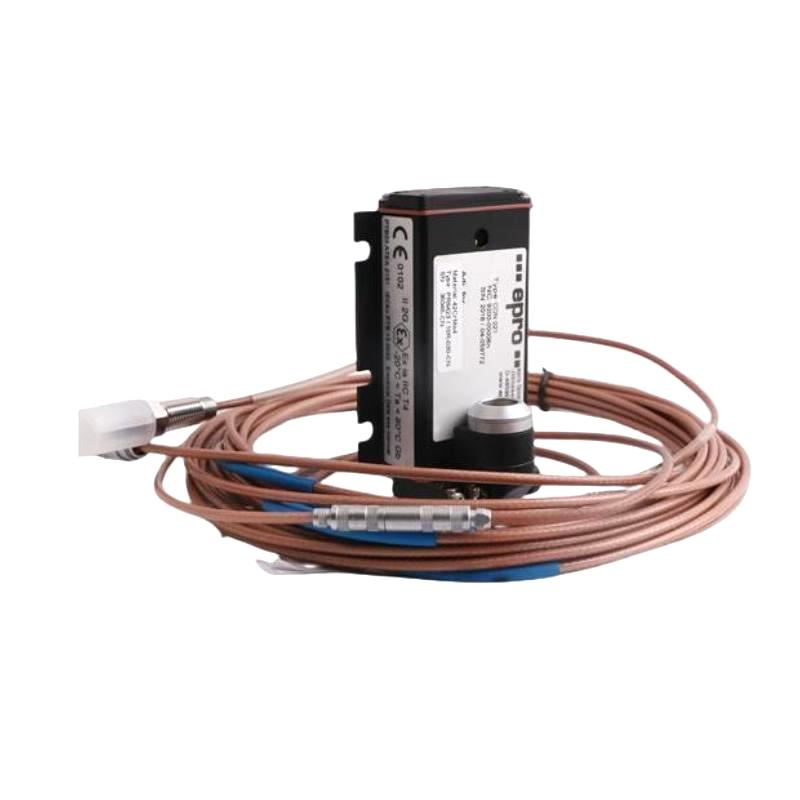

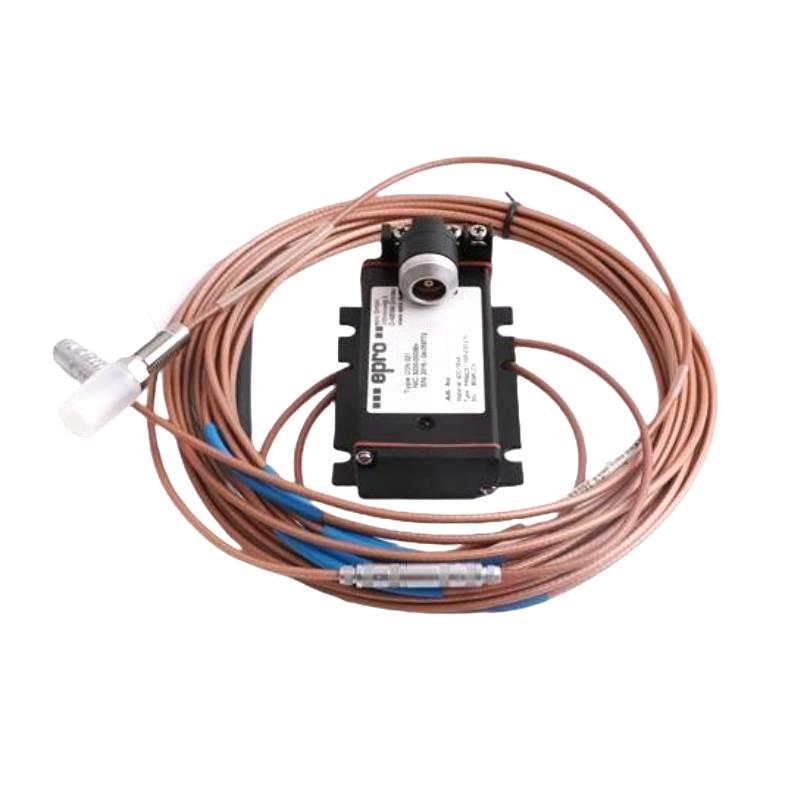

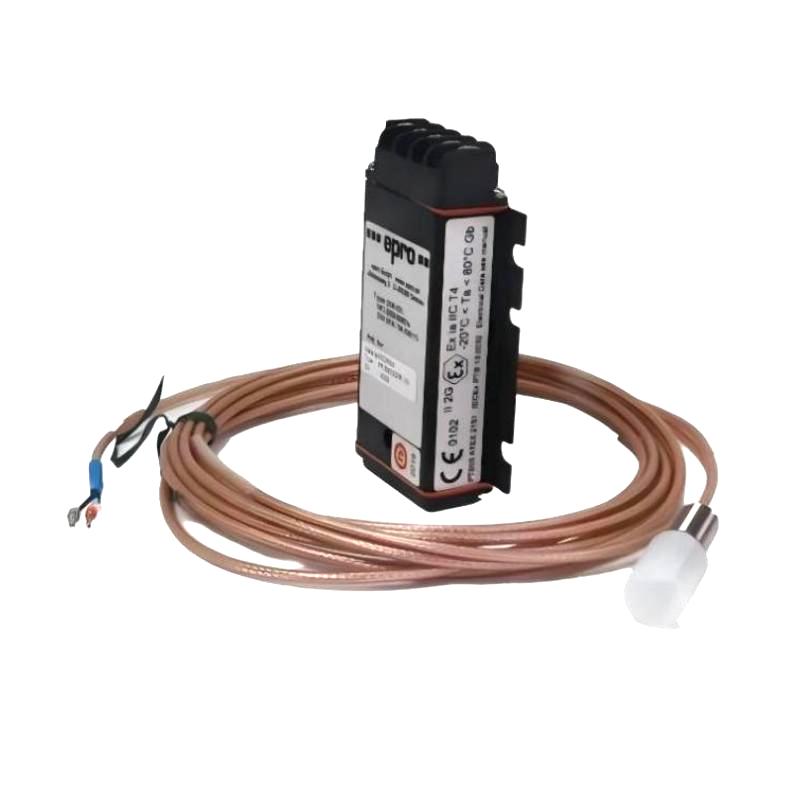

The Epro PR6423/00C-030-CN 8mm Eddy Current Sensor is a non-contact displacement measurement probe used in rotating machinery monitoring systems to detect shaft movement, vibration behavior, and relative position changes.
In industrial equipment such as turbines, compressors, pumps, and high-speed rotating machines, mechanical conditions must be monitored continuously to prevent unexpected failures. The PR6423/00C-030-CN uses eddy current measurement technology to detect changes in the distance between the sensor tip and the rotating shaft surface without direct mechanical contact.
This type of sensor is commonly installed as part of an Epro machinery protection system, where the probe signal is transmitted to a compatible signal converter and monitoring module for vibration analysis, alarm processing, and equipment protection.
Unlike accelerometers that measure casing vibration, an eddy current sensor directly observes shaft movement relative to the machine housing. This makes it suitable for applications where accurate rotor displacement information is required.
For maintenance engineers working with Epro monitoring installations, the PR6423/00C-030-CN is typically considered during sensor replacement, vibration measurement issues, or machinery protection system maintenance. Troubleshooting should include probe position, installation gap, shaft target condition, signal cable, converter, and monitoring configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/00C-030-CN |
| Product Family | PR6423 Series |
| Product Type | 8mm Eddy Current Sensor |
| Measurement Principle | Eddy Current Displacement Measurement |
| Main Function | Non-contact shaft displacement measurement |
| Sensor Head Diameter | 8 mm |
| Application | Rotating Machinery Monitoring |
| System Role | Vibration and Position Measurement Sensor |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/00C-030-CN 8mm Eddy Current Sensor is used for precision shaft monitoring applications in industrial machinery.
Key characteristics include:
- Epro PR6423 series eddy current probe
- Model PR6423/00C-030-CN
- 8mm sensor head diameter
- Non-contact measurement technology
- Suitable for shaft displacement monitoring
- Supports rotating machinery condition analysis
- Used with compatible signal converters and monitoring systems
- Suitable for industrial machinery protection applications
The sensor should be installed according to the requirements of the associated monitoring system and mechanical equipment.
Working Principle
The PR6423/00C-030-CN measures shaft movement through changes in an electromagnetic field generated between the probe and the conductive target surface.
A typical measurement path can be represented as:
Rotating Shaft → PR6423 Eddy Current Sensor → Signal Converter → Monitoring System
When the shaft position changes, the distance between the probe tip and shaft surface changes accordingly. This variation affects the eddy current response, allowing the system to calculate relative displacement.
In practical applications, the sensor is used to monitor:
- Radial shaft vibration
- Axial shaft movement
- Rotor displacement changes
- Mechanical operating conditions
The sensor provides the raw measurement signal, while the connected converter and monitoring hardware perform signal conditioning, analysis, and protection functions.
Role in a Machinery Protection System
The Epro PR6423/00C-030-CN serves as a shaft measurement element within a rotating machinery protection system.
A simplified structure can be viewed as:
Machine Rotor → Eddy Current Sensor → Signal Processing Unit → Monitoring Module → Protection Logic
For rotating equipment operating at high speed, direct shaft displacement measurement allows engineers to observe mechanical behavior more accurately than relying only on external vibration measurements.
The sensor helps monitoring systems identify changes related to:
- Rotor instability
- Excessive shaft movement
- Mechanical wear
- Alignment problems
- Abnormal operating conditions
Accurate installation and calibration are essential because the sensor output depends on the probe position relative to the measured shaft surface.
Industrial Applications
The Epro PR6423/00C-030-CN is commonly used in applications requiring continuous monitoring of rotating equipment.
| Application | Typical Use |
|---|---|
| Steam Turbines | Monitoring rotor vibration and displacement |
| Gas Turbines | Measuring shaft movement conditions |
| Compressors | Detecting mechanical changes |
| Centrifugal Pumps | Supporting equipment condition monitoring |
| Power Plant Machinery | Machinery protection applications |
| Industrial Rotating Equipment | Predictive maintenance monitoring |
| Process Industry Equipment | Continuous shaft position measurement |
The specific application depends on the machine type and the installed monitoring system.
Installation and Maintenance
Proper installation of the PR6423/00C-030-CN is important for accurate displacement measurement.
Recommended maintenance procedures include:
- Confirm the correct sensor model
- Check probe mounting position
- Verify sensor gap distance
- Inspect probe tip condition
- Check connection cable integrity
- Confirm signal converter compatibility
- Review monitoring system readings
- Perform calibration verification when required
- Record installation parameters
If measurement values become unstable, engineers should inspect the complete sensor system, including mechanical installation and signal processing components.
Related Components
The PR6423/00C-030-CN operates together with other machinery monitoring components.
| Component | Function |
|---|---|
| Epro Signal Converter | Processes eddy current sensor output |
| Epro MMS Monitoring System | Provides machinery condition monitoring |
| Vibration Monitoring Module | Evaluates vibration and displacement signals |
| Extension Cable | Connects sensor and converter |
| Protection System | Provides alarm and shutdown functions |
| Engineering Software | Supports configuration and diagnostics |
| Rotating Shaft Target Surface | Provides measurement reference |
These components form the complete measurement chain for rotating machinery monitoring.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/00C-030-CN | 8mm Eddy Current Sensor | Shaft displacement measurement |
| Epro PR6423/009-031-CN | 8mm Eddy Current Sensor | Rotating machinery monitoring |
| Epro PR6423 Series | Eddy Current Sensor Family | Turbine and compressor monitoring |
| Epro CON041 | Eddy Current Signal Converter | Sensor signal processing |
| Epro MMS 6000 Series | Machinery Protection System | Industrial equipment monitoring |
Selection should be based on sensor specifications, monitoring system compatibility, installation requirements, and machinery protection objectives.
Key Advantages
- Epro PR6423 series 8mm eddy current sensor.
- Supports non-contact shaft displacement measurement.
- Suitable for rotating machinery monitoring.
- Provides direct rotor movement measurement.
- Compatible with Epro monitoring system applications.
- Used in industrial condition monitoring environments.
Technical FAQs
What type of machinery measurements can the PR6423/00C-030-CN support?
The sensor is primarily used for measuring relative shaft displacement, including vibration movement and position changes in rotating machinery.
Why is non-contact measurement preferred for rotating shafts?
Because the sensor does not physically touch the shaft, it avoids mechanical wear and can monitor high-speed rotating components continuously.
What installation condition has the greatest impact on sensor accuracy?
The probe gap between the sensor tip and the shaft target surface is critical. Incorrect installation distance can affect measurement accuracy and system calibration.
What components are normally required to use the PR6423/00C-030-CN in a monitoring system?
The sensor generally works together with a compatible signal converter and machinery monitoring hardware to process and display displacement information.
