Product Overview

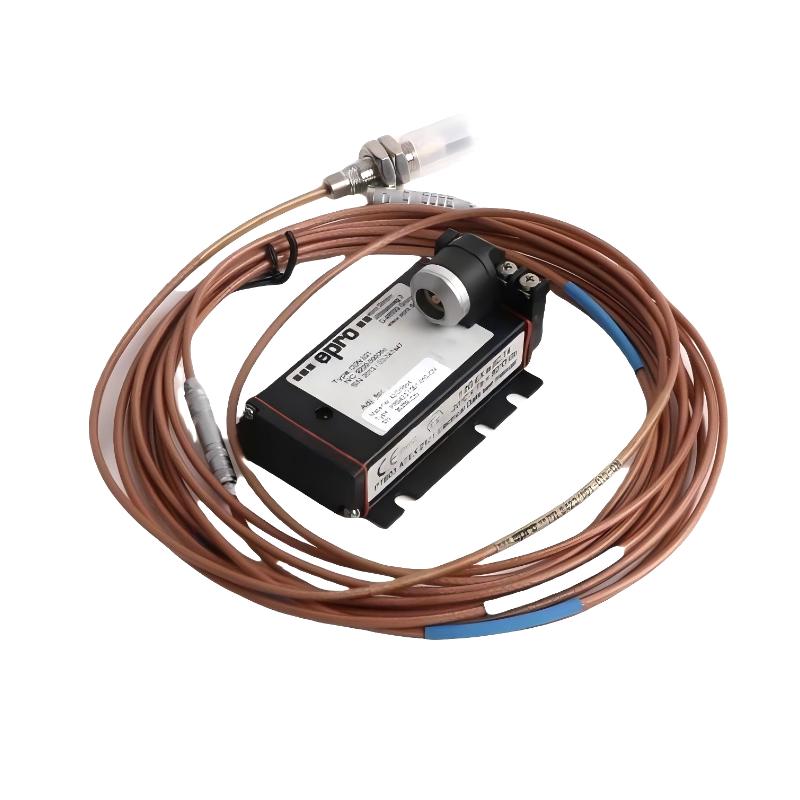

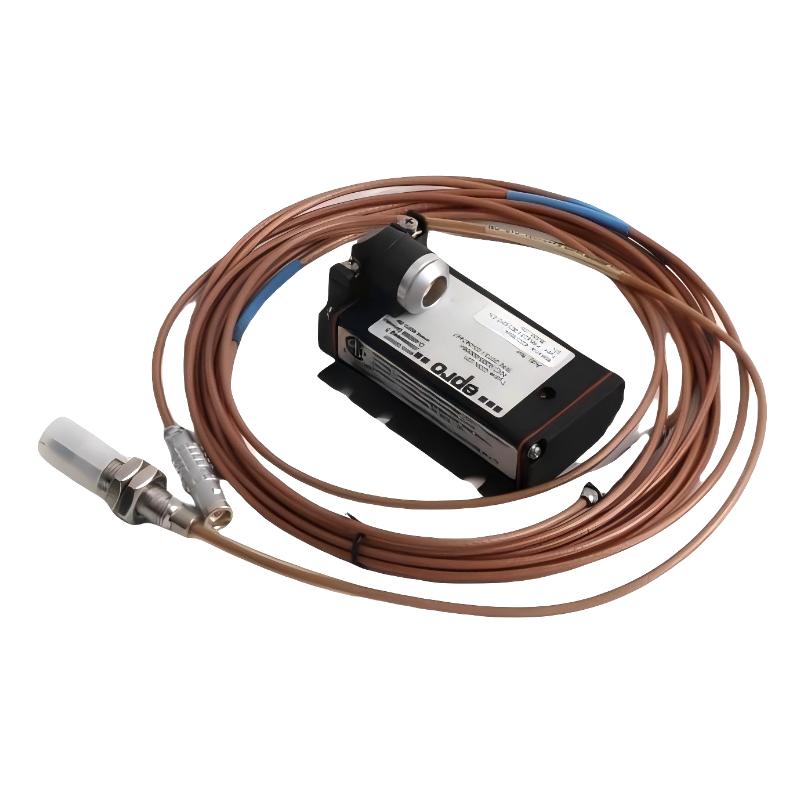

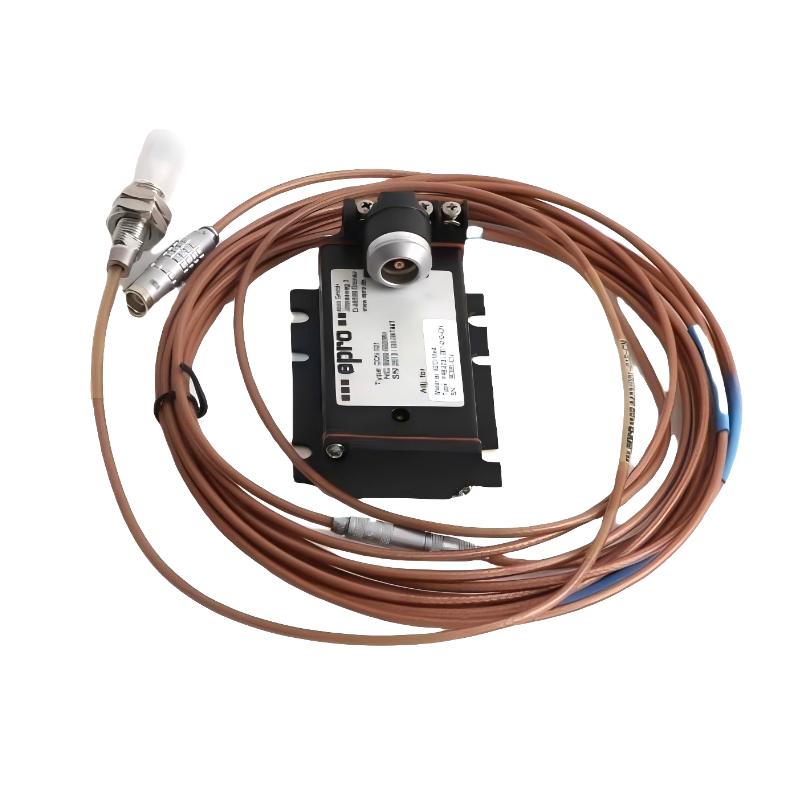

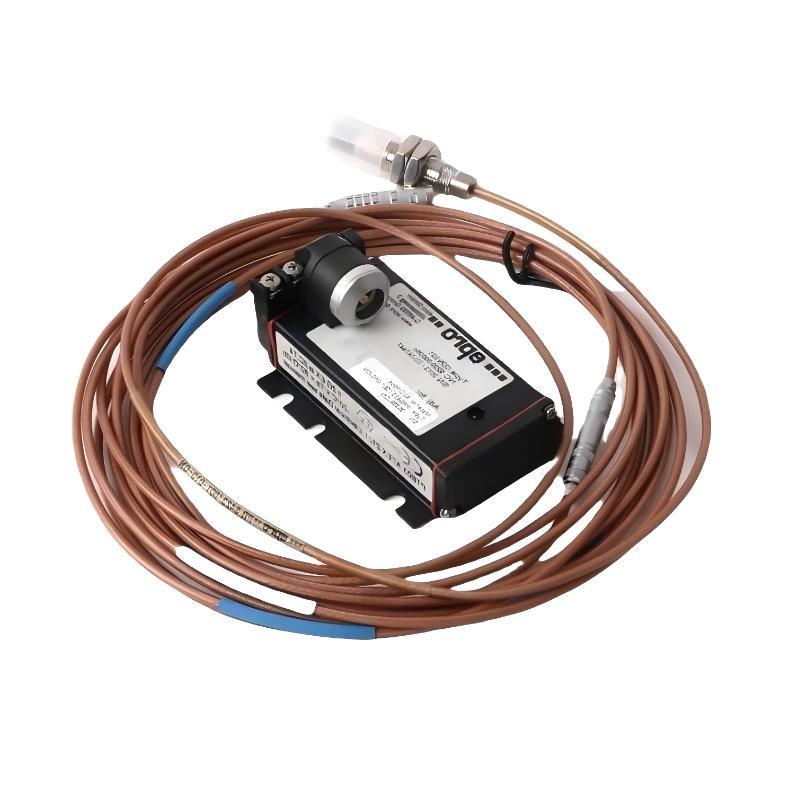

The Epro PR6423/009-031-CN 8mm Eddy Current Sensor is a non-contact displacement measurement sensor used in rotating machinery monitoring systems to detect shaft position, vibration movement, and mechanical displacement.
In industrial equipment such as steam turbines, compressors, pumps, and large motors, accurate shaft movement measurement is essential for condition monitoring and protection. The PR6423/009-031-CN uses eddy current technology to measure the distance between the sensor tip and the rotating target surface without physical contact.
Unlike vibration switches or contact-type measurement devices, this sensor continuously monitors shaft movement by detecting changes in the electromagnetic field generated between the probe and the conductive target. The measured signal is typically processed by an associated Epro signal converter or monitoring system for machinery protection and diagnostic purposes.
For maintenance engineers working with Epro and machinery protection systems, the PR6423/009-031-CN is commonly applied when monitoring shaft displacement, rotor vibration, axial position, or other critical mechanical conditions. During troubleshooting, attention should be given to probe installation position, target surface condition, cable connection, signal converter status, and system calibration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/009-031-CN |
| Product Family | PR6423 Series |
| Product Type | 8mm Eddy Current Sensor |
| Measurement Principle | Eddy Current Displacement Measurement |
| Main Function | Non-contact shaft displacement and vibration measurement |
| Sensor Head Diameter | 8 mm |
| Application | Rotating Machinery Monitoring |
| System Role | Vibration / Position Monitoring Sensor |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/009-031-CN 8mm Eddy Current Sensor is designed for precision monitoring applications in industrial rotating equipment.
Key characteristics include:
- Epro PR6423 series eddy current sensor
- Model PR6423/009-031-CN
- 8 mm sensor head design
- Non-contact displacement measurement
- Suitable for shaft vibration and position monitoring
- Used with compatible monitoring and protection systems
- Supports continuous machinery condition monitoring
- Suitable for critical rotating equipment applications
The sensor selection should match the monitoring system requirements, target material characteristics, and installation conditions.
Working Principle
The PR6423/009-031-CN operates based on eddy current measurement technology.
A typical measurement path can be represented as:
Sensor Probe → Rotating Shaft Surface → Eddy Current Signal Change → Signal Converter → Monitoring System
When the probe is positioned near a conductive shaft surface, it generates an electromagnetic field. Changes in the distance between the probe and the shaft affect the eddy current response, allowing the system to determine shaft displacement.
In practical machinery monitoring applications, the sensor is used to detect:
- Radial shaft vibration
- Axial shaft movement
- Rotor position changes
- Mechanical displacement variations
The sensor itself generates the measurement signal, while the associated signal conditioner converts and processes the output for monitoring, alarm, and protection functions.
Role in a Machinery Protection System
The Epro PR6423/009-031-CN operates as a primary measurement element within rotating machinery monitoring systems.
A simplified architecture can be viewed as:
Rotating Shaft → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
In critical equipment, early detection of abnormal shaft movement can help prevent severe mechanical damage. The sensor provides continuous information about rotor behavior, allowing monitoring systems to identify conditions such as excessive vibration, misalignment, or abnormal shaft displacement.
For turbine and compressor applications, accurate probe installation and calibration are essential because small measurement errors can affect protection decisions.
Industrial Applications
The Epro PR6423/009-031-CN 8mm Eddy Current Sensor is commonly used in machinery condition monitoring systems.
| Application | Typical Use |
|---|---|
| Steam Turbines | Monitoring shaft vibration and position |
| Gas Turbines | Detecting rotor movement changes |
| Compressors | Measuring shaft displacement |
| Pumps | Monitoring rotating equipment condition |
| Large Motors | Checking mechanical vibration behavior |
| Power Generation Equipment | Supporting machinery protection systems |
| Industrial Rotating Machinery | Continuous condition monitoring |
The actual application depends on the monitoring system configuration and equipment requirements.
Installation and Maintenance
Installation of the PR6423/009-031-CN requires correct probe positioning and system calibration.
Recommended maintenance procedures include:
- Confirm the correct sensor model
- Verify probe mounting position
- Check sensor gap distance
- Inspect cable and connector condition
- Confirm signal converter compatibility
- Check target shaft surface condition
- Verify monitoring system readings
- Perform calibration checks when required
- Record installation parameters
When abnormal measurement values appear, engineers should inspect the complete measurement chain rather than replacing the sensor immediately.
Related Components
The PR6423/009-031-CN works together with other machinery monitoring system components.
| Component | Function |
|---|---|
| Epro Signal Converter | Converts sensor signal for monitoring |
| Vibration Monitoring Module | Processes machinery condition data |
| Protection System | Provides alarm and shutdown functions |
| Extension Cable | Connects probe to converter |
| Shaft Target Surface | Provides measurement reference |
| Engineering Software | Supports configuration and diagnostics |
| Monitoring Cabinet | Houses protection hardware |
These components work together to create a complete rotating machinery monitoring solution.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/009-031-CN | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423 Series | Eddy Current Sensor Family | Rotating machinery measurement |
| Epro PR6424 Series | Eddy Current Sensor | Larger machinery monitoring applications |
| Epro CON021 Signal Converter | Sensor Interface Module | Probe signal conditioning |
| Epro MMS 6000 System | Machinery Protection System | Industrial vibration monitoring |
Model selection should be based on shaft measurement requirements, monitoring system compatibility, and equipment protection objectives.
Key Advantages
- Epro PR6423 series eddy current sensor.
- Supports non-contact shaft measurement.
- Suitable for rotating machinery monitoring.
- Provides displacement and vibration measurement capability.
- Used in industrial equipment protection systems.
- Compact 8 mm probe design.
Technical FAQs
What type of measurement does the Epro PR6423/009-031-CN perform?
The sensor measures changes in distance between the probe tip and a conductive rotating surface, allowing monitoring of shaft displacement and vibration movement.
Why are eddy current sensors commonly used on turbines and compressors?
They provide non-contact measurement, which allows continuous monitoring of high-speed rotating components without physical wear between the sensor and shaft.
What factors can affect the accuracy of PR6423/009-031-CN measurements?
Probe installation gap, shaft surface condition, target material, cable condition, and signal converter calibration can all influence measurement accuracy.
Can the PR6423/009-031-CN operate as a standalone monitoring device?
No. The sensor requires connection with compatible signal conditioning and monitoring equipment to convert the measurement signal into usable vibration or displacement information.
