Product Overview

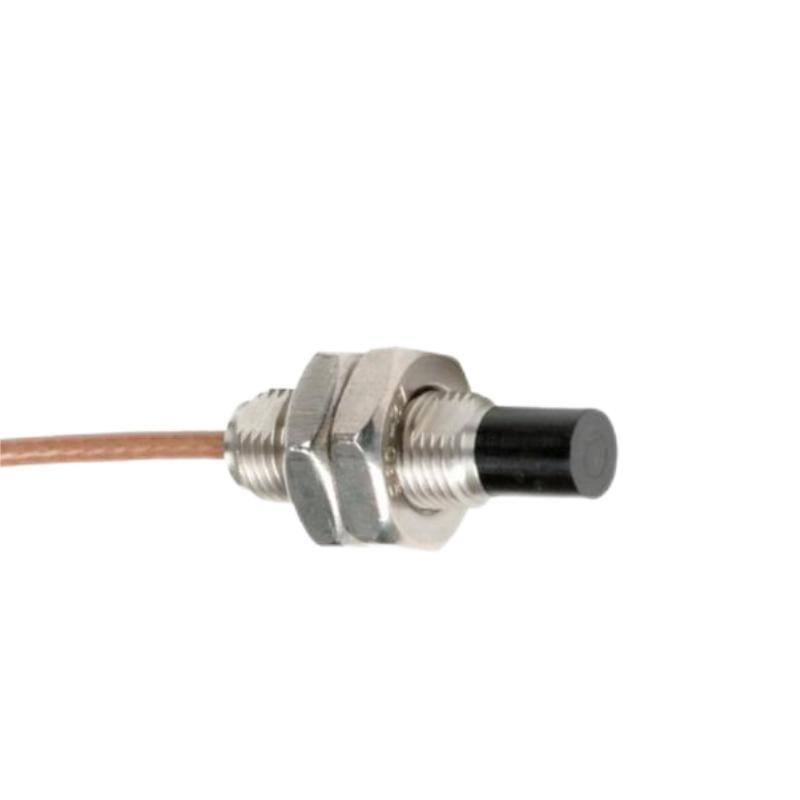

The Epro PR6423/005-0F2 8mm Eddy Current Sensor is a non-contact displacement measurement probe used for rotating machinery monitoring applications. It belongs to the Epro PR6423 series and is designed to detect relative movement between the sensor probe and conductive machine targets, providing measurement information for vibration monitoring and equipment protection systems.
The sensor uses eddy current technology to measure shaft displacement without physical contact. This allows the probe to operate continuously on high-speed rotating equipment while avoiding mechanical wear caused by traditional contact measurement methods.
The PR6423/005-0F2 is typically integrated with compatible Epro signal converters and machinery monitoring systems. It is suitable for applications involving turbines, compressors, generators, pumps, and other industrial rotating equipment where accurate shaft movement detection is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/005-0F2 |
| Product Family | PR6423 Eddy Current Sensor Series |
| Product Type | 8mm Eddy Current Sensor |
| Sensor Type | Non-contact Displacement Probe |
| Primary Function | Shaft Displacement Measurement |
| System Role | Machinery Condition Monitoring Sensor |
| Application | Rotating Equipment Protection |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/005-0F2 provides precise displacement sensing capability for industrial rotating machinery monitoring systems.
Key characteristics include:
- Epro PR6423 series eddy current sensor
- Model PR6423/005-0F2
- 8mm sensor head configuration
- Non-contact shaft displacement measurement
- Suitable for vibration monitoring applications
- Supports continuous machinery monitoring
- Compact sensor design
- Suitable for high-speed rotating equipment
- Compatible with Epro signal conversion systems
- Used in industrial equipment protection applications
The sensor should be installed with the correct probe position, clearance, and compatible monitoring hardware to achieve accurate measurement performance.
Working Principle
The PR6423/005-0F2 operates using electromagnetic eddy current measurement technology.
A simplified signal path can be represented as:
Rotating Shaft → PR6423 Eddy Current Sensor → Signal Converter → Monitoring System
During operation, the sensor generates an electromagnetic field near the conductive shaft surface. When the distance between the probe and the shaft changes, the eddy current response in the target material changes accordingly.
The sensor converts these variations into an electrical output signal representing the measured displacement. After signal processing through a compatible converter, the information can be analyzed by the machinery monitoring system for vibration and position evaluation.
The non-contact design enables stable measurement during continuous machine operation.
Role in Machinery Condition Monitoring Architecture
The Epro PR6423/005-0F2 serves as the measurement element within a rotating equipment monitoring system.
A typical architecture can be represented as:
Rotating Equipment → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
| System Layer | Typical Function |
|---|---|
| Rotating Machinery | Provides mechanical movement information |
| Eddy Current Sensor | Detects shaft displacement changes |
| Signal Converter | Processes sensor signals |
| Monitoring Module | Evaluates vibration and position data |
| Protection System | Provides alarms and protective actions |
The sensor provides the primary displacement measurement required for equipment condition assessment.
Industrial Applications
The Epro PR6423/005-0F2 is used in industrial environments where reliable shaft displacement measurement is required.
| Application | Typical Use |
|---|---|
| Steam Turbines | Rotor displacement monitoring |
| Gas Turbines | Shaft vibration measurement |
| Compressors | Rotating equipment condition monitoring |
| Generators | Mechanical protection |
| Pumps | Shaft movement detection |
| Motors | Vibration analysis |
| Power Plants | Critical machinery supervision |
| Industrial Production Equipment | Predictive maintenance |
The final application depends on the machine structure, monitoring requirements, and installed protection system.
Installation and Maintenance
Proper installation and regular inspection help maintain measurement accuracy.
Recommended maintenance checks include:
- Confirm the correct PR6423/005-0F2 model.
- Verify sensor mounting location.
- Check probe-to-target clearance.
- Inspect sensor cable condition.
- Confirm compatible converter connection.
- Check signal stability during operation.
- Inspect connectors and wiring.
- Verify monitoring system settings.
- Compare measured values with normal operating conditions.
- Record installation parameters.
If abnormal vibration or displacement values occur, the sensor, converter, wiring, mechanical clearance, and monitoring module should be inspected as a complete system.
Related Components
The PR6423/005-0F2 works together with other Epro machinery monitoring components.
| Component | Function |
|---|---|
| Epro PR6423 Eddy Current Sensor | Detects shaft displacement |
| Epro Signal Converter | Processes sensor output |
| CON021 Signal Converter | Converts measurement signals |
| CON041 Signal Converter | Provides signal conditioning |
| Machinery Monitoring Module | Receives sensor data |
| Protection System | Provides equipment monitoring |
| Rotating Machinery | Measurement target |
These components work together to create a complete rotating equipment monitoring system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/005-0F2 | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/005-030 | 8mm Eddy Current Sensor | Rotating machinery measurement |
| Epro PR6423/005-010-CN | 8mm Eddy Current Sensor | Non-contact displacement monitoring |
| Epro PR6423/004-030-CN | 8mm Eddy Current Sensor | Machinery protection applications |
| Epro PR6423/004-031-CN | 8mm Eddy Current Sensor | Vibration monitoring |
| Epro MMS Series | Machinery Monitoring System | Industrial condition monitoring |
Model selection should consider sensor type, converter compatibility, installation requirements, and monitoring system design.
Key Advantages
- Epro PR6423 series eddy current sensor
- 8mm non-contact displacement measurement
- Suitable for rotating machinery monitoring
- Provides wear-free measurement operation
- Supports shaft vibration and position analysis
- Compatible with Epro monitoring systems
- Suitable for turbines, compressors, and generators
- Compact sensor structure
- Supports continuous condition monitoring
- Suitable for industrial protection applications
Technical FAQs
What measurement tasks can the Epro PR6423/005-0F2 perform?
The sensor is mainly used for non-contact measurement of shaft displacement and relative movement in rotating machinery condition monitoring systems.
Why are PR6423 series sensors widely used in rotating equipment protection?
The non-contact eddy current measurement method allows continuous monitoring of high-speed rotating components without introducing mechanical wear or affecting shaft operation.
Does the PR6423/005-0F2 require additional signal processing equipment?
Yes. The sensor is normally connected to a compatible Epro signal converter, which processes the probe output before it is evaluated by the machinery monitoring system.
What factors should be considered when replacing a PR6423/005-0F2 sensor?
Replacement should consider the exact sensor model, mounting position, probe clearance, cable condition, converter compatibility, and existing monitoring system configuration.
