Product Overview

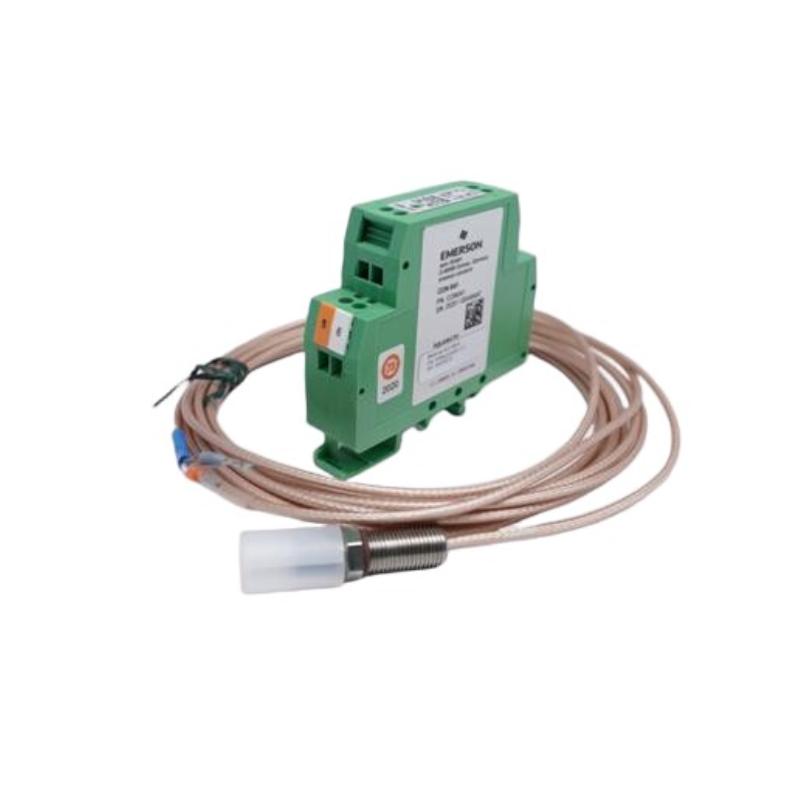

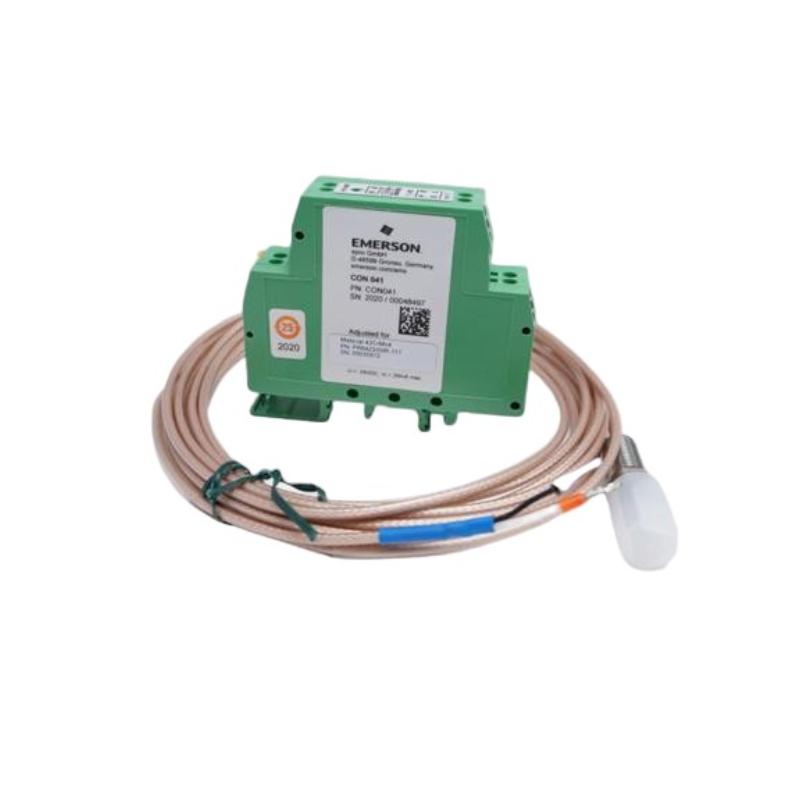

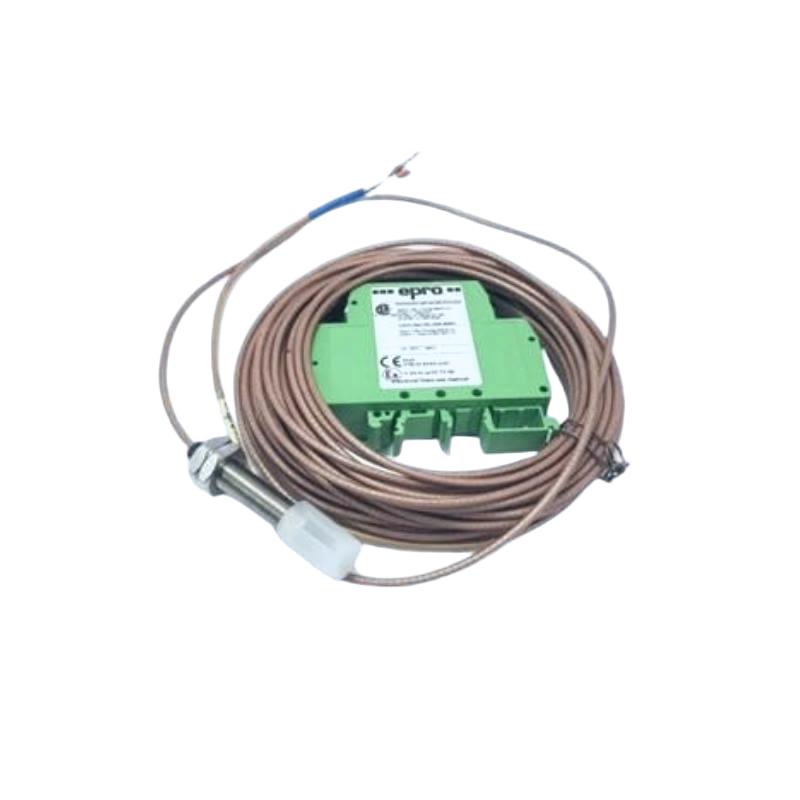

The Epro PR6423/004-030-CN+CON041 Eddy Current Sensor System is a non-contact displacement measurement assembly used for rotating machinery condition monitoring and protection applications. It combines the PR6423/004-030-CN 8mm eddy current sensor with the CON041 signal converter, providing a complete measurement path for shaft displacement and vibration monitoring.

The sensor probe detects changes in the distance between the probe tip and a conductive rotating target, while the CON041 converter processes the sensor output into a signal suitable for connection with machinery monitoring systems.

Compared with contact measurement solutions, the eddy current measurement principle allows continuous monitoring of rotating shafts without mechanical wear. This makes the system suitable for critical equipment where stable vibration and position monitoring are required.

The PR6423/004-030-CN+CON041 combination is commonly applied in turbines, compressors, generators, pumps, and other rotating machines that require reliable condition monitoring and equipment protection.

Technical Specifications

Product Features

The Epro PR6423/004-030-CN+CON041 provides a complete eddy current measurement solution for industrial machinery monitoring.

Key characteristics include:

• Epro PR6423 series sensor assembly
• Model PR6423/004-030-CN with CON041 converter
• 8mm eddy current sensing technology
• Non-contact displacement measurement
• Suitable for shaft vibration monitoring
• Supports continuous rotating equipment monitoring
• Includes sensor probe and signal converter
• Provides stable measurement signal processing
• Suitable for machinery protection systems
• Used in industrial predictive maintenance applications

The sensor assembly should be installed according to the mechanical arrangement and matched with the appropriate monitoring system.

Working Principle

The PR6423/004-030-CN+CON041 operates through electromagnetic eddy current measurement technology.

A simplified signal path can be represented as:

Rotating Shaft → PR6423 Sensor Probe → CON041 Signal Converter → Monitoring System

The sensor probe generates an electromagnetic field near the conductive shaft surface. When the shaft position changes, the distance variation affects the eddy current characteristics generated within the target material.

The sensor output changes according to the measured displacement. The CON041 converter receives this signal, processes the measurement information, and provides an output suitable for machinery monitoring equipment.

This operating principle enables accurate non-contact measurement of shaft movement, making the system suitable for high-speed rotating machinery applications.

Role in Machinery Condition Monitoring Architecture

The Epro PR6423/004-030-CN+CON041 belongs to the sensing and signal conversion layer of a rotating equipment protection system.

A typical architecture can be represented as:

Rotating Equipment → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System

The sensor assembly provides the primary measurement information required for machinery condition analysis.

Industrial Applications

The Epro PR6423/004-030-CN+CON041 is suitable for industrial applications requiring accurate shaft displacement monitoring.

The final application depends on equipment type, monitoring requirements, and installed protection architecture.

Installation and Maintenance

Proper sensor installation and converter configuration are essential for measurement accuracy.

Recommended maintenance checks include:

• Confirm the correct PR6423/004-030-CN+CON041 model.
• Verify sensor mounting position.
• Check probe-to-shaft clearance.
• Inspect sensor cable condition.
• Confirm CON041 converter connection.
• Verify signal output stability.
• Inspect connectors and wiring.
• Check monitoring system configuration.
• Compare measurement values with normal operating conditions.
• Record installation parameters.

If abnormal vibration or displacement values appear, the complete measurement chain should be inspected, including sensor, converter, wiring, shaft condition, and monitoring equipment.

Related Components

The PR6423/004-030-CN+CON041 works together with other Epro and machinery monitoring components.

These components form a complete rotating machinery monitoring solution.

Recommended Related Models

Selection should consider sensor specifications, converter compatibility, installation requirements, and monitoring system configuration.

Key Advantages

• Complete Epro eddy current measurement assembly
• Combines 8mm sensor and CON041 converter
• Provides non-contact shaft displacement monitoring
• Suitable for rotating machinery protection
• Reduces mechanical wear compared with contact measurement
• Supports continuous condition monitoring
• Suitable for turbines, compressors, and generators
• Provides stable measurement signal processing
• Integrates with industrial monitoring systems
• Supports predictive maintenance strategies

Technical FAQs

What components are included in the Epro PR6423/004-030-CN+CON041 assembly?

The assembly includes the PR6423/004-030-CN 8mm eddy current sensor and the CON041 signal converter, forming a complete sensor measurement chain.

What type of machinery faults can this sensor system help detect?

The system can support monitoring of shaft displacement, vibration changes, and abnormal mechanical movement that may indicate rotating equipment condition issues.

Why is the CON041 converter required in this measurement system?

The converter processes the raw eddy current sensor signal and prepares the measurement output for connection with machinery monitoring and protection equipment.

What installation conditions affect PR6423 sensor measurement accuracy?

Accuracy can be influenced by probe clearance, shaft surface condition, sensor alignment, cable integrity, and correct converter configuration.
