Product Overview

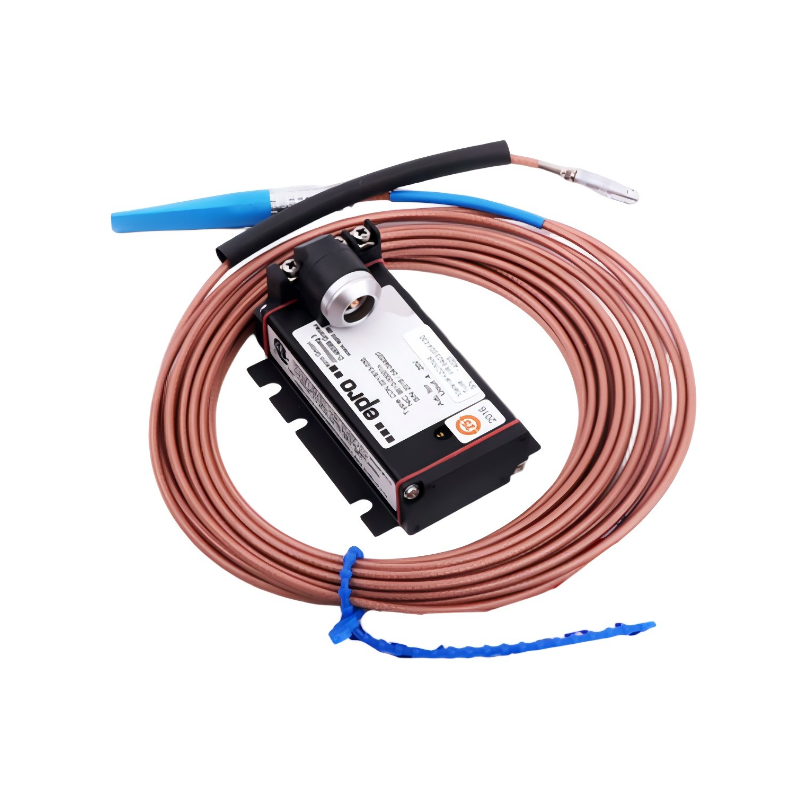

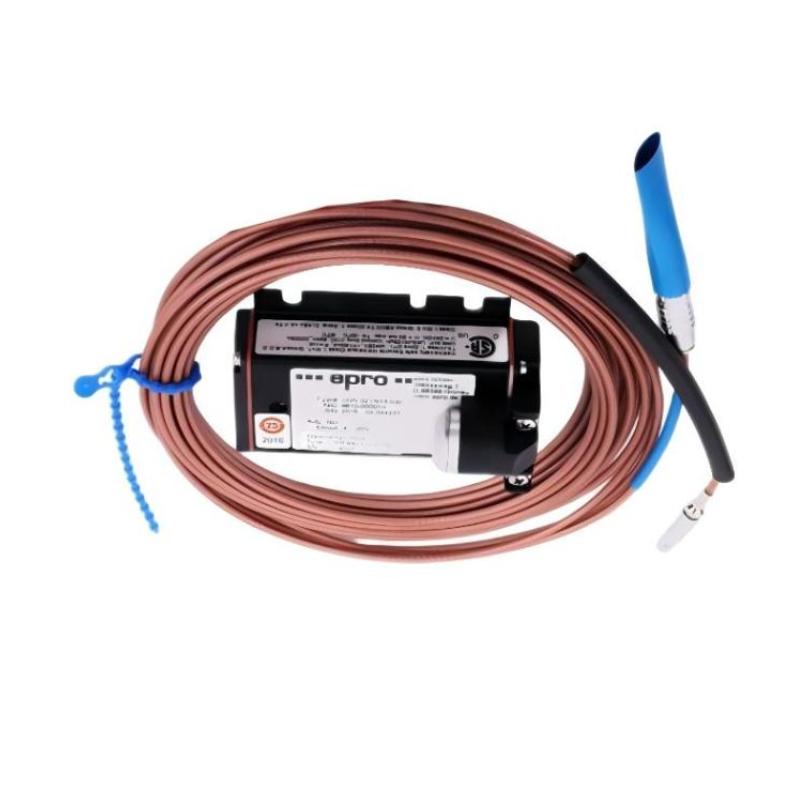

The Epro PR6423/004-030-CN 8mm Eddy Current Sensor is a non-contact displacement measurement probe used for monitoring the condition and operating status of rotating machinery. It belongs to the Epro PR6423 series and is mainly applied for shaft vibration, radial displacement, and position measurement in industrial equipment protection systems.

Unlike mechanical contact measurement devices, the PR6423/004-030-CN uses eddy current technology to detect changes in the distance between the sensor tip and a conductive target surface. This allows the sensor to operate continuously on high-speed rotating equipment without introducing physical wear between the probe and the monitored shaft.

The 8mm sensor design makes it suitable for applications requiring precise shaft measurement in compact installation spaces. It is commonly used with compatible Epro signal converters and machinery monitoring systems for applications such as turbines, compressors, generators, and other critical rotating equipment.

Technical Specifications

Product Features

The Epro PR6423/004-030-CN provides accurate non-contact measurement capability for industrial machinery monitoring applications.

Key characteristics include:

• Epro PR6423 Series 8mm eddy current sensor
• Model PR6423/004-030-CN
• Non-contact shaft displacement measurement
• Suitable for vibration and position monitoring
• Supports continuous monitoring of rotating equipment
• Compact 8mm sensor head design
• Suitable for high-speed machinery applications
• Provides stable measurement performance
• Compatible with appropriate signal converters
• Used in industrial condition monitoring systems

The sensor should be installed with the correct mounting arrangement and matched with a compatible converter and monitoring system.

Working Principle

The PR6423/004-030-CN operates using eddy current measurement technology.

A simplified measurement process can be represented as:

Conductive Shaft Target → PR6423 Eddy Current Sensor → Signal Converter → Monitoring System

During operation, the sensor probe generates a high-frequency electromagnetic field near the conductive machine shaft. When the distance between the probe tip and the shaft surface changes, the generated eddy current effect changes the electrical characteristics of the sensor circuit.

These variations are converted into displacement information by the connected signal converter and then transmitted to the machinery monitoring system for vibration analysis, protection, or operational monitoring.

Because the sensor does not physically contact the rotating component, it can measure shaft movement continuously under demanding industrial conditions.

Role in Machinery Monitoring Architecture

The Epro PR6423/004-030-CN is positioned in the measurement layer of rotating equipment protection systems.

A typical architecture can be represented as:

Rotating Equipment → Eddy Current Sensor → Signal Converter → Monitoring Module → Control System

The sensor provides the primary measurement signal required for accurate machinery condition evaluation.

Industrial Applications

The Epro PR6423/004-030-CN is suitable for applications requiring precise shaft monitoring and non-contact displacement measurement.

The actual installation depends on the machinery design and monitoring system configuration.

Installation and Maintenance

Correct installation distance and alignment are essential for accurate eddy current measurement.

Recommended maintenance checks include:

• Confirm the correct PR6423/004-030-CN model.
• Verify sensor mounting location.
• Check probe installation clearance.
• Inspect sensor cable condition.
• Confirm connection with compatible converter.
• Check signal stability.
• Inspect connectors and wiring.
• Verify monitoring system settings.
• Compare measured values with operating conditions.
• Record installation parameters.

When abnormal displacement signals occur, the sensor, converter, shaft surface condition, and monitoring equipment should be inspected as a complete measurement chain.

Related Components

The PR6423/004-030-CN operates together with other machinery monitoring components.

These components work together to create a complete condition monitoring solution.

Recommended Related Models

Model selection should consider sensor size, converter compatibility, measurement requirements, and installed protection system.

Key Advantages

• Epro PR6423 series eddy current sensor
• 8mm non-contact measurement design
• Suitable for rotating machinery monitoring
• Provides wear-free displacement measurement
• Supports vibration and shaft position analysis
• Suitable for turbines, compressors, and generators
• Compact installation structure
• Compatible with industrial monitoring systems
• Supports predictive maintenance applications
• Suitable for critical equipment protection

Technical FAQs

What is the measuring purpose of the Epro PR6423/004-030-CN sensor?

The sensor is mainly used for non-contact measurement of shaft displacement, vibration, and position changes in rotating machinery monitoring applications.

Why does the PR6423/004-030-CN use an 8mm probe design?

The 8mm probe size provides a balance between measurement capability and installation flexibility, making it suitable for many rotating equipment applications where mounting space is limited.

Does the PR6423/004-030-CN operate independently without a converter?

The sensor normally works together with a compatible signal converter, which processes the sensor output and provides a usable measurement signal for monitoring systems.

What installation factors affect the accuracy of an eddy current sensor?

Measurement accuracy can be affected by probe clearance, target surface condition, sensor alignment, cable condition, and correct converter configuration.
