Product Overview

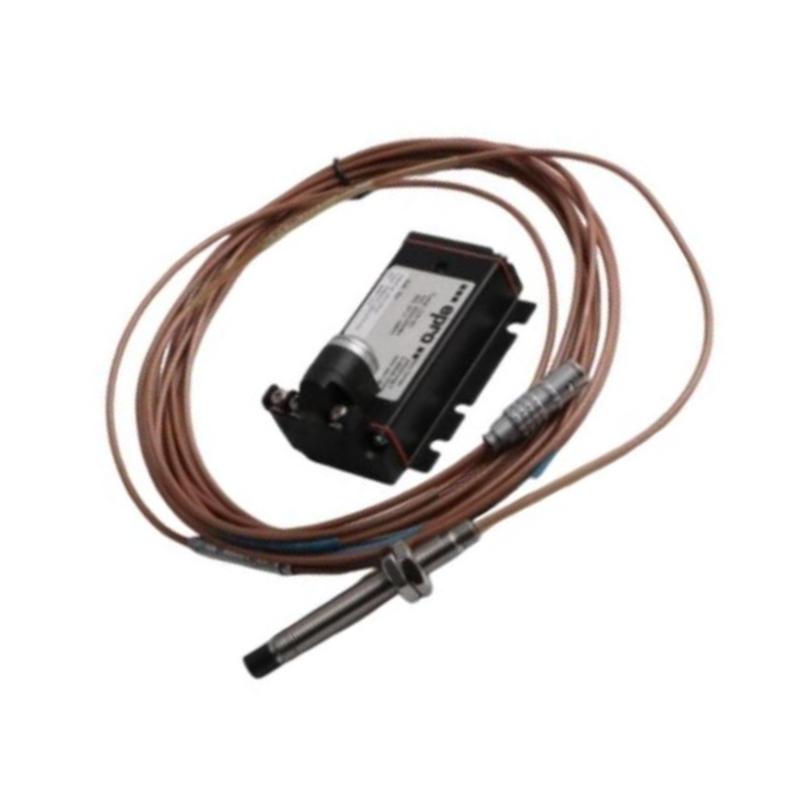

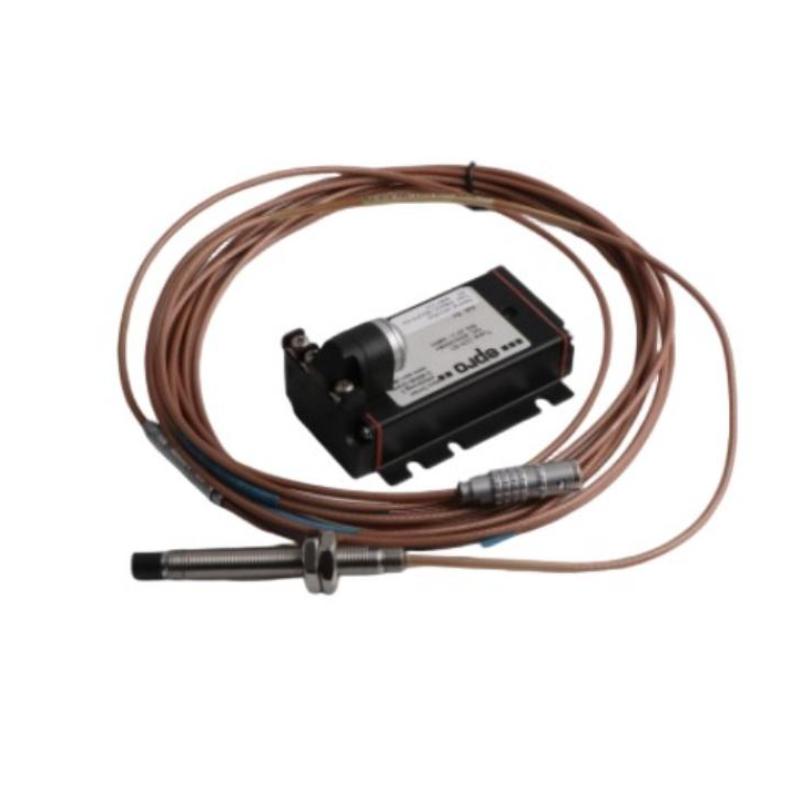

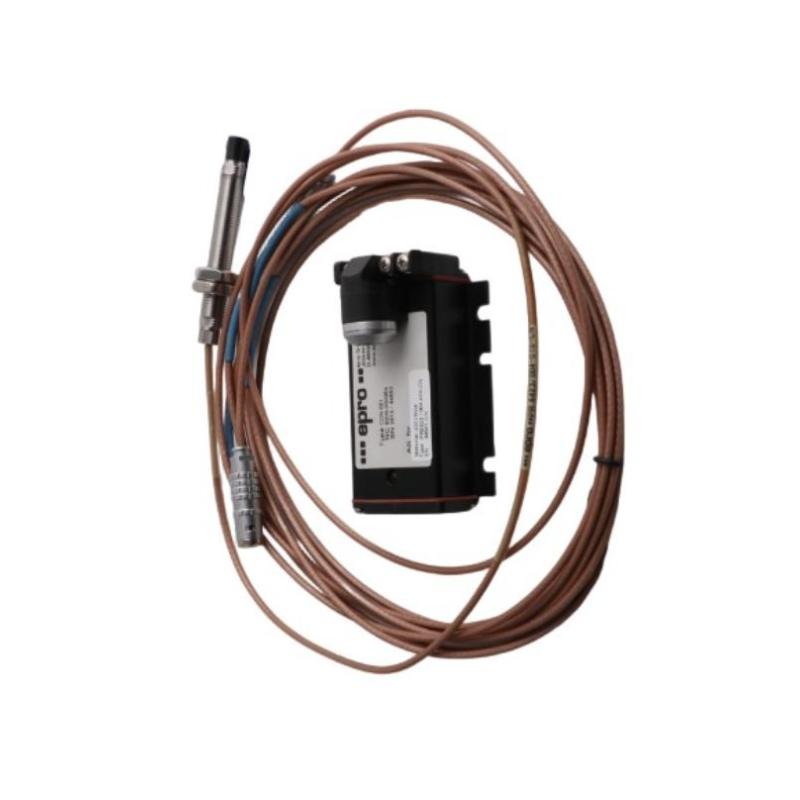

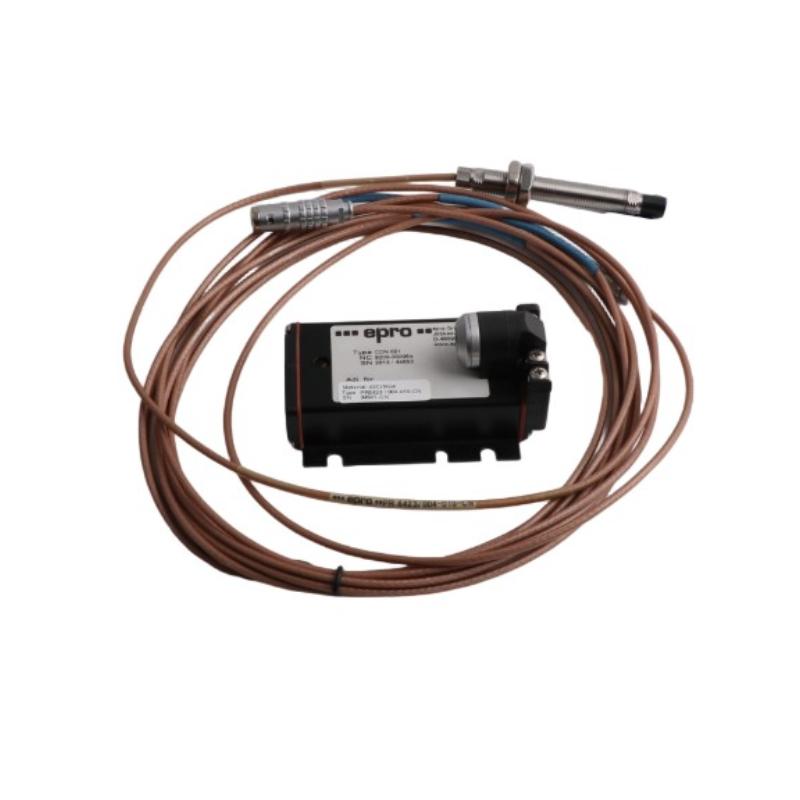

The Epro PR6423/004-010-CN+CON021 Eddy Current Sensor System combines an 8mm PR6423 Eddy Current Sensor with a CON021 Eddy Current Signal Converter to provide a complete non-contact displacement measurement solution for rotating machinery monitoring applications.
The system is mainly used for measuring relative shaft displacement, vibration, and mechanical movement in equipment where continuous condition monitoring is required. By using eddy current measurement technology, the sensor can detect changes in the distance between the probe tip and the conductive target surface without physical contact.
The PR6423 sensor collects the displacement information from the rotating component, while the CON021 signal converter processes the sensor signal and provides a standardized output for connection with monitoring and protection systems.
This type of measurement solution is widely applied in machinery protection systems where early detection of abnormal shaft movement can help reduce unexpected equipment downtime and support predictive maintenance strategies.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/004-010-CN+CON021 |
| Product Family | PR6423 Series |
| Product Type | Eddy Current Sensor + Signal Converter |
| Sensor Type | Non-contact Eddy Current Sensor |
| Sensor Diameter | 8 mm |
| Signal Converter | CON021 |
| Measurement Principle | Eddy Current Displacement Measurement |
| Application | Rotating Machinery Monitoring |
| System Role | Shaft Displacement / Vibration Measurement |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.22 kg |
Product Features
The Epro PR6423/004-010-CN+CON021 provides integrated sensing and signal processing for machinery condition monitoring.
Key characteristics include:
- Epro PR6423 series 8mm eddy current sensor system
- Includes PR6423/004-010-CN sensor and CON021 converter
- Provides non-contact displacement measurement
- Suitable for rotating machinery vibration monitoring
- Supports shaft position and movement analysis
- Provides continuous condition monitoring capability
- Suitable for high-speed rotating equipment
- Integrates with compatible monitoring systems
- Reduces mechanical wear caused by contact measurement
- Suitable for industrial machinery protection applications
The sensor and converter operate as a matched measurement system to maintain accurate signal conversion and stable monitoring performance.
Working Principle
The PR6423/004-010-CN+CON021 operates by detecting changes in electromagnetic characteristics between the sensor probe and the monitored metallic target.
A simplified signal path is:
Rotating Shaft → PR6423 Eddy Current Sensor → CON021 Signal Converter → Monitoring System → Protection / Analysis Function
The sensor generates a high-frequency electromagnetic field near the shaft surface. When the distance between the probe and the conductive target changes, the eddy current effect changes accordingly.
The sensor converts these variations into an electrical measurement signal. The CON021 signal converter processes the raw sensor output and converts it into a suitable signal format for the connected monitoring equipment.
The processed displacement information can then be used for vibration analysis, shaft position monitoring, alarm generation, and machinery protection functions.
Because the measurement process does not require direct contact with the rotating component, the system can operate continuously in demanding industrial environments.
Role in Machinery Condition Monitoring Architecture
The PR6423/004-010-CN+CON021 functions as a complete measurement section within a rotating equipment monitoring architecture.
A typical structure is:
Rotating Equipment → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
| System Layer | Typical Function |
|---|---|
| Rotating Equipment | Produces mechanical movement |
| Sensor Layer | Detects shaft displacement |
| Signal Conversion Layer | Processes measurement signals |
| Monitoring Layer | Analyzes vibration and position data |
| Protection Layer | Generates alarms and shutdown signals |
| Control Layer | Coordinates equipment operation |
The combination of sensor and converter allows the monitoring system to receive stable displacement data from critical rotating components.
This is particularly important for machinery where shaft vibration, rotor movement, or bearing-related displacement must be monitored continuously.
Industrial Applications
The Epro PR6423/004-010-CN+CON021 is suitable for industrial applications requiring accurate shaft displacement monitoring.
| Application | Typical Use |
|---|---|
| Steam Turbines | Rotor vibration and displacement monitoring |
| Gas Turbines | Shaft movement detection |
| Compressors | Condition monitoring |
| Generators | Shaft position measurement |
| Pumps | Rotating component analysis |
| Power Plant Equipment | Machinery protection systems |
| Process Machinery | Predictive maintenance |
| Industrial Drives | Vibration monitoring |
The final application depends on the machinery design, monitoring platform, and required protection functions.
Installation and Maintenance
Correct installation of both the sensor and signal converter is important for maintaining measurement accuracy.
Recommended maintenance checks include:
- Confirm the complete PR6423/004-010-CN+CON021 model.
- Verify sensor and converter compatibility.
- Check probe mounting position.
- Confirm correct sensor gap adjustment.
- Inspect sensor cable condition.
- Check converter wiring connections.
- Verify power supply conditions.
- Inspect connectors and terminals.
- Confirm monitoring system input configuration.
- Review vibration and displacement trends.
- Check alarm and protection settings.
- Verify sensor stability during equipment operation.
- Inspect the target surface condition.
- Confirm measurement values are within expected ranges.
If the measured displacement signal becomes unstable, the complete signal chain should be checked, including probe installation, cable condition, converter operation, and monitoring system configuration.
Related Components
The PR6423/004-010-CN+CON021 is normally integrated with additional machinery monitoring components.
| Component | Function |
|---|---|
| Epro PR6423/004-010-CN Sensor | Detects shaft displacement |
| CON021 Signal Converter | Converts sensor signals |
| Epro MMS Monitoring System | Provides machinery monitoring |
| Sensor Extension Cable | Connects sensor and converter |
| Protection Module | Handles alarm and shutdown functions |
| Rotating Machinery | Provides monitored target surface |
| Diagnostic Software | Supports condition analysis |
A complete monitoring system requires correct matching between the sensor, converter, cable, and monitoring equipment.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/004-010-CN+CON021 | Eddy Current Sensor System | Shaft displacement monitoring |
| Epro PR6423/003-131+CON041 | Eddy Current Sensor + Converter | Rotating machinery monitoring |
| Epro PR6423 Series | Eddy Current Sensor | Non-contact vibration measurement |
| Epro CON021 | Eddy Current Signal Converter | Signal processing |
| Epro CON041 | Eddy Current Signal Converter | Sensor signal conversion |
| Epro MMS 6000 Series | Machinery Monitoring System | Vibration protection |
Selection should consider sensor specifications, converter compatibility, installation requirements, and monitoring system configuration.
Key Advantages
- Complete Epro PR6423 sensor measurement system
- Combines 8mm eddy current sensor and signal converter
- Provides non-contact shaft displacement measurement
- Suitable for rotating machinery protection
- Supports continuous vibration monitoring
- Enables accurate mechanical condition analysis
- Suitable for turbines, compressors, and generators
- Integrates with industrial monitoring systems
- Supports predictive maintenance applications
- Provides stable measurement performance in demanding environments
Technical FAQs
What components are included in the Epro PR6423/004-010-CN+CON021 system?
The system consists of the PR6423/004-010-CN 8mm eddy current sensor and the CON021 signal converter. Together, they provide both displacement detection and signal processing functions for machinery monitoring applications.
What type of mechanical information can this sensor system detect?
The system is mainly used for relative shaft displacement measurement, vibration monitoring, and position analysis of rotating machinery. The measured data can support equipment protection and condition monitoring.
Why is the signal converter important in an eddy current measurement system?
The sensor output requires signal processing before it can be used by monitoring equipment. The CON021 converter converts the sensor signal into a suitable format for analysis, protection, and control systems.
What factors should be considered when replacing this sensor system?
The sensor model, converter compatibility, mounting position, probe gap, cable connection, monitoring system configuration, and machinery application should all be verified before replacement.
