- Epro
- PR6423/004-010-CN
- 8mm Eddy Current Sensor
- Germany
- 8 mm
- 0.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 17
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

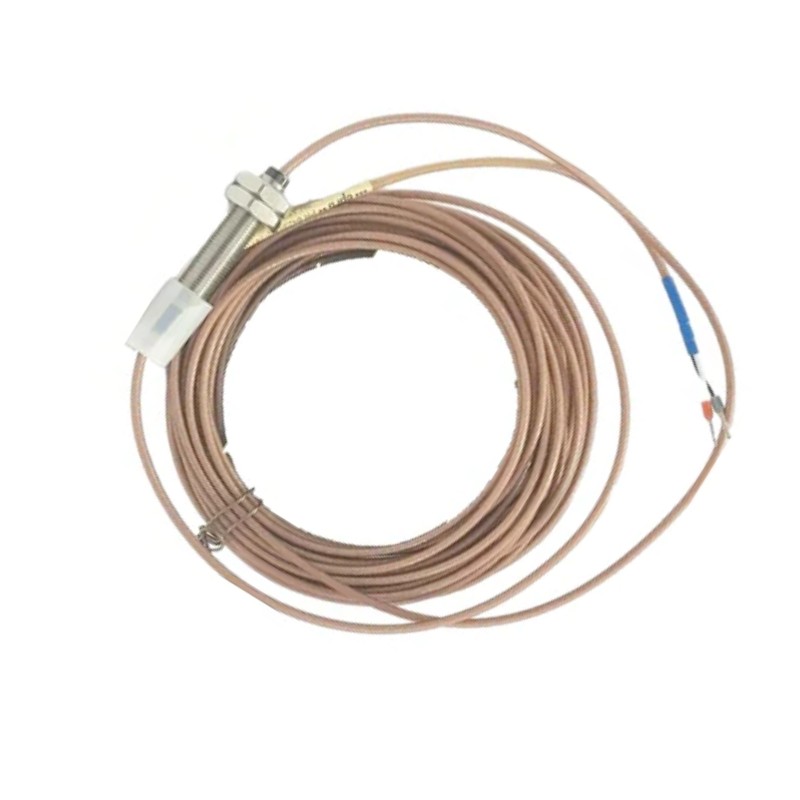

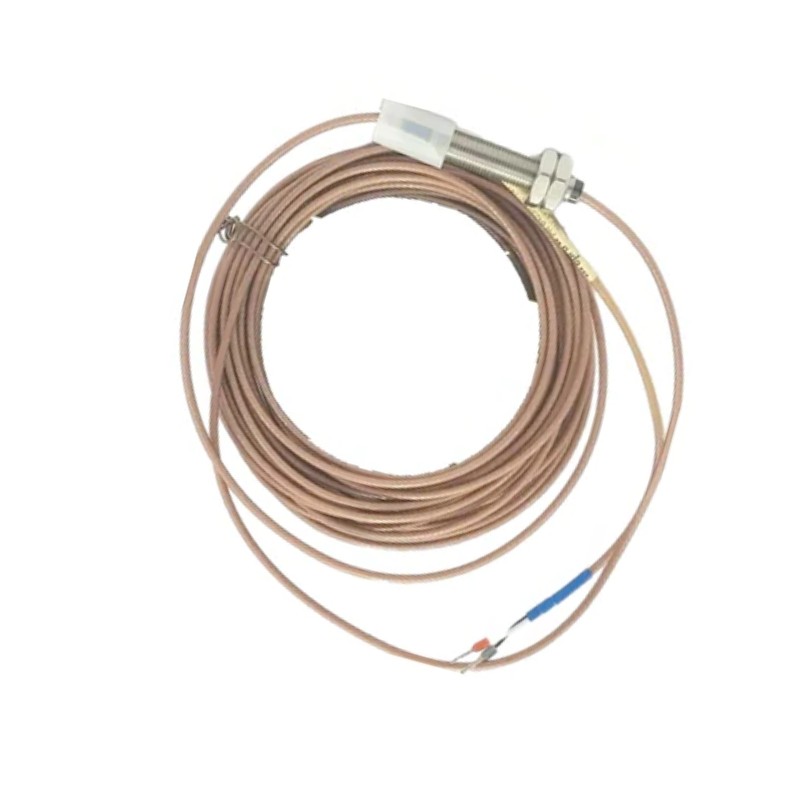

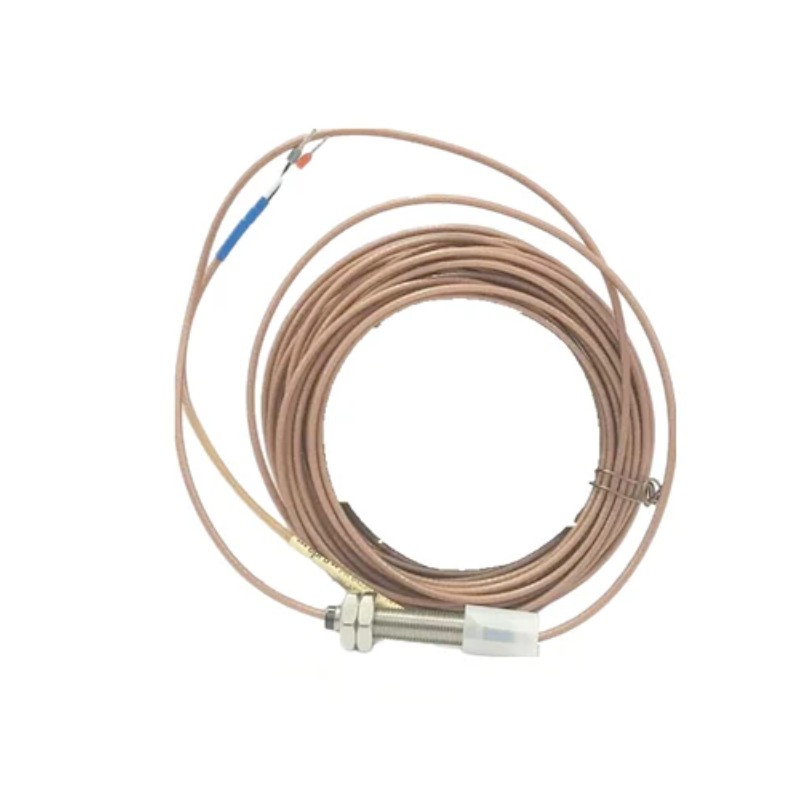

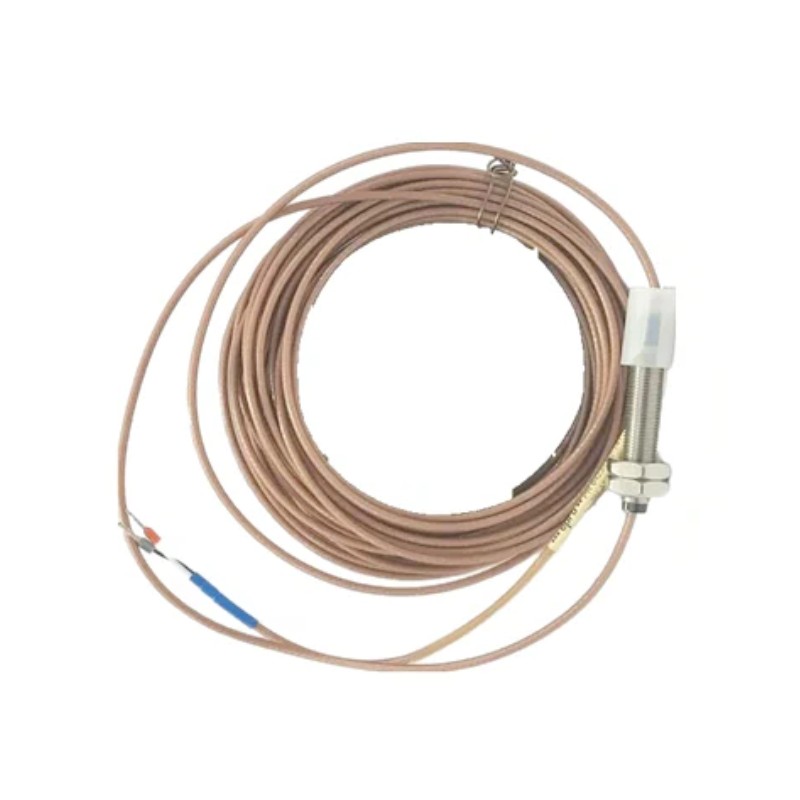

The Epro PR6423/004-010-CN Eddy Current Sensor is an 8mm non-contact displacement measurement probe used in rotating machinery monitoring systems. It belongs to the Epro PR6423 series eddy current sensor family and is mainly applied for measuring shaft vibration, radial displacement, and relative movement between the probe tip and the rotating target surface.
In large rotating equipment, mechanical condition monitoring depends on accurate detection of shaft movement. The PR6423/004-010-CN provides continuous measurement without physical contact, making it suitable for applications where stable operation, low wear, and precise vibration monitoring are required.
Unlike contact measurement devices, an eddy current sensor detects changes in the electromagnetic field generated near a conductive target. This allows the sensor to monitor high-speed rotating components such as turbine shafts, compressor rotors, and generator assemblies.
The sensor is typically integrated with compatible Epro monitoring systems and signal conditioning equipment to provide displacement information for machinery protection and predictive maintenance applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/004-010-CN |
| Product Family | PR6423 Series |
| Product Type | Eddy Current Sensor |
| Sensor Type | Non-contact Displacement Sensor |
| Sensor Diameter | 8 mm |
| Measurement Principle | Eddy Current Technology |
| Application | Rotating Machinery Monitoring |
| System Role | Shaft Displacement / Vibration Measurement |
| Dimensions | Sensor Head Diameter: 8 mm |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/004-010-CN provides accurate displacement measurement for industrial machinery monitoring applications.
Key characteristics include:
- Epro PR6423 series 8mm eddy current sensor
- Model PR6423/004-010-CN
- Non-contact shaft displacement measurement
- Suitable for rotating equipment monitoring
- Supports vibration analysis applications
- Provides continuous mechanical position measurement
- Suitable for high-speed machinery environments
- Works with compatible Epro signal conditioning systems
- Supports predictive maintenance strategies
- Designed for industrial condition monitoring applications
The sensor should be installed according to the required probe gap and system configuration to achieve stable measurement performance.
Working Principle
The PR6423/004-010-CN operates using the eddy current measurement principle to detect changes in the distance between the sensor tip and a conductive rotating target.
A simplified signal path is:
Rotating Shaft → PR6423 Eddy Current Sensor → Signal Converter → Monitoring System → Protection / Analysis Function
The sensor generates a high-frequency electromagnetic field around the probe tip. When the distance between the sensor and the shaft surface changes, the eddy current effect changes, causing a corresponding variation in the sensor signal.
The measurement signal represents the relative displacement between the probe and the monitored component. After signal conditioning, the data can be used for vibration monitoring, shaft position analysis, and machinery protection functions.
Because the sensor does not physically contact the rotating component, it can operate continuously without mechanical friction or wear at the measurement point.
Role in Machinery Condition Monitoring Architecture
The PR6423/004-010-CN serves as the sensing element within a rotating machinery monitoring system.
A typical monitoring structure is:
Rotating Shaft → Eddy Current Sensor → Signal Processing Unit → Monitoring System → Alarm / Protection
| System Layer | Typical Function |
|---|---|
| Rotating Equipment | Provides mechanical movement |
| Sensor Layer | Detects shaft displacement changes |
| Signal Processing Layer | Converts and conditions measurement signals |
| Monitoring Layer | Evaluates vibration and position data |
| Protection Layer | Generates alarms or shutdown actions |
| Control System | Coordinates equipment operation |
The sensor provides direct mechanical information from the rotating shaft, allowing monitoring systems to identify abnormal vibration or displacement conditions at an early stage.
Industrial Applications
The Epro PR6423/004-010-CN is suitable for applications requiring precise non-contact displacement monitoring.
| Application | Typical Use |
|---|---|
| Steam Turbines | Shaft vibration monitoring |
| Gas Turbines | Rotor displacement measurement |
| Compressors | Condition monitoring |
| Generators | Bearing and shaft monitoring |
| Pumps | Rotating component analysis |
| Industrial Machinery | Predictive maintenance systems |
| Power Plants | Machinery protection |
| Process Equipment | Continuous vibration monitoring |
The actual installation depends on the machinery structure, monitoring system, and required measurement position.
Installation and Maintenance
Proper installation of the PR6423/004-010-CN is essential for accurate displacement measurement.
Recommended maintenance checks include:
- Confirm the complete PR6423/004-010-CN model.
- Verify compatibility with the monitoring system.
- Check sensor mounting position.
- Confirm correct probe gap adjustment.
- Inspect sensor cable condition.
- Check connector connections.
- Verify signal converter compatibility.
- Inspect the target surface condition.
- Confirm stable mechanical mounting.
- Review monitoring system configuration.
- Check vibration trend data.
- Verify alarm settings.
- Inspect sensor operation during equipment running conditions.
If abnormal readings occur, the complete measurement chain should be inspected, including sensor installation, probe gap, cable routing, signal conditioning equipment, and monitoring parameters.
Related Components
The PR6423/004-010-CN is normally used together with other machinery monitoring components.
| Component | Function |
|---|---|
| Epro PR6423 Sensor | Detects shaft displacement |
| Eddy Current Signal Converter | Processes sensor output signals |
| Epro MMS Monitoring System | Provides vibration monitoring |
| Sensor Extension Cable | Connects sensor with converter |
| Protection Module | Handles alarm and shutdown logic |
| Rotating Machinery | Provides monitored target surface |
| Engineering Software | Supports analysis and diagnostics |
Correct matching between the sensor, converter, cable, and monitoring system is important for reliable operation.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/004-010-CN | Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/003-131+CON041 | Eddy Current Sensor + Converter | Complete displacement measurement system |
| Epro PR6423 Series | Eddy Current Sensor | Rotating machinery monitoring |
| Epro CON041 | Eddy Current Signal Converter | Sensor signal processing |
| Epro MMS 6000 Series | Machinery Monitoring System | Vibration protection |
| Bently Nevada 3300 XL Series | Eddy Current Probe System | Shaft vibration monitoring |
Model selection should consider sensor diameter, installation requirements, converter compatibility, and monitoring system configuration.
Key Advantages
- Epro PR6423 series eddy current sensing technology
- 8mm non-contact displacement measurement
- Suitable for rotating machinery monitoring
- Supports shaft vibration and position analysis
- Provides continuous mechanical condition monitoring
- Eliminates physical contact with rotating components
- Suitable for high-speed industrial equipment
- Integrates with compatible monitoring systems
- Supports predictive maintenance applications
- Suitable for turbines, compressors, generators, and pumps
Technical FAQs
What is the primary function of the Epro PR6423/004-010-CN sensor?
The PR6423/004-010-CN is used to measure relative displacement between the sensor probe and a conductive rotating target. It is commonly applied for shaft vibration and position monitoring in rotating machinery protection systems.
How does an 8mm eddy current sensor measure shaft movement?
The sensor generates an electromagnetic field near the target surface. Changes in the distance between the probe and the shaft affect the eddy current response, allowing the system to calculate relative displacement.
What installation factors affect measurement accuracy?
Probe gap, mounting stability, target surface condition, cable connection quality, and compatibility with the signal conditioning system all influence measurement accuracy and signal stability.
Why are non-contact sensors preferred for rotating machinery monitoring?
Non-contact sensors avoid physical wear between the probe and rotating components, allowing continuous operation on high-speed equipment while providing stable displacement measurements for condition monitoring.
