- Epro
- PR6423/003-030+CON021

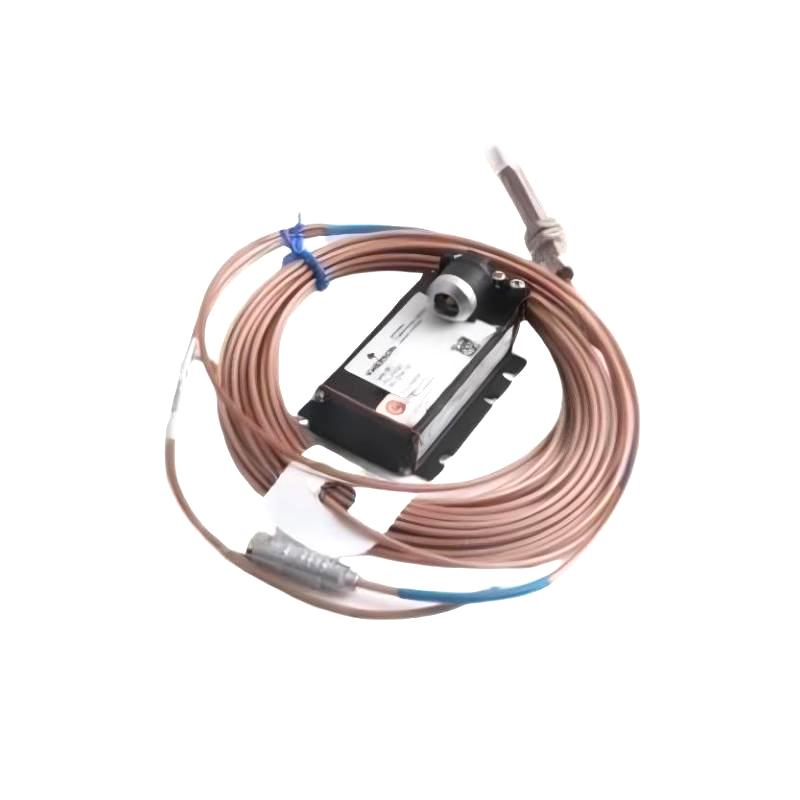

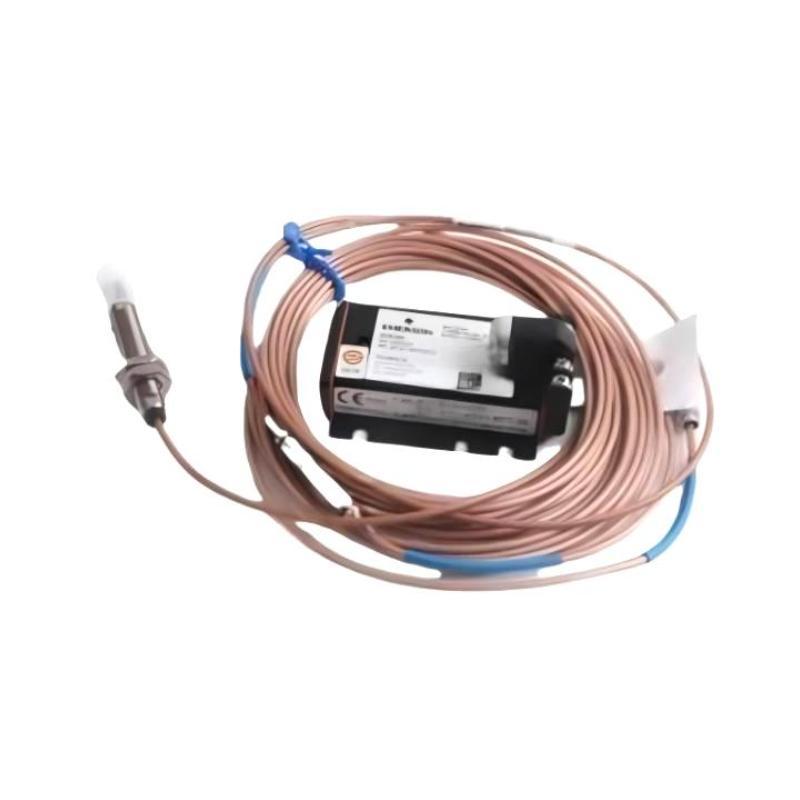

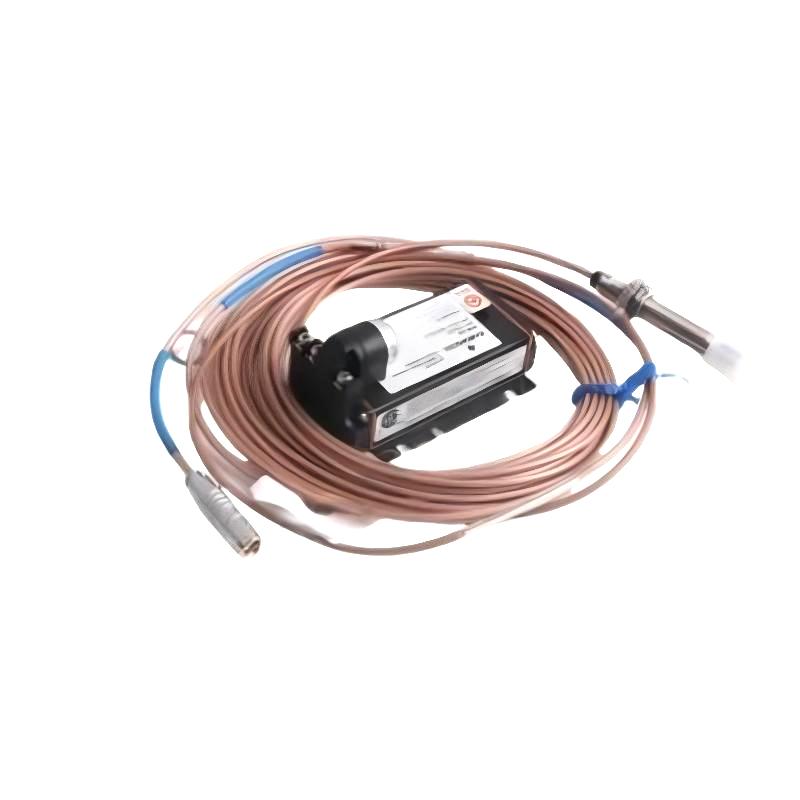

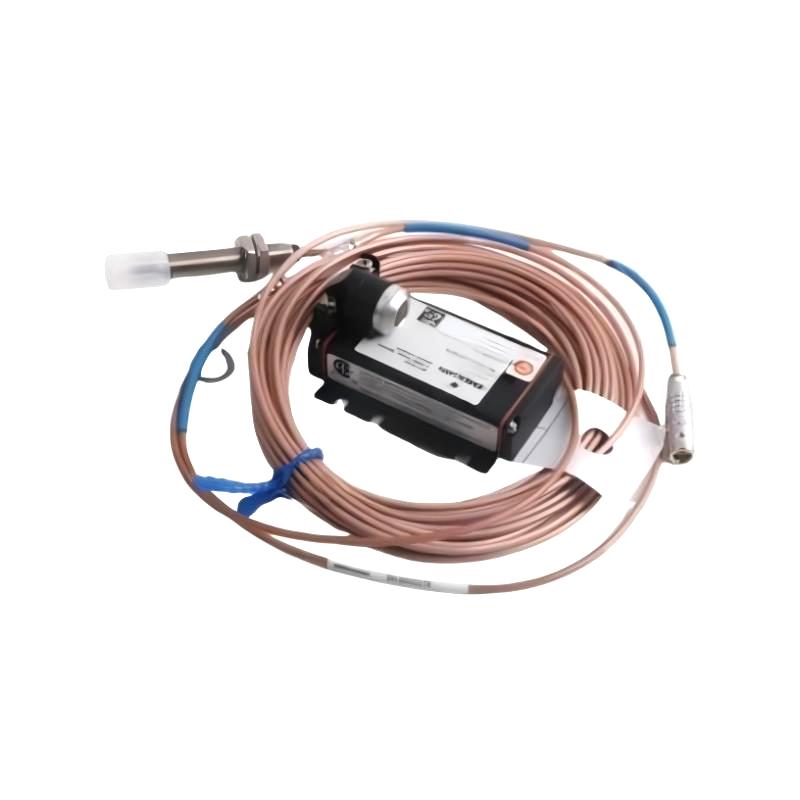

- 8mm Eddy Current Sensor + Signal Converter
- Germany
- 8 mm
- 0.22 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 18
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview
The Epro PR6423/003-030+CON021 Eddy Current Sensor System is a non-contact displacement measurement assembly consisting of an 8 mm eddy current probe and a CON021 signal converter. It is mainly used for monitoring shaft displacement, vibration behavior, and mechanical condition of high-speed rotating equipment.
In industrial machinery, the relative position between the rotating shaft and stationary components directly affects equipment operating stability. The PR6423/003-030 probe measures shaft movement by detecting changes in the electromagnetic field, while the CON021 converter processes the probe signal and provides a standardized output for connection to vibration monitoring and protection systems.
This sensor system is commonly applied in turbine, compressor, generator, and pump monitoring applications where continuous and accurate displacement measurement is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/003-030+CON021 |
| Product Type | Eddy Current Sensor + Signal Converter |
| Sensor Type | Non-contact Eddy Current Probe |
| Probe Diameter | 8 mm |
| Signal Converter | CON021 |
| Measurement Principle | Eddy Current Displacement Measurement |
| Application | Shaft Vibration and Position Monitoring |
| Installation | Rotating Machinery Monitoring System |
| Sensor Head Diameter | 8 mm |
| Weight | 0.22 kg |
Product Features
The Epro PR6423/003-030+CON021 combines sensing and signal processing functions for industrial machinery monitoring.
Key features include:
- 8 mm eddy current probe design
- Includes CON021 signal converter
- Non-contact shaft displacement measurement
- Suitable for vibration monitoring applications
- Provides continuous position detection of rotating shafts
- Supports machinery protection systems
- Compact sensor structure for flexible installation
- Reduces mechanical wear compared with contact measurement
- Suitable for high-speed rotating equipment
- Supports integration with industrial monitoring platforms
The combination of sensor probe and converter provides a complete solution from mechanical displacement detection to monitoring system input.
Working Principle
The PR6423/003-030+CON021 uses eddy current technology to measure the distance between the sensor tip and a conductive target surface.
Measurement process:
Rotating Shaft → Eddy Current Probe → CON021 Signal Converter → Monitoring Module → Protection System
Operating sequence:
- The probe generates a high-frequency electromagnetic field around the sensor tip.
- When the shaft moves closer or farther away, the eddy current effect changes.
- The probe detects this variation and converts it into an electrical signal.
- The CON021 converter conditions and processes the signal.
- The monitoring system analyzes shaft displacement and vibration conditions.
This measurement method allows accurate monitoring without direct contact, making it suitable for continuous operation of critical rotating machinery.
Application in Machinery Protection Systems
The Epro PR6423/003-030+CON021 is used as a front-end measurement device in machinery condition monitoring systems.
| Component | Function |
|---|---|
| Eddy Current Probe | Detects shaft movement |
| CON021 Converter | Processes sensor signals |
| Vibration Monitoring Module | Analyzes displacement data |
| PLC/DCS System | Integrates equipment status |
| Protection System | Provides alarm and shutdown functions |
The system helps detect abnormal mechanical conditions such as excessive vibration, shaft displacement changes, and alignment issues.
Industrial Applications
| Industry | Application |
|---|---|
| Power Generation | Turbine shaft vibration monitoring |
| Oil & Gas | Compressor protection and condition monitoring |
| Petrochemical | Rotating machinery monitoring |
| Marine | Engine and turbine condition monitoring |
| Manufacturing | High-speed equipment maintenance |
| Energy Facilities | Predictive maintenance systems |
The sensor system is suitable for critical equipment where early fault detection can reduce downtime and improve operational safety.
Installation and Maintenance
Correct installation ensures measurement accuracy and stable operation.
Recommended practices:
- Install the probe according to the specified measurement gap.
- Ensure the probe is aligned with the shaft surface.
- Verify connection between PR6423 sensor and CON021 converter.
- Keep sensor cables away from strong electromagnetic interference.
- Check signal output during commissioning.
- Inspect mounting conditions regularly.
- Maintain monitoring system configuration records.
Proper maintenance helps extend system service life and maintain reliable vibration monitoring performance.
Compatible System Components
The PR6423/003-030+CON021 is commonly integrated with:
| Component | Function |
|---|---|
| Epro MMS Series Monitoring System | Machinery condition monitoring |
| CON021 Signal Converter | Signal conversion and conditioning |
| Vibration Protection Modules | Alarm and protection control |
| PLC Systems | Equipment data integration |
| DCS Platforms | Process monitoring |
| Turbine Control Systems | Generator and turbine supervision |
Recommended Related Models
| Model | Product Type | Application |
|---|---|---|
| Epro PR6423/003-030+CON021 | Eddy Current Sensor System | Shaft displacement monitoring |
| Epro PR6423/003-010+CON021 | Eddy Current Sensor System | Rotating equipment monitoring |
| Epro PR6423/002-131+CON031 | Eddy Current Sensor + Converter | Turbine vibration measurement |
| Epro PR6423/002-031+CON041 | Eddy Current Sensor System | Machinery protection |
| Epro PR6423/003-020 | 8mm Eddy Current Sensor | Shaft position detection |
Model selection should consider converter type, sensor installation requirements, monitoring system compatibility, and machinery operating conditions.
Key Advantages
- Provides non-contact shaft displacement measurement
- Includes matching signal conversion capability
- Supports continuous rotating machinery monitoring
- Improves fault detection capability
- Reduces mechanical contact-related wear
- Compact 8 mm probe design
- Suitable for high-speed machinery
- Supports integration with industrial protection systems
- Helps improve equipment reliability
Technical FAQs
What is the purpose of the Epro PR6423/003-030+CON021 system?
The system is used to measure shaft displacement and vibration of rotating machinery through an 8 mm eddy current probe combined with a CON021 signal converter.
What does the CON021 signal converter do?
The CON021 processes the raw probe signal and converts it into a suitable output for connection with monitoring and protection equipment.
Why are eddy current sensors suitable for turbine and compressor monitoring?
Eddy current sensors provide non-contact measurement, allowing accurate monitoring of high-speed rotating shafts without physical wear.
What equipment can use the PR6423/003-030+CON021?
It is commonly applied to turbines, compressors, generators, pumps, and other critical rotating equipment requiring condition monitoring.
