Product Overview

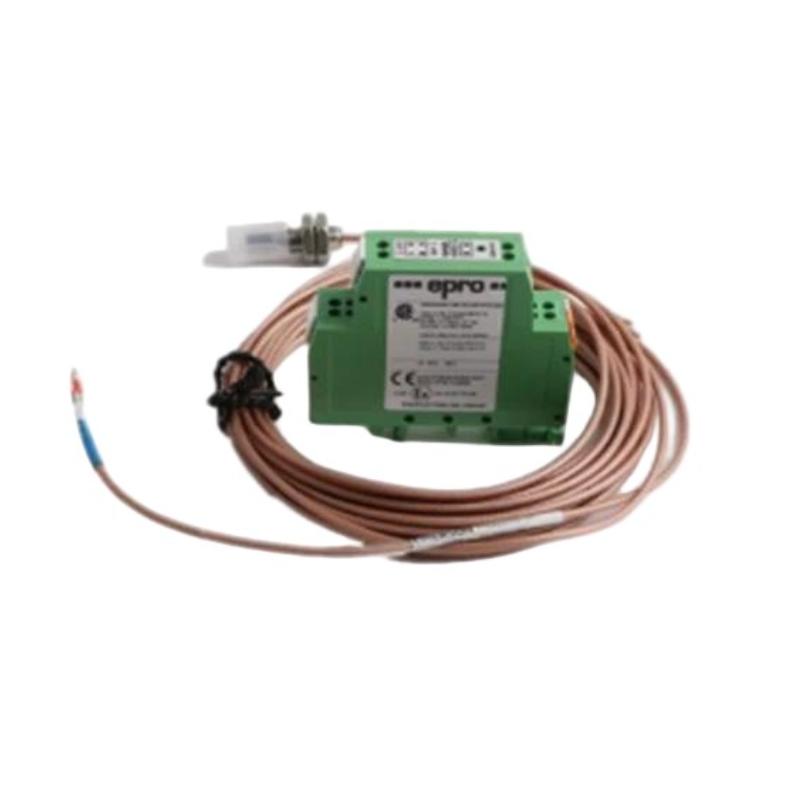

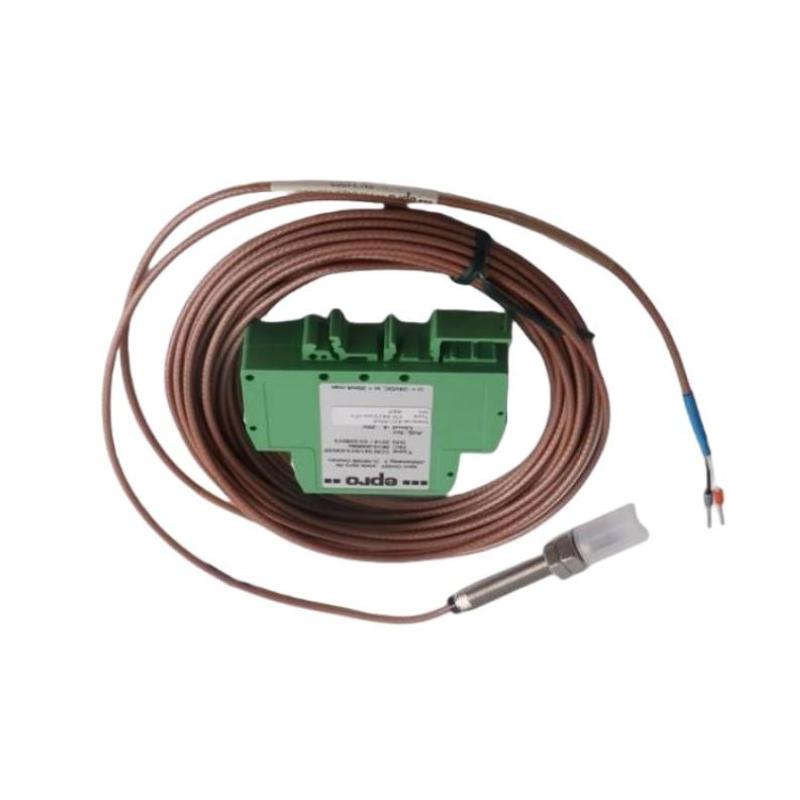

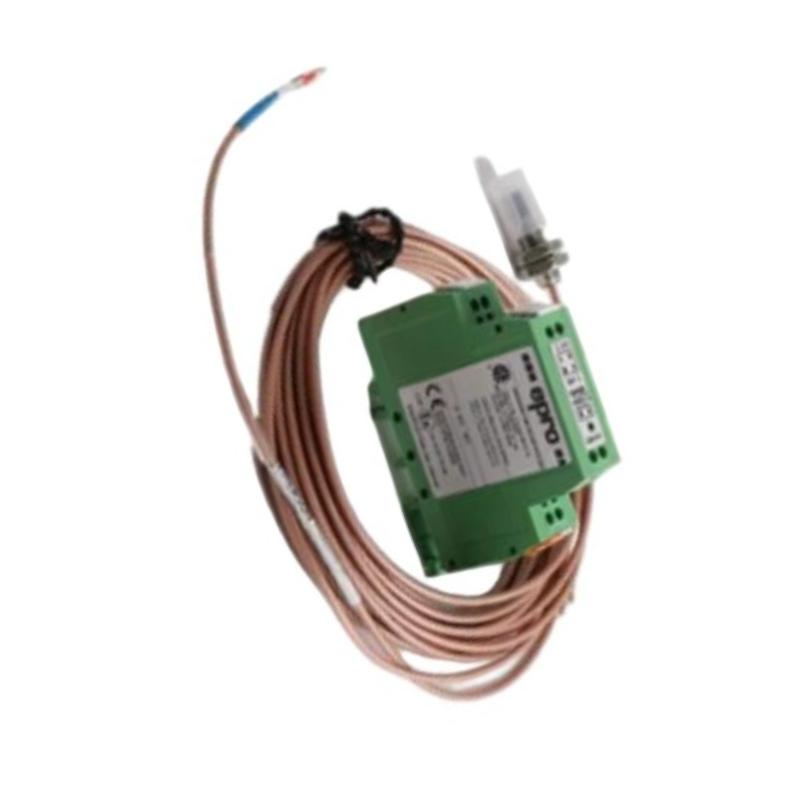

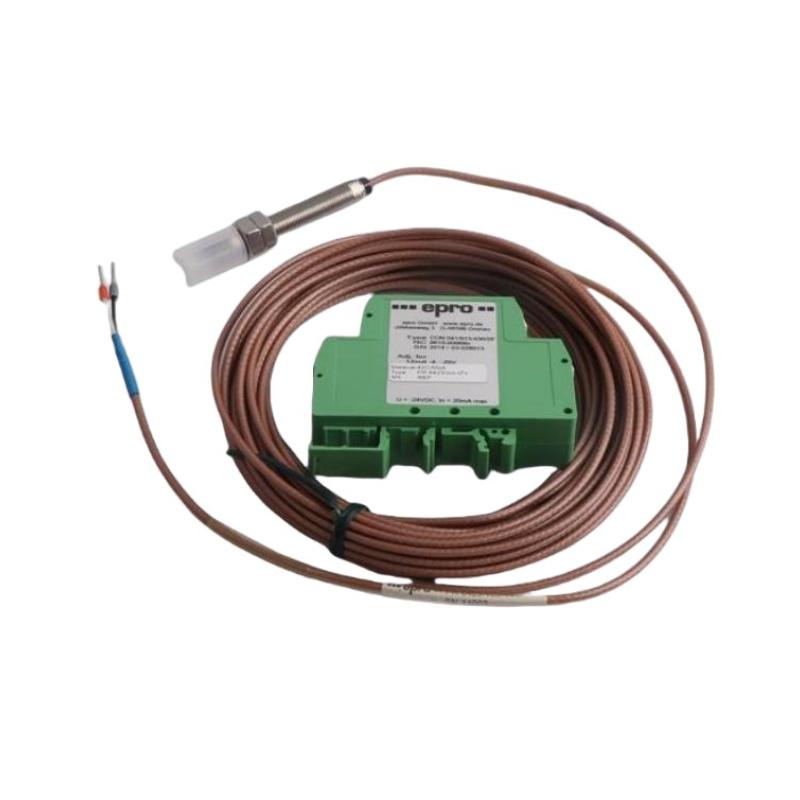

The Epro PR6423/002-131+CON031 Eddy Current Sensor System is a non-contact displacement measurement solution consisting of an 8 mm eddy current probe and a matching CON031 signal converter. It is mainly used for vibration monitoring, shaft displacement measurement, and mechanical condition monitoring of rotating equipment.

In industrial machinery such as turbines, compressors, pumps, and generators, accurate measurement of shaft position and vibration is essential for preventing unexpected failures. The PR6423/002-131 probe detects changes in the distance between the sensor tip and the rotating shaft surface, while the CON031 signal converter converts the probe output into a standardized signal suitable for monitoring and protection systems.

This sensor system is commonly integrated with Epro/Emerson vibration monitoring platforms and works together with vibration monitoring racks, protection modules, data acquisition systems, and industrial control systems.

Technical Specifications

Product Features

The Epro PR6423/002-131+CON031 provides accurate and continuous shaft displacement monitoring for critical rotating equipment.

Key features include:

• 8 mm eddy current sensing probe
• Non-contact displacement measurement technology
• Includes CON031 signal converter
• Suitable for rotating machinery condition monitoring
• Provides accurate shaft position detection
• Supports vibration monitoring applications
• Reduces mechanical wear compared with contact sensors
• Compatible with industrial machinery protection systems
• Compact sensor design for limited installation spaces
• Suitable for continuous operation environments

The combination of probe and converter provides a complete measurement chain from physical displacement detection to system-level signal output.

Working Principle

The PR6423/002-131+CON031 operates based on the eddy current measurement principle.

Typical measurement process:

Rotating Shaft → Eddy Current Probe → CON031 Signal Converter → Monitoring System → Protection / Control Logic

Operating process:

1. The probe generates a high-frequency electromagnetic field near the rotating shaft surface.
2. When the shaft position changes, the electromagnetic field interaction changes.
3. The sensor detects variations caused by the distance between probe tip and shaft.
4. The CON031 converter processes the probe signal and converts it into a usable monitoring output.
5. The vibration monitoring system analyzes shaft displacement and provides alarms or protection actions when abnormal conditions occur.

This non-contact measurement method allows continuous monitoring without physical contact with the rotating component.

Role in Machinery Protection Systems

The Epro PR6423/002-131+CON031 plays an important role in predictive maintenance and equipment protection systems.

The sensor system helps operators identify mechanical problems such as shaft vibration, misalignment, imbalance, and bearing-related issues.

Industrial Applications

The Epro PR6423/002-131+CON031 is widely used in industries requiring continuous monitoring of high-speed rotating machinery.

It is especially suitable for machinery where early detection of vibration and displacement changes is required.

Installation and Maintenance

Correct installation directly affects measurement accuracy.

Recommended practices include:

• Maintain proper probe installation distance from the shaft.
• Ensure correct sensor alignment.
• Verify connection between probe and converter.
• Protect cables from mechanical damage and interference.
• Check signal output during commissioning.
• Inspect sensor mounting conditions periodically.
• Maintain monitoring system configuration records.

Regular inspection ensures stable measurement performance and improves machinery protection reliability.

Compatible System Components

The Epro PR6423/002-131+CON031 is commonly used with:

Recommended Related Models

Model selection should consider probe diameter, measurement range, monitoring system compatibility, and machinery requirements.

Key Advantages

• Provides non-contact shaft displacement measurement
• Supports continuous vibration monitoring
• Includes dedicated signal conversion capability
• Suitable for critical rotating machinery
• Improves predictive maintenance capability
• Helps detect mechanical abnormalities early
• Reduces equipment downtime risk
• Compact design for industrial installation
• Supports integration with monitoring systems

Technical FAQs

What is the purpose of the Epro PR6423/002-131+CON031?

The system is used for non-contact measurement of shaft displacement and vibration in rotating machinery such as turbines, compressors, and generators.

What is the function of the CON031 converter?

The CON031 converts the eddy current probe signal into a processed output suitable for connection with monitoring and protection systems.

Why are eddy current sensors used for shaft monitoring?

Eddy current sensors provide non-contact measurement, allowing accurate monitoring of rotating shafts without mechanical wear or physical contact.

What equipment commonly uses the PR6423/002-131+CON031?

It is commonly used on turbines, compressors, pumps, and other critical rotating equipment requiring vibration and displacement monitoring.
