Product Overview

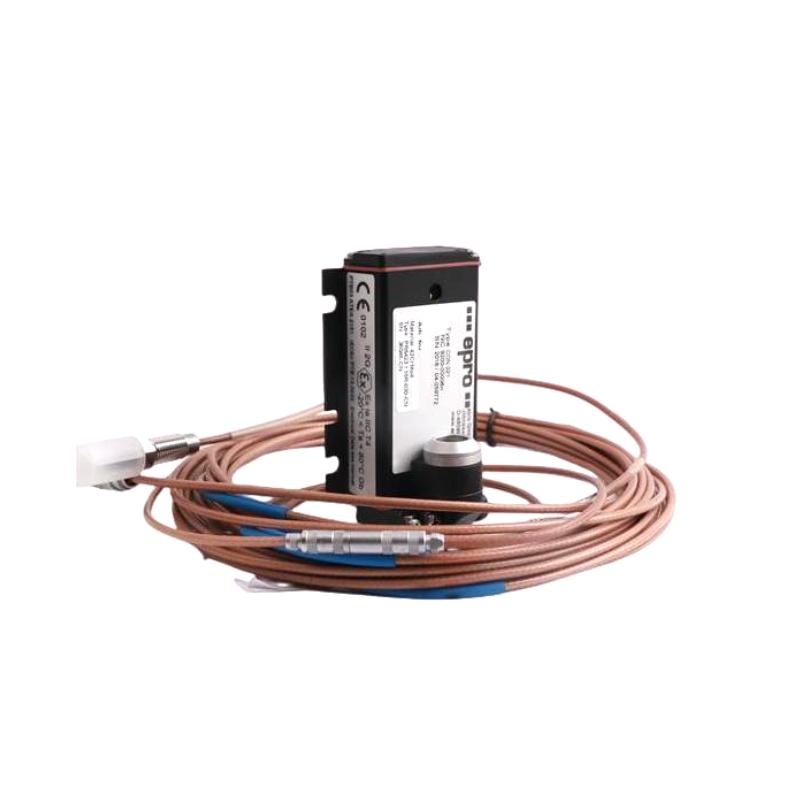

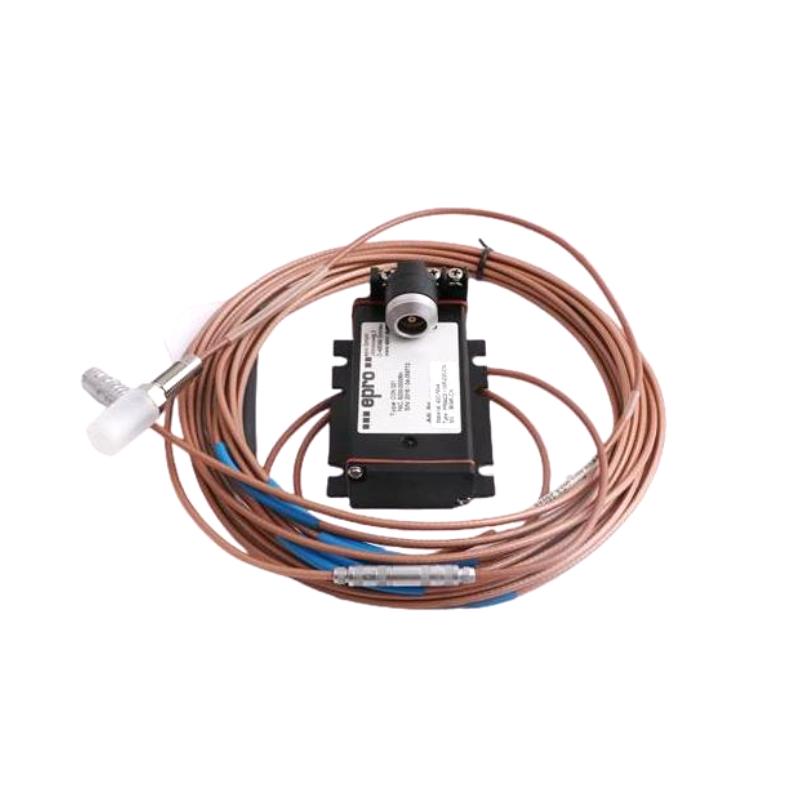

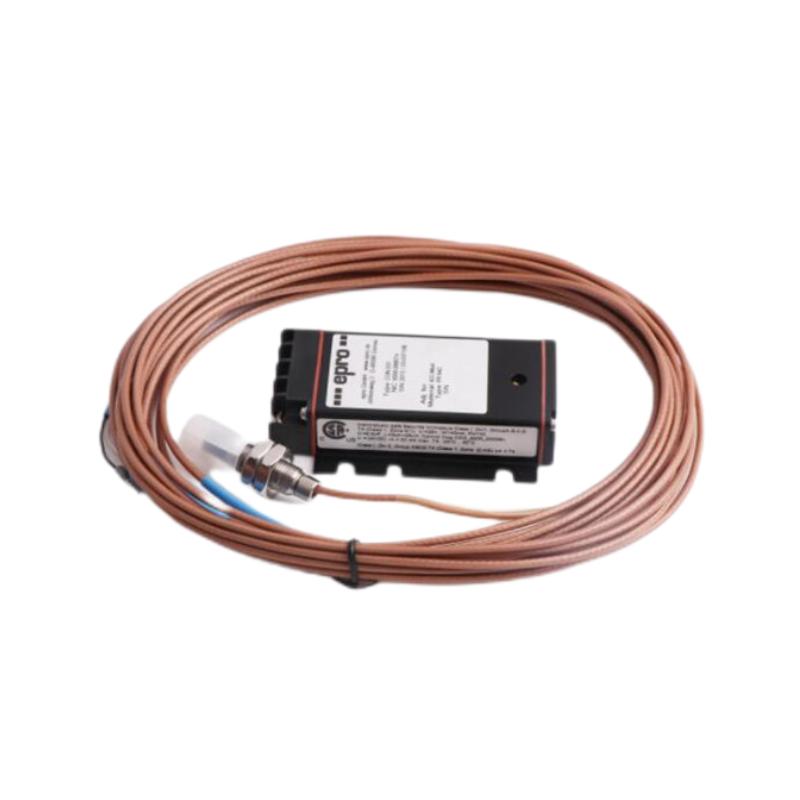

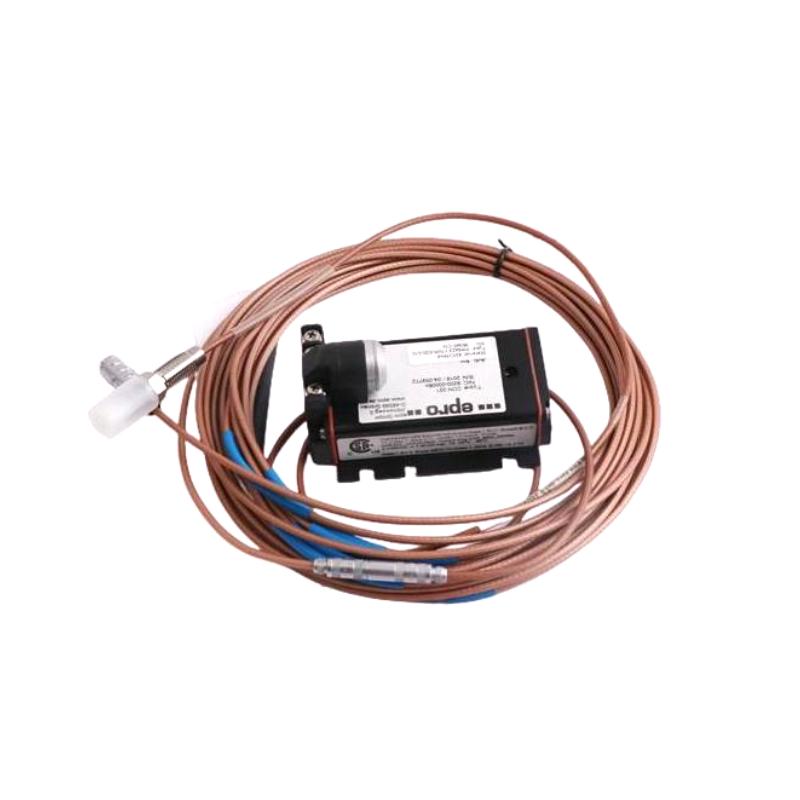

The Epro PR6423/002-041 8mm Eddy Current Sensor is a non-contact displacement measurement sensor used for rotating machinery monitoring and protection applications. It belongs to the Epro PR6423 series and is mainly applied to detect shaft vibration, relative displacement, and mechanical position changes in high-value industrial equipment.
The sensor adopts eddy current measurement technology, which detects the distance between the probe tip and a conductive target surface through electromagnetic field changes. Since there is no direct contact with the rotating component, the sensor can operate continuously on high-speed machinery while avoiding mechanical wear and measurement interference.
The PR6423/002-041 is commonly installed on turbines, compressors, generators, pumps, and other critical rotating equipment. It provides accurate shaft movement information to connected signal converters and monitoring systems, allowing operators to evaluate machine operating conditions and identify potential mechanical problems.
As a core sensing element in machinery condition monitoring systems, the sensor supports predictive maintenance strategies by providing real-time displacement feedback for equipment diagnostics and protection.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/002-041 |
| Product Type | Eddy Current Sensor |
| Sensor Type | 8mm Eddy Current Sensor |
| Function | Non-contact Displacement Measurement |
| Application | Rotating Machinery Condition Monitoring |
| System Role | Shaft Vibration / Position Detection |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/002-041 provides reliable shaft displacement sensing for industrial machinery monitoring applications.
Key characteristics include:
- Epro PR6423 series eddy current sensor
- Model PR6423/002-041
- 8mm sensor head diameter
- Non-contact electromagnetic measurement technology
- Suitable for shaft vibration monitoring
- Supports relative displacement detection
- Provides continuous machine condition feedback
- Suitable for high-speed rotating equipment
- Reduces mechanical wear through contactless operation
- Compatible with Epro monitoring system solutions
- Supports predictive maintenance applications
- Suitable for industrial protection systems
The sensor provides the measurement foundation required for analyzing rotating equipment performance and detecting abnormal mechanical movement.
Working Principle
The Epro PR6423/002-041 operates based on eddy current sensing technology.
A simplified measurement process is:
Rotating Shaft → PR6423/002-041 Eddy Current Sensor → Signal Converter → Monitoring System
During operation, the sensor creates a high-frequency electromagnetic field near the rotating shaft. When the gap between the sensor probe and the conductive target changes, the eddy current characteristics are affected.
The sensor detects these changes and converts them into displacement-related electrical signals. After signal processing, the monitoring system can evaluate shaft movement and vibration conditions.
Typical measurement functions include:
- Radial shaft vibration monitoring
- Relative shaft displacement detection
- Mechanical position measurement
- Rotating equipment condition analysis
- Abnormal movement identification
The non-contact sensing method allows stable operation in demanding industrial environments where traditional contact measurement methods may not be suitable.
Role in Machinery Condition Monitoring Architecture
The PR6423/002-041 acts as a front-end sensing device within a rotating machinery monitoring system.
A typical architecture can be represented as:
Machine Shaft → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
Within this structure:
- The sensor detects changes in shaft position.
- The signal converter processes measurement signals.
- The monitoring module analyzes vibration and displacement data.
- The protection system responds to abnormal operating conditions.
The sensor provides critical measurement information required for machinery health assessment and preventive maintenance.
Industrial Applications
The Epro PR6423/002-041 is widely used in industries where rotating equipment reliability is essential.
| Application | Typical Use |
|---|---|
| Power Generation | Turbine shaft vibration monitoring |
| Oil and Gas | Compressor and pump monitoring |
| Petrochemical | Rotating machinery protection |
| Refining Industry | Critical equipment diagnostics |
| Manufacturing | High-speed machine condition monitoring |
| Energy Systems | Generator shaft displacement measurement |
| Process Industry | Predictive maintenance applications |
| Heavy Industry | Mechanical movement monitoring |
The actual installation depends on the machine structure, monitoring requirements, and compatible protection system.
Installation and Maintenance
Proper installation directly affects sensor accuracy and long-term operating stability.
Recommended practices include:
- Verify the correct PR6423 sensor model.
- Confirm installation location before mounting.
- Maintain correct probe clearance.
- Ensure proper alignment with the target surface.
- Inspect sensor cable condition.
- Check connector connections.
- Confirm compatibility with signal converters.
- Verify monitoring system configuration.
- Review vibration trends regularly.
- Perform inspections during scheduled maintenance.
When troubleshooting abnormal measurement signals, engineers should check the complete signal chain, including sensor installation, cable condition, signal conversion equipment, monitoring parameters, and machine operating conditions.
Related Components
The PR6423/002-041 is commonly used with other machinery monitoring components.
| Component | Function |
|---|---|
| Eddy Current Signal Converter | Processes sensor output signals |
| CON041 Converter | Converts probe signals for monitoring systems |
| Vibration Monitoring Module | Analyzes vibration and displacement data |
| Protection System | Provides alarm and shutdown functions |
| Extension Cable | Connects sensor and converter |
| Engineering Software | System configuration and diagnostics |
| Rotating Equipment | Provides monitored mechanical movement |
These components work together to form a complete rotating machinery monitoring system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/002-041 | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/002-031-CN | 8mm Eddy Current Sensor | Shaft vibration measurement |
| Epro PR6423/002-031+CON041 | Sensor + Signal Converter System | Complete monitoring application |
| Epro PR6423/002-030+CON041 | Eddy Current Sensor System | Rotating equipment protection |
| Epro PR6423/002-001-CN | 8mm Eddy Current Sensor | Position monitoring |
| Epro PR6423 Series | Eddy Current Sensor Family | Industrial machinery monitoring |
Model selection should be based on sensor specifications, installation requirements, monitoring system compatibility, and equipment operating conditions.
Key Advantages
- Epro PR6423 series 8mm eddy current sensor
- Model PR6423/002-041
- Provides non-contact displacement measurement
- Supports shaft vibration monitoring
- Suitable for rotating machinery protection
- Enables continuous equipment condition monitoring
- Reduces mechanical wear through contactless sensing
- Provides accurate shaft position feedback
- Suitable for critical industrial applications
- Integrates with machinery monitoring systems
Technical FAQs
What is the primary function of the Epro PR6423/002-041?
The sensor is used to measure shaft displacement and vibration movement in rotating machinery, providing measurement data for condition monitoring and protection systems.
Why is the PR6423/002-041 suitable for high-speed rotating equipment?
Because it uses non-contact eddy current technology, the sensor can monitor shaft movement without physical contact, reducing wear and maintaining measurement stability during high-speed operation.
What equipment typically uses an 8mm eddy current sensor?
8mm eddy current sensors are commonly installed on turbines, compressors, generators, pumps, and other rotating machines requiring accurate shaft monitoring.
What factors affect the accuracy of PR6423/002-041 measurements?
Sensor clearance, probe alignment, target surface condition, cable quality, signal converter compatibility, and monitoring system configuration all influence measurement accuracy.
