- Epro
- PR6423/002-031-CN
- 8mm Eddy Current Sensor
- Germany
- 8 mm
- 0.1 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

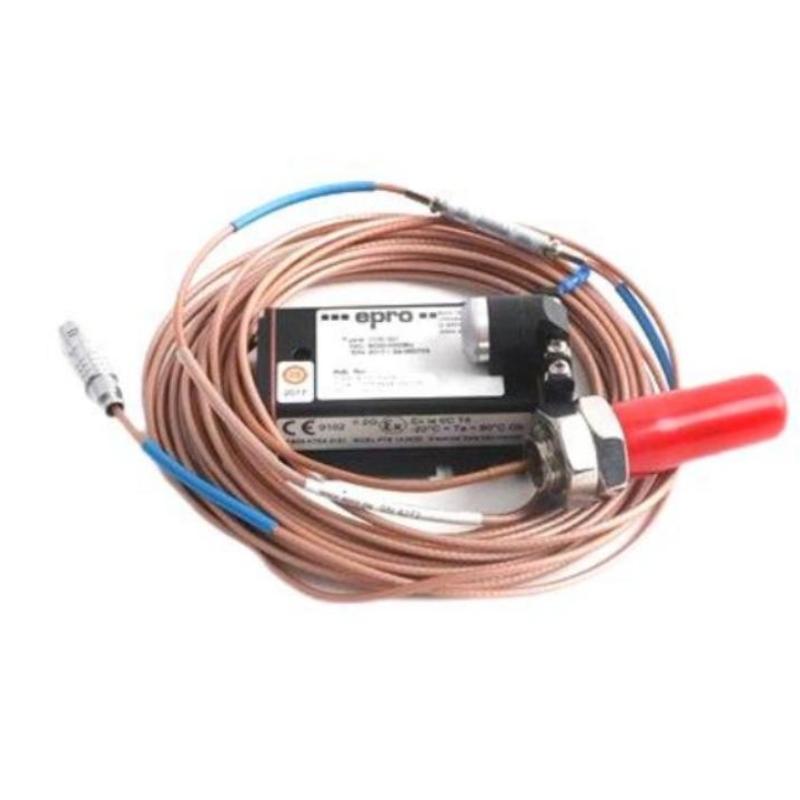

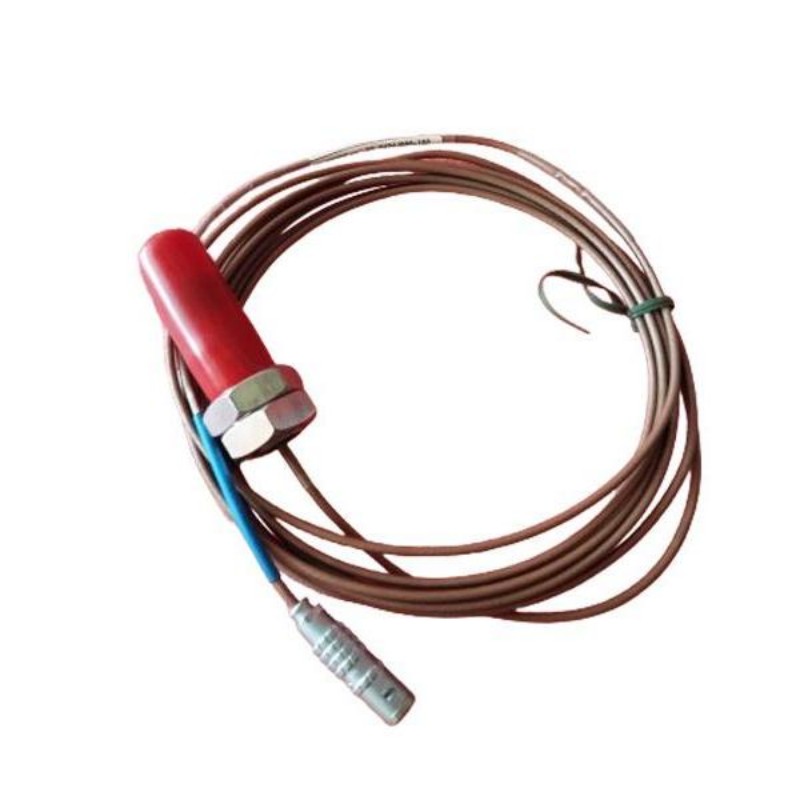

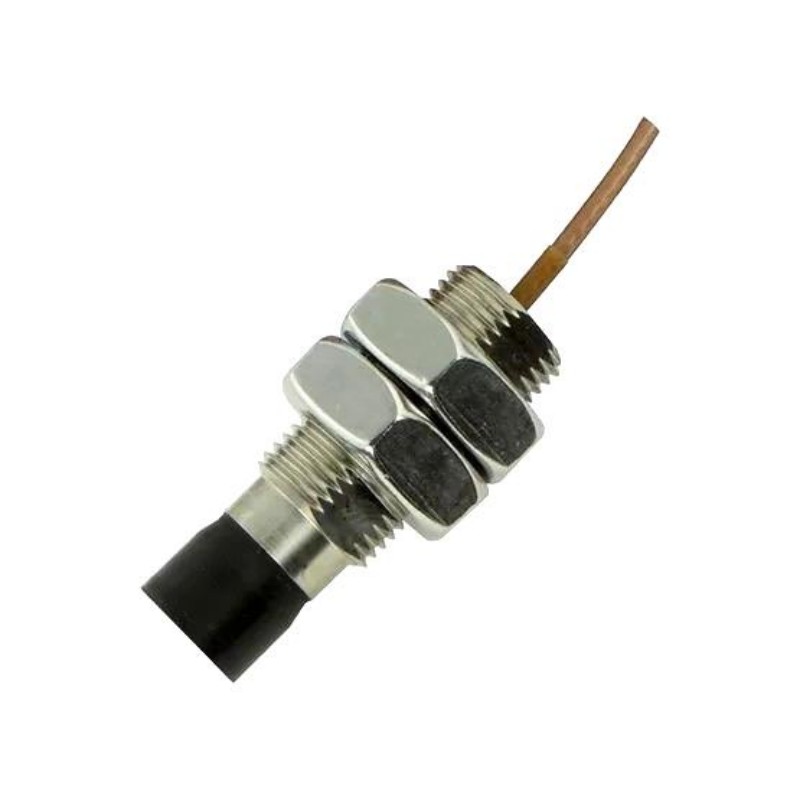

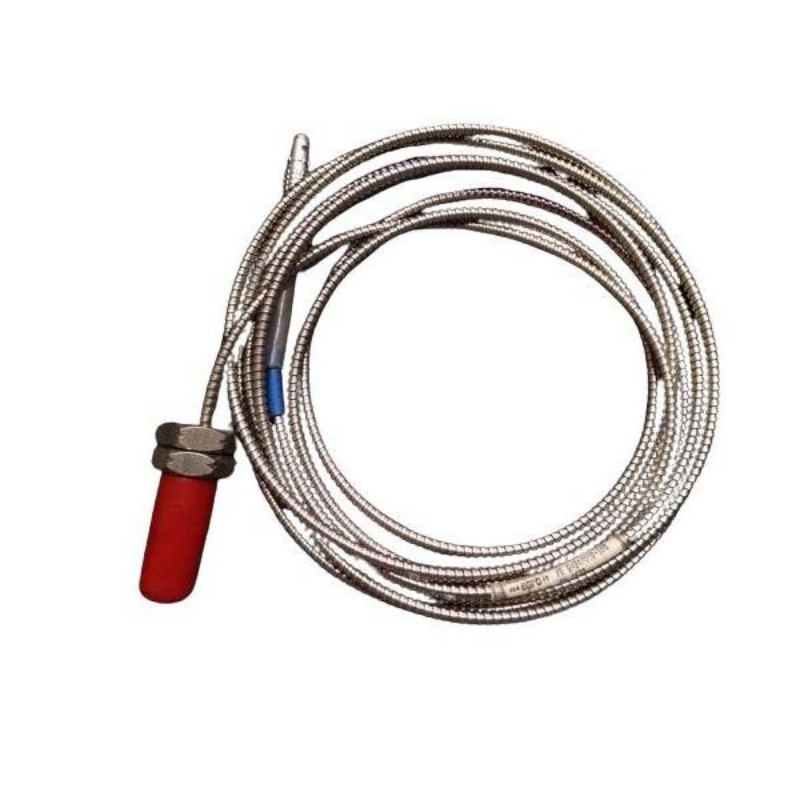

The Epro PR6423/002-031-CN 8mm Eddy Current Sensor is a non-contact displacement measurement sensor used in rotating machinery monitoring and protection systems. It belongs to the Epro PR6423 series and is mainly applied for detecting shaft vibration, relative displacement, and mechanical position changes in critical industrial equipment.
The sensor uses eddy current measurement technology to detect the distance between the probe tip and a conductive target surface without physical contact. This operating method allows stable measurement on high-speed rotating equipment while avoiding mechanical wear caused by traditional contact measurement methods.
The PR6423/002-031-CN is typically installed near rotating shafts in turbines, compressors, generators, pumps, and other large industrial machines. It provides continuous displacement information to compatible signal converters and monitoring systems, helping engineers evaluate equipment condition and identify abnormal mechanical movement.
As a sensing component in machinery protection systems, the sensor plays an important role in predictive maintenance strategies by providing accurate vibration and position feedback during normal machine operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/002-031-CN |
| Product Type | Eddy Current Sensor |
| Sensor Type | 8mm Eddy Current Sensor |
| Function | Non-contact Displacement Measurement |
| Application | Rotating Machinery Condition Monitoring |
| System Role | Shaft Vibration / Position Detection |
| Sensor Head Diameter | 8 mm |
| Weight | 0.1 kg |
Product Features
The Epro PR6423/002-031-CN provides precise displacement detection for industrial rotating equipment.
Key characteristics include:
- Epro PR6423 series eddy current sensor
- Model PR6423/002-031-CN
- 8mm sensor head diameter
- Non-contact electromagnetic measurement principle
- Suitable for shaft vibration monitoring
- Supports relative displacement measurement
- Designed for rotating machinery protection systems
- Provides continuous mechanical position feedback
- Suitable for high-speed operating environments
- Reduces sensor wear through contactless operation
- Compatible with Epro monitoring system configurations
- Supports industrial predictive maintenance applications
The sensor is mainly used as the front-end measurement element in a complete vibration monitoring system, providing accurate mechanical movement data for further analysis.
Working Principle
The Epro PR6423/002-031-CN operates based on eddy current sensing technology.
A simplified signal path is:
Rotating Shaft → PR6423/002-031-CN Eddy Current Sensor → Signal Converter → Monitoring System
During operation, the sensor generates a high-frequency electromagnetic field near the machine shaft. When the distance between the sensor probe and the conductive target changes, the generated eddy current characteristics also change.
The sensor detects these changes and converts them into displacement-related electrical signals. These signals are then processed by compatible signal converters and monitoring equipment.
Typical measurement functions include:
- Shaft radial vibration detection
- Relative shaft position monitoring
- Mechanical displacement measurement
- Rotating equipment condition analysis
- Abnormal movement trend identification
The non-contact sensing method allows continuous monitoring without affecting the mechanical operation of the monitored equipment.
Role in Machinery Condition Monitoring Architecture
The PR6423/002-031-CN acts as a measurement component within rotating machinery monitoring systems.
A typical structure can be represented as:
Machine Shaft → Eddy Current Sensor → Signal Converter → Monitoring Module → Protection System
Within this architecture:
- The sensor detects physical shaft movement.
- The converter processes the electrical measurement signal.
- The monitoring module analyzes vibration and displacement conditions.
- The protection system provides alarms or shutdown functions when abnormal conditions occur.
The sensor provides the basic measurement data required for evaluating machine operating health.
Industrial Applications
The Epro PR6423/002-031-CN is widely used in applications where accurate shaft monitoring is required.
| Application | Typical Use |
|---|---|
| Power Generation | Turbine shaft vibration monitoring |
| Oil and Gas | Compressor condition monitoring |
| Petrochemical | Rotating equipment protection |
| Refining Systems | Critical machinery monitoring |
| Manufacturing Industry | High-speed machine diagnostics |
| Energy Facilities | Generator shaft position measurement |
| Process Industry | Predictive maintenance systems |
| Heavy Equipment | Mechanical displacement detection |
The final application depends on the equipment type, monitoring requirements, and installed protection system.
Installation and Maintenance
Proper installation directly affects measurement accuracy and long-term sensor performance.
Recommended practices include:
- Confirm correct PR6423 sensor model.
- Verify probe installation position.
- Maintain correct sensor clearance.
- Ensure proper alignment with the target surface.
- Inspect sensor cable condition.
- Check connector reliability.
- Confirm compatibility with signal converters.
- Verify monitoring system configuration.
- Review vibration trends regularly.
- Perform inspection during scheduled maintenance.
When abnormal measurement signals occur, engineers should check the complete system, including sensor installation, cable integrity, signal conversion equipment, monitoring parameters, and actual machine operating conditions.
Related Components
The PR6423/002-031-CN is commonly integrated with the following components.
| Component | Function |
|---|---|
| Eddy Current Signal Converter | Processes sensor measurement signals |
| CON041 Converter | Converts probe output for monitoring systems |
| Vibration Monitoring Module | Evaluates machine vibration conditions |
| Protection System | Provides alarm and shutdown functions |
| Extension Cable | Connects sensor and converter |
| Engineering Software | Configuration and diagnostics |
| Rotating Equipment | Provides monitored shaft movement |
These components together create a complete rotating machinery condition monitoring system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/002-031-CN | 8mm Eddy Current Sensor | Shaft displacement monitoring |
| Epro PR6423/002-031+CON041 | Sensor + Signal Converter System | Complete vibration monitoring application |
| Epro PR6423/002-030+CON041 | Eddy Current Sensor System | Rotating equipment monitoring |
| Epro PR6423/002-001-CN | 8mm Eddy Current Sensor | Shaft position detection |
| Epro PR6423 Series | Eddy Current Sensor Family | Machinery protection systems |
| Epro MMS Series | Machinery Monitoring Platform | Turbine and compressor monitoring |
Model selection should consider sensor specifications, machine design, monitoring requirements, and compatible signal processing equipment.
Key Advantages
- Epro PR6423 series 8mm eddy current sensor
- Model PR6423/002-031-CN
- Provides non-contact displacement measurement
- Supports shaft vibration monitoring
- Suitable for rotating machinery protection
- Enables continuous machine condition monitoring
- Reduces mechanical wear through contactless sensing
- Compatible with industrial monitoring systems
- Supports predictive maintenance applications
- Suitable for critical equipment operation
Technical FAQs
What is the main function of the Epro PR6423/002-031-CN?
The sensor is used to measure relative shaft displacement and vibration movement in rotating machinery, providing essential data for equipment monitoring and protection systems.
How does the PR6423/002-031-CN differ from a contact displacement sensor?
The sensor uses electromagnetic eddy current technology and measures displacement without touching the rotating shaft, reducing wear and improving suitability for high-speed applications.
Can the PR6423/002-031-CN be used independently in a monitoring system?
The sensor normally works together with a compatible signal converter and monitoring module to process measurement signals and provide machine condition analysis.
What installation factors affect measurement accuracy?
Sensor clearance, probe alignment, target material condition, cable quality, signal converter compatibility, and monitoring system configuration all affect measurement performance.
