Product Overview

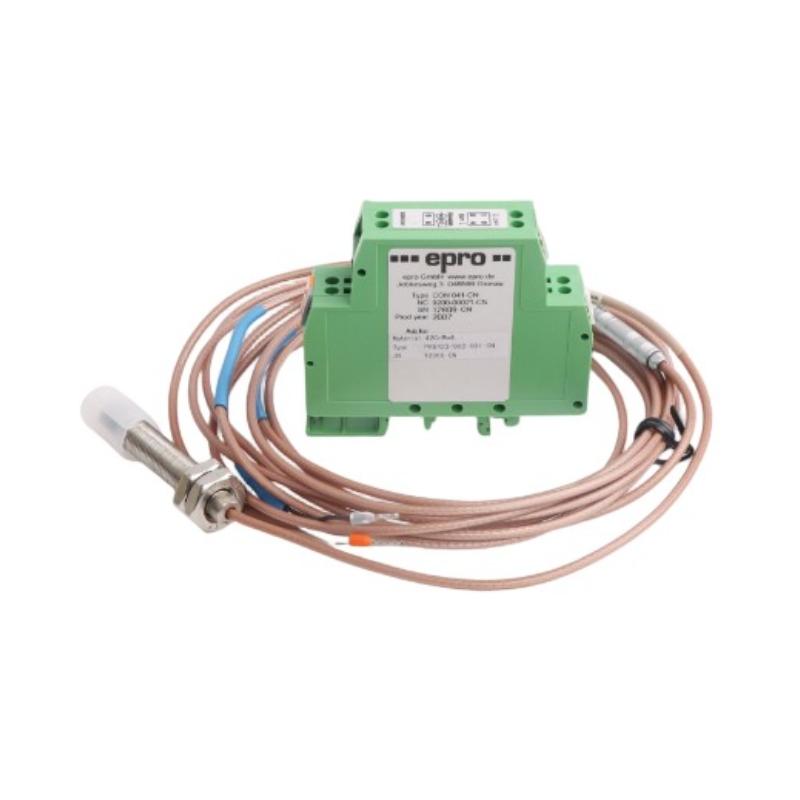

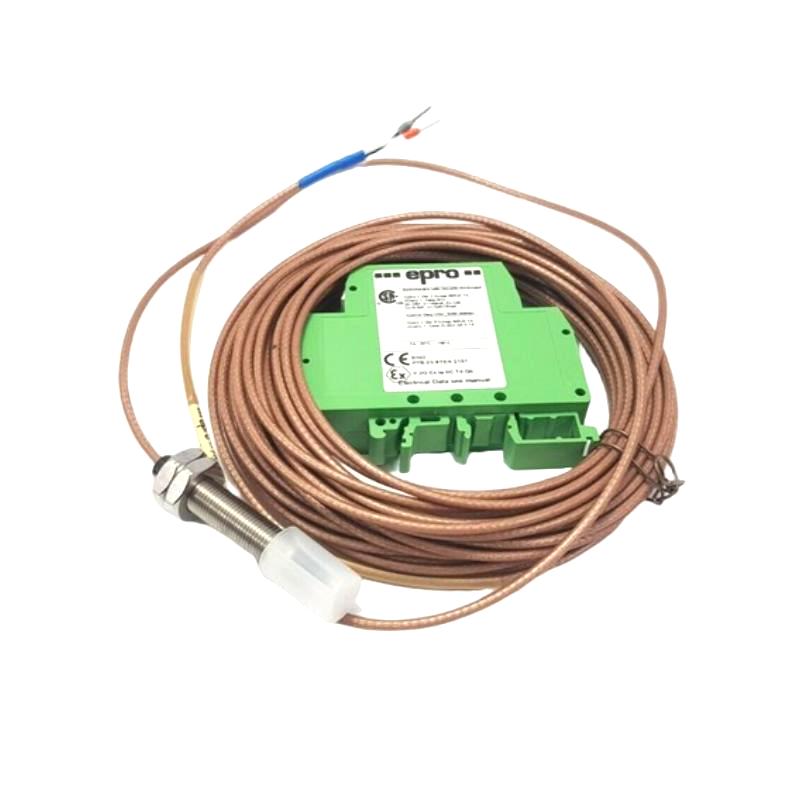

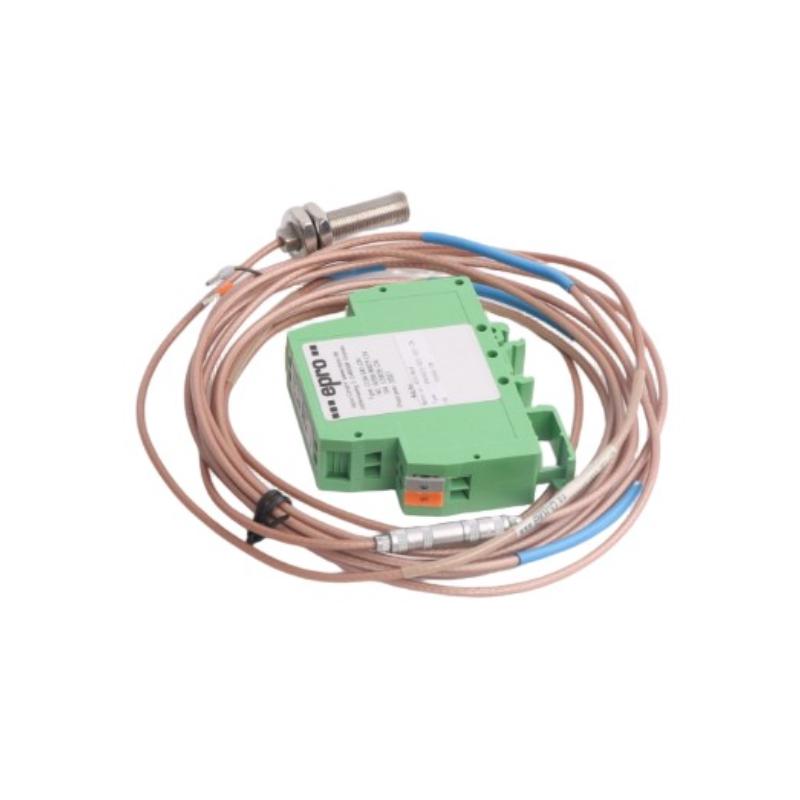

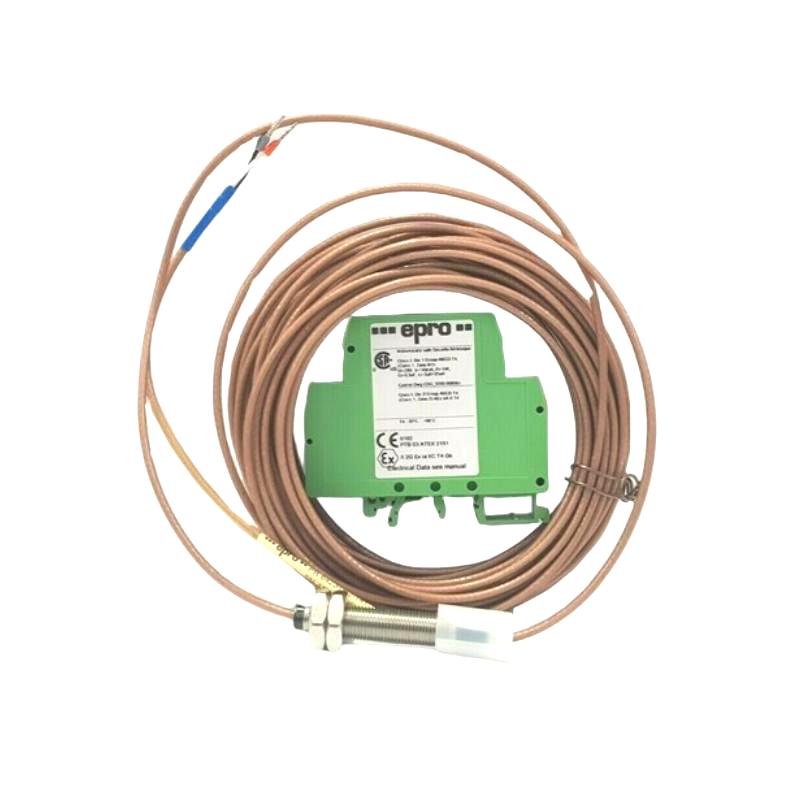

The Epro PR6423/002-030+CON041 8mm Eddy Current Sensor+Eddy Current Signal Converter is a complete non-contact displacement measurement assembly used for rotating machinery monitoring applications. The system combines an 8mm eddy current sensor probe with a CON041 signal converter to detect shaft displacement, vibration movement, and relative mechanical position changes.

The eddy current measurement principle allows the sensor to monitor rotating components without direct physical contact. This makes it suitable for machines operating at high speed where mechanical contact sensors would experience wear, reduced accuracy, or limited service life.

The PR6423/002-030 sensor detects changes in the distance between the probe tip and the conductive target surface, while the CON041 converter processes the sensor signal into a format suitable for connection with vibration monitoring and machinery protection systems.

This sensor system is commonly installed on critical rotating equipment such as steam turbines, gas turbines, compressors, pumps, and generators where continuous condition monitoring is required.

Technical Specifications

Product Features

The Epro PR6423/002-030+CON041 provides accurate and stable measurement capability for industrial machinery monitoring systems.

Key characteristics include:

• Epro PR6423 series eddy current sensor system
• Model PR6423/002-030+CON041
• Includes 8mm sensor probe and CON041 signal converter
• Uses non-contact displacement measurement technology
• Suitable for shaft vibration monitoring
• Supports rotating equipment protection applications
• Provides continuous mechanical position feedback
• Suitable for high-speed machinery environments
• Reduces mechanical wear compared with contact sensors
• Integrates with industrial monitoring systems
• Supports predictive maintenance programs
• Suitable for critical equipment monitoring

The combined sensor and converter structure simplifies integration between the mechanical measurement point and the monitoring system.

Working Principle

The Epro PR6423/002-030+CON041 operates through electromagnetic eddy current sensing technology.

A simplified measurement path is:

Rotating Shaft → PR6423/002-030 Sensor Probe → CON041 Signal Converter → Machinery Monitoring System

During operation, the sensor generates an electromagnetic field near the rotating shaft surface. When the gap between the probe and the conductive target changes, the eddy current effect changes accordingly.

The sensor signal is transferred to the CON041 converter, which processes the signal and provides a usable measurement output for vibration monitoring and protection equipment.

Typical monitoring functions include:

• Shaft radial displacement detection
• Vibration amplitude monitoring
• Relative shaft position measurement
• Mechanical condition analysis
• Abnormal movement identification

The non-contact measurement method allows continuous monitoring of rotating components without affecting machine operation.

Role in Machinery Condition Monitoring Architecture

The PR6423/002-030+CON041 operates as a sensing interface within a rotating equipment protection system.

A typical architecture can be represented as:

Rotating Equipment → Eddy Current Sensor → Signal Converter → Monitoring Module → Control / Protection System

Within this architecture:

• The sensor detects shaft movement.
• The converter processes displacement signals.
• The monitoring system evaluates machine condition.
• The protection system responds to abnormal vibration or displacement conditions.

The sensor assembly provides essential mechanical feedback data for equipment reliability management.

Industrial Applications

The Epro PR6423/002-030+CON041 is suitable for industries where rotating equipment monitoring is essential.

The actual application depends on the machinery configuration and installed monitoring platform.

Installation and Maintenance

Correct installation directly affects measurement accuracy and long-term stability.

Recommended practices include:

• Confirm the correct sensor model before installation.
• Verify probe mounting position.
• Maintain correct sensor-to-target clearance.
• Check sensor cable condition.
• Confirm CON041 converter connection.
• Inspect connectors and terminals.
• Verify monitoring system configuration.
• Check signal stability during operation.
• Review vibration trends periodically.
• Perform maintenance inspection during scheduled shutdowns.

When troubleshooting abnormal readings, engineers should inspect the complete measurement chain, including sensor mounting, cable condition, signal converter operation, monitoring configuration, and machine operating conditions.

Related Components

The PR6423/002-030+CON041 is normally used with other machinery monitoring components.

Together, these components create a complete rotating equipment condition monitoring solution.

Recommended Related Models

Selection should be based on sensor specification, monitoring requirements, machine design, and compatible monitoring equipment.

Key Advantages

• Epro PR6423 series 8mm eddy current sensor system
• Model PR6423/002-030+CON041
• Includes sensor probe and signal converter
• Provides non-contact displacement measurement
• Suitable for rotating machinery protection
• Supports shaft vibration monitoring
• Enables continuous condition monitoring
• Reduces mechanical contact wear
• Suitable for critical industrial equipment
• Integrates with machinery monitoring systems

Technical FAQs

What is the purpose of combining the PR6423/002-030 sensor with the CON041 converter?

The sensor detects shaft displacement changes, while the CON041 processes the signal so it can be used by compatible machinery monitoring and protection systems.

Which types of machines commonly use this Epro sensor system?

It is commonly used on turbines, compressors, generators, pumps, and other rotating machines where shaft vibration and displacement monitoring are required.

Why is non-contact measurement important for rotating machinery?

Non-contact measurement prevents physical wear between the sensor and rotating components, allowing stable monitoring of high-speed shafts over long operating periods.

What should be checked if the sensor measurement becomes unstable?

Engineers should inspect probe installation, sensor clearance, cable connections, converter operation, monitoring configuration, and actual machine operating conditions.
