- Epro
- PR6423/002-001+CON041
- 8mm Eddy Current Sensor+Eddy Current Signal Converter
- Germany
- 8 mm
- 0.16 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

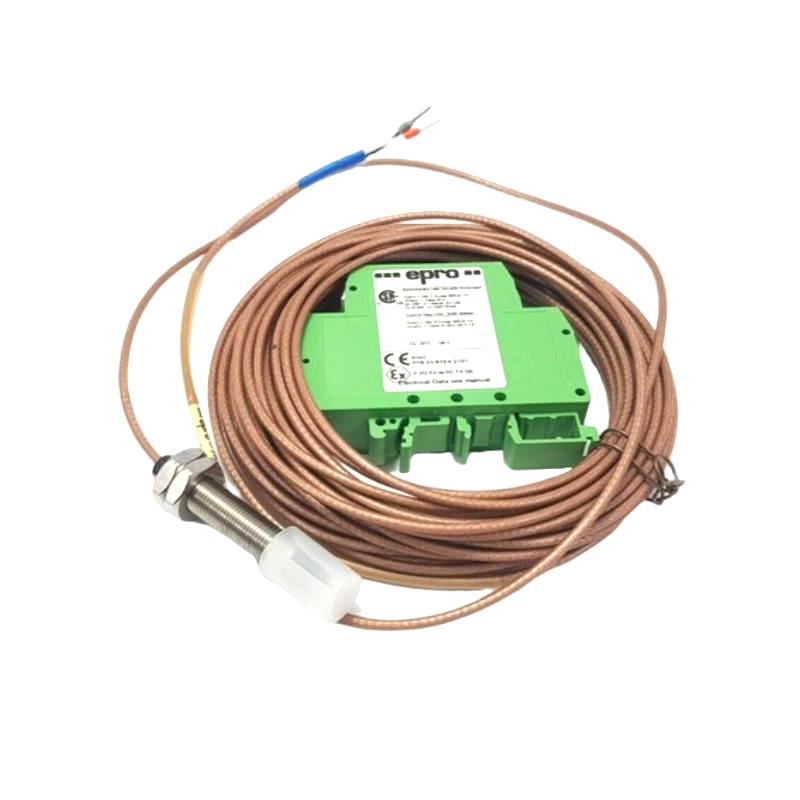

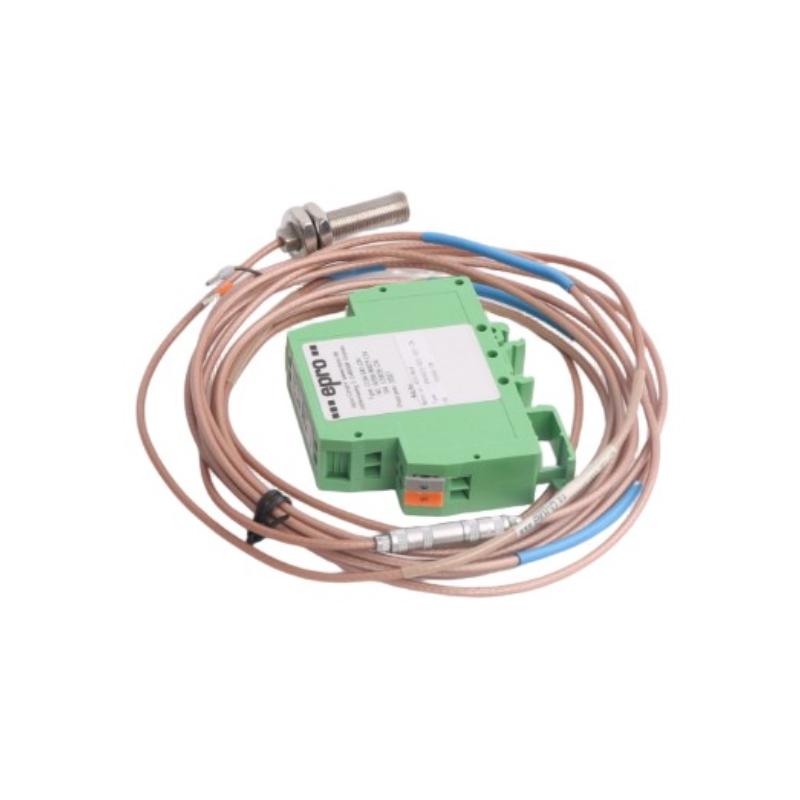

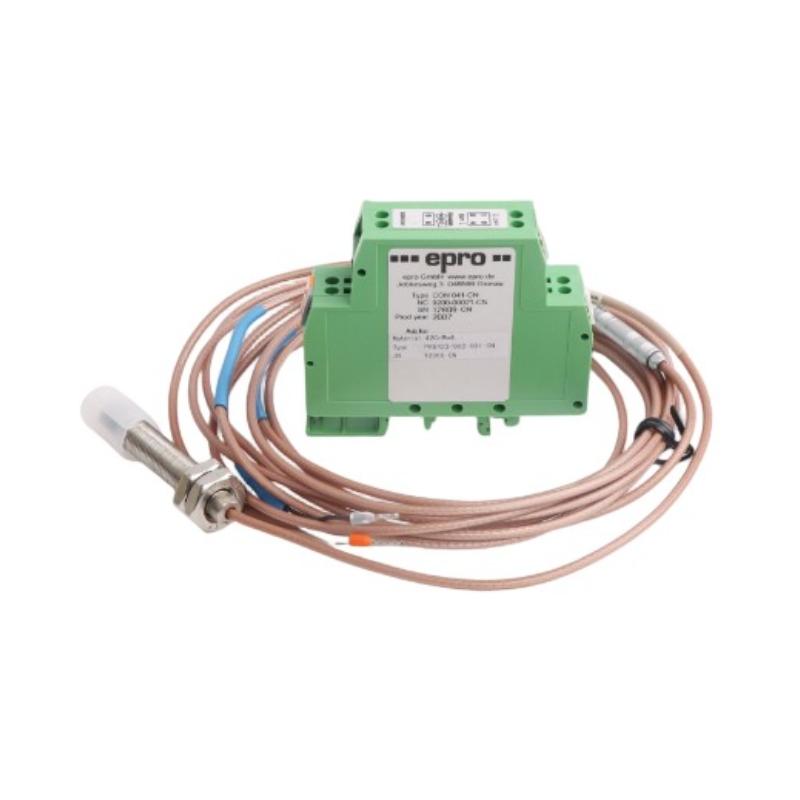

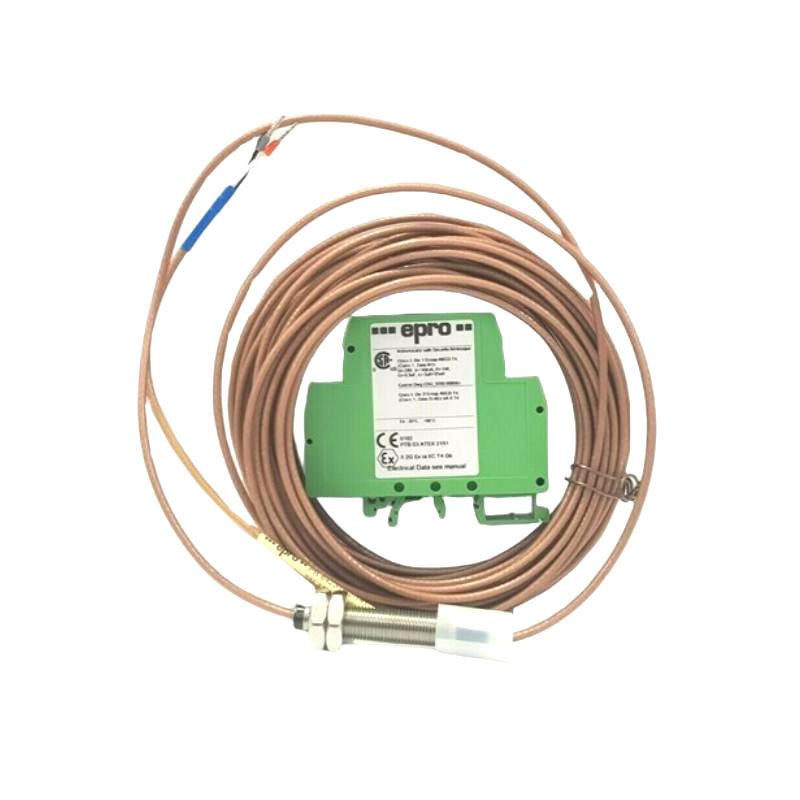

The Epro PR6423/002-001+CON041 8mm Eddy Current Sensor+Eddy Current Signal Converter is a non-contact displacement measurement system used in industrial condition monitoring and rotating machinery protection applications. It combines an 8mm eddy current sensor probe with an eddy current signal converter to provide accurate shaft displacement measurement and vibration monitoring capability.
Unlike conventional contact measurement devices, the eddy current sensing technology operates without physical contact between the probe and the rotating target. This allows the system to continuously monitor critical machine parameters while avoiding mechanical wear caused by direct contact.
The sensor assembly is mainly used for monitoring the relative movement between a rotating shaft and the machine housing. It is commonly applied in applications such as turbine monitoring, compressor protection, pump condition monitoring, and other high-speed rotating equipment where precise displacement measurement is required.
The PR6423/002-001 sensor and CON041 signal converter combination provides the interface between mechanical movement and the monitoring system, converting eddy current changes into usable measurement signals for vibration analysis, protection logic, and equipment diagnostics.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Epro |
| Model | PR6423/002-001+CON041 |
| Product Type | Eddy Current Sensor + Eddy Current Signal Converter |
| Sensor Type | 8mm Eddy Current Sensor |
| Function | Non-contact Displacement and Vibration Measurement |
| Application | Rotating Machinery Monitoring |
| System Role | Shaft Position / Vibration Detection Interface |
| Sensor Head Diameter | 8 mm |
| Weight | 0.16 kg |
Product Features
The Epro PR6423/002-001+CON041 provides accurate non-contact measurement for industrial rotating equipment.
Key characteristics include:
- Epro 8mm eddy current sensor system
- Model PR6423/002-001
- Equipped with CON041 signal converter
- Provides non-contact displacement measurement
- Suitable for shaft vibration monitoring
- Supports rotating machinery protection applications
- Reduces mechanical wear compared with contact sensors
- Suitable for high-speed rotating equipment
- Provides continuous machine condition monitoring
- Integrates with vibration monitoring systems
- Designed for industrial reliability applications
- Suitable for predictive maintenance systems
The combination of sensor probe and signal converter allows engineers to monitor machine operating conditions and identify abnormal mechanical movement at an early stage.
Working Principle
The Epro PR6423/002-001+CON041 operates based on eddy current measurement technology.
A simplified signal path is:
Rotating Shaft → Eddy Current Sensor Probe → CON041 Signal Converter → Monitoring System
During operation, the sensor probe generates a high-frequency electromagnetic field near the rotating shaft surface. When the distance between the probe and shaft changes, the eddy current effect changes accordingly.
The signal converter processes these variations and converts them into electrical measurement signals representing shaft displacement.
Typical monitored parameters include:
- Radial shaft vibration
- Axial shaft position
- Shaft displacement changes
- Mechanical movement trends
- Rotating equipment operating conditions
Because the measurement is performed without physical contact, the system is suitable for continuous monitoring of critical machinery operating at high speed.
Role in Machinery Condition Monitoring Architecture
The PR6423/002-001+CON041 functions as part of a rotating equipment protection and monitoring system.
A typical monitoring structure can be represented as:
Machine Shaft → Eddy Current Sensor → Signal Converter → Vibration Monitoring System → Control / Protection System
Within this architecture:
- The sensor detects shaft movement.
- The converter processes displacement signals.
- The monitoring system analyzes vibration conditions.
- Protection systems generate alarms or shutdown actions when abnormal conditions occur.
The system provides essential measurement data for maintaining safe operation of critical rotating machinery.
Industrial Applications
The Epro PR6423/002-001+CON041 is widely used in industries requiring continuous monitoring of rotating equipment.
| Application | Typical Use |
|---|---|
| Power Generation | Turbine shaft vibration monitoring |
| Oil and Gas | Compressor and pump protection |
| Petrochemical | Rotating equipment condition monitoring |
| Industrial Manufacturing | High-speed machinery diagnostics |
| Refining Systems | Critical equipment protection |
| Energy Facilities | Mechanical displacement measurement |
| Process Industries | Predictive maintenance applications |
| Heavy Machinery | Shaft movement monitoring |
The actual application depends on the machinery type and installed monitoring system configuration.
Installation and Maintenance
Installation of the PR6423/002-001+CON041 should follow the requirements of the monitored machine and vibration monitoring system.
Recommended practices include:
- Confirm correct sensor model selection.
- Verify sensor mounting position.
- Maintain proper probe-to-shaft clearance.
- Check sensor cable condition.
- Verify signal converter connections.
- Confirm monitoring system configuration.
- Inspect connectors and terminals.
- Check signal stability during operation.
- Review vibration trends regularly.
- Perform calibration checks when required.
During troubleshooting, engineers should inspect the complete measurement chain, including probe installation, cable integrity, converter operation, monitoring configuration, and machine operating conditions.
Related Components
The PR6423/002-001+CON041 is commonly integrated with other industrial monitoring components.
| Component | Function |
|---|---|
| Eddy Current Sensor Probe | Detects shaft displacement changes |
| Signal Converter | Converts sensor output into measurement signals |
| Vibration Monitoring Module | Processes vibration data |
| Protection System | Generates alarms and shutdown actions |
| Engineering Software | Performs analysis and configuration |
| Proximity Sensor Cable | Transfers sensor signals |
| Rotating Machinery | Provides monitored mechanical movement |
Together, these components form a complete machinery condition monitoring system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Epro PR6423/002-001+CON041 | Eddy Current Sensor System | Shaft vibration monitoring |
| Epro PR6423/001-000+CON021 | Eddy Current Sensor + Converter | Displacement measurement |
| Epro PR6423/001-010 | 8mm Eddy Current Sensor | Rotating equipment monitoring |
| Epro PR6423/000-141 | 8mm Eddy Current Sensor | Machinery protection systems |
| Epro PR6423/001-011-CN+CON021 | Sensor and Converter Set | Condition monitoring applications |
| Epro MMS Series Monitoring System | Vibration Monitoring Platform | Turbine and machinery protection |
Model selection should be based on sensor size, monitoring requirements, machine configuration, and installed protection system.
Key Advantages
- Epro PR6423 series eddy current sensor system
- Model PR6423/002-001+CON041
- Provides non-contact displacement measurement
- Includes 8mm sensor probe and signal converter
- Suitable for rotating machinery monitoring
- Supports vibration and shaft position measurement
- Reduces mechanical wear through contactless operation
- Suitable for critical equipment protection
- Supports predictive maintenance strategies
- Integrates with industrial monitoring systems
Technical FAQs
What is the measurement purpose of the Epro PR6423/002-001 sensor?
The sensor is mainly used to measure shaft displacement and vibration movement in rotating machinery, providing critical condition data for equipment monitoring systems.
Why does the PR6423/002-001 use eddy current technology?
Eddy current technology enables non-contact measurement, allowing the sensor to monitor high-speed rotating components without physical contact or mechanical wear.
What function does the CON041 signal converter provide?
The CON041 converts the electrical changes generated by the eddy current probe into usable measurement signals for connection with vibration monitoring and protection systems.
Where is the PR6423/002-001+CON041 commonly installed?
It is commonly installed on critical rotating equipment such as turbines, compressors, pumps, and industrial machinery where continuous shaft condition monitoring is required.
