1. Product Overview

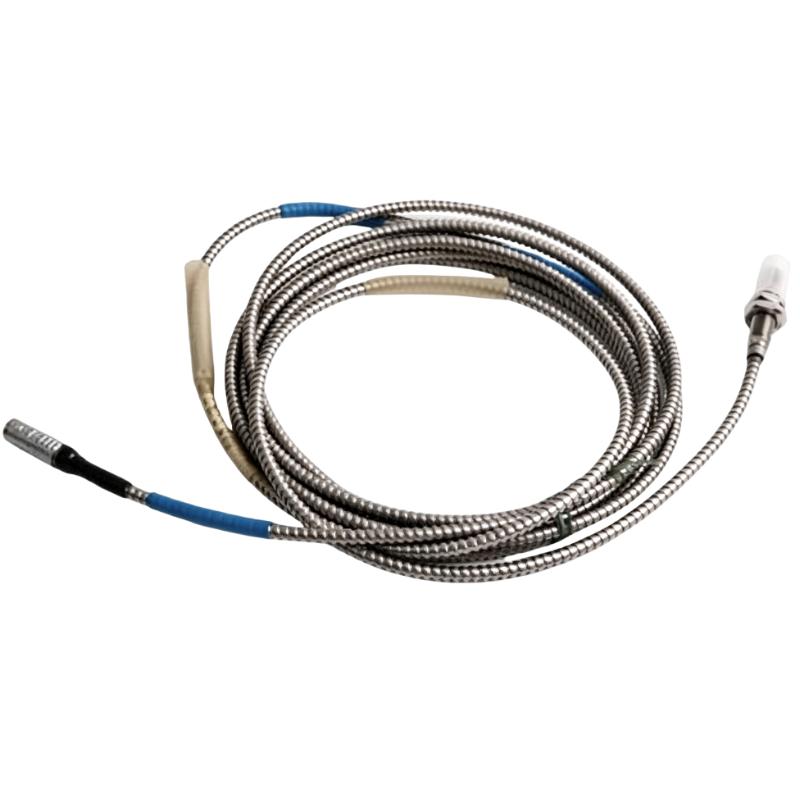

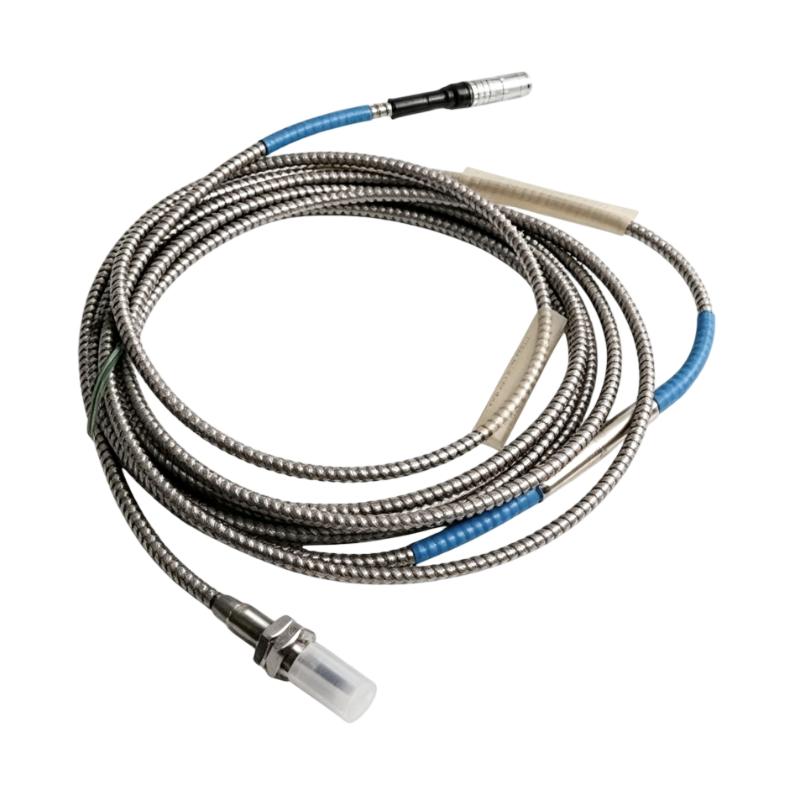

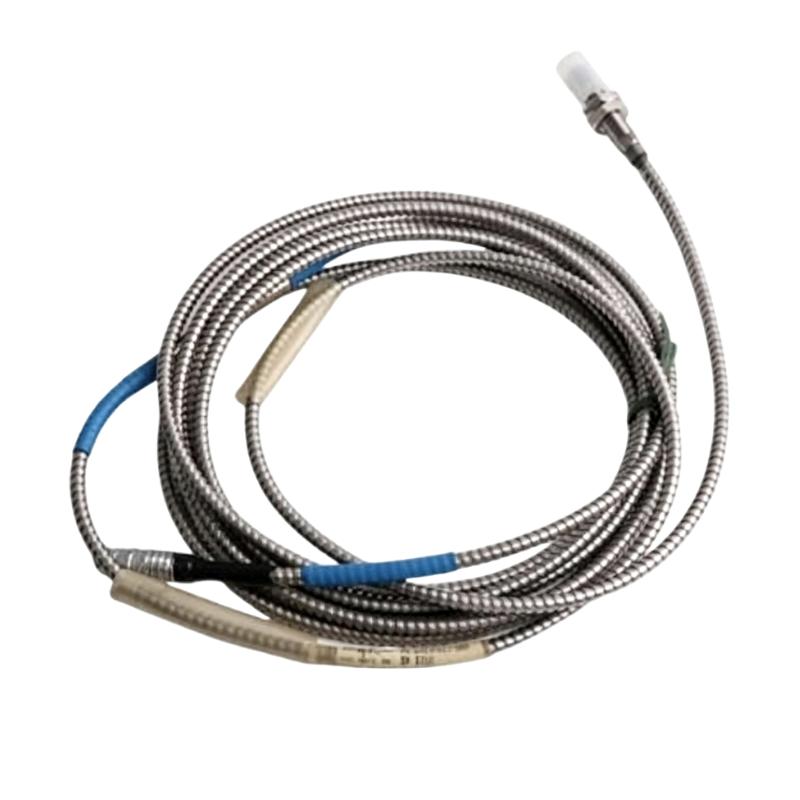

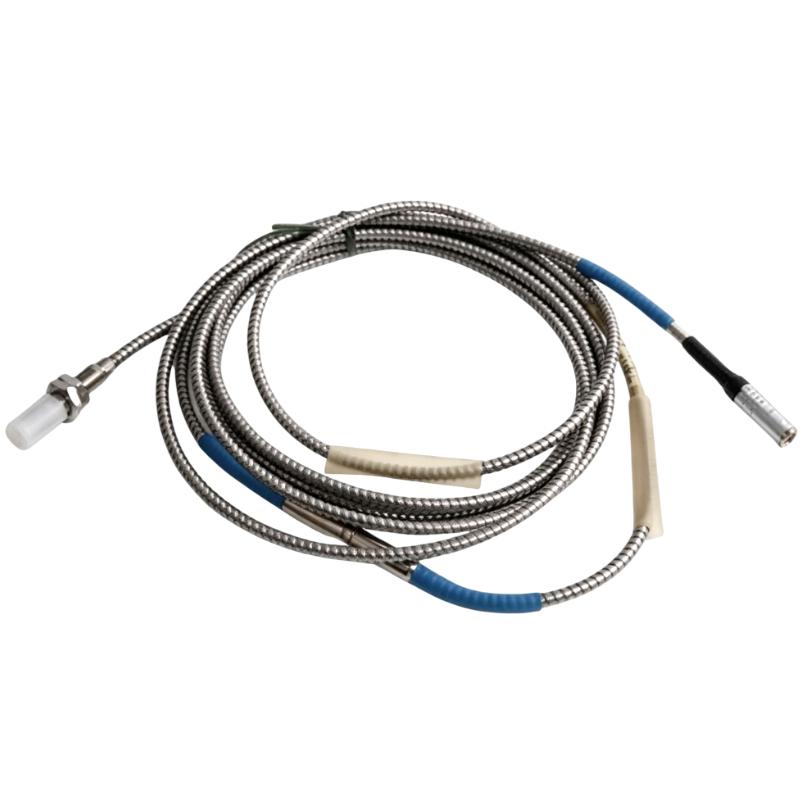

The Epro PR6423/000-041 8 mm Eddy Current Sensor is an industrial non-contact displacement sensor designed for applications involving precise measurement of shaft movement, vibration, and relative position. Eddy current sensing technology is widely used in rotating machinery monitoring because it can measure the movement of a conductive target without requiring direct mechanical contact.

In industrial plants, non-contact displacement sensors are commonly used to monitor rotating shafts, evaluate machine vibration, detect axial movement, and support condition-monitoring systems. These measurements can help maintenance personnel identify changes in machine behavior before they develop into more serious equipment problems.

The PR6423 series is associated with Epro machinery protection and monitoring applications. The supplied model, PR6423/000-041, is identified as an 8 mm eddy current sensor, with a sensor head diameter of 8 mm and a listed weight of 0.1 kg.

An eddy current sensor normally operates as part of a measurement system that includes compatible signal-conditioning electronics, connecting cables, and a monitoring or control device. The sensor generates a response to changes in the distance between its sensing face and a suitable conductive target. The associated electronics convert this response into a usable measurement signal.

Before installation or replacement, users should verify the exact probe characteristics, cable configuration, compatible driver, measurement range, and system calibration requirements for the PR6423/000-041. Sensors that look similar may have different electrical characteristics and may not be interchangeable.

2. Technical Specifications

The dimensions and weight above reflect the supplied product information. Measurement range, sensitivity, cable length, frequency response, and electrical compatibility should be confirmed before commissioning.

3. Function and Working Principle

3.1 Eddy Current Measurement Principle

An eddy current sensor works by generating an alternating electromagnetic field at the probe tip. When a conductive target approaches this field, electrical currents known as eddy currents are induced in the target material.

These currents influence the electromagnetic behavior of the probe. The resulting change in the sensor’s electrical characteristics depends on the distance between the probe tip and the target, as well as target material properties and the measurement system’s design.

Compatible signal-conditioning electronics interpret this response and convert it into a displacement-related output.

3.2 Non-Contact Shaft Measurement

One of the main advantages of eddy current technology is that the probe can measure a conductive surface without touching it. This makes it useful for monitoring rotating machinery where physical contact would cause wear or interfere with normal operation.

When installed near a conductive shaft, the probe can measure changes in the gap between the sensor face and the shaft surface. Depending on the monitoring arrangement, the measurement can be used to assess shaft vibration, axial displacement, or relative shaft position.

3.3 Relationship Between Probe and Signal Conditioner

An eddy current probe is generally not a complete standalone measurement system. Its operation depends on a compatible driver or signal conditioner that supplies the required excitation and converts the probe response into a usable signal.

The probe, extension cable where applicable, and driver must be treated as a matched measurement chain. Differences in electrical characteristics or cable configuration can affect calibration and measurement accuracy.

For the PR6423/000-041, confirm the required driver and cable arrangement before connecting it to a monitoring rack or control system.

3.4 Measurement of Dynamic Movement

When a shaft vibrates, the distance between the shaft surface and the sensor changes. The resulting signal variation can be processed by a monitoring system to evaluate dynamic shaft movement.

The usefulness of the measurement depends on correct probe installation, suitable target material, proper calibration, and the bandwidth of the complete measurement chain.

4. Role in Industrial Machinery Monitoring

4.1 Shaft Vibration Monitoring

Rotating machinery can experience vibration due to imbalance, misalignment, looseness, bearing problems, or changes in operating conditions. A correctly installed eddy current probe can provide shaft-relative movement data for a compatible monitoring system.

This information can help operators identify unusual vibration trends and determine when further inspection is necessary.

4.2 Axial Displacement Monitoring

Some rotating machines require monitoring of shaft movement along the axial direction. Excessive axial movement may indicate changes in thrust-bearing behavior, internal clearances, or mechanical operating conditions.

A properly configured eddy current measurement system can monitor this movement when the sensor arrangement and measurement range are suitable for the application.

4.3 Relative Shaft Position

Eddy current sensors can be used to measure the position of a shaft relative to the machine-mounted probe. This measurement may help engineers evaluate operating clearances and monitor changes in machine condition.

The installation geometry and target surface must be appropriate for the intended measurement.

4.4 Condition Monitoring and Predictive Maintenance

Continuous measurement data can help maintenance teams establish normal operating baselines and identify deviations over time. A trend in shaft movement may prompt further investigation before a fault causes an unplanned shutdown.

However, a displacement sensor alone cannot identify every mechanical failure. Reliable diagnosis requires consideration of operating speed, load, temperature, vibration patterns, other monitoring channels, and machine history.

5. Industrial Applications

5.1 Turbine Monitoring

Industrial turbines operate at high rotational speeds and may require continuous monitoring of shaft vibration and displacement. Eddy current probes can form part of a compatible machinery monitoring system used to evaluate shaft movement and operating stability.

The exact sensor installation and monitoring arrangement must follow the turbine manufacturer’s requirements.

5.2 Compressor Systems

Centrifugal and other rotating compressors may use shaft-displacement measurements to monitor rotor behavior and support machinery protection strategies. Proper probe placement and calibration are essential because clearances and operating conditions can vary between machines.

5.3 Pumps and High-Speed Rotating Equipment

Critical pumps and other rotating machines may benefit from shaft-relative movement measurements where the monitoring system supports eddy current probes.

These measurements can help identify abnormal movement, but they should be interpreted alongside other operating parameters and equipment-specific limits.

5.4 Gearboxes and Industrial Drives

Some gearbox and drive applications require monitoring of shaft position or movement. An eddy current sensor may be suitable where the target is conductive and the probe can be installed with the required clearance.

Vibration-monitoring requirements vary by machine design, so probe suitability must be confirmed for each installation.

5.5 Power Generation and Process Plants

Power generation facilities and process plants often use condition-monitoring systems to reduce unplanned downtime. Eddy current sensing can contribute to machinery monitoring where non-contact shaft measurements are required.

The PR6423/000-041 should be used only with compatible electronics and a validated installation arrangement.

6. Installation and System Integration

6.1 Confirm the Complete Sensor Assembly

Before installation, verify the complete model number PR6423/000-041 and inspect the product label. Confirm whether the supplied item includes only the sensor head or a complete probe-and-cable assembly.

Check the required driver, extension cable, connector type, and monitoring-system interface. Do not assume that a probe can be connected directly to a PLC analog input without the appropriate signal-conditioning equipment.

6.2 Inspect the Sensor Head and Cable

Inspect the sensing face for scratches, deformation, contamination, or impact damage. Check the cable and connector for cuts, crushing, corrosion, or loose connections.

Damage to the sensing face or cable can affect signal stability and measurement accuracy. Do not install a visibly damaged probe without appropriate evaluation.

6.3 Verify the Mounting Arrangement

The probe must be installed in a suitable mounting arrangement that maintains the required alignment and mechanical stability. Loose mounting hardware can introduce measurement errors or cause the sensor position to change during operation.

Confirm the mounting thread, installation depth, securing method, and clearance requirements for the exact probe configuration.

6.4 Set the Probe Gap

The gap between the sensor face and the conductive target is a critical installation parameter. It must be set according to the sensor system’s specified linear measurement range and calibration procedure.

Do not use an assumed generic gap for every 8 mm probe. The correct setting depends on the exact probe-driver combination and the intended measurement range.

Where possible, position the probe so that expected machine movement remains within the valid measurement range during startup and normal operation.

6.5 Confirm Target Material and Surface Condition

Eddy current sensors require a suitable conductive target. Target material, surface geometry, curvature, and nearby conductive structures can influence the response.

Verify that the probe is calibrated for the actual target material and intended geometry. A change in shaft material or measurement surface may affect the relationship between sensor output and displacement.

6.6 Connect the Compatible Driver

Connect the probe to the specified signal conditioner or driver using the approved cable configuration. Ensure that connectors are clean, properly secured, and protected from mechanical strain.

Follow the manufacturer’s grounding, shielding, and cable-routing recommendations to reduce electrical interference.

6.7 Calibrate the Measurement System

Before relying on the measurement, verify the complete probe-and-driver combination using the appropriate calibration procedure. Confirm that the output corresponds to known displacement values over the required operating range.

Check the zero or reference position, sensitivity, output polarity, and monitoring-system scaling as applicable. Do not enter assumed calibration values into the monitoring system.

6.8 Verify the Monitoring System

After installation, confirm that the monitoring device receives a stable and plausible signal. Compare the measured value with the physical setup and expected machine condition.

Where the probe is part of a machinery protection system, verify alarm and trip logic according to the approved commissioning procedure. Do not bypass protection functions during routine testing without an authorized procedure.

7. Troubleshooting Common Problems

7.1 No Sensor Signal

Possible causes:

• Incorrect driver or signal conditioner.
• Disconnected or damaged probe cable.
• Incorrect connector configuration.
• Missing driver power.
• Incompatible probe and extension cable.
• Faulty probe or monitoring input.

Troubleshooting steps:

Check the driver power supply, connectors, cable continuity, and probe compatibility. Verify the monitoring channel configuration and use the approved test procedure to determine whether the fault originates in the probe, cable, driver, or downstream monitoring equipment.

7.2 Unstable or Noisy Measurement

Possible causes:

• Loose probe mounting.
• Poor cable connections.
• Electrical interference.
• Damaged cable shielding.
• Excessive target surface variation.
• Incorrect calibration or incompatible components.

Troubleshooting steps:

Inspect the mechanical mounting and cable routing. Confirm that the probe, cable, and driver form an approved combination. Compare the signal with the actual machine movement and investigate electrical interference before replacing the sensor.

7.3 Incorrect Displacement Reading

Possible causes:

• Incorrect probe gap.
• Incorrect system sensitivity or scaling.
• Calibration mismatch.
• Incorrect target material assumptions.
• Incorrect probe-driver combination.
• Misalignment between the probe and target.

Troubleshooting steps:

Review the installation geometry and calibration records. Confirm that the monitoring system uses the correct sensitivity and scaling for the installed assembly. Recalibrate using the approved procedure where necessary.

7.4 Measurement Drift

Possible causes:

• Mechanical movement of the probe mount.
• Changes in the target surface or measurement geometry.
• Cable or connector degradation.
• Changes in the measurement electronics.
• Temperature effects outside the specified operating conditions.

Troubleshooting steps:

Inspect the mounting hardware, cable, connectors, and measurement electronics. Compare current readings with the established baseline and evaluate whether the drift is consistent with actual machine movement.

7.5 Intermittent Signal Loss

Possible causes:

• Loose connectors.
• Internal cable damage.
• Excessive cable bending or mechanical strain.
• Intermittent driver power.
• Damaged probe assembly.

Troubleshooting steps:

Inspect the complete cable path and connectors. Check for damage around cable entry points and moving machinery. Use approved diagnostic procedures to isolate the affected component before replacement.

7.6 Suspected Probe Failure

Before replacing the PR6423/000-041, verify the driver, cable configuration, mounting, calibration, target suitability, and monitoring channel. A fault in any part of the measurement chain can produce symptoms similar to a failed probe.

Replace the sensor only after confirming the required model and compatibility with the installed system.

8. Compatible System Components

The following table outlines the component categories commonly required for an eddy current measurement installation. It does not confirm specific part-number compatibility with the PR6423/000-041.

9. Recommended Alternative Models

Replacing an eddy current probe requires careful verification. Sensors with the same nominal head diameter may differ in sensitivity, linear range, cable configuration, connector design, and driver compatibility.

No specific alternative model is identified here as a confirmed drop-in replacement. Verify the probe, cable, driver, and monitoring-system combination before ordering a substitute.

10. Key Advantages

Non-Contact Measurement

Eddy current technology measures the distance to a suitable conductive target without physical contact, avoiding the mechanical wear associated with contact-based measurement methods.

Support for Rotating Machinery Monitoring

When correctly installed, the sensor can provide displacement information that contributes to shaft vibration and position monitoring.

Compact Sensor Head

The supplied sensor head diameter of 8 mm supports installations where probe size and available mounting space are important considerations. Actual mounting suitability depends on the full probe design and installation requirements.

Integration with Condition Monitoring

When paired with compatible electronics and monitoring equipment, the probe can contribute to machine-condition trending and fault investigation.

Practical Spare-Parts Management

Recording the exact model number, sensor head diameter, weight, cable configuration, and associated driver helps maintenance teams identify the correct spare and reduce compatibility errors.

11. Technical FAQs

Q1: What is the Epro PR6423/000-041?

The Epro PR6423/000-041 is identified as an 8 mm eddy current sensor for non-contact displacement measurement applications. Its suitability depends on the target, compatible signal conditioner, cable assembly, and monitoring system.

Q2: What is the sensor head diameter?

The supplied sensor head diameter is 8 mm.

Q3: What is the weight of the PR6423/000-041?

The supplied product weight is 0.1 kg.

Q4: What can an eddy current sensor measure?

Depending on the measurement setup, an eddy current sensor can measure changes in the distance to a conductive target. In machinery monitoring, this can support measurements of shaft vibration, relative position, or axial displacement.

Q5: Can the sensor operate without a driver?

An eddy current probe generally requires compatible excitation and signal-conditioning electronics to produce a usable measurement signal. Confirm the required driver for the exact probe model.

Q6: Can the PR6423/000-041 connect directly to a PLC?

Do not assume direct connection is supported. Verify the sensor’s electrical interface and the requirements of the associated driver. The PLC typically receives a conditioned signal through a compatible monitoring or acquisition interface.

Q7: What causes inaccurate measurements?

Possible causes include incorrect probe gap, calibration mismatch, unsuitable target material, mechanical misalignment, cable problems, or incompatible components. Inspect the entire measurement chain before replacing the probe.

Q8: Can another 8 mm eddy current probe replace this model?

Not necessarily. Head diameter alone does not establish compatibility. Confirm the sensitivity, measurement range, cable and connector configuration, driver compatibility, and calibration requirements.

Q9: How often should the sensor be calibrated?

Calibration intervals depend on the equipment manufacturer’s requirements, application criticality, monitoring-system design, and site maintenance procedures. Follow the approved schedule and recalibrate after relevant repairs or configuration changes.

Q10: What should buyers verify before ordering?

Confirm the complete PR6423/000-041 model number, sensor head diameter, cable and connector arrangement, required driver, measurement range, and compatibility with the existing monitoring system.

12. Conclusion

The Epro PR6423/000-041 8 mm Eddy Current Sensor is intended for non-contact displacement measurement applications where accurate monitoring of a conductive target is required. In compatible machinery monitoring installations, eddy current sensing can contribute to shaft-position measurement, vibration analysis, and condition-based maintenance.

The supplied sensor head diameter is 8 mm, and the listed weight is 0.1 kg. Before installation or replacement, verify the probe’s measurement range, sensitivity, cable configuration, compatible driver, and calibration requirements.

For maintenance engineers, system integrators, and industrial spare-parts buyers, matching the complete sensor assembly to the existing monitoring system is essential for reliable measurements and dependable machinery operation.
