Product Overview

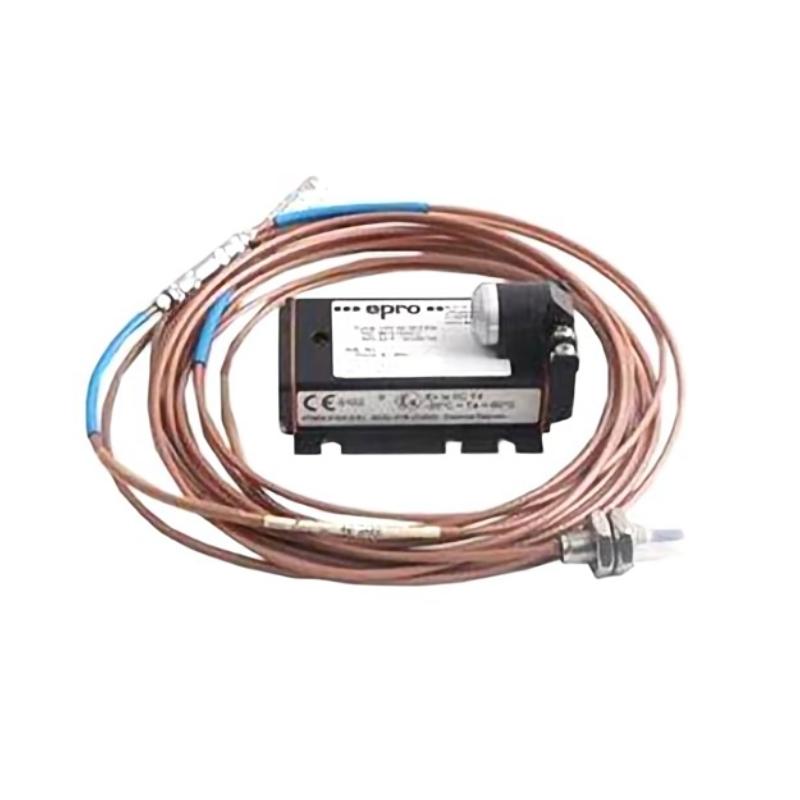

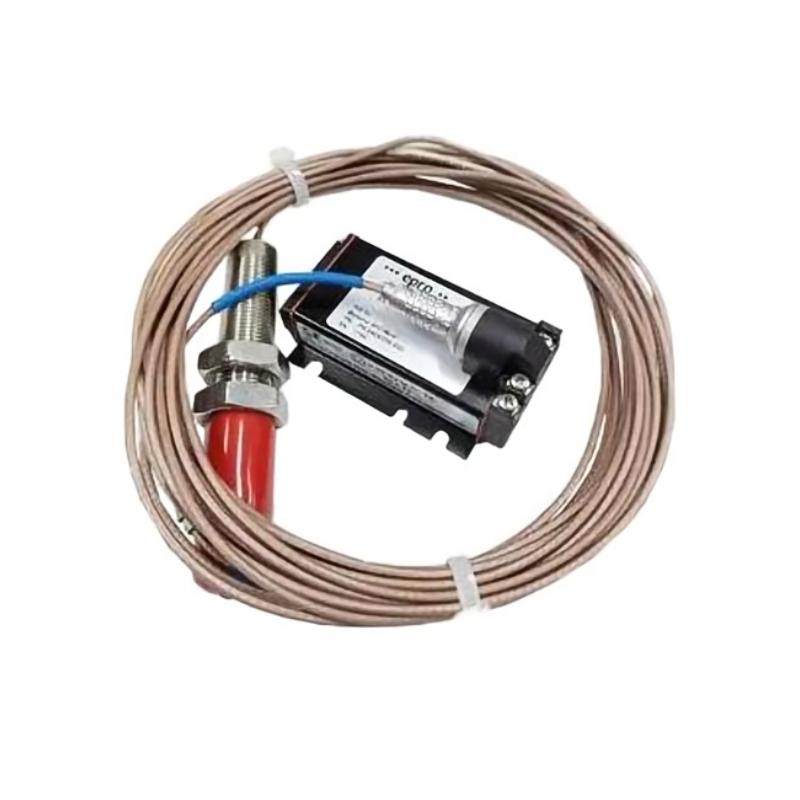

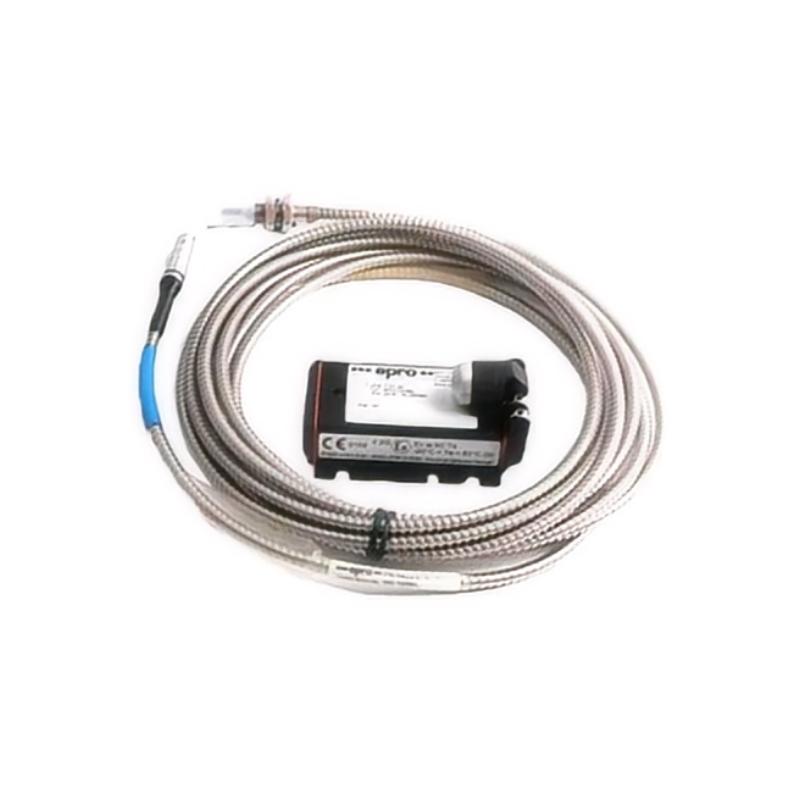

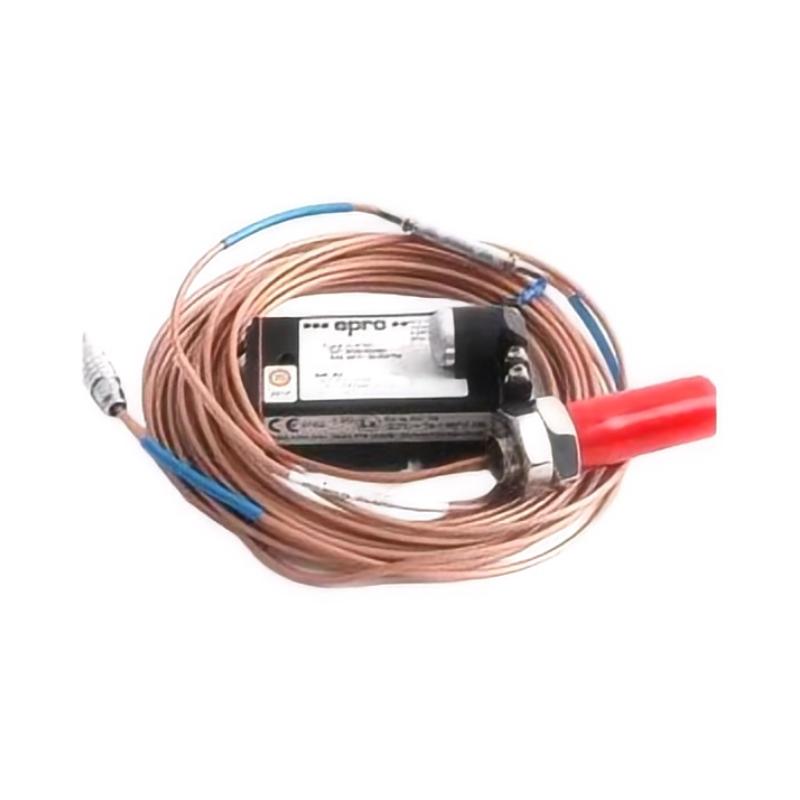

In industrial condition monitoring systems, accurate measurement of shaft displacement and vibration is essential for ensuring the reliability and safety of rotating machinery. The Epro CON021 + PR6424/001-030 Eddy Current Sensor is designed to deliver high-precision, non-contact measurement using eddy current technology.
This system combines a 16 mm probe (PR6424/001-030) with a signal converter (CON021), enabling stable monitoring of shaft position, vibration, and dynamic movement. It is widely used in turbomachinery and industrial rotating equipment where consistent and accurate measurement is required.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Epro |
| Model | CON021 + PR6424/001-030 |
| Product Type | Eddy Current Sensor |
| Sensor Head Diameter | 16 mm |
| Measurement Type | Non-contact displacement / vibration |
| Output Signal | Analog signal (via converter) |
| Sensitivity | 4 V/mm (±1.5%) |
| Measurement Range | Static ±2.0 mm / Dynamic up to 1000 µm |
| Frequency Range | 0 – 20,000 Hz |
| Nominal Air Gap | Approx. 2.7 mm |
| Operating Temperature | -35°C to +150°C |
| Weight | 0.32 kg |
| Installation | Threaded mounting / bracket installation |
| Application | Rotating machinery monitoring |
| Environment | Industrial-grade |
| Reliability | Designed for continuous operation |
Function and Working Principle
The CON021 + PR6424/001-030 operates based on the eddy current sensing principle. The probe generates an electromagnetic field that interacts with a conductive target surface such as a rotating shaft.
This allows:
Non-contact measurement of displacement and vibration
Detection of shaft position and eccentricity
High-speed response to dynamic changes
Stable operation in harsh industrial environments
Changes in the distance between the probe and the target are converted into electrical signals by the CON021 converter, enabling real-time monitoring and analysis.
Role in Industrial Control Systems
This sensor system is a key component in machinery protection and condition monitoring systems, supporting:
Turbine and compressor monitoring
Shaft displacement measurement
Vibration monitoring systems
Equipment protection systems
It helps identify early signs of mechanical issues, reducing the risk of equipment failure and unplanned downtime.
Industrial Applications
The Epro eddy current sensor is widely used in:
Steam and gas turbines
Compressors and pumps
Power generation plants
Oil and gas processing facilities
Industrial automation systems
Predictive maintenance systems
Its 16 mm probe size makes it suitable for medium-range measurement applications in rotating machinery.
Installation and System Integration
Proper installation ensures accurate and stable operation:
Mounted near the shaft or conductive surface
Requires precise gap calibration
Connected to CON021 signal converter
Integrated into monitoring or control systems
Must follow alignment and installation standards
Correct installation ensures measurement accuracy and long-term system reliability.
Compatible System Components
The CON021 + PR6424/001-030 typically works alongside:
Epro monitoring systems
Signal converters and interface modules
Vibration monitoring systems
Control and protection units
Data acquisition systems
Together, these components form a complete industrial monitoring solution.
Recommended Alternative Models
Depending on system requirements, the following alternatives may be considered:
| Model | Type | Key Feature | Application |
|---|---|---|---|
| PR6424/001-030 | Eddy Current Sensor | 16 mm probe | Standard monitoring |
| PR6423 Series | Eddy Sensor | Smaller probe size | Compact installations |
| PR6426 Series | Eddy Sensor | Larger probe size | Extended range applications |
| CON020 | Signal Converter | Standard processing | General systems |
| Bentley Nevada 3300 Series | Proximity Sensor | Industry-standard | Turbine monitoring |
Key Advantages
Non-contact measurement with no mechanical wear
High precision and fast response
Stable performance in harsh environments
16 mm probe suitable for medium-range applications
Reliable operation for continuous industrial use
Supports predictive maintenance strategies
Technical FAQs
What is the main function of this sensor?
It measures shaft displacement and vibration using non-contact eddy current technology.
What does the CON021 module do?
It converts probe signals into standardized outputs for monitoring systems.
Where is it typically used?
It is used in turbines, compressors, and other rotating machinery requiring precise monitoring.
Conclusion
The Epro CON021 + PR6424/001-030 Eddy Current Sensor (16 mm) is a reliable and precise solution for industrial condition monitoring. Its non-contact measurement capability, combined with robust construction and stable signal conversion, makes it an essential component in machinery protection systems.
For engineers and maintenance professionals, this sensor provides a dependable way to improve equipment reliability, reduce downtime, and ensure safe operation in demanding industrial environments.
