Product Overview

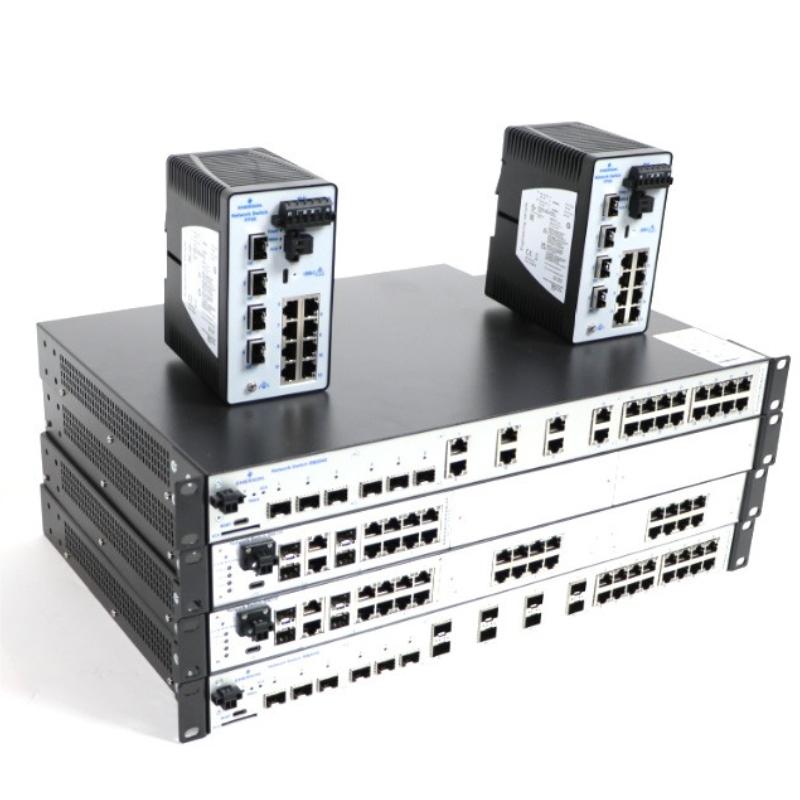

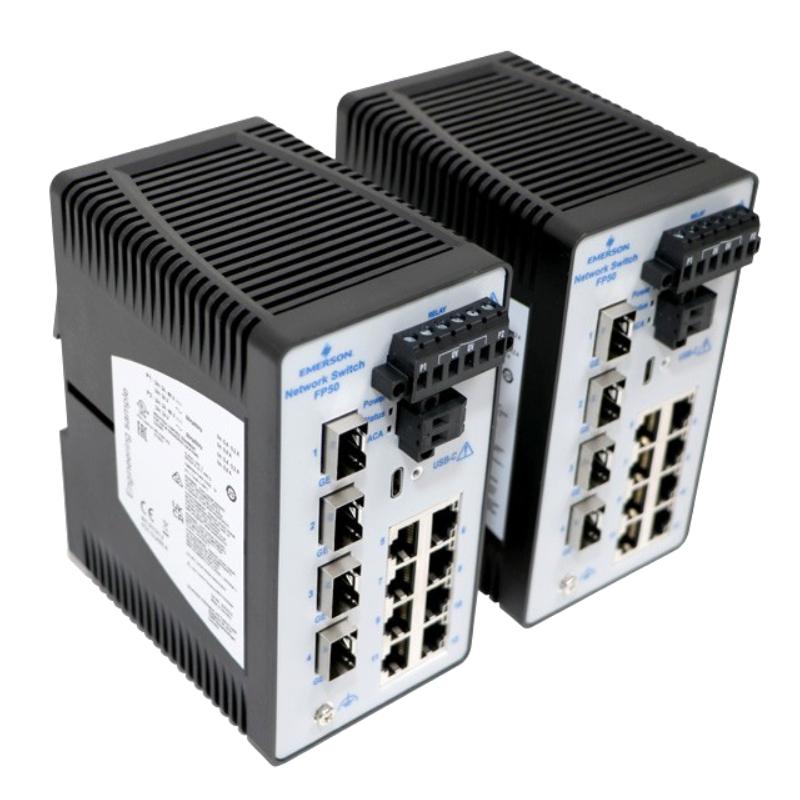

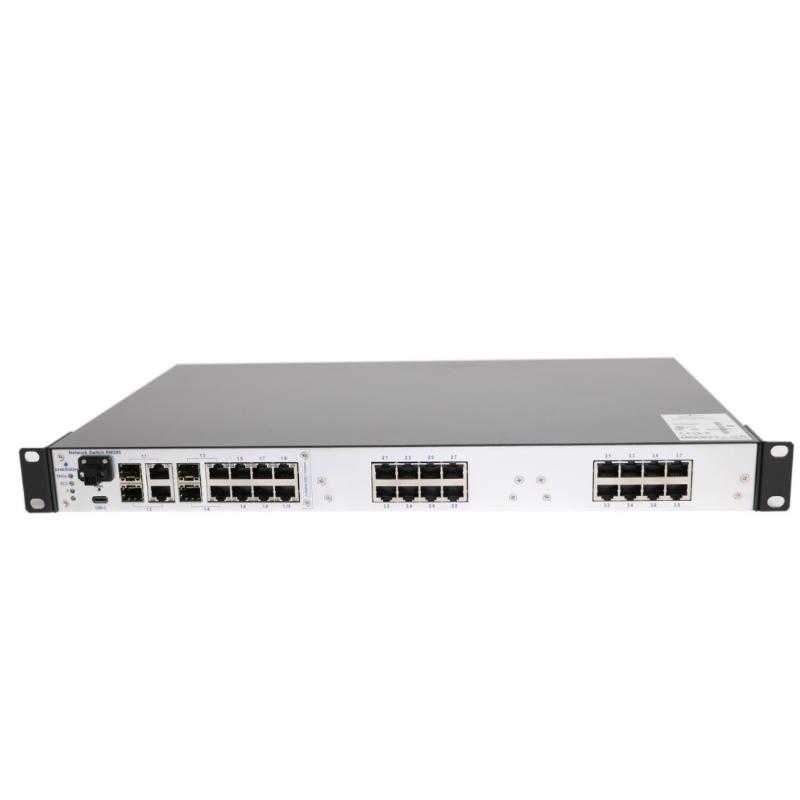

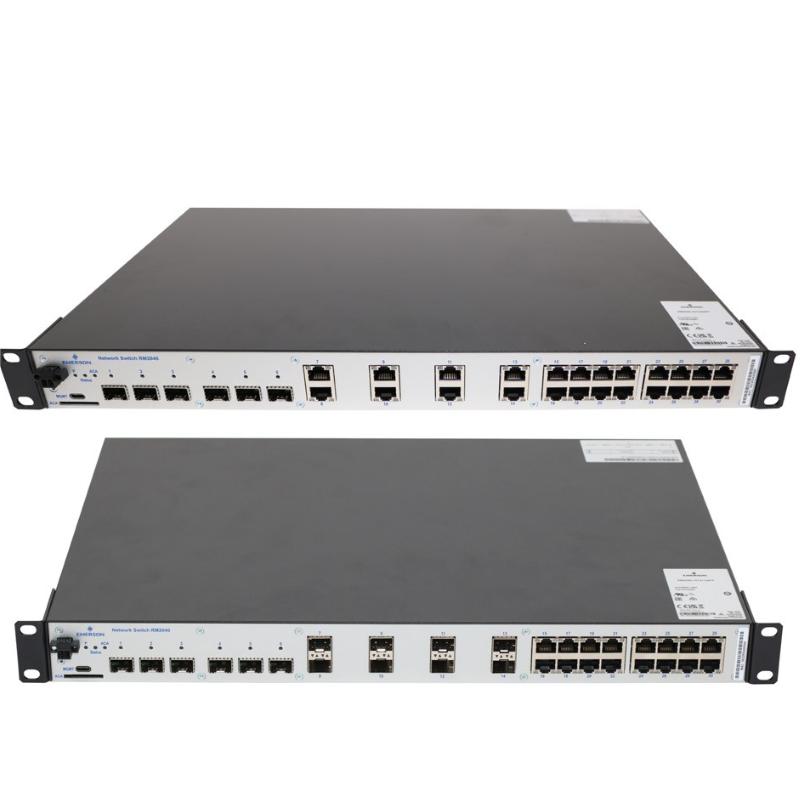

The Emerson VE6076P3 is a DeltaV Smart Switch used to connect Ethernet devices within industrial automation networks. It is part of the VE6076 switch family and provides a combination of copper Ethernet ports and fiber-capable SFP interfaces. This configuration is suitable for process control systems that need to connect controllers, operator workstations, network infrastructure and other Ethernet-based devices across a control network.
The VE6076 family has 30 Gigabit Ethernet ports, comprising 16 copper ports supporting 10/100/1000 Mbps connections and 14 SFP ports supporting 1000 Mbps transceivers. The SFP interfaces allow compatible fiber-optic connections to be incorporated into the network, which can be useful when equipment is distributed across control cabinets or different areas of a plant.
The VE6076P3 variant is associated with the European power-cord configuration. It supports rack installation in a standard 19-inch control cabinet and operates from a 100–240 V AC supply. In a DeltaV installation, the switch handles Ethernet traffic between connected devices, while its diagnostic and security features assist network monitoring and administration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model / Part Number | VE6076P3 |
| Product Series | DeltaV Smart Switch |
| Product Type | Industrial Ethernet Smart Switch |
| Switch Family | VE6076 |
| Ethernet Port Count | 30 |
| Copper Ethernet Ports | 16 × 10/100/1000 Mbps |
| SFP Ports | 14 × 1000 Mbps |
| Supported Transceivers | Compatible VE6050-series Gigabit transceiver modules |
| Switching Type | Layer 2 store-and-forward switching |
| Power Supply | 100–240 V AC |
| Input Frequency | 47–63 Hz |
| Power Consumption | 31 W without SFP transceiver modules |
| Heat Dissipation | 107 BTU/h without SFP transceiver modules |
| Network Diagnostics | Front-panel LEDs, logs and supported management interfaces |
| Management Integration | DeltaV Network Device Command Center |
| Network Security Features | Role-based access, port lockdown and network-loop protection |
| Mounting | 19-inch control cabinet |
| Protection Class | IP30 |
| Dimensions | 448 × 44 × 320 mm |
| Weight | 5.1 kg |
Product Features
- 30 Gigabit Ethernet ports: Combines 16 copper ports with 14 SFP interfaces for mixed copper and fiber network layouts.
- Copper Ethernet connectivity: Supports 10/100/1000 Mbps connections for compatible network devices.
- Fiber connectivity: Accepts compatible VE6050-series Gigabit transceivers for fiber links.
- Layer 2 switching: Uses store-and-forward switching to transfer Ethernet frames between connected devices.
- DeltaV network integration: Supports integration into DeltaV control network environments.
- Network diagnostics: Front-panel indicators, logs and supported management tools help identify connectivity and network issues.
- Access control: Supports role-based access and port-lockdown functions to help manage network access.
- Loop protection: Network-loop protection helps guard against problems caused by unintended network loops.
- Rack-mounted installation: Fits a 19-inch control cabinet arrangement.
- European power-cord configuration: The P3 suffix identifies the European power-cord version within the VE6076 family.
Working Principle
The VE6076P3 receives Ethernet frames through its copper or SFP interfaces and forwards them to the appropriate destination port according to its switching logic. Its Layer 2 store-and-forward operation receives and checks frames before forwarding them, allowing multiple connected devices to exchange data across the local network.
In a process automation installation, the switch may connect operator workstations, control-system infrastructure and other Ethernet devices within the plant network. Copper connections can serve nearby equipment in the same cabinet or control room, while SFP interfaces support compatible transceivers for fiber links between network locations.
The switch also supports network monitoring and administrative functions. Diagnostic information can help engineers investigate link failures or abnormal network behavior, while access controls and port-lockdown features help manage which devices can connect. These functions support network administration but do not replace appropriate network segmentation, configuration management or plant cybersecurity procedures.
The VE6076P3 is a network communications device rather than a process controller. It transfers Ethernet traffic between connected equipment; process logic, control-loop execution and application decisions remain the responsibility of the connected automation devices.
Role in a DeltaV Control Network Architecture
The VE6076P3 provides Ethernet switching between connected network devices. Its copper and SFP interfaces allow a control network to combine local device connections with fiber links where the network layout requires them.
Control Network Devices → VE6076P3 Smart Switch → Other Network Devices and Network Links
| System Component | Function | Relationship to the VE6076P3 |
|---|---|---|
| VE6076P3 Smart Switch | Forwards Ethernet frames between ports | Provides the central switching point for connected devices |
| DeltaV Operator Workstation | Provides operator access to process information | Exchanges network data through the switch |
| DeltaV Controller Network Interface | Connects control-system devices to the network | Uses Ethernet connectivity where supported by the installed architecture |
| Engineering Workstation | Supports system configuration and engineering tasks | Communicates with authorized network devices |
| Copper Ethernet Cable | Carries Ethernet traffic over twisted-pair wiring | Connects nearby devices to copper ports |
| VE6050-Series SFP Transceiver | Provides a compatible Gigabit optical interface | Enables fiber connections through SFP ports |
| Fiber-Optic Cable | Carries network traffic between locations | Connects compatible optical links |
| DeltaV Network Device Command Center | Supports switch administration and diagnostics | Provides access to supported network-management functions |
| Network Monitoring System | Collects network status or diagnostic information | Uses supported monitoring interfaces where configured |
| 19-Inch Control Cabinet | Houses rack-mounted network equipment | Provides the specified mounting arrangement |
| AC Power Distribution | Supplies electrical power to the switch | Feeds the switch’s AC input |
Industrial Applications
| Application | Typical Equipment | Role of the VE6076P3 |
|---|---|---|
| Process Control Networks | Distributed control system infrastructure | Connects Ethernet devices within the control network |
| Chemical Processing | Control-room and plant network equipment | Transfers data between compatible automation devices |
| Oil and Gas Facilities | Process monitoring and control infrastructure | Supports Ethernet connectivity across the installed network |
| Power Generation | Plant control and operator systems | Connects networked automation equipment |
| Pharmaceutical Manufacturing | Process automation and supervisory systems | Supports communications between authorized network devices |
| Water and Wastewater Treatment | Control systems and monitoring workstations | Provides Ethernet switching for plant automation networks |
| Large Manufacturing Plants | Distributed control cabinets and workstations | Combines copper connections and fiber uplinks |
| Industrial Facilities with Distributed Cabinets | Network equipment located across separate areas | Supports fiber connectivity through compatible SFP transceivers |
Installation and Maintenance
- Verify the switch identification: Confirm that the installed unit is VE6076P3 and that the port configuration matches the network plan.
- Check the power requirements: Verify that the available AC supply is within the specified 100–240 V range and 47–63 Hz frequency.
- Inspect the rack location: Confirm that the 19-inch cabinet provides suitable mounting support, ventilation and access for maintenance.
- Plan the network connections: Identify the copper ports and SFP interfaces required for the intended network topology.
- Select compatible transceivers: Check that the SFP modules match the supported VE6050-series Gigabit transceiver requirements.
- Verify the cabling: Inspect copper Ethernet cables, fiber-optic cables and connectors for damage, contamination or incorrect termination.
- Install the switch securely: Use the appropriate rack mounting hardware and ensure that the unit is properly supported.
- Connect the power supply: Fit the appropriate power cord and confirm that the electrical connection is secure before energizing the switch.
- Check port status: Review the front-panel indicators to confirm that connected links establish the expected status.
- Verify network communication: Confirm connectivity between the connected devices and check that the intended network paths are available.
- Review diagnostics and access controls: Check available logs, management settings and port-lockdown configuration as part of network commissioning.
- Record the network configuration: Document port assignments, connected devices, SFP module types and observed diagnostic information for future troubleshooting.
Related Components
| Component | Function | Relationship to the VE6076P3 |
|---|---|---|
| VE6050-Series Gigabit Transceiver | Provides a compatible SFP optical interface | Enables fiber connections through the switch’s SFP ports |
| Copper Ethernet Cable | Carries Ethernet traffic over twisted-pair wiring | Connects compatible devices to copper ports |
| Fiber-Optic Cable | Carries Ethernet traffic over optical links | Connects compatible SFP interfaces between locations |
| 19-Inch Rack Hardware | Supports rack installation | Secures the switch in the control cabinet |
| AC Power Cord | Supplies power to the switch | Matches the VE6076P3 European power-cord configuration |
| DeltaV Network Device Command Center | Provides switch management and diagnostics | Supports network administration |
| DeltaV Operator Workstation | Provides process monitoring and operator interaction | Communicates across the control network |
| Engineering Workstation | Supports configuration and maintenance tasks | Uses authorized network access |
| Network Monitoring System | Collects supported network status information | Helps engineers investigate network conditions |
Recommended Related Models
| Model / Product | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Emerson VE6076P1 | DeltaV Smart Switch | Same VE6076 port configuration with North American power cord | Select according to the required power-cord configuration |
| Emerson VE6076P2 | DeltaV Smart Switch | Same VE6076 port configuration with UK power cord | Match the local power connection requirements |
| Emerson VE6076P3 | DeltaV Smart Switch | Main product | Provides 16 copper ports and 14 SFP ports |
| Emerson VE6076P4 | DeltaV Smart Switch | Same VE6076 port configuration with Australian power cord | Match the local power connection requirements |
| Emerson VE6075P3 | DeltaV Smart Switch | Related 30-port switch with a different copper/SFP allocation | Compare the number of copper connections and optical links required |
| Emerson VE6050-Series Transceivers | Gigabit SFP Transceivers | Compatible optical interface components | Select according to the required fiber connection and supported transceiver configuration |
Key Advantages
- Combines 16 copper Ethernet ports with 14 Gigabit SFP interfaces.
- Supports mixed copper and fiber network layouts.
- Provides Layer 2 store-and-forward switching.
- Integrates with DeltaV network diagnostic and management tools.
- Includes network access-control and loop-protection features.
- Fits a standard 19-inch control cabinet.
- Uses the European power-cord configuration identified by the P3 suffix.
Technical FAQs
How many copper and fiber-capable ports does the VE6076P3 have?
The VE6076 family provides 30 Gigabit Ethernet ports: 16 copper ports supporting 10/100/1000 Mbps and 14 SFP ports supporting 1000 Mbps transceivers.
Which SFP transceivers are supported?
The switch supports compatible VE6050-series Gigabit transceiver modules. The required transceiver depends on the intended optical connection and the fiber infrastructure.
What is the difference between VE6076P3 and VE6075P3?
Both belong to the DeltaV Smart Switch family and use the European power-cord configuration. The VE6076 provides 16 copper ports and 14 SFP ports, whereas the VE6075 uses 24 copper ports and 6 SFP ports.
What should be checked if a connected device cannot communicate through the switch?
Check the cable and connector condition, port-status indicators, network addressing, link speed compatibility and the relevant switch diagnostics. For fiber connections, also verify the transceiver type and optical link configuration.
