- Emerson
- VE6018P4
- Ethernet Switch
- USA
- 250 x 50 x 130 mm
- 0.8 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 26
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

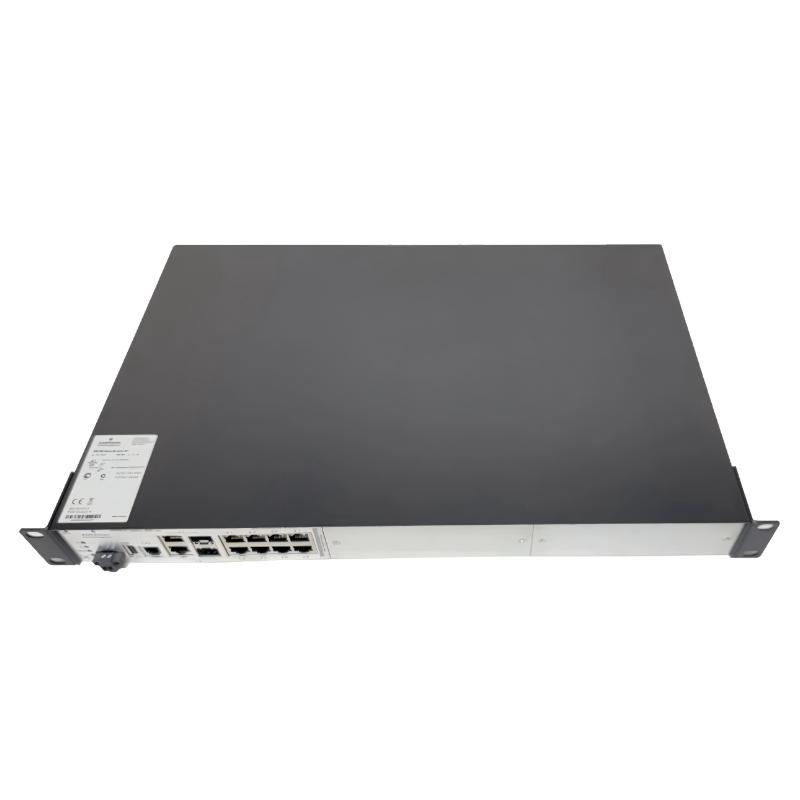

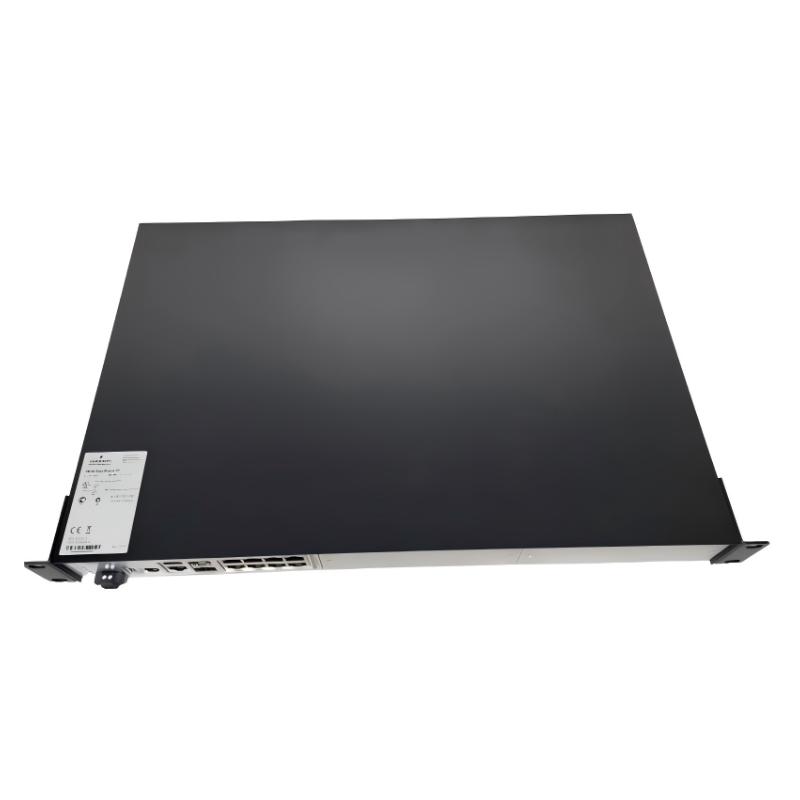

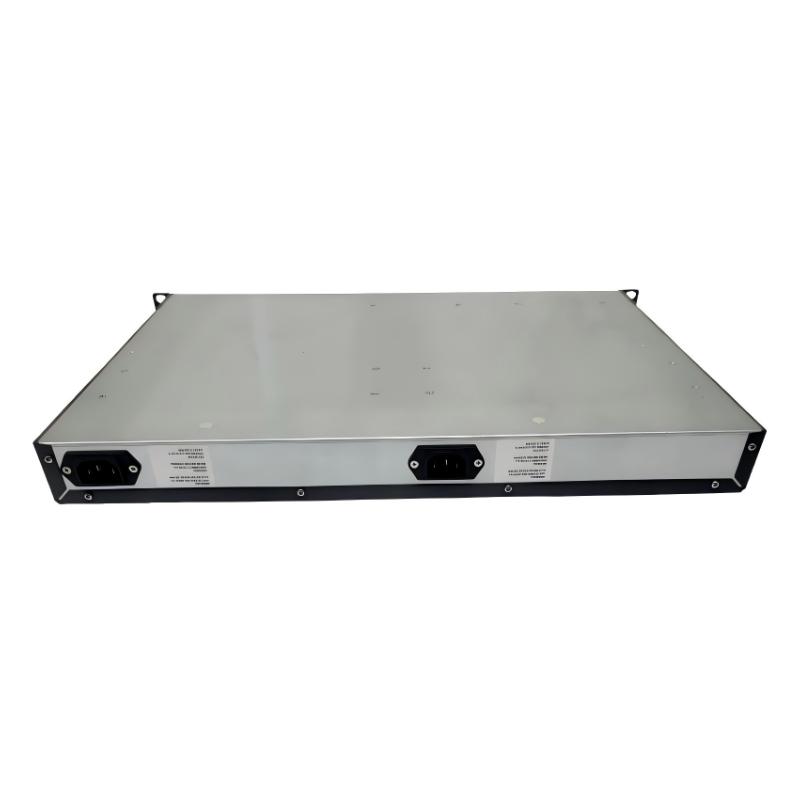

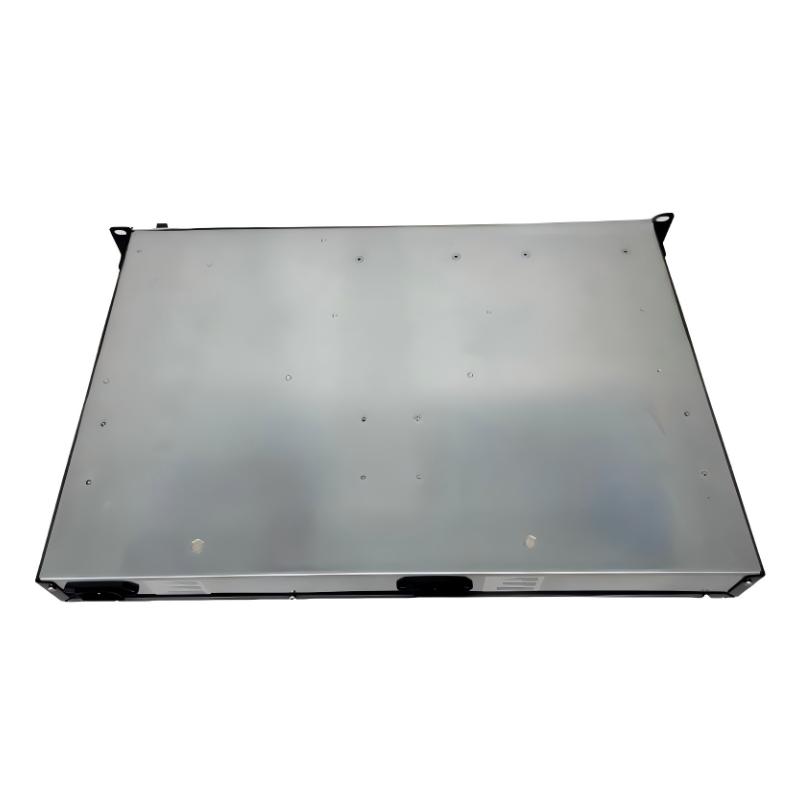

The Emerson VE6018P4 Ethernet Switch is an industrial networking component designed to provide Ethernet communication infrastructure for industrial automation, process control, and distributed control environments. As automation systems become increasingly connected, reliable communication between controllers, remote I/O systems, operator interfaces, engineering workstations, and supervisory equipment is essential for maintaining efficient plant operation.
An Ethernet switch provides the communication infrastructure required for multiple networked devices to exchange information. The VE6018P4 can therefore be integrated into an industrial Ethernet architecture where centralized network connectivity is required.
The Emerson VE6018P4 has listed dimensions of 250 × 50 × 130 mm and a weight of approximately 0.8 kg. These physical characteristics are important when planning control cabinets, network enclosures, mounting locations, cable routing, and replacement procedures.
Unlike a PLC or DCS controller, the VE6018P4 performs a network infrastructure function. Its role is to facilitate Ethernet communication between compatible devices rather than execute process-control logic.
For industrial applications, reliable Ethernet communication depends on the entire network installation. Proper cable routing, connector installation, grounding, power supply, network configuration, environmental conditions, and maintenance practices should all be considered when integrating the VE6018P4.
Exact communication port configuration, Ethernet speed, management functions, redundancy capabilities, electrical specifications, and environmental ratings should be confirmed according to the applicable hardware revision and system configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6018P4 |
| Product Type | Industrial Ethernet Switch |
| Product Family | Emerson VE6000 Series |
| Primary Function | Ethernet network switching |
| Communication Technology | Industrial Ethernet |
| Network Role | Industrial communication infrastructure |
| Application | Industrial Automation and Process Control |
| Dimensions | 250 × 50 × 130 mm |
| Weight | 0.8 kg |
| Installation | Industrial control cabinet / suitable enclosure |
| Typical Applications | DCS, PLC, SCADA, HMI and industrial Ethernet networks |
Only the supplied physical specifications and general product-level information are listed above. Exact electrical and communication parameters should be verified for the specific VE6018P4 hardware configuration.
Understanding the Emerson VE6018P4
The Emerson VE6018P4 Ethernet Switch serves as a network switching component within a compatible industrial automation architecture.
Industrial control systems may contain dozens or hundreds of networked devices. Controllers need to communicate with I/O systems, operator interfaces require access to process information, and engineering workstations may need communication with control equipment.
A switch provides a centralized connection point for these devices.
A simplified architecture can be represented as:
Controllers / I/O / Intelligent Devices → VE6018P4 → Industrial Ethernet Network → HMI / SCADA / Engineering Systems
The actual network arrangement depends on the plant architecture and communication requirements.
The VE6018P4 should therefore be evaluated as part of a complete network rather than as an independent automation controller.
Ethernet Switching Function
The basic purpose of an Ethernet switch is to receive network frames and forward them toward their intended destinations.
When an Ethernet-enabled automation device sends data, the information travels through a network cable to the switch. The switch processes the Ethernet frame and forwards the traffic through the appropriate network connection.
This enables multiple industrial devices to communicate through a shared network infrastructure.
Typical communication paths may include:
- Controller to remote I/O
- Controller to HMI
- Controller to SCADA
- Engineering workstation to automation equipment
- Intelligent instrument to control system
- Networked device to supervisory system
This switching function forms an important part of modern industrial communication architecture.
Role in Industrial Automation
The VE6018P4 can contribute to several layers of an industrial automation network.
Controller Communication
PLC and DCS controllers can communicate with compatible network devices through industrial Ethernet infrastructure.
Distributed I/O
Remote I/O equipment can be located closer to the process while exchanging data with central controllers over the network.
Operator Monitoring
HMI systems require network access to controller data, process values, alarms, and equipment status.
Engineering and Maintenance
Engineering workstations may use the automation network for system configuration, diagnostics, maintenance, and troubleshooting.
Supervisory Systems
SCADA and other supervisory platforms rely on communication networks to collect process data and present information to operators.
The VE6018P4 can provide a physical switching layer for these communication paths when integrated into a compatible system.
Industrial Applications
Process Automation
Industrial Ethernet switching is widely applicable to process automation systems where controllers and distributed devices need continuous communication.
Potential industries include:
- Chemical processing
- Oil and gas
- Water treatment
- Wastewater treatment
- Pharmaceutical manufacturing
- Food and beverage production
- Energy and utilities
- General process industries
DCS Networks
Distributed control systems depend on communication between controllers, I/O subsystems, operator stations, engineering workstations, and other system components.
An Ethernet switch can form part of the communication infrastructure supporting these functions.
PLC Systems
PLC-based systems can use Ethernet networks to connect processors with remote I/O, HMIs, drives, instruments, and other intelligent devices.
SCADA Systems
SCADA systems require reliable communication between control equipment and supervisory computers. Industrial Ethernet infrastructure can provide the physical connectivity necessary for these systems.
Manufacturing Automation
Manufacturing systems use network communication for equipment control, production monitoring, diagnostics, data acquisition, and integration with supervisory platforms.
Industrial Ethernet Network Architecture
A typical industrial Ethernet architecture may contain several functional layers.
Field Layer
Sensors, actuators, instruments, drives, and intelligent field equipment interact directly with the physical process.
Control Layer
PLC or DCS controllers process field information and execute control strategies.
Network Layer
Ethernet switches provide the communication paths connecting controllers and other networked devices.
Supervisory Layer
HMI stations, SCADA servers, operator workstations, and engineering systems provide monitoring and system-management functions.
A simplified structure is:
Field Equipment → Remote I/O / Controllers → VE6018P4 → HMI / SCADA / Engineering Systems
Larger systems may use multiple switches, network segments, uplinks, and redundant communication paths depending on application requirements.
Installation and System Integration
Correct installation is essential for reliable industrial Ethernet operation.
Verify the Exact Model
Before installation or replacement, verify that the equipment is identified as:
Emerson VE6018P4
Also check:
- Hardware revision
- Existing network configuration
- Connection arrangement
- Power requirements
- Installation location
- Connected equipment
Physical similarity with another Ethernet switch should not be considered sufficient evidence of compatibility.
Plan the Cabinet Layout
The listed dimensions are:
250 × 50 × 130 mm
The cabinet should provide adequate space for the switch, network cables, mounting arrangement, and maintenance access.
Route Ethernet Cables Properly
Network cables should be routed away from unnecessary sources of electromagnetic interference.
Where practical, maintain suitable separation from:
- Motor power cables
- Variable frequency drives
- Transformers
- Contactors
- High-current conductors
- Other high-energy switching equipment
Proper cable management also reduces mechanical stress on connectors.
Verify Grounding
Grounding and bonding should follow the requirements of the complete automation system and applicable electrical installation practices.
Confirm Power Requirements
The power arrangement should be checked against the applicable system documentation before energizing the equipment.
Do not assume that another Ethernet switch has identical electrical requirements.
Commissioning Procedure
After installation, the VE6018P4 should be commissioned as part of the complete industrial network.
Physical Inspection
Confirm that the switch is securely mounted and that there is no visible mechanical damage.
Cable Verification
Inspect each Ethernet connection and make sure the connectors are properly seated.
Power Verification
Confirm the correct power arrangement before startup.
Network Device Check
Verify that connected controllers, remote I/O systems, HMIs, SCADA equipment, and other devices are operating normally.
Communication Test
Check the required communication paths.
Typical tests may include:
- Controller-to-I/O communication
- Controller-to-HMI communication
- SCADA communication
- Engineering workstation communication
- Network device connectivity
Operational Monitoring
Monitor the network after commissioning to identify unexpected communication interruptions, alarms, unstable connections, or other abnormal conditions.
Troubleshooting the Emerson VE6018P4
Troubleshooting should begin with the simplest possible causes and proceed systematically toward more complex network problems.
Complete Loss of Communication
If multiple devices lose communication simultaneously, inspect the shared network infrastructure.
Potential causes include:
- Switch power failure
- Common Ethernet connection failure
- Cable problems
- Upstream network failure
- Power distribution problems
- Electrical interference
A complete network outage should be investigated at the infrastructure level before replacing individual field devices.
One Device Cannot Communicate
If only one device is offline, inspect the local communication path.
Check:
- Device power
- Ethernet cable
- Connector
- Network interface
- Switch connection
- Device configuration
- Application or controller status
This can help determine whether the fault is related to the device, cable, connection, or switch.
Intermittent Communication
Intermittent Ethernet problems may be caused by:
- Loose connectors
- Damaged cables
- Mechanical cable stress
- Electromagnetic interference
- Power instability
- Grounding problems
- Network configuration issues
- Faulty connected equipment
Observe the network while checking physical connections to identify recurring patterns.
Communication Instability
If devices remain connected but communication is unreliable, investigate the overall network architecture and connected equipment.
Possible areas include:
- Network configuration
- Cable condition
- Network loading
- Device configuration
- Electrical interference
- Network topology
The exact diagnostic procedure should follow the installed Emerson system architecture.
Preventive Maintenance
Regular inspection of industrial network infrastructure can reduce unexpected communication problems.
Ethernet Cable Inspection
Check cables for:
- Cuts
- Crushing
- Excessive bending
- Mechanical stress
- Loose connectors
- Improper routing
Cabinet Environment
Inspect the installation environment for excessive:
- Dust
- Moisture
- Heat
- Vibration
- Contamination
Maintaining a suitable enclosure environment helps protect electronic equipment.
Connector Inspection
Check that Ethernet connectors remain properly seated and free from obvious mechanical damage.
Network Documentation
Maintain accurate network drawings and cable identification.
Documentation should ideally identify:
- Switch locations
- Connected devices
- Cable routes
- Network segments
- Important configuration information
Monitor Communication Trends
Repeated communication faults should be investigated rather than treated as isolated events.
A pattern of intermittent failures may indicate an emerging issue with cabling, power, grounding, or network infrastructure.
Replacement and Compatibility Considerations
The complete VE6018P4 model designation should be checked before replacement.
Important information includes:
- Manufacturer
- Full model number
- Hardware revision
- Network function
- Port configuration
- Power requirements
- Mounting arrangement
- Connected network devices
- Existing network topology
- Host automation platform
The supplied physical characteristics are:
Dimensions: 250 × 50 × 130 mm
Weight: 0.8 kg
A different Ethernet switch may have similar dimensions while having different communication, power, or network-management characteristics. Therefore, physical dimensions alone should not be used to determine interchangeability.
Compatible Automation Equipment
The VE6018P4 may be integrated into automation networks containing equipment such as:
| Equipment | Typical Function |
|---|---|
| Emerson DCS Controllers | Process control |
| PLC Controllers | Logic and machine control |
| Remote I/O Systems | Distributed process signals |
| HMI Stations | Operator monitoring |
| SCADA Servers | Supervisory control |
| Engineering Workstations | Configuration and diagnostics |
| Intelligent Instruments | Process measurement |
| Networked Drives | Motor control |
| Ethernet Devices | Industrial communication |
The exact compatibility of each device depends on the complete network architecture and system configuration.
Industrial Ethernet Design Considerations
Network Segmentation
Large industrial networks may be divided into different communication segments to organize traffic and simplify maintenance.
The appropriate segmentation strategy depends on the application and network architecture.
Cable Management
Ethernet cables should be routed neatly and identified clearly.
Good cable management helps technicians trace communication paths during troubleshooting.
Electromagnetic Compatibility
High-power equipment can create electromagnetic interference that may affect communication wiring. Proper routing and separation should therefore be considered during installation.
Network Availability
Critical applications may require redundant communication paths or other network availability strategies. The appropriate design depends on the required system architecture and available equipment capabilities.
Documentation
Network diagrams should be updated whenever equipment or network connections are changed.
A current network drawing can significantly reduce troubleshooting time.
Physical Dimensions and Weight
The Emerson VE6018P4 has the following listed physical characteristics:
| Specification | Value |
|---|---|
| Length | 250 mm |
| Width | 50 mm |
| Height | 130 mm |
| Weight | 0.8 kg |
These specifications are useful for:
- Control cabinet planning
- Network enclosure design
- Mounting preparation
- Replacement planning
- Inventory management
- Transportation
- Maintenance access
The 50 mm width is particularly relevant when several networking components must be arranged within a limited cabinet space.
Key Advantages
The Emerson VE6018P4 provides Ethernet switching functionality for suitable industrial automation architectures.
Key characteristics include:
- Industrial Ethernet switching capability
- Suitable for process automation networks
- Supports organized network connectivity
- Can be incorporated into DCS architectures
- Suitable for PLC-based automation networks
- Applicable to SCADA communication infrastructure
- Supports networked HMI and engineering environments
- Compact physical dimensions
- 250 × 50 × 130 mm listed size
- 0.8 kg listed weight
- Suitable for industrial control cabinet integration
Reliable operation ultimately depends on the complete network design, including power, cabling, grounding, connected devices, configuration, and environmental conditions.
Technical FAQs
What is the Emerson VE6018P4?
The Emerson VE6018P4 is an industrial Ethernet switch designed to provide Ethernet network switching within compatible automation and process control systems.
What is the main purpose of the VE6018P4?
Its primary purpose is to provide network infrastructure that allows compatible Ethernet-enabled industrial devices to communicate.
What are the dimensions of the VE6018P4?
The listed dimensions are 250 × 50 × 130 mm.
How much does the VE6018P4 weigh?
The listed weight is approximately 0.8 kg.
Is the VE6018P4 a controller?
No. The VE6018P4 is an Ethernet switch, not a PLC or DCS processor. It provides network communication infrastructure.
Where can the VE6018P4 be used?
It can be incorporated into suitable industrial Ethernet networks for DCS, PLC, SCADA, HMI, remote I/O, process control, and manufacturing automation applications.
Can the VE6018P4 connect remote I/O?
An industrial Ethernet switch can provide communication connectivity for remote I/O when the switch and the complete automation architecture are compatible.
What should be checked before replacing the VE6018P4?
Verify the complete model number, hardware revision, network configuration, port arrangement, power requirements, mounting requirements, and connected equipment.
What can cause Ethernet communication failures?
Possible causes include power loss, damaged cables, loose connectors, electromagnetic interference, grounding problems, incorrect configuration, and faults in connected network devices.
Why are the physical dimensions important?
The 250 × 50 × 130 mm dimensions must be considered when planning cabinet space, mounting, cable routing, replacement, and maintenance access.
Conclusion
The Emerson VE6018P4 Ethernet Switch is an industrial networking component designed to provide Ethernet switching infrastructure within suitable automation and process control systems. It can serve as a communication point between controllers, remote I/O, HMI systems, SCADA equipment, engineering workstations, and other Ethernet-connected industrial devices.
With listed dimensions of 250 × 50 × 130 mm and a weight of 0.8 kg, the VE6018P4 can be considered during cabinet layout, network enclosure planning, equipment handling, replacement preparation, and maintenance.
Reliable performance depends on the complete network installation. Proper power, grounding, Ethernet cable routing, connector installation, network configuration, and environmental control should all be considered during system integration.
For maintenance or replacement, the complete Emerson VE6018P4 identification should be verified before installation. Matching the exact model and applicable hardware configuration is important because similar-looking industrial Ethernet switches may have different electrical and communication characteristics.
