Product Overview

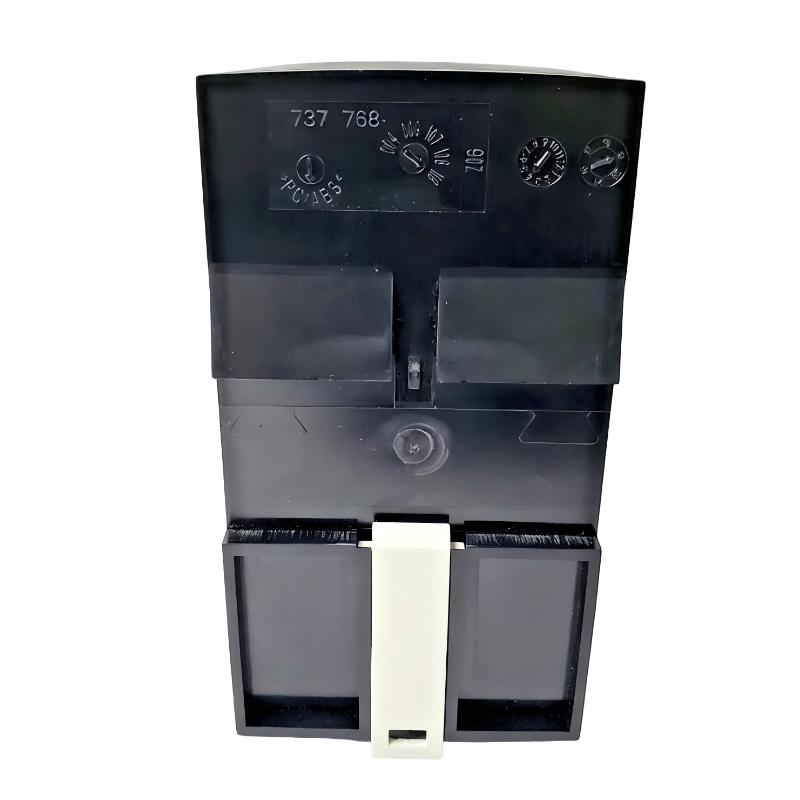

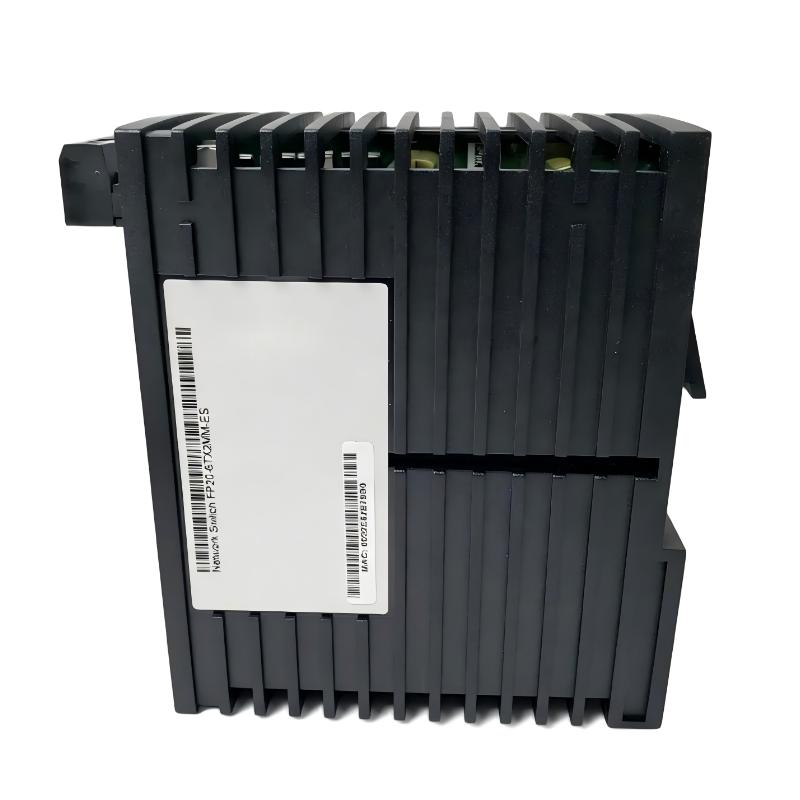

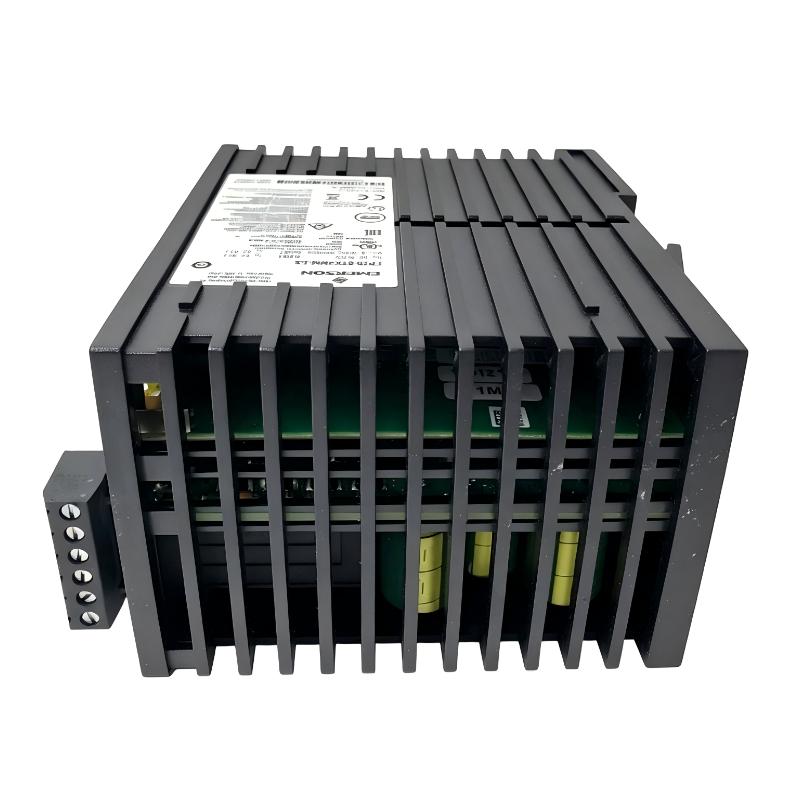

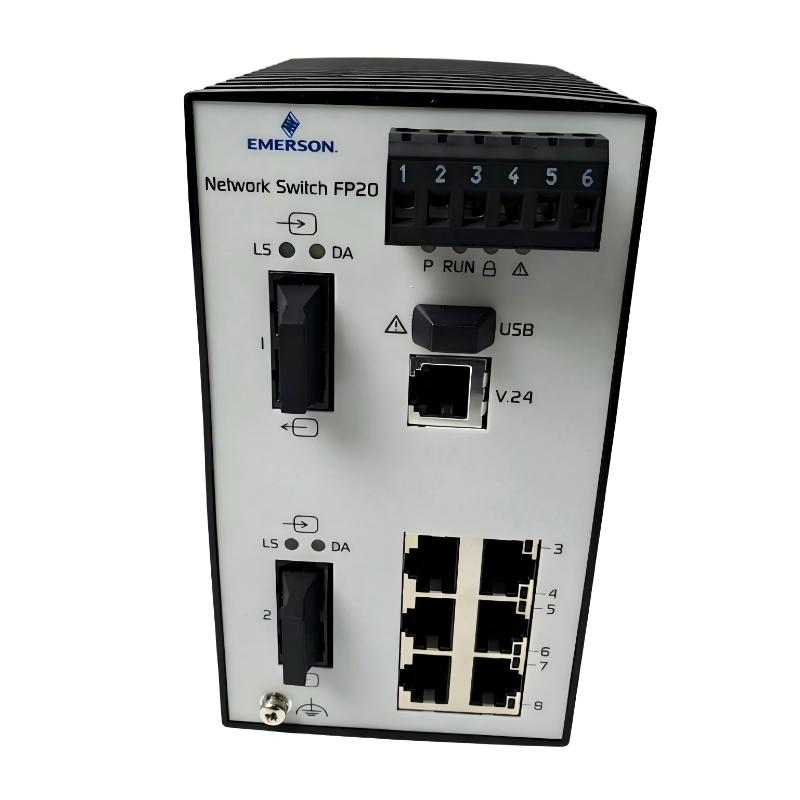

The Emerson VE6015P2 Ethernet Switch is an industrial networking component intended for use within automation, process control, and distributed industrial communication systems. It provides an Ethernet-based connection point for compatible controllers, remote I/O equipment, operator interfaces, engineering workstations, servers, and other network-enabled automation devices.
As industrial control systems become increasingly interconnected, reliable communication infrastructure is essential for exchanging process information between different system components. Ethernet switches provide the network connectivity required to organize these communication paths and allow multiple devices to participate in a structured industrial network.
The Emerson VE6015P2 has listed dimensions of 138 × 73 × 115 mm and a weight of approximately 0.57 kg. Its compact form factor can be incorporated into appropriately designed industrial control cabinets and automation equipment enclosures.
The VE6015P2 should be evaluated according to the requirements of the complete network in which it is installed. Exact port configuration, Ethernet performance, power requirements, network-management capabilities, redundancy functions, and environmental specifications should be confirmed against the applicable equipment documentation before commissioning or replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE6015P2 |
| Product Type | Ethernet Switch |
| Primary Function | Industrial Ethernet network connectivity |
| Application | Industrial Automation and Process Control |
| Network Role | Ethernet communication and device interconnection |
| Dimensions | 138 × 73 × 115 mm |
| Weight | 0.57 kg |
| Installation | Industrial control cabinet / compatible automation equipment |
| Typical Application | Industrial Ethernet and process-control networks |
| Network Configuration | Dependent on system architecture |
The exact electrical and communication characteristics should be verified for the installed VE6015P2 configuration before engineering a network or selecting a replacement.
What Is the Emerson VE6015P2?
The VE6015P2 is an Ethernet switch used as part of an industrial communication infrastructure. Its primary role is to provide network connectivity between compatible Ethernet-enabled devices.
A modern automation system can contain many network participants. A controller may need to exchange data with remote I/O, an HMI, an engineering workstation, a supervisory system, or another controller.
The Ethernet switch provides a centralized communication point for these devices.
A simplified architecture can be represented as:
Industrial Controller → VE6015P2 → Remote I/O
HMI → VE6015P2 → Controller
Engineering Workstation → VE6015P2 → Automation Network
The actual arrangement depends on the control system and network topology.
The VE6015P2 is therefore a communication infrastructure component rather than a replacement for the PLC or process controller itself.
Ethernet Switching Principle
Ethernet switching allows network devices to exchange data through a shared communication infrastructure.
When an Ethernet-enabled device transmits a network frame, the frame reaches the switch through its network connection. The switch determines the appropriate forwarding path and sends the traffic toward the intended destination.
This approach allows several devices to communicate through a common network infrastructure.
In industrial automation, Ethernet switching can support communication among:
- PLCs and controllers
- Remote I/O systems
- HMIs
- SCADA workstations
- Engineering stations
- Industrial servers
- Communication interfaces
- Other Ethernet-based automation devices
The exact network functions available in a particular installation depend on the equipment configuration and system design.
Role in Industrial Automation
The Emerson VE6015P2 can be positioned within the communication layer of a larger industrial automation system.
A typical industrial architecture may contain several levels.
Field Equipment
Sensors, actuators, transmitters, valves, drives, motors, and other field equipment interact with the physical process.
Control Equipment
Controllers process input signals and execute control logic.
Network Infrastructure
Ethernet switches provide communication paths between controllers, remote I/O, operator interfaces, engineering stations, and other network devices.
Supervisory Systems
HMI, SCADA, historian, and engineering applications provide process visualization, monitoring, configuration, and diagnostics.
The VE6015P2 contributes to the network infrastructure that connects these different parts of the automation system.
Industrial Applications
Process Automation
Process industries use extensive communication networks to connect controllers and distributed equipment.
The VE6015P2 can form part of compatible network architectures used in applications such as:
- Chemical processing
- Water treatment
- Oil and gas
- Power generation
- Pharmaceutical production
- Food and beverage manufacturing
- Industrial utilities
Distributed Control Systems
Distributed control systems require reliable communication between control processors, I/O subsystems, operator stations, and engineering equipment.
Ethernet switches provide the physical network interconnections necessary for this distributed architecture.
Remote I/O Systems
Remote I/O devices are frequently located close to the equipment being controlled. Ethernet infrastructure can provide communication between remote I/O and the control system.
HMI Networks
Operator interfaces depend on communication with control equipment to obtain process values, equipment status, alarms, and diagnostic information.
Engineering Networks
Engineering and maintenance stations may require network access to controllers and other automation equipment for configuration, diagnostics, and system maintenance.
Industrial Ethernet Network Architecture
The VE6015P2 should be integrated according to a documented network architecture.
A basic network arrangement may be:
Controller
↓
VE6015P2 Ethernet Switch
↓
Remote I/O / HMI / Engineering Equipment
Larger automation systems may use multiple switches and network segments.
When designing the network, engineers should consider:
- Device locations
- Network topology
- Cable lengths and routing
- Communication traffic
- Electrical interference
- Network segmentation
- Redundancy requirements
- Maintenance access
- Future system expansion
The actual functions supported by the VE6015P2 should be verified before implementing specialized network architectures or redundancy strategies.
Installation and System Integration
Confirm Product Identification
Before installation, verify that the equipment is identified as:
Emerson VE6015P2
The complete model number should be compared with the existing equipment documentation and system configuration.
This is particularly important when several related Ethernet switch models are installed within the same facility.
Check Cabinet Space
The listed dimensions are:
138 × 73 × 115 mm
Cabinet planning should include adequate space for the switch and its associated cabling.
Additional clearance may be necessary for:
- Ethernet cable routing
- Power connections
- Connector access
- Cable bending
- Inspection
- Maintenance
Plan Communication Cables
Ethernet cables should be installed in a controlled and organized manner.
Where practical, communication cables should be routed separately from high-voltage and high-current conductors.
Avoid excessive bending, pulling, or mechanical stress on the cables and connectors.
Connect the Network
Connect compatible devices according to the approved network diagram.
Typical network devices may include:
- Controllers
- Remote I/O
- HMI systems
- Engineering computers
- Industrial servers
- Additional communication equipment
The actual port assignments should follow the system documentation.
Verify Power Connections
Before energizing the switch, confirm the applicable power supply arrangement and wiring.
Power requirements should be verified from the relevant documentation rather than assumed from the model number.
Commissioning Procedure
A systematic commissioning process helps confirm that the VE6015P2 and connected network devices are operating correctly.
1. Visual Inspection
Inspect the switch and surrounding cabinet area.
Check for:
- Physical damage
- Loose connectors
- Damaged cables
- Incorrect wiring
- Contamination
- Poor cable routing
2. Verify Power
Confirm that the applicable supply connection is correctly installed.
3. Check Ethernet Connections
Inspect each connected Ethernet cable and confirm that the network devices are correctly connected.
4. Test Network Communication
Verify communication between the connected automation devices.
A basic test path may be:
Controller → VE6015P2 → Remote Device
5. Test HMI or Supervisory Communication
Where applicable, verify that HMI, SCADA, or engineering systems can exchange information with the control equipment.
6. Record the Installation
Document the final network configuration, connected devices, cable identification, and switch location.
Good documentation can significantly reduce troubleshooting time in the future.
Troubleshooting the Emerson VE6015P2
Network troubleshooting should begin with simple physical checks before moving toward system-level configuration analysis.
No Communication
If network communication is unavailable, inspect:
- Switch power
- Ethernet cable connections
- Cable condition
- Connected device status
- Network configuration
- Communication path
- Other network infrastructure
A loose or damaged cable can produce symptoms that resemble a switch failure.
Intermittent Network Communication
Intermittent communication may be associated with:
- Loose connections
- Damaged cables
- Electrical interference
- Excessive mechanical stress
- Network configuration problems
- Connected-device instability
- Hardware degradation
Inspect the physical network first before replacing the switch.
One Device Cannot Communicate
If only one device is offline, check the communication path between that device and the switch.
Recommended checks include:
- Device status
- Ethernet cable
- Switch connection
- Network configuration
- Device communication interface
Multiple Devices Lose Communication
If several devices lose communication simultaneously, investigate shared network infrastructure.
Possible areas include:
- Switch power
- Common network connections
- Upstream communication equipment
- Shared power infrastructure
- Network architecture
A common failure affecting multiple devices should be investigated at the shared infrastructure level.
Preventive Maintenance
Regular inspection can help maintain reliable industrial network operation.
Inspect Network Cables
Check Ethernet cables for:
- Cuts
- Crushing
- Abrasion
- Excessive bending
- Loose connectors
- Mechanical damage
Inspect Connections
Ensure that network connectors remain securely connected and free from contamination.
Maintain Cabinet Conditions
The cabinet environment should be controlled appropriately.
Inspect for excessive:
- Dust
- Moisture
- Heat
- Vibration
- Electrical interference
Monitor Network Performance
Unexpected communication interruptions should be investigated promptly.
Repeated faults may indicate developing problems with cables, connectors, connected devices, network infrastructure, or environmental conditions.
Maintain Network Documentation
Update network diagrams whenever equipment is added, removed, or relocated.
Useful documentation includes:
- Switch identification
- Network topology
- Cable connections
- Connected equipment
- Cabinet location
- Replacement information
Replacement and Compatibility Considerations
When replacing an Emerson VE6015P2 Ethernet Switch, verify the complete model number and the requirements of the existing network.
Important information includes:
- Full model designation
- Hardware revision
- Network topology
- Connected devices
- Ethernet connections
- Power arrangement
- Installation location
The listed physical specifications are:
Dimensions: 138 × 73 × 115 mm
Weight: 0.57 kg
A device with similar physical dimensions should not automatically be considered electrically or functionally interchangeable.
Before selecting a replacement, verify the requirements of the complete communication system.
Depending on the application, this may include checking:
- Port configuration
- Network communication characteristics
- Power requirements
- Network-management functions
- Redundancy requirements
- Environmental conditions
- Host-system compatibility
Exact characteristics should be confirmed against the applicable equipment documentation.
Compatible Industrial Automation Components
The VE6015P2 may be integrated into a broader industrial automation architecture containing several categories of equipment.
| Component | Typical Function |
|---|---|
| Industrial Controller | Executes automation logic |
| Remote I/O | Interfaces with distributed field signals |
| HMI | Provides operator visualization |
| Engineering Workstation | Configuration and diagnostics |
| SCADA System | Supervisory monitoring |
| Industrial Server | Data and application processing |
| Ethernet Switch | Network device connectivity |
| Ethernet Cable | Network communication path |
| Control System Interface | Connects automation subsystems |
The exact equipment combination depends on the host control system.
Industrial Network Engineering Recommendations
Use a Documented Network Topology
The network architecture should be documented before commissioning.
A clear topology makes it easier to identify communication paths and isolate faults.
Label Network Connections
Ethernet cables should be clearly identified where practical.
Proper labeling helps maintenance personnel quickly determine which equipment is connected to each network connection.
Separate Communication and Power Wiring
Communication cables should be separated from high-power conductors wherever practical.
This can help reduce exposure to electromagnetic interference.
Provide Maintenance Access
The switch should be installed in a location where technicians can inspect network connections without unnecessary disruption.
Plan Future Expansion
Industrial networks often grow as equipment is added.
Cabinet space, cable routing, and network documentation should therefore be planned with future modifications in mind.
Physical Dimensions and Handling
The Emerson VE6015P2 has listed dimensions of:
138 × 73 × 115 mm
The listed weight is:
0.57 kg
These values are useful for:
- Control cabinet planning
- Replacement preparation
- Spare-parts inventory
- Transportation planning
- Installation logistics
During handling, avoid mechanical impact and protect Ethernet connectors from unnecessary force.
Storage and transportation should also protect the equipment from excessive moisture, dust, vibration, and physical shock.
Key Advantages
Industrial Ethernet Connectivity
The VE6015P2 provides Ethernet switching functionality for compatible industrial automation networks.
Compact Installation
Its listed 138 × 73 × 115 mm dimensions allow it to be incorporated into appropriately planned industrial control cabinets.
Moderate Weight
With a listed weight of 0.57 kg, the switch can be handled relatively easily during installation and maintenance.
Flexible Network Integration
The Ethernet switch can serve as a communication point between compatible controllers, remote I/O, HMIs, engineering stations, and other network devices.
Suitable for Distributed Automation
Industrial Ethernet infrastructure allows equipment located throughout an automation system to exchange information through an organized communication architecture.
Technical FAQs
What is the Emerson VE6015P2?
The Emerson VE6015P2 is an Ethernet Switch designed for network connectivity within compatible industrial automation and process-control environments.
What are the dimensions of the VE6015P2?
The listed dimensions are 138 × 73 × 115 mm.
How much does the VE6015P2 weigh?
The listed weight is approximately 0.57 kg.
What is the purpose of an Ethernet switch in industrial automation?
An Ethernet switch provides network connectivity between multiple Ethernet-enabled devices, allowing controllers, I/O systems, HMIs, engineering workstations, and other equipment to exchange data.
Can the VE6015P2 be used in a distributed automation system?
It can form part of a compatible industrial Ethernet architecture connecting distributed automation equipment, subject to the requirements of the specific system.
Is the VE6015P2 a PLC?
No. The VE6015P2 is an Ethernet Switch, not a PLC controller. Its primary role is to provide network connectivity between compatible automation devices.
What should be checked before replacing a VE6015P2?
Verify the complete model number, hardware revision, network topology, connected devices, Ethernet connections, power requirements, environmental conditions, and overall system compatibility.
What causes Ethernet communication problems?
Possible causes include power loss, damaged cables, loose connectors, electrical interference, network configuration problems, connected-device faults, or switch hardware issues.
How should the VE6015P2 be maintained?
Routine maintenance should include inspection of Ethernet cables, connectors, cabinet conditions, power connections, and communication performance. Network documentation should also be kept current.
Conclusion
The Emerson VE6015P2 Ethernet Switch is an industrial networking component designed to provide Ethernet connectivity within compatible automation and process-control architectures. It can serve as an important communication infrastructure element for connecting controllers, remote I/O systems, operator interfaces, engineering workstations, industrial servers, and other Ethernet-enabled devices.
With listed dimensions of 138 × 73 × 115 mm and a weight of 0.57 kg, the VE6015P2 provides a compact physical format suitable for appropriately designed industrial control installations.
Reliable operation depends on proper network planning, correct installation, secure cable connections, appropriate environmental conditions, and compatibility with the surrounding automation equipment. When replacing the device, the complete VE6015P2 identification should be checked together with the existing network architecture and system requirements.
Regular inspection of network cables, connectors, cabinet conditions, and communication performance can help identify developing problems early and support dependable operation of the industrial Ethernet infrastructure.
