Product Overview

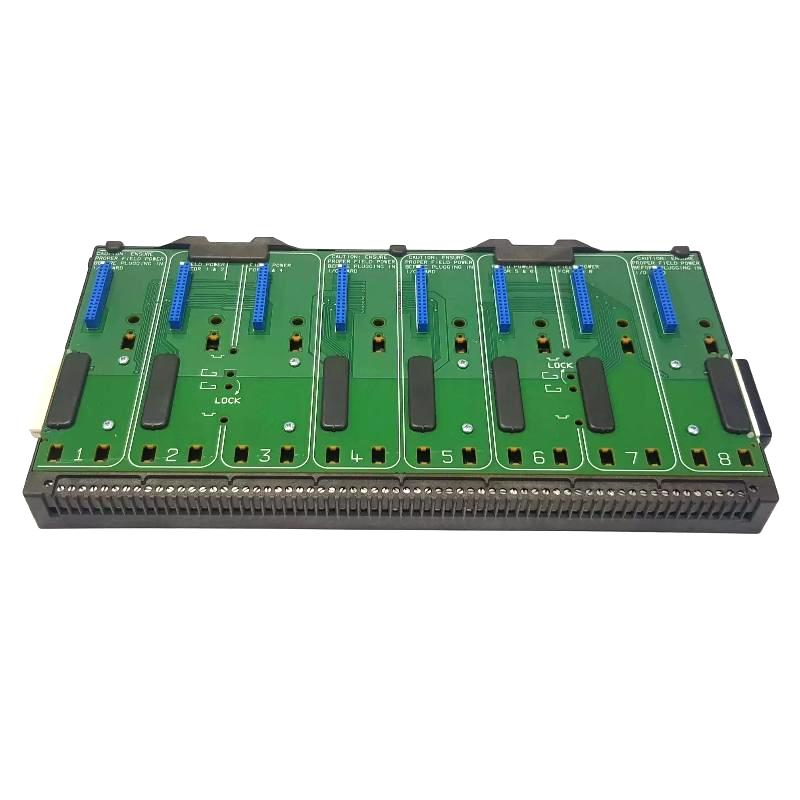

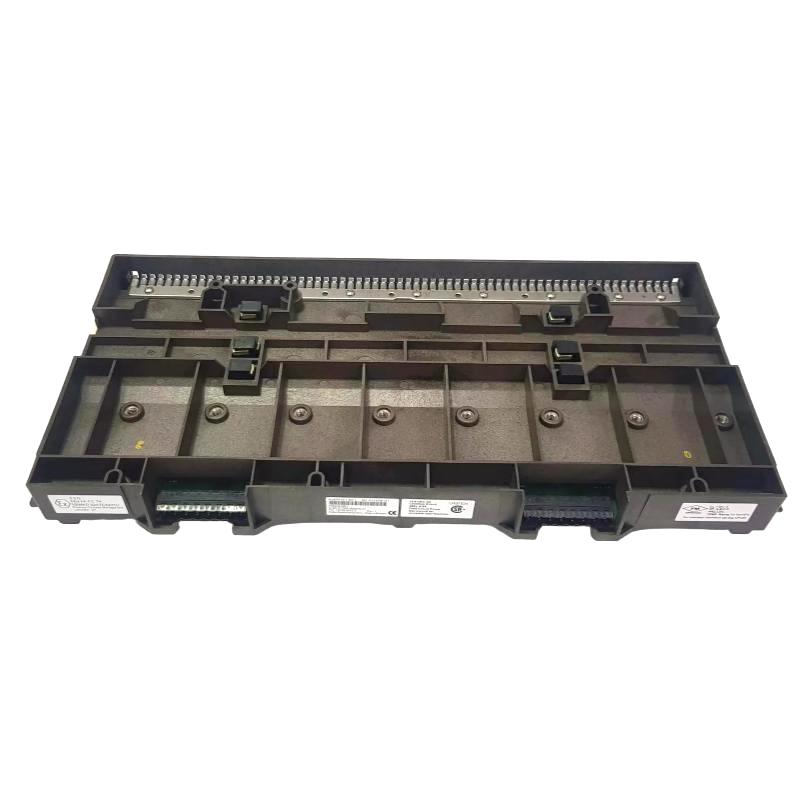

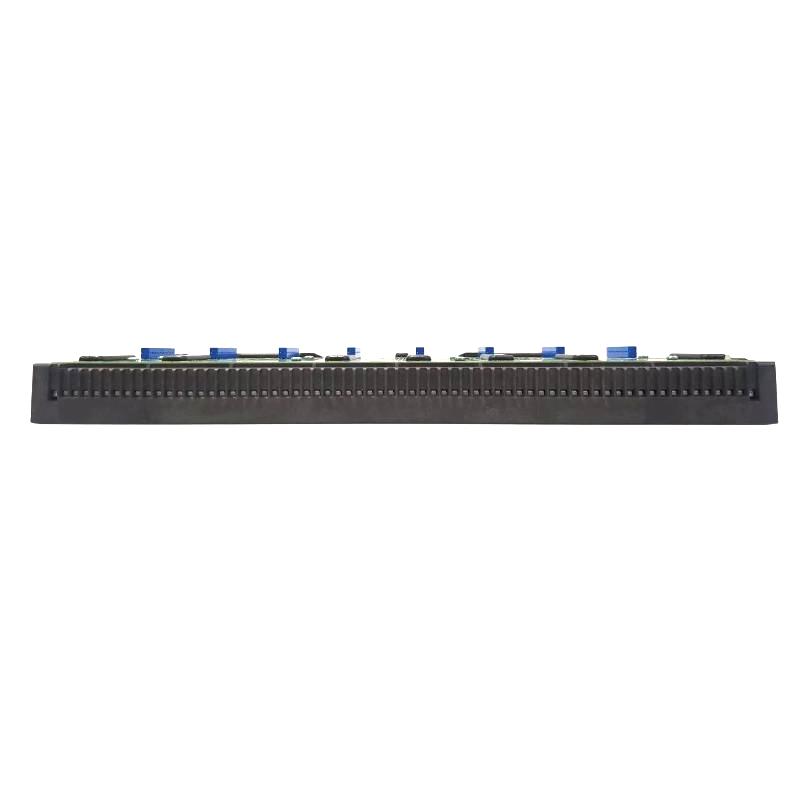

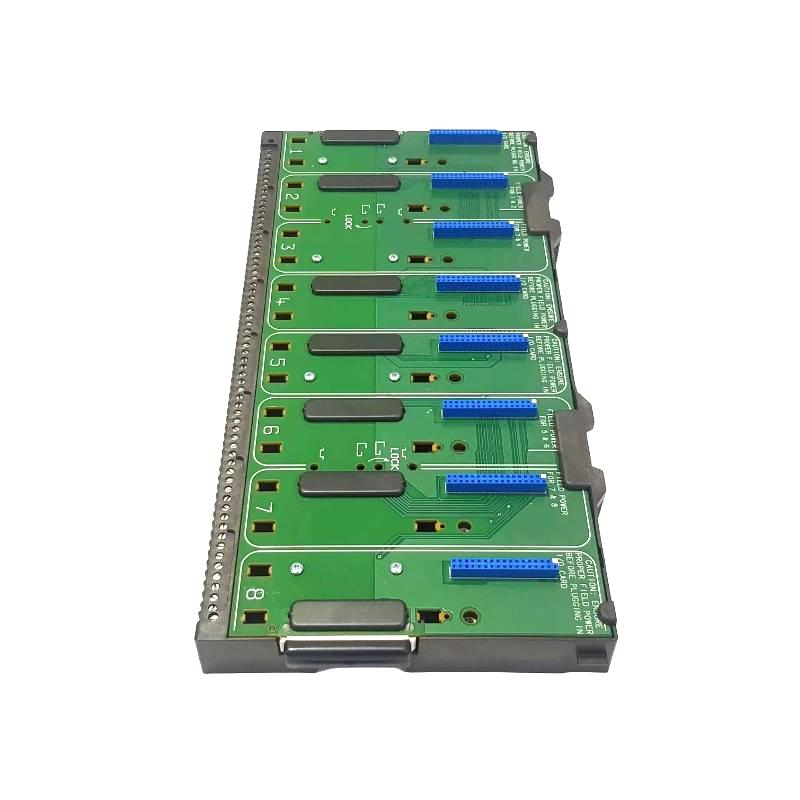

The Emerson VE4050S2K1C0 KJ4001X1-BE1 12P0818X042 8-Wide I/O Interface Carrier is a multi-position I/O infrastructure component designed for compatible Emerson DeltaV process automation systems. The carrier provides a structured platform for organizing and interconnecting multiple I/O components within an industrial control cabinet, helping create a consistent and maintainable process-control architecture.
In modern distributed control systems, numerous field instruments must be connected to controllers and higher-level automation software. These instruments can include transmitters, sensors, switches, actuators, and other process devices. An I/O carrier provides the physical framework required to arrange compatible I/O equipment in a defined cabinet layout while supporting the associated system interconnections.
The VE4050S2K1C0 is identified with the associated KJ4001X1-BE1 and 12P0818X042 designations and is described as an 8-Wide I/O Interface Carrier. These identification details are important when selecting replacement hardware because Emerson I/O assemblies can have similar physical appearances while serving different functions or supporting different system configurations.
The supplied dimensions are 336 × 31 × 169 mm, and the supplied weight is 0.69 kg. These physical specifications make the carrier suitable for structured installation within industrial automation cabinets where multiple I/O components must be arranged in a controlled and serviceable manner.
The VE4050S2K1C0 should be viewed as an I/O infrastructure component rather than a standalone PLC, controller, or process-signal module. Its role is to support the installation and interconnection of compatible I/O hardware within the overall Emerson control-system architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Emerson |
| Model | VE4050S2K1C0 |
| Associated Part Number | KJ4001X1-BE1 |
| Additional Identification | 12P0818X042 |
| Product Type | 8-Wide I/O Interface Carrier |
| Product Family | Emerson DeltaV I/O |
| Carrier Configuration | 8-Wide |
| Primary Function | I/O module mounting and system interconnection |
| Application | Process Automation and Distributed Control |
| Installation | Industrial control cabinet |
| Dimensions | 336 × 31 × 169 mm |
| Weight | 0.69 kg |
| System Role | I/O infrastructure and interface carrier |
Exact electrical interfaces, connector assignments, supported I/O module combinations, power requirements, and system-specific compatibility should be verified against the applicable Emerson hardware configuration before installation.
What Is the Emerson VE4050S2K1C0?
The Emerson VE4050S2K1C0 KJ4001X1-BE1 12P0818X042 is an 8-Wide I/O Interface Carrier used as part of a compatible Emerson process automation I/O architecture.
An I/O carrier differs from an individual I/O module. An I/O module normally performs a defined input or output function, while the carrier provides the physical and electrical infrastructure required to accommodate and interconnect multiple compatible modules.
The carrier can therefore be considered part of the foundation of the I/O system.
A simplified architecture is:
Field Instruments → Field Wiring → I/O Hardware → VE4050S2K1C0 Carrier → Control-System Infrastructure → DeltaV Controller → Operator / Engineering System
The actual arrangement depends on the specific DeltaV hardware generation and system configuration.
The 8-Wide designation indicates a multi-position carrier arrangement intended to organize multiple compatible I/O components within a common installation.
Understanding the Product Identification
The complete identification associated with this product is:
VE4050S2K1C0
KJ4001X1-BE1
12P0818X042
These identifiers should be retained together when documenting or sourcing the component.
For industrial automation spare-parts management, maintaining the complete product identification is important because a partial model number may not provide enough information to distinguish between similar I/O assemblies.
When replacing the carrier, technicians should compare the original hardware markings with the replacement part before installation.
Function and Working Principle
I/O Module Carrier Function
The primary function of the VE4050S2K1C0 is to provide a structured carrier platform for compatible I/O equipment.
The carrier helps establish a consistent physical arrangement in which multiple modules can be installed and connected.
This supports:
- Organized I/O installation
- Module positioning
- Electrical interconnection
- Cabinet space management
- Wiring organization
- Maintenance access
- System expansion planning
Electrical Interconnection
The carrier forms part of the electrical interconnection structure between the installed I/O components and the broader control-system infrastructure.
The exact electrical architecture depends on the Emerson system in which the carrier is installed.
For this reason, the VE4050S2K1C0 should always be considered together with its associated I/O modules, interface components, and system configuration.
Mechanical Support
The carrier also provides the physical mounting structure for the associated I/O arrangement.
A rigid and correctly installed carrier helps maintain consistent module alignment and reduces unnecessary mechanical stress on connectors and wiring.
Multi-Module Organization
The 8-Wide configuration provides a practical way to group multiple I/O positions within one defined area.
This is useful in process-control cabinets where numerous I/O signals must be organized in a predictable and maintainable layout.
Role in Emerson DeltaV Process Automation
The VE4050S2K1C0 can occupy an infrastructure-level position within a DeltaV process-control system.
A typical process-control architecture may contain:
- Field sensors
- Process transmitters
- Switches
- Control valves
- Actuators
- Field wiring
- I/O modules
- I/O interface carriers
- Controllers
- Communication infrastructure
- Engineering stations
- Operator workstations
The carrier provides the physical organization required for the compatible I/O hardware.
This separation between field instrumentation, I/O electronics, and control logic makes the overall automation system easier to organize and maintain.
8-Wide I/O Interface Architecture
The 8-Wide configuration is particularly useful when multiple I/O positions must be grouped into a compact and standardized cabinet arrangement.
Efficient Cabinet Organization
A multi-position carrier allows compatible I/O components to be arranged in a defined area.
This reduces unnecessary cabinet fragmentation and can make equipment identification easier.
Simplified Maintenance
When modules are installed in a structured carrier arrangement, technicians can more easily identify the relationship between individual I/O components.
Improved Wiring Management
A planned carrier layout can simplify cable routing and help maintain separation between field wiring and other cabinet circuits.
Expansion Planning
Where supported by the overall system architecture, a multi-position carrier can simplify future I/O expansion planning.
Any expansion should be checked against the applicable system design and supported module configuration.
Industrial Applications
Oil and Gas
Oil and gas facilities depend on extensive process instrumentation for monitoring and control.
An organized I/O carrier architecture can support the installation of numerous field-related I/O components within control cabinets.
Chemical Processing
Chemical plants often contain large numbers of distributed process instruments.
The VE4050S2K1C0 can be incorporated into compatible Emerson architectures where structured multi-module I/O installation is required.
Refining
Refineries use distributed measurement and control throughout processing units.
A standardized I/O carrier arrangement can help organize the associated control-system hardware.
Power Generation
Power-generation systems require monitoring and control of numerous plant variables and equipment systems.
An organized I/O architecture can simplify the physical integration of these signals into the control system.
Water and Wastewater
Treatment facilities use distributed instruments, pumps, valves, and other process equipment.
A structured I/O installation provides a practical way to organize the associated control electronics.
Pharmaceutical Production
Pharmaceutical manufacturing requires reliable instrumentation and controlled process conditions.
A properly structured I/O architecture supports organized installation and maintenance of process-control equipment.
General Process Automation
The carrier may also be suitable for other compatible batch and continuous-process applications using Emerson DeltaV automation equipment.
System Integration
The VE4050S2K1C0 should be integrated as part of a complete process-control hardware architecture.
A representative structure can be illustrated as:
Process Equipment
↓
Sensors and Field Devices
↓
Field Wiring
↓
Compatible I/O Modules
↓
VE4050S2K1C0 8-Wide I/O Interface Carrier
↓
I/O and Communication Infrastructure
↓
DeltaV Controller
↓
Operator and Engineering Stations
The exact arrangement depends on the specific hardware generation, I/O architecture, and control-system configuration.
The carrier should therefore be selected based on system compatibility rather than physical dimensions alone.
Installation Guidelines
Verify Complete Product Identification
Before installation, verify all available identification markings:
- VE4050S2K1C0
- KJ4001X1-BE1
- 12P0818X042
These identifiers should be compared with the existing installation and system documentation.
Confirm Cabinet Space
The supplied dimensions are:
336 × 31 × 169 mm
Cabinet planning should account for the carrier, installed modules, field wiring, connectors, and required maintenance access.
Secure Mechanical Installation
The carrier should be mounted securely using the appropriate installation method.
Avoid mechanical stress that could affect the carrier or installed I/O modules.
Check Associated Modules
Before inserting or connecting I/O modules, verify that the intended modules are compatible with the carrier and overall Emerson architecture.
Organize Wiring
Field wiring should be routed in a clean and systematic manner.
Important considerations include:
- Correct cable identification
- Secure connections
- Proper routing
- Adequate strain relief
- Separation from high-power conductors
- Protection against mechanical damage
Commissioning Procedure
A structured commissioning process can help identify installation problems before the system enters normal operation.
Step 1: Confirm Hardware Identity
Verify the VE4050S2K1C0, KJ4001X1-BE1, and 12P0818X042 identification.
Step 2: Inspect the Carrier
Check for cracks, physical damage, contamination, loose hardware, or connector problems.
Step 3: Verify Module Arrangement
Confirm that the installed I/O modules match the intended system configuration.
Step 4: Inspect Field Connections
Check wiring, terminal connections, cable routing, and identification.
Step 5: Verify System Configuration
Ensure that the engineering configuration corresponds with the installed physical I/O architecture.
Step 6: Test I/O Functions
Perform appropriate signal and I/O tests according to the plant commissioning procedure.
Step 7: Review Diagnostics
Check the DeltaV system and associated hardware diagnostics for configuration, communication, or hardware alarms.
Step 8: Return the System to Operation
After successful testing, restore the system to normal operating conditions following the approved commissioning procedure.
Troubleshooting Guide
Because the VE4050S2K1C0 is an I/O carrier, troubleshooting should consider the complete I/O assembly.
I/O Module Not Detected
If an installed module is not recognized, inspect:
- Module seating
- Carrier connections
- Connectors
- Associated power
- I/O module condition
- System configuration
- Controller diagnostics
A module configuration problem may produce symptoms that resemble a carrier failure.
Multiple I/O Modules Affected
If several modules associated with the carrier experience problems at the same time, investigate common infrastructure first.
Potential causes include:
- Carrier connection problems
- Power-related issues
- Communication problems
- Configuration errors
- Associated interface hardware faults
Intermittent Operation
Intermittent problems can result from:
- Loose connections
- Connector contamination
- Mechanical vibration
- Cable movement
- Wiring problems
- I/O module faults
- Environmental conditions
Physical inspection should be performed before replacing the carrier.
Communication Alarm
A communication alarm should be investigated across the complete system path.
Check:
- I/O module
- Carrier
- Associated interface
- Communication infrastructure
- Controller
- System configuration
This approach helps isolate the actual source of the fault.
Preventive Maintenance
Inspect the Carrier
Regularly inspect the VE4050S2K1C0 for physical damage, contamination, corrosion, or other abnormal conditions.
Check Connections
Verify that installed modules and connectors remain securely seated.
Inspect Wiring
Look for:
- Damaged insulation
- Loose connections
- Excessive cable bending
- Moisture
- Mechanical stress
- Poor cable routing
Maintain Cabinet Conditions
Control cabinets should be maintained in an environment suitable for the installed automation equipment.
Excessive heat, dust, moisture, and vibration can reduce long-term equipment reliability.
Monitor System Diagnostics
Recurring alarms should be investigated promptly.
Early diagnosis can prevent small connection or configuration problems from developing into larger process-control issues.
Physical Dimensions and Weight
The supplied physical specifications for the Emerson VE4050S2K1C0 are:
- Dimensions: 336 × 31 × 169 mm
- Weight: 0.69 kg
These specifications are useful for:
- Cabinet design
- Panel-space planning
- Spare-parts inventory
- Replacement preparation
- Shipping calculations
- Maintenance documentation
The weight should be treated as the supplied product specification and should not be confused with shipping weight unless separately specified.
Replacement Considerations
When sourcing a replacement for the VE4050S2K1C0, technicians should verify the complete product identification.
The following should be checked:
- VE4050S2K1C0 model
- KJ4001X1-BE1 identification
- 12P0818X042 identification
- 8-Wide carrier configuration
- Compatible I/O modules
- Associated interface hardware
- System generation
- Cabinet installation arrangement
- Hardware revision where applicable
Physical similarity is not sufficient to establish compatibility.
A different carrier may have similar dimensions while supporting a different I/O architecture.
Related Emerson Components
The VE4050S2K1C0 can be used within a broader Emerson process-control environment containing components such as:
| Component | General Function |
|---|---|
| I/O Interface Carrier | Provides I/O module mounting and interconnection |
| M Series I/O Module | Processes field input or output signals |
| Terminal Block | Provides field wiring termination |
| Field Interface Components | Connect field devices to I/O hardware |
| Controller | Executes control logic |
| Power Infrastructure | Supplies system operating power |
| Communication Infrastructure | Transfers control-system information |
| Engineering Station | Provides system configuration and engineering |
| Operator Station | Provides process monitoring and operation |
| Field Instruments | Measure process variables |
Exact compatibility should always be confirmed for the intended DeltaV configuration.
Engineering Best Practices
Maintain Complete Part Identification
Record the complete VE4050S2K1C0 / KJ4001X1-BE1 / 12P0818X042 identification in equipment documentation.
Keep Cabinet Layout Organized
The carrier dimensions should be incorporated into the cabinet layout together with associated modules and wiring.
Use Clear Wiring Labels
Accurate cable and module identification can significantly reduce troubleshooting time.
Maintain Configuration Consistency
The physical arrangement should correspond with the engineering configuration of the DeltaV system.
Protect the I/O Environment
Keep the control cabinet clean and maintain appropriate environmental conditions.
Document Hardware Replacement
Record the replacement date, model number, hardware identification, installation position, and reason for replacement.
Key Advantages
8-Wide I/O Organization
The VE4050S2K1C0 provides an organized multi-position carrier arrangement for compatible Emerson I/O equipment.
Compact Cabinet Profile
With dimensions of 336 × 31 × 169 mm, the carrier can be incorporated into structured industrial control cabinets.
Multi-Module Infrastructure
The carrier supports the organization of multiple I/O positions within a common installation.
Emerson DeltaV Integration
The component is intended for use within compatible Emerson process automation architectures.
Simplified Maintenance
A structured carrier arrangement makes module identification, inspection, wiring management, and replacement easier.
Multiple Identification References
The VE4050S2K1C0, KJ4001X1-BE1, and 12P0818X042 designations provide important identification information for maintenance and spare-parts management.
Technical FAQs
What is the Emerson VE4050S2K1C0?
The Emerson VE4050S2K1C0 is an 8-Wide I/O Interface Carrier designed for compatible Emerson process automation and DeltaV I/O architectures.
What is the associated part number?
The supplied associated part number is KJ4001X1-BE1, with the additional identification 12P0818X042.
What is the primary function of the VE4050S2K1C0?
Its primary function is to provide a structured carrier and interconnection platform for compatible I/O components within an industrial process-control system.
Is the VE4050S2K1C0 an I/O module?
No. It is an I/O Interface Carrier rather than a standalone analog, digital, or process-control I/O module.
What does 8-Wide mean?
The 8-Wide designation describes the multi-position configuration of the I/O carrier. The exact supported module arrangement should be confirmed against the relevant Emerson system configuration.
What are the dimensions of the VE4050S2K1C0?
The supplied dimensions are 336 × 31 × 169 mm.
How much does the VE4050S2K1C0 weigh?
The supplied weight is 0.69 kg.
Where is the VE4050S2K1C0 installed?
It is intended for installation within compatible industrial control cabinets as part of an Emerson I/O architecture.
Can another 8-Wide carrier replace the VE4050S2K1C0?
Not automatically. The complete model number, associated part number, hardware identification, module compatibility, and system architecture should be verified before replacement.
What should be checked if multiple I/O modules stop communicating?
When several modules are affected simultaneously, inspect common infrastructure such as the carrier, connections, power, communication paths, associated interface hardware, and system configuration before replacing individual modules.
Conclusion
The Emerson VE4050S2K1C0 KJ4001X1-BE1 12P0818X042 8-Wide I/O Interface Carrier is a specialized infrastructure component for compatible Emerson process automation systems. It provides a structured platform for organizing and interconnecting multiple I/O components within an industrial control cabinet, helping establish a maintainable and systematic I/O architecture.
With supplied dimensions of 336 × 31 × 169 mm and a weight of 0.69 kg, the VE4050S2K1C0 can be considered during cabinet planning, spare-parts management, replacement preparation, and maintenance activities.
For installation and replacement, technicians should verify all three identification references—VE4050S2K1C0, KJ4001X1-BE1, and 12P0818X042—together with the intended I/O modules and DeltaV system configuration. Proper mechanical installation, accurate module identification, organized field wiring, correct system configuration, and systematic commissioning are essential for reliable operation of the overall I/O architecture.
